GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)

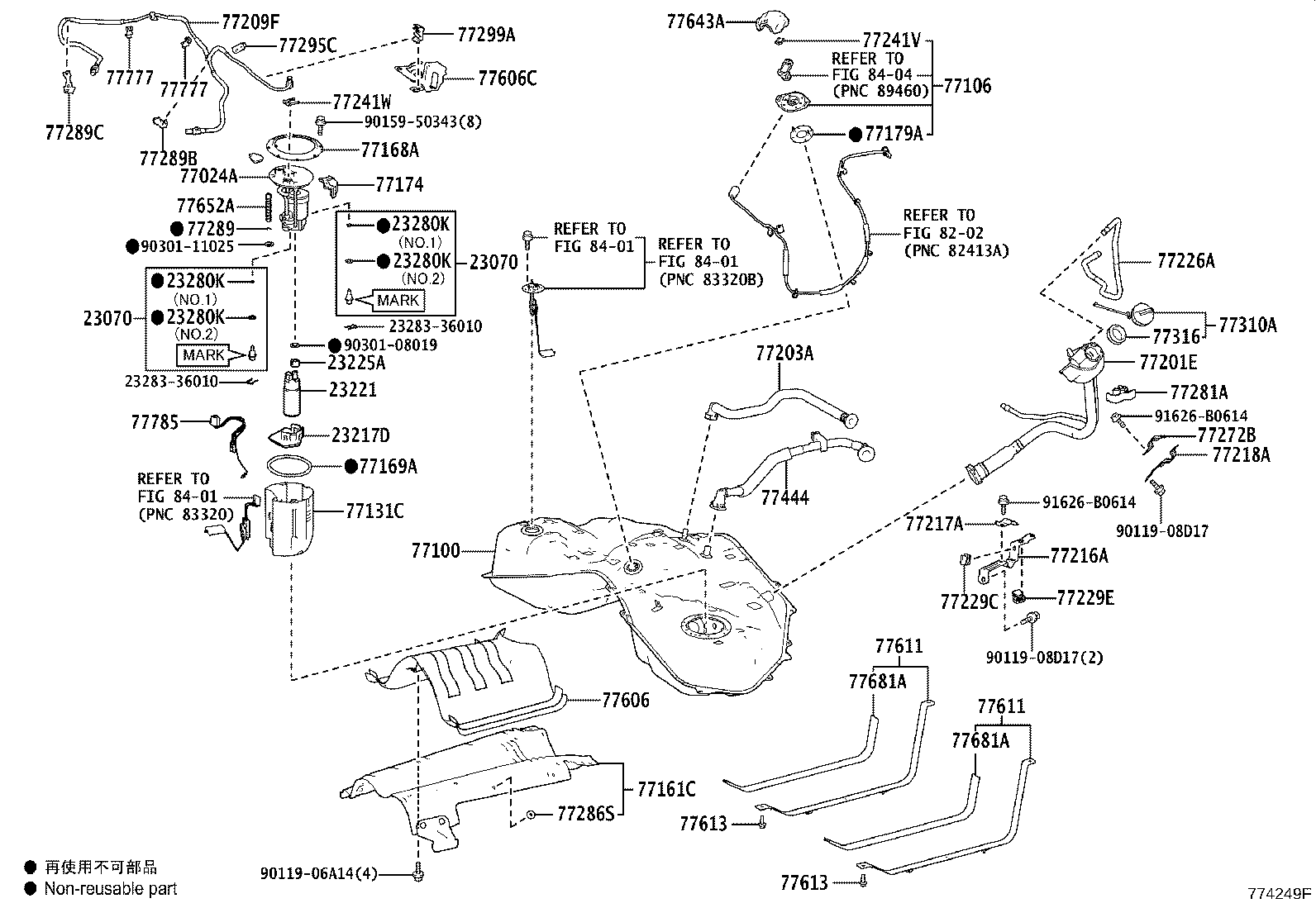

ILLUST NO. 1 OF 3(1701- )GWZ100
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-31030 |
8GRFXS,2URGSE..GWZ100,URZ100 MARK 23070-31030 |
1 | ||
| 23070-36010 |
8GRFXS..GWZ100 MARK 23070-36010 |
1 | ||
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-31030 |
8GRFXS,2URGSE..GWZ100,URZ100 MARK 23070-31030 |
1 | ||
| 23070-36010 |
8GRFXS..GWZ100 MARK 23070-36010 |
1 | ||
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-31080 |
8GRFXS,2URGSE..GWZ100,URZ100 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-31130 |
8GRFXS,2URGSE..GWZ100,URZ100 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-31010 |
8GRFXS,2URGSE..GWZ100,URZ100 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
8GRFXS,2URGSE..GWZ100,URZ100 NO.1 |
2 | ||
| 90301-15024 |
8GRFXS,2URGSE..GWZ100,URZ100 NO.2 |
2 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
8GRFXS,2URGSE..GWZ100,URZ100 NO.1 |
2 | ||
| 90301-15024 |
8GRFXS,2URGSE..GWZ100,URZ100 NO.2 |
2 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
8GRFXS,2URGSE..GWZ100,URZ100 NO.1 |
2 | ||
| 90301-15024 |
8GRFXS,2URGSE..GWZ100,URZ100 NO.2 |
2 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
8GRFXS,2URGSE..GWZ100,URZ100 NO.1 |
2 | ||
| 90301-15024 |
8GRFXS,2URGSE..GWZ100,URZ100 NO.2 |
2 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-11020 |
GWZ100 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-11090 |
GWZ100 |
1 | ||
| 77001-11091 |
GWZ100 |
1 | ||
| 77106 - PLATE SUB-ASSY, FUEL TANK SIDE, REAR | ||||
| 77106-30040 |
GWZ100 |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-11010 |
GWZ100,URZ100 |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77607-11010 |
GWZ100,URZ100 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52020 |
GWZ100,URZ100 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-53010 |
GWZ100,URZ100 |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-48040 |
GWZ100,URZ100 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-20040 |
GWZ100 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-11100 |
GWZ100,URZ100 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-11050 |
GWZ100,URZ100 |
1 | ||
| 77203-11051 |
GWZ100,URZ100 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-11070 |
GWZ100 |
1 | ||
| 77209-11050 |
GWZ100 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-11010 |
GWZ100,URZ100 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-11050 |
GWZ100,URZ100 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-11010 |
GWZ100,URZ100 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-11030 |
GWZ100,URZ100 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-11080 |
GWZ100,URZ100 |
1 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-11090 |
GWZ100,URZ100 |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GWZ100 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GWZ100,URZ100 |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-11030 |
GWZ100,URZ100 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77229-11100 |
GWZ100,URZ100 |
1 | ||
| 77286S - CUSHION, FUEL TANK PROTECTOR | ||||
| 77286-12110 |
GWZ100,URZ100 |
4 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52090 |
GWZ100,URZ100 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-11030 |
GWZ100,URZ100 |
1 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77289-11040 |
GWZ100,URZ100 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-11010 |
GWZ100,URZ100 |
1 | ||
| 77295-35260 |
GWZ100,URZ100 |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77289-50070 |
GWZ100 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-53040 |
GWZ100 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
GWZ100,URZ100 |
1 | ||
| 77444 - HOSE, FUEL TANK VENT | ||||
| 77404-11070 |
GWZ100 |
1 | ||
| 77404-11071 |
GWZ100 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-11020 |
GWZ100,URZ100 |
1 | ||
| 77606C - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77607-11020 |
GWZ100 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-11040 |
GWZ100,URZ100 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-11040 |
GWZ100,URZ100 |
2 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
GWZ100,URZ100 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
GWZ100,URZ100 |
4 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-48010 |
GWZ100 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-22090 |
GWZ100,URZ100 |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-21020 |
GWZ100,URZ100 |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-21020 |
GWZ100,URZ100 |
2 | ||
| 77777 - BRACKET, FUEL TUBE CLAMP | ||||
| 77778-50020 |
GWZ100,URZ100 |
2 | ||
| 77777 - BRACKET, FUEL TUBE CLAMP | ||||
| 77778-50020 |
GWZ100,URZ100 |
2 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-30050 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 23283-36010 | ||||
| 90119-06A14 | ||||
| 90119-08D17 | ||||
| 90159-50343 | ||||
| 90301-08019 | ||||
| 90301-11025 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
| 8404 | ||||

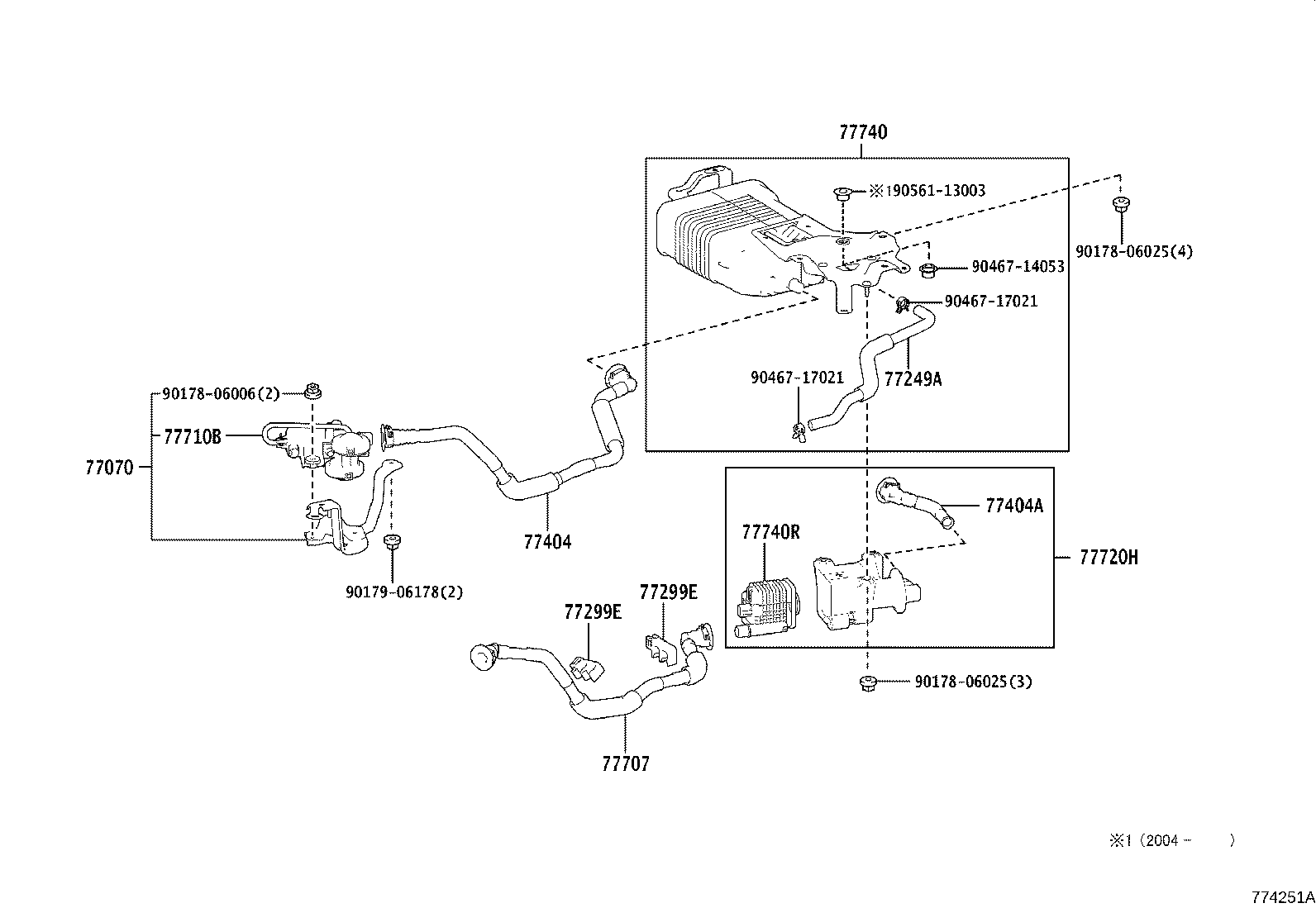

ILLUST NO. 3 OF 4(1701- )GWZ100
CHARCOAL CANISTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77070 - VALVE ASSY, FUEL TANK SOLENOID W/HOSE | ||||
| 77070-11010 |
GWZ100 |
1 | ||
| 77249A - HOSE, FUEL EMISSION | ||||
| 77249-11070 |
GWZ100,URZ100 |
1 | ||
| 77249-11010 |
GWZ100,URZ100 |
1 | ||
| 77299E - CLAMP (FOR CHARCOAL CANISTER PIPE) | ||||
| 77299-50030 |
GWZ100,URZ100 |
2 | ||
| 77299E - CLAMP (FOR CHARCOAL CANISTER PIPE) | ||||
| 77299-50030 |
GWZ100,URZ100 |
2 | ||
| 77404 - HOSE SUB-ASSY, FUEL TANK VENT | ||||
| 77404-11020 |
GWZ100,URZ100 |
1 | ||
| 77404A - HOSE SUB-ASSY,FUEL TANK VENT | ||||
| 77404-11010 |
GWZ100,URZ100 |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-11010 |
GWZ100,URZ100 |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-48020 |
GWZ100 |
1 | ||
| 77720H - VALVE ASSY, FUEL OUTLET | ||||
| 77720-11010 |
GWZ100 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-11050 |
GWZ100,URZ100 |
1 | ||
| 77740-11100 |
GWZ100,URZ100 |
1 | ||
| 77740R - PUMP SUB-ASSY, LEAK DETECTION | ||||
| 90910-14008 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90178-06006 | ||||
| 90178-06025 | ||||
| 90179-06178 | ||||
| 90467-14053 | ||||
| 90467-17021 | ||||
| 90561-13003 | ||||

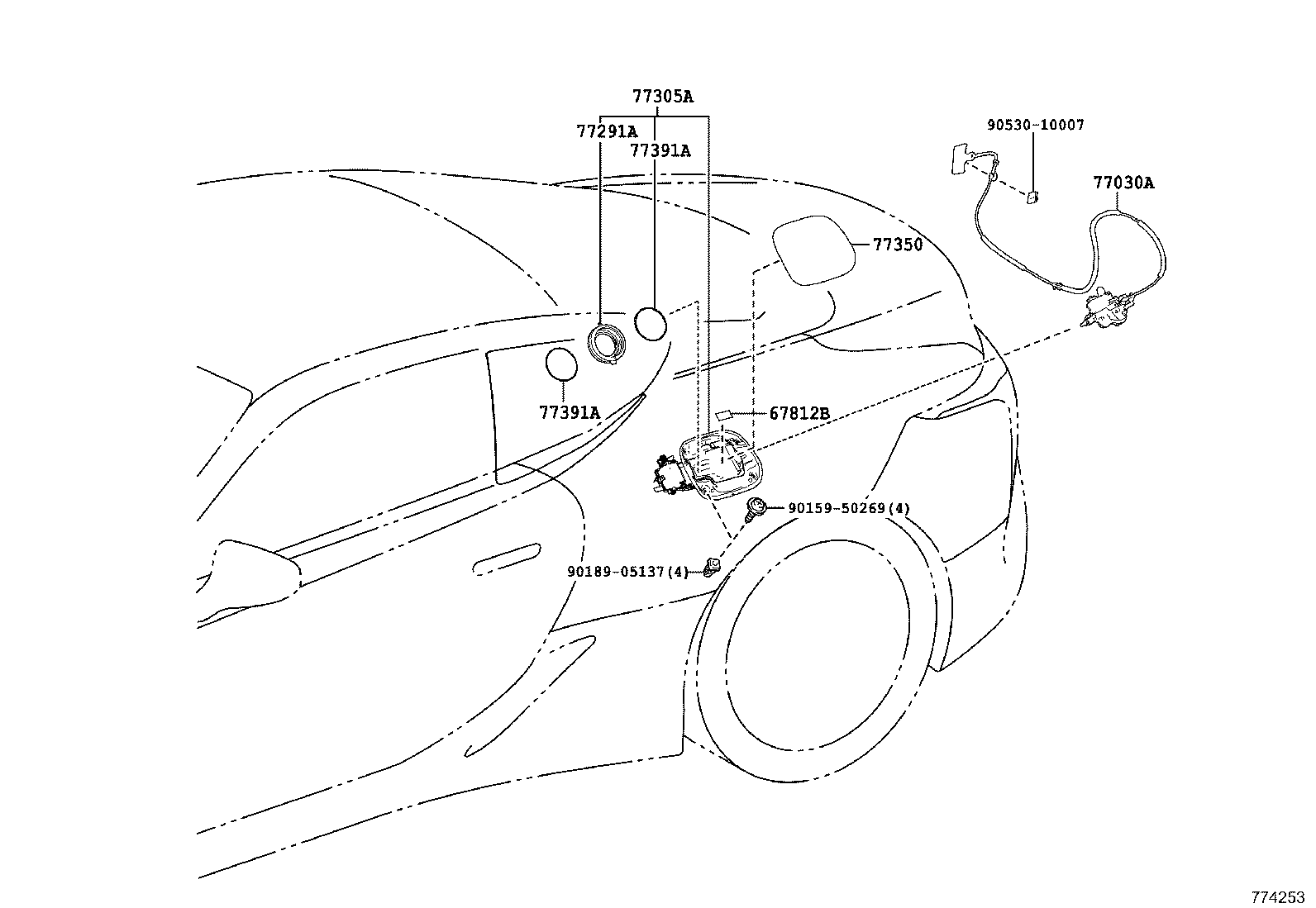

ILLUST NO. 4 OF 4(1701- )
FUEL LID OPNER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67812B - PAD, FUEL LID SILENCER | ||||
| 67812-30080 |
GWZ100,URZ100 |
1 | ||
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-11010 |
GWZ100,URZ100 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-24020 |
GWZ100,URZ100 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-11022 |
GWZ100,URZ100 |
1 | ||
| 77305-11020 |
GWZ100,URZ100 |
1 | ||
| 77305-11021 |
GWZ100,URZ100 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-11010 |
GWZ100,URZ100 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
GWZ100,URZ100 |
2 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
GWZ100,URZ100 |
2 | ||
| Common parts | ||||
| 90159-50269 | ||||
| 90189-05137 | ||||
| 90530-10007 | ||||

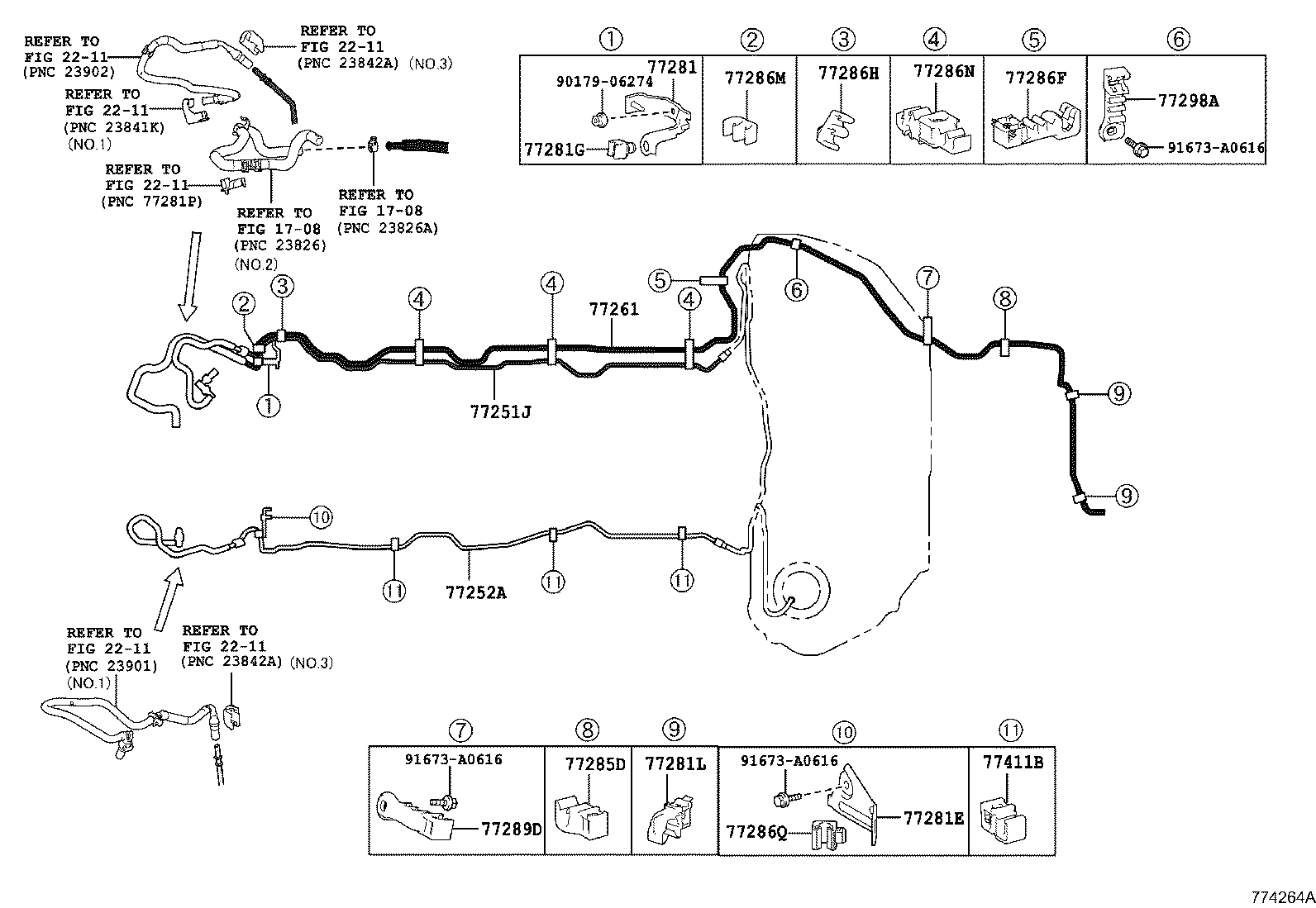

ILLUST NO. 2 OF 4(1701- )GWZ100
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251J - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-11110 |
GWZ100 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-11030 |
GWZ100 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-11040 |
GWZ100 |
1 | ||
| 77261-11060 |
GWZ100 |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-11050 |
GWZ100 |
1 | ||
| 77281E - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-11070 |
GWZ100 |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77286-11061 |
GWZ100 |
1 | ||
| 77286-11060 |
GWZ100 |
1 | ||
| 77281L - CLAMP, FUEL HOSE | ||||
| 89639-28130 |
GWZ100,URZ100 |
2 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-11010 |
GWZ100,URZ100 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-11010 |
GWZ100,URZ100 |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77286-11020 |
GWZ100,URZ100 |
1 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77286-11070 |
GWZ100 |
1 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77289-11010 |
GWZ100 |
3 | ||
| 77286Q - CLAMP, FUEL TUBE, NO.9 | ||||
| 77298-11030 |
GWZ100 |
1 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 77298-11020 |
GWZ100,URZ100 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-11010 |
GWZ100,URZ100 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77299-48020 |
GWZ100 |
3 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91673-A0616 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
