GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)

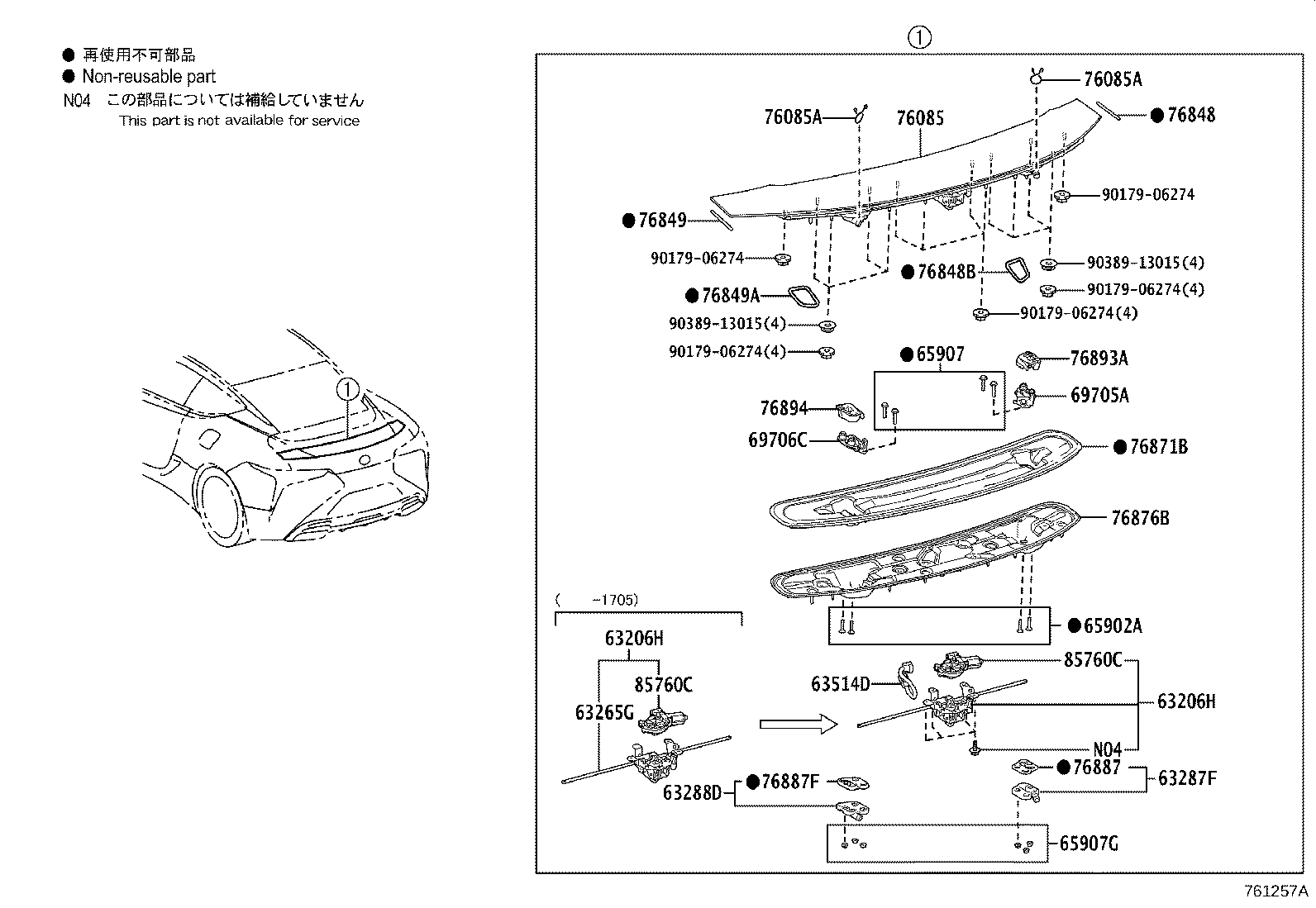

ILLUST NO. 2 OF 2(1701- )
W(ACTIVE REAR WING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63206H - GEAR SUB-ASSY, REAR SPOILER DRIVE | ||||
| 63206-11020 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 63206-11020 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 63206H - GEAR SUB-ASSY, REAR SPOILER DRIVE | ||||
| 63206-11020 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 63206-11020 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 63265G - GEAR, REAR SPOILER DRIVE | ||||
| 63265-24010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 63287F - CAP, REAR SPOILER DRAIN END, RH | ||||
| 63287-11010 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 63287-11010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 63288D - CAP, REAR SPOILER DRAIN END, LH | ||||
| 63288-11010 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 63288-11010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 63514D - WIRE, CONNECTOR | ||||
| 63514-11020 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 63514-11020 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 65902A - BOLT, REAR SPOILER | ||||
| 65902-24010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 65902-24010 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 65907 - BOLT, REAR SPOILER | ||||
| 65907-24010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 65907-24010 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 65907G - NUT, REAR SPOILER | ||||
| 65907-24020 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 65907-24020 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 69705A - LINK SUB-ASSY, TOP COVER LOCK CONTROL, RH | ||||
| 69705-11010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 69705-11010 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 69706C - LINK SUB-ASSY, TOP COVER LOCK CONTROL, LH | ||||
| 69706-11030 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 69706-11030 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-11030 |
GWZ100,URZ100 NO PAINT REQ.,"AVIATION"*(D) |
1 | ||
| 76085-11900 |
GWZ100,URZ100 PAINT REQ.,LUSTER YELLOW*() |
1 | ||
| 76085-11900 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 76085A - CAP(FOR REAR SPOILER) | ||||
| 90467-19003 |
GWZ100,URZ100 LUSTER YELLOW*() |
2 | ||
| 90467-19003 |
GWZ100,URZ100 "S PACKAGE" |
2 | ||
| 76085A - CAP(FOR REAR SPOILER) | ||||
| 90467-19003 |
GWZ100,URZ100 LUSTER YELLOW*() |
2 | ||
| 90467-19003 |
GWZ100,URZ100 "S PACKAGE" |
2 | ||
| 76848 - PROTECTOR, REAR SPOILER, NO.12 RH | ||||
| 76848-11010 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 76848-11010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 76848B - PROTECTOR, REAR SPOILER, RH | ||||
| 76848-11020 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 76848-11020 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 76849 - PROTECTOR, REAR SPOILER, NO.12 LH | ||||
| 76849-11010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 76849-11010 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 76849A - PROTECTOR, REAR SPOILER, LH | ||||
| 76849-11020 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 76849-11020 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 76871B - COVER, REAR SPOILER | ||||
| 76871-11010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 76871-11010 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 76876B - INSERT, REAR SPOILER | ||||
| 76876-11010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 76876-11010 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 76887 - SEAL, REAR SPOILER | ||||
| 76887-11010 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 76887-11030 |
GWZ100,URZ100 "AVIATION"*(D) |
2 | ||
| 76887-11010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 76887F - SEAL, REAR SPOILER, NO.2 | ||||
| 76887-11020 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 76887-11020 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 76893A - COVER, REAR SPOILER, RH | ||||
| 76893-24020 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 76893-24020 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 76894 - COVER, REAR SPOILER, LH | ||||
| 76894-24010 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 76894-24010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 85760C - MOTOR ASSY, REAR SPOILER | ||||
| 85760-24010 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 85760-24010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 85760C - MOTOR ASSY, REAR SPOILER | ||||
| 85760-24010 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 85760-24010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90389-13015 | ||||

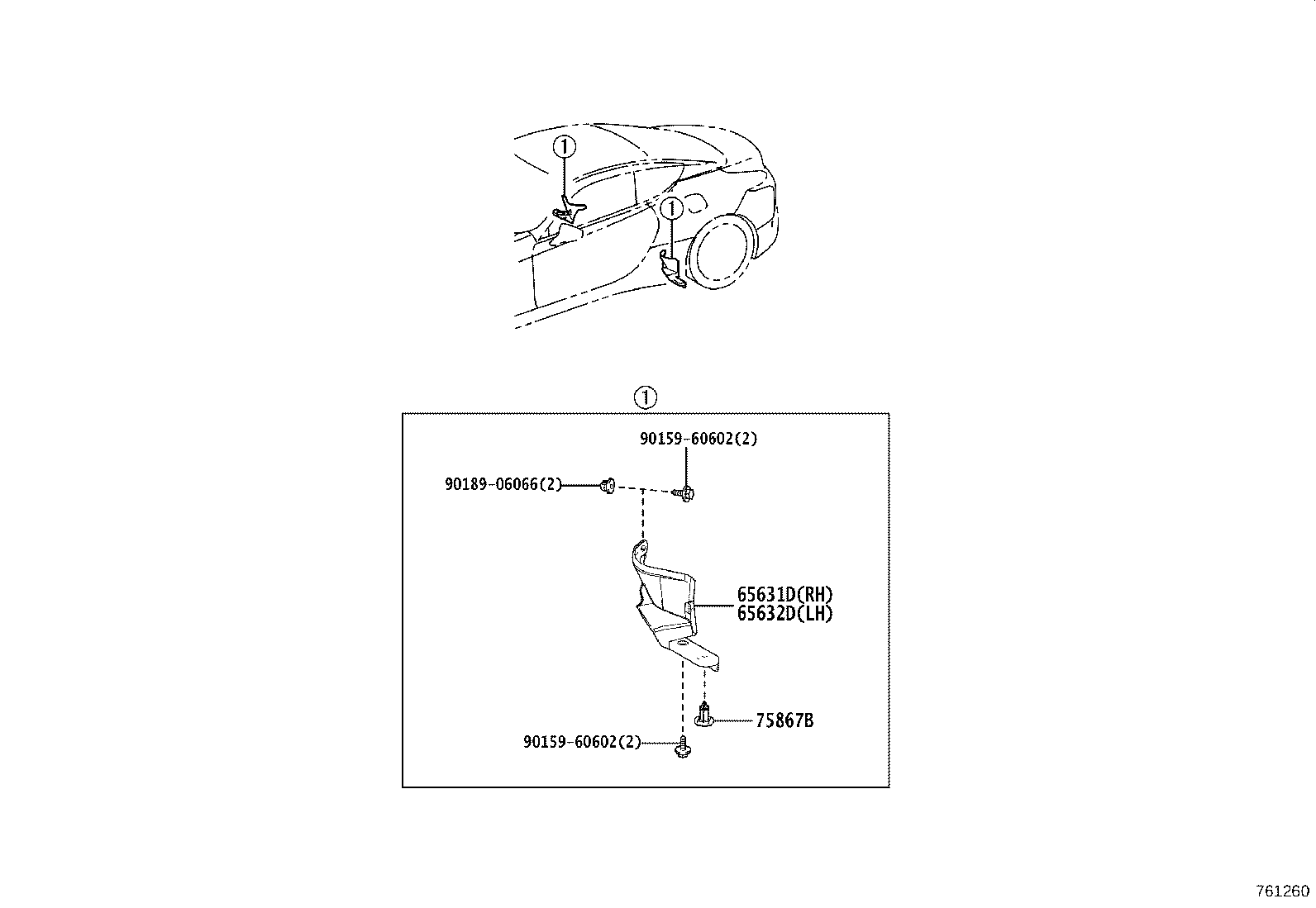

ILLUST NO. 1 OF 2(1701- )
REAR WHEEL HOUSE PLATE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65631D - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-11010 |
GWZ100,URZ100 |
1 | ||
| 65632D - PLATE, REAR WHEEL HOUSE, FRONT LH | ||||
| 65632-11010 |
GWZ100,URZ100 |
1 | ||
| 75867B - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-33050 |
GWZ100,URZ100 |
2 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90189-06066 | ||||

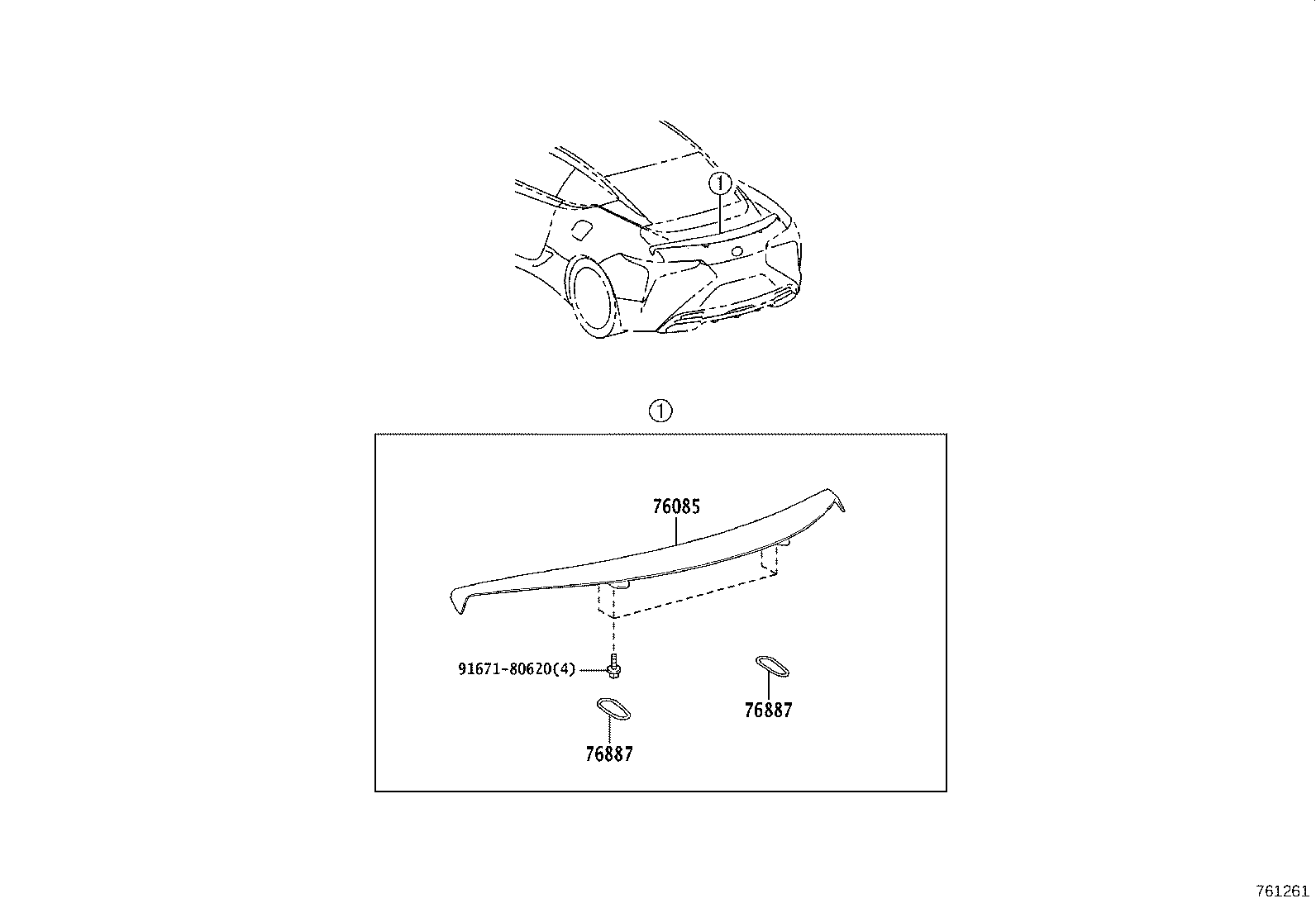

ILLUST NO. 2 OF 2(2101- )
W(REAR SPOILER(FIXED TYPE))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-11030 |
GWZ100,URZ100 NO PAINT REQ.,"AVIATION"*(D) |
1 | ||
| 76085-11900 |
GWZ100,URZ100 PAINT REQ.,LUSTER YELLOW*() |
1 | ||
| 76085-11900 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 76887 - SEAL, REAR SPOILER | ||||
| 76887-11010 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 76887-11030 |
GWZ100,URZ100 "AVIATION"*(D) |
2 | ||
| 76887-11010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 76887 - SEAL, REAR SPOILER | ||||
| 76887-11010 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 76887-11030 |
GWZ100,URZ100 "AVIATION"*(D) |
2 | ||
| 76887-11010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| Common parts | ||||
| 91671-80620 | ||||
