GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)

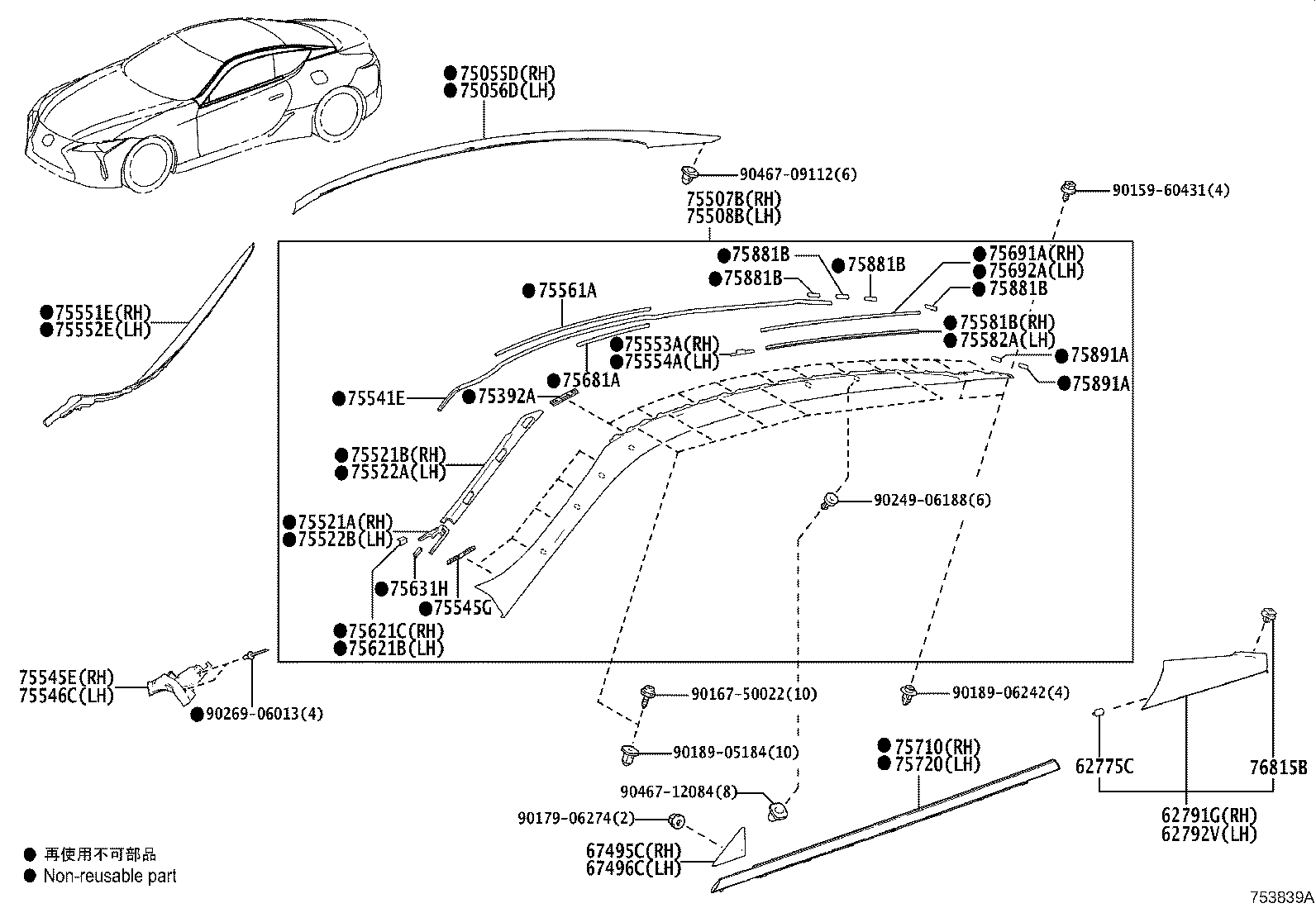

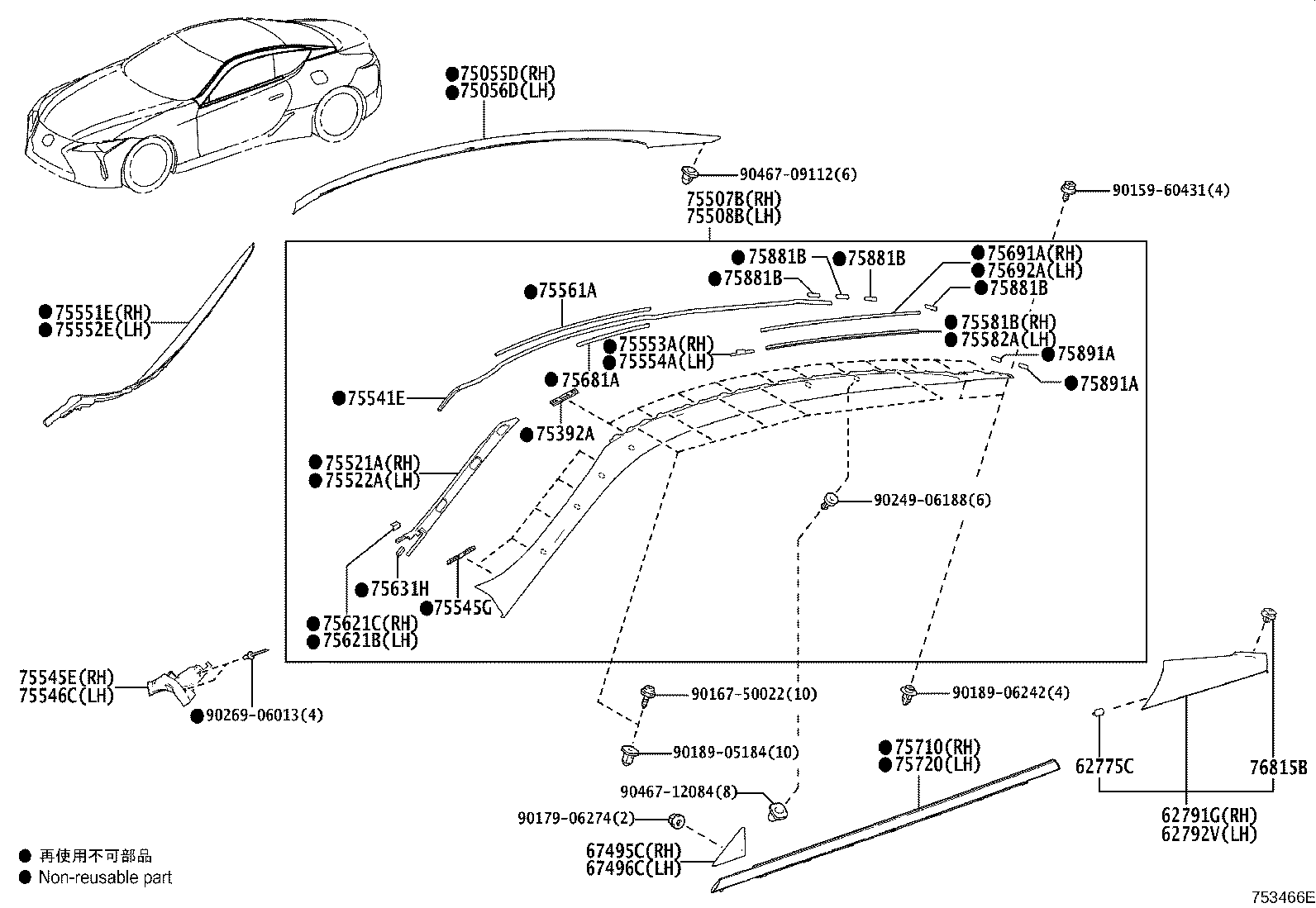

ILLUST NO. 1 OF 2(1701-1903)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62775C - CLIP, QUARTER WINDOW | ||||
| 62775-76010 |
GWZ100,URZ100 |
8 | ||
| 62791G - MOULDING, QUARTER WINDOW, UPPER RH | ||||
| 62791-11010 |
GWZ100,URZ100 |
1 | ||
| 62792V - MOULDING, QUARTER WINDOW, UPPER LH | ||||
| 62792-11010 |
GWZ100,URZ100 |
1 | ||
| 67495C - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-11010 |
GWZ100,URZ100 |
1 | ||
| 67496C - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-11010 |
GWZ100,URZ100 |
1 | ||
| 75055D - GARNISH SUB-ASSY, ROOF SIDE, REAR RH | ||||
| 75055-11010 |
GWZ100,URZ100 |
1 | ||
| 75056D - GARNISH SUB-ASSY, ROOF SIDE, REAR LH | ||||
| 75056-11010 |
GWZ100,URZ100 |
1 | ||
| 75392A - RETAINER, OUTSIDE MOULDING, NO.1 | ||||
| 75392-11010 |
GWZ100,URZ100 |
22 | ||
| 75507B - GARNISH SUB-ASSY, ROOF SIDE RAIL, RH | ||||
| 62403-11010J1 |
GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
1 | ||
| 62403-11010B0 |
GWZ100,URZ100 DK.GRAY MC.,1G0 |
1 | ||
| 62403-11010D0 |
GWZ100,URZ100 GARNET RED MC.,3S0 |
1 | ||
| 62403-11010E0 |
GWZ100,URZ100 AMBER CS.,4X2 |
1 | ||
| 62403-11010A1 |
GWZ100,URZ100 WHITE NOVA GF.,083 |
1 | ||
| 62403-11010B1 |
GWZ100,URZ100 SONIC SILVER,1J2 |
1 | ||
| 62403-11010D1 |
GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
1 | ||
| 62403-11010B2 |
GWZ100,URZ100 SONIC TITANIUM,1J7 |
1 | ||
| 62403-11010G0 |
GWZ100,URZ100 TERRANE KHAKI M.M.,6X4 |
1 | ||
| 62403-11010C1 |
GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
1 | ||
| 62403-11010E1 |
GWZ100,URZ100 BLAZING CARNELIAN CONTRAS,4Y1 |
1 | ||
| 62403-11010C0 |
GWZ100,URZ100 BLACK,212 |
1 | ||
| 62403-11010F0 |
GWZ100,URZ100 NAPLES YELLOW,5C1 |
1 | ||
| 62403-11010J0 |
GWZ100,URZ100 DEEP BLUE MC.,8X5 |
1 | ||
| 75508B - GARNISH SUB-ASSY, ROOF SIDE RAIL, LH | ||||
| 62404-11010C1 |
GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
1 | ||
| 62404-11010J1 |
GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
1 | ||
| 62404-11010D1 |
GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
1 | ||
| 62404-11010B0 |
GWZ100,URZ100 DK.GRAY MC.,1G0 |
1 | ||
| 62404-11010E0 |
GWZ100,URZ100 AMBER CS.,4X2 |
1 | ||
| 62404-11010D0 |
GWZ100,URZ100 GARNET RED MC.,3S0 |
1 | ||
| 62404-11010F0 |
GWZ100,URZ100 NAPLES YELLOW,5C1 |
1 | ||
| 62404-11010J0 |
GWZ100,URZ100 DEEP BLUE MC.,8X5 |
1 | ||
| 62404-11010A1 |
GWZ100,URZ100 WHITE NOVA GF.,083 |
1 | ||
| 62404-11010B1 |
GWZ100,URZ100 SONIC SILVER,1J2 |
1 | ||
| 62404-11010G0 |
GWZ100,URZ100 TERRANE KHAKI M.M.,6X4 |
1 | ||
| 62404-11010C0 |
GWZ100,URZ100 BLACK,212 |
1 | ||
| 62404-11010B2 |
GWZ100,URZ100 SONIC TITANIUM,1J7 |
1 | ||
| 62404-11010E1 |
GWZ100,URZ100 BLAZING CARNELIAN CONTRAS,4Y1 |
1 | ||
| 75521A - COVER, GRILLE OPENING MOULDING END, NO.1 | ||||
| 75521-11010 |
GWZ100,URZ100 |
1 | ||
| 75521-11011 |
GWZ100,URZ100 |
1 | ||
| 75522A - COVER, GRILLE OPENING MOULDING END, NO.2 | ||||
| 75522-11010 |
GWZ100,URZ100 |
1 | ||
| 75522-11011 |
GWZ100,URZ100 |
1 | ||
| 75541E - COVER, WINDOW MOULDING JOINT, UPPER | ||||
| 75541-11010 |
GWZ100,URZ100 |
2 | ||
| 75545E - CLIP, ROOF DRIP SIDE FINISH MOULDING, RH | ||||
| 75545-11010 |
GWZ100,URZ100 |
1 | ||
| 75545G - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1 | ||||
| 75545-11020 |
GWZ100,URZ100 |
10 | ||
| 75546C - CLIP, ROOF DRIP SIDE FINISH MOULDING, LH | ||||
| 75546-11010 |
GWZ100,URZ100 |
1 | ||
| 75551E - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-11010 |
GWZ100,URZ100 |
1 | ||
| 75552E - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-11010 |
GWZ100,URZ100 |
1 | ||
| 75553A - MOULDING, ROOF DRIP SIDE FINISH, REAR RH | ||||
| 75553-11040 |
GWZ100,URZ100 |
1 | ||
| 75554A - MOULDING, ROOF DRIP SIDE FINISH, REAR LH | ||||
| 75554-11040 |
GWZ100,URZ100 |
1 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-11020 |
GWZ100,URZ100 |
2 | ||
| 75581B - COVER, BACK WINDOW MOULDING JOINT, UPPER RH | ||||
| 75581-11010 |
GWZ100,URZ100 |
1 | ||
| 75582A - COVER, BACK WINDOW MOULDING JOINT, UPPER LH | ||||
| 75582-11010 |
GWZ100,URZ100 |
1 | ||
| 75621B - MOULDING, SIDE PANEL, NO.1 LH | ||||
| 75621-11010 |
GWZ100,URZ100 |
1 | ||
| 75621C - MOULDING, SIDE PANEL, NO.1 RH | ||||
| 75621-11010 |
GWZ100,URZ100 |
1 | ||
| 75631H - MOULDING, ROOF TOP | ||||
| 75631-11010 |
GWZ100,URZ100 |
2 | ||
| 75681A - MOULDING, CENTER PILLAR EXTENSION BELT | ||||
| 75681-11010 |
GWZ100,URZ100 |
2 | ||
| 75691A - PAD, FRONT FENDER OUTSIDE MOULDING, RH | ||||
| 75691-11010 |
GWZ100,URZ100 |
1 | ||
| 75692A - PAD, FRONT FENDER OUTSIDE MOULDING, LH | ||||
| 75691-11010 |
GWZ100,URZ100 |
1 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 75710-11010 |
GWZ100,URZ100 |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 75720-11010 |
GWZ100,URZ100 |
1 | ||
| 75881B - JOINT, OUTSIDE MOULDING | ||||
| 75881-11010 |
GWZ100,URZ100 |
8 | ||
| 75881B - JOINT, OUTSIDE MOULDING | ||||
| 75881-11010 |
GWZ100,URZ100 |
8 | ||
| 75881B - JOINT, OUTSIDE MOULDING | ||||
| 75881-11010 |
GWZ100,URZ100 |
8 | ||
| 75881B - JOINT, OUTSIDE MOULDING | ||||
| 75881-11010 |
GWZ100,URZ100 |
8 | ||
| 75891A - JOINT, FRONT FENDER MOULDING, NO.1 | ||||
| 75891-11010 |
GWZ100,URZ100 |
4 | ||
| 75891A - JOINT, FRONT FENDER MOULDING, NO.1 | ||||
| 75891-11010 |
GWZ100,URZ100 |
4 | ||
| 76815B - GARNISH, QUARTER WINDOW MOULDING | ||||
| 76815-11010 |
GWZ100,URZ100 |
2 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90167-50022 | ||||
| 90179-06274 | ||||
| 90189-05184 | ||||
| 90189-06242 | ||||
| 90249-06188 | ||||
| 90269-06013 | ||||
| 90467-09112 | ||||
| 90467-12084 | ||||

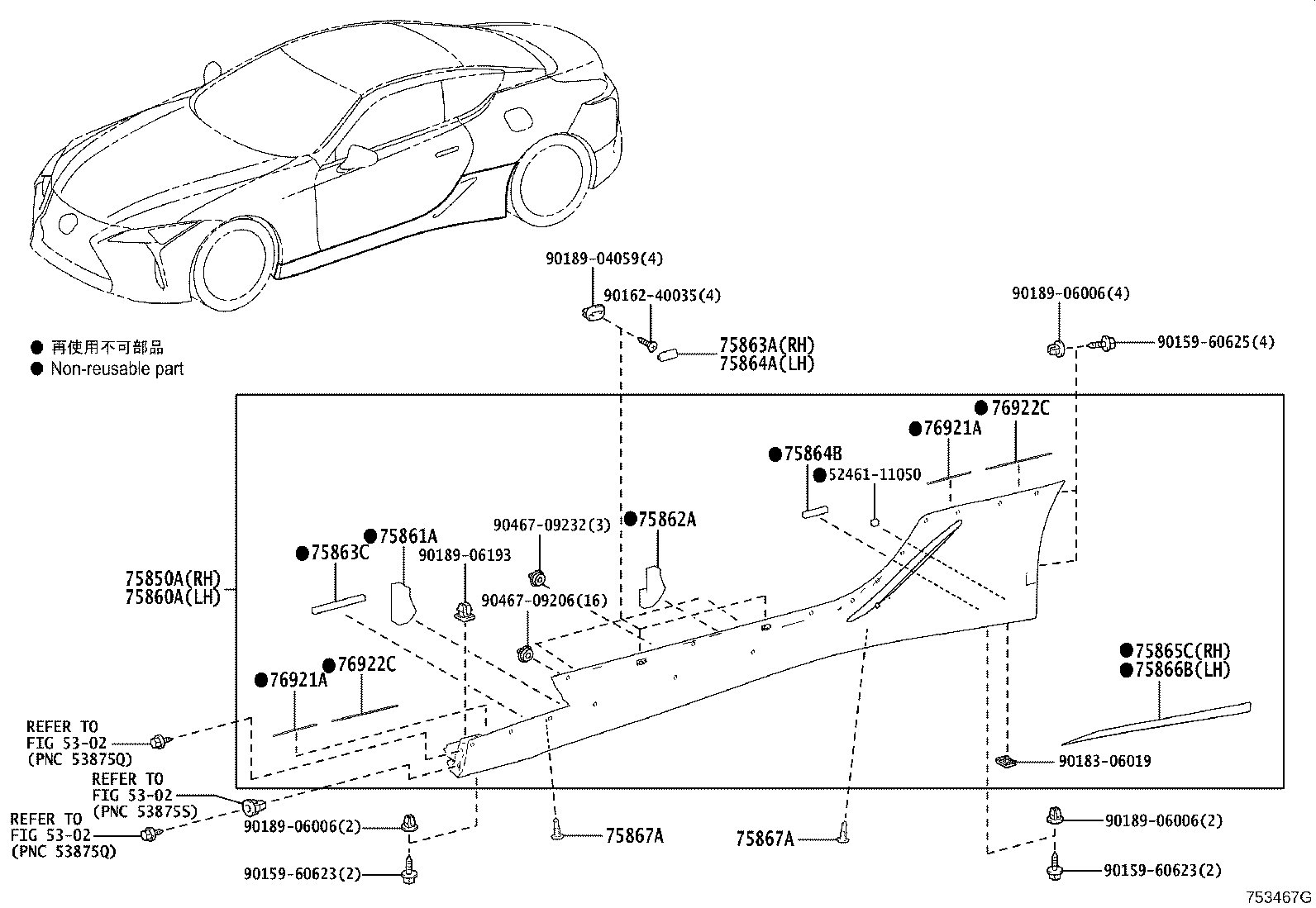

ILLUST NO. 2 OF 2(1701- )
ROCKER PANEL MOULDING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75850A - MOULDING ASSY, BODY ROCKER PANEL, RH | ||||
| 75850-11010J1 |
GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
1 | ||
| 75850-11010C0 |
GWZ100,URZ100 BLACK,212 |
1 | ||
| 75850-11010F0 |
GWZ100,URZ100 NAPLES YELLOW,5C1 |
1 | ||
| 75850-11010B0 |
GWZ100,URZ100 DK.GRAY MC.,1G0 |
1 | ||
| 75850-11010C1 |
GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
1 | ||
| 75850-11010E0 |
GWZ100,URZ100 AMBER CS.,4X2 |
1 | ||
| 75850-11010B1 |
GWZ100,URZ100 SONIC SILVER,1J2 |
1 | ||
| 75850-11010B2 |
GWZ100,URZ100 SONIC TITANIUM,1J7 |
1 | ||
| 75850-11011C0 |
GWZ100,URZ100 BLACK,212 |
1 | ||
| 75850-11010D1 |
GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
1 | ||
| 75850-11080C0 |
GWZ100 "AVIATION"*(D),BLACK,212 |
1 | ||
| 75850-11011B0 |
GWZ100,URZ100 DK.GRAY MC.,1G0 |
1 | ||
| 75850-11011B2 |
GWZ100,URZ100 SONIC TITANIUM,1J7 |
1 | ||
| 75850-11011E0 |
GWZ100,URZ100 AMBER CS.,4X2 |
1 | ||
| 75850-11011A0 |
GWZ100,URZ100 WHITE NOVA GF.,083 |
1 | ||
| 75850-11010D0 |
GWZ100,URZ100 GARNET RED MC.,3S0 |
1 | ||
| 75850-11011D1 |
GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
1 | ||
| 75850-11080B0 |
GWZ100 "AVIATION"*(D),SONIC SILVER,1J2 |
1 | ||
| 75850-11080A0 |
GWZ100 "AVIATION"*(D),WHITE NOVA GF.,083 |
1 | ||
| 75850-11010A0 |
GWZ100,URZ100 WHITE NOVA GF.,083 |
1 | ||
| 75850-11011B1 |
GWZ100,URZ100 SONIC SILVER,1J2 |
1 | ||
| 75850-11010J0 |
GWZ100,URZ100 DEEP BLUE MC.,8X5 |
1 | ||
| 75850-11011C1 |
GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
1 | ||
| 75850-11011G0 |
GWZ100,URZ100 TERRANE KHAKI M.M.,6X4 |
1 | ||
| 75850-11011F0 |
GWZ100,URZ100 NAPLES YELLOW CONTRAST LA,5C1 |
1 | ||
| 75850-11011J0 |
GWZ100,URZ100 DEEP BLUE MC.,8X5 |
1 | ||
| 75850-11011E1 |
GWZ100,URZ100 BLAZING CARNELIAN CONTRAS,4Y1 |
1 | ||
| 75860A - MOULDING ASSY, BODY ROCKER PANEL, LH | ||||
| 75860-11010A0 |
GWZ100,URZ100 WHITE NOVA GF.,083 |
1 | ||
| 75860-11010B2 |
GWZ100,URZ100 SONIC TITANIUM,1J7 |
1 | ||
| 75860-11010D1 |
GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
1 | ||
| 75860-11011E0 |
GWZ100,URZ100 AMBER CS.,4X2 |
1 | ||
| 75860-11010F0 |
GWZ100,URZ100 NAPLES YELLOW,5C1 |
1 | ||
| 75860-11010J1 |
GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
1 | ||
| 75860-11010C0 |
GWZ100,URZ100 BLACK,212 |
1 | ||
| 75860-11010C1 |
GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
1 | ||
| 75860-11010B0 |
GWZ100,URZ100 DK.GRAY MC.,1G0 |
1 | ||
| 75860-11010D0 |
GWZ100,URZ100 GARNET RED MC.,3S0 |
1 | ||
| 75860-11010B1 |
GWZ100,URZ100 SONIC SILVER,1J2 |
1 | ||
| 75860-11011C0 |
GWZ100,URZ100 BLACK,212 |
1 | ||
| 75860-11011F0 |
GWZ100,URZ100 NAPLES YELLOW CONTRAST LA,5C1 |
1 | ||
| 75860-11010J0 |
GWZ100,URZ100 DEEP BLUE MC.,8X5 |
1 | ||
| 75860-11080C0 |
GWZ100 "AVIATION"*(D),BLACK,212 |
1 | ||
| 75860-11080B0 |
GWZ100 "AVIATION"*(D),SONIC SILVER,1J2 |
1 | ||
| 75860-11011A0 |
GWZ100,URZ100 WHITE NOVA GF.,083 |
1 | ||
| 75860-11080A0 |
GWZ100 "AVIATION"*(D),WHITE NOVA GF.,083 |
1 | ||
| 75860-11011B2 |
GWZ100,URZ100 SONIC TITANIUM,1J7 |
1 | ||
| 75860-11010E0 |
GWZ100,URZ100 AMBER CS.,4X2 |
1 | ||
| 75860-11011C1 |
GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
1 | ||
| 75860-11011J0 |
GWZ100,URZ100 DEEP BLUE MC.,8X5 |
1 | ||
| 75860-11011D1 |
GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
1 | ||
| 75860-11011B1 |
GWZ100,URZ100 SONIC SILVER,1J2 |
1 | ||
| 75860-11011B0 |
GWZ100,URZ100 DK.GRAY MC.,1G0 |
1 | ||
| 75860-11011E1 |
GWZ100,URZ100 BLAZING CARNELIAN CONTRAS,4Y1 |
1 | ||
| 75860-11011G0 |
GWZ100,URZ100 TERRANE KHAKI M.M.,6X4 |
1 | ||
| 75861A - PROTECTOR, ROCKER PANEL MOULDING, NO.1 | ||||
| 75861-11010 |
GWZ100,URZ100 |
2 | ||
| 75862A - PROTECTOR, ROCKER PANEL MOULDING, NO.2 | ||||
| 75861-11020 |
GWZ100,URZ100 |
2 | ||
| 75861-11021 |
GWZ100,URZ100 |
2 | ||
| 75863A - COVER, ROCKER PANEL MOULDING END, REAR RH | ||||
| 75863-30070J5 |
GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
2 | ||
| 75863-30070D4 |
GWZ100,URZ100 GARNET RED MC.,3S0 |
2 | ||
| 75863-30070C3 |
GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
2 | ||
| 75863-30070D2 |
GWZ100,URZ100 RED,3T5 |
2 | ||
| 75863-30070E3 |
GWZ100,URZ100 AMBER CS.,4X2 |
2 | ||
| 75863-30070B1 |
GWZ100,URZ100 SONIC SILVER,1J2 |
2 | ||
| 75863-30070J4 |
GWZ100,URZ100 DEEP BLUE MC.,8X5 |
2 | ||
| 75863-30070E4 |
GWZ100,URZ100 BLAZING CARNELIAN CONTRAS,4Y1 |
2 | ||
| 75863-30070C0 |
GWZ100,URZ100 BLACK,212 |
2 | ||
| 75863-30070G0 |
GWZ100,URZ100 TERRANE KHAKI M.M.,6X4 |
2 | ||
| 75863-30070A1 |
GWZ100,URZ100 WHITE NOVA GF.,083 |
2 | ||
| 75863-30070B4 |
GWZ100,URZ100 DK.GRAY MC.,1G0 |
2 | ||
| 75863-30070B3 |
GWZ100,URZ100 SONIC TITANIUM,1J7 |
2 | ||
| 75863-30070F0 |
GWZ100,URZ100 NAPLES YELLOW,5C1 |
2 | ||
| 75863C - PROTECTOR, ROCKER PANEL MOULDING, NO.3 | ||||
| 75862-11010 |
GWZ100,URZ100 |
2 | ||
| 75864A - COVER, ROCKER PANEL MOULDING END, REAR LH | ||||
| 75863-30070J5 |
GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
2 | ||
| 75863-30070E3 |
GWZ100,URZ100 AMBER CS.,4X2 |
2 | ||
| 75863-30070A1 |
GWZ100,URZ100 WHITE NOVA GF.,083 |
2 | ||
| 75863-30070G0 |
GWZ100,URZ100 TERRANE KHAKI M.M.,6X4 |
2 | ||
| 75863-30070C3 |
GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
2 | ||
| 75863-30070D4 |
GWZ100,URZ100 GARNET RED MC.,3S0 |
2 | ||
| 75863-30070E4 |
GWZ100,URZ100 BLAZING CARNELIAN CONTRAS,4Y1 |
2 | ||
| 75863-30070C0 |
GWZ100,URZ100 BLACK,212 |
2 | ||
| 75863-30070B3 |
GWZ100,URZ100 SONIC TITANIUM,1J7 |
2 | ||
| 75863-30070J4 |
GWZ100,URZ100 DEEP BLUE MC.,8X5 |
2 | ||
| 75863-30070F0 |
GWZ100,URZ100 NAPLES YELLOW,5C1 |
2 | ||
| 75863-30070D2 |
GWZ100,URZ100 RED,3T5 |
2 | ||
| 75863-30070B1 |
GWZ100,URZ100 SONIC SILVER,1J2 |
2 | ||
| 75863-30070B4 |
GWZ100,URZ100 DK.GRAY MC.,1G0 |
2 | ||
| 75864B - PROTECTOR, ROCKER PANEL MOULDING, NO.4 | ||||
| 75862-11020 |
GWZ100,URZ100 |
2 | ||
| 75865C - PROTECTOR, ROCKER PANEL MOULDING, NO.5 | ||||
| 75865-11010 |
GWZ100,URZ100 |
1 | ||
| 75866B - PROTECTOR, ROCKER PANEL MOULDING, NO.6 | ||||
| 75866-11010 |
GWZ100,URZ100 |
1 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-30120 |
GWZ100,URZ100 |
10 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-30120 |
GWZ100,URZ100 |
10 | ||
| 76921A - PROTECTOR, SIDE MUDGUARD, NO.1 | ||||
| 76921-11010 |
GWZ100,URZ100 |
4 | ||
| 76921A - PROTECTOR, SIDE MUDGUARD, NO.1 | ||||
| 76921-11010 |
GWZ100,URZ100 |
4 | ||
| 76922C - PROTECTOR, SIDE MUDGUARD, NO.2 | ||||
| 76921-24010 |
GWZ100,URZ100 |
4 | ||
| 76922C - PROTECTOR, SIDE MUDGUARD, NO.2 | ||||
| 76921-24010 |
GWZ100,URZ100 |
4 | ||
| Common parts | ||||
| 52461-11050 | ||||
| 90159-60623 | ||||
| 90159-60625 | ||||
| 90162-40035 | ||||
| 90183-06019 | ||||
| 90189-04059 | ||||
| 90189-06006 | ||||
| 90189-06193 | ||||
| 90467-09206 | ||||
| 90467-09232 | ||||
| Linked diagrams | ||||
| 5302 | ||||
ILLUST NO. 1 OF 2(1904- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62775C - CLIP, QUARTER WINDOW | ||||
| 62775-76010 |
GWZ100,URZ100 |
8 | ||
| 62791G - MOULDING, QUARTER WINDOW, UPPER RH | ||||
| 62791-11010 |
GWZ100,URZ100 |
1 | ||
| 62792V - MOULDING, QUARTER WINDOW, UPPER LH | ||||
| 62792-11010 |
GWZ100,URZ100 |
1 | ||
| 67495C - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-11010 |
GWZ100,URZ100 |
1 | ||
| 67496C - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-11010 |
GWZ100,URZ100 |
1 | ||
| 75055D - GARNISH SUB-ASSY, ROOF SIDE, REAR RH | ||||
| 75055-11010 |
GWZ100,URZ100 |
1 | ||
| 75056D - GARNISH SUB-ASSY, ROOF SIDE, REAR LH | ||||
| 75056-11010 |
GWZ100,URZ100 |
1 | ||
| 75392A - RETAINER, OUTSIDE MOULDING, NO.1 | ||||
| 75392-11010 |
GWZ100,URZ100 |
22 | ||
| 75507B - GARNISH SUB-ASSY, ROOF SIDE RAIL, RH | ||||
| 62403-11010J1 |
GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
1 | ||
| 62403-11010B0 |
GWZ100,URZ100 DK.GRAY MC.,1G0 |
1 | ||
| 62403-11010D0 |
GWZ100,URZ100 GARNET RED MC.,3S0 |
1 | ||
| 62403-11010E0 |
GWZ100,URZ100 AMBER CS.,4X2 |
1 | ||
| 62403-11010A1 |
GWZ100,URZ100 WHITE NOVA GF.,083 |
1 | ||
| 62403-11010B1 |
GWZ100,URZ100 SONIC SILVER,1J2 |
1 | ||
| 62403-11010D1 |
GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
1 | ||
| 62403-11010B2 |
GWZ100,URZ100 SONIC TITANIUM,1J7 |
1 | ||
| 62403-11010G0 |
GWZ100,URZ100 TERRANE KHAKI M.M.,6X4 |
1 | ||
| 62403-11010C1 |
GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
1 | ||
| 62403-11010E1 |
GWZ100,URZ100 BLAZING CARNELIAN CONTRAS,4Y1 |
1 | ||
| 62403-11010C0 |
GWZ100,URZ100 BLACK,212 |
1 | ||
| 62403-11010F0 |
GWZ100,URZ100 NAPLES YELLOW,5C1 |
1 | ||
| 62403-11010J0 |
GWZ100,URZ100 DEEP BLUE MC.,8X5 |
1 | ||
| 75508B - GARNISH SUB-ASSY, ROOF SIDE RAIL, LH | ||||
| 62404-11010C1 |
GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
1 | ||
| 62404-11010J1 |
GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
1 | ||
| 62404-11010D1 |
GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
1 | ||
| 62404-11010B0 |
GWZ100,URZ100 DK.GRAY MC.,1G0 |
1 | ||
| 62404-11010E0 |
GWZ100,URZ100 AMBER CS.,4X2 |
1 | ||
| 62404-11010D0 |
GWZ100,URZ100 GARNET RED MC.,3S0 |
1 | ||
| 62404-11010F0 |
GWZ100,URZ100 NAPLES YELLOW,5C1 |
1 | ||
| 62404-11010J0 |
GWZ100,URZ100 DEEP BLUE MC.,8X5 |
1 | ||
| 62404-11010A1 |
GWZ100,URZ100 WHITE NOVA GF.,083 |
1 | ||
| 62404-11010B1 |
GWZ100,URZ100 SONIC SILVER,1J2 |
1 | ||
| 62404-11010G0 |
GWZ100,URZ100 TERRANE KHAKI M.M.,6X4 |
1 | ||
| 62404-11010C0 |
GWZ100,URZ100 BLACK,212 |
1 | ||
| 62404-11010B2 |
GWZ100,URZ100 SONIC TITANIUM,1J7 |
1 | ||
| 62404-11010E1 |
GWZ100,URZ100 BLAZING CARNELIAN CONTRAS,4Y1 |
1 | ||
| 75521A - COVER, GRILLE OPENING MOULDING END, NO.1 | ||||
| 75521-11010 |
GWZ100,URZ100 |
1 | ||
| 75521-11011 |
GWZ100,URZ100 |
1 | ||
| 75521B - COVER, GRILLE OPENING MOULDING END, NO.2 | ||||
| 75521-11020 |
GWZ100,URZ100 |
1 | ||
| 75522A - COVER, GRILLE OPENING MOULDING END, NO.2 | ||||
| 75522-11010 |
GWZ100,URZ100 |
1 | ||
| 75522-11011 |
GWZ100,URZ100 |
1 | ||
| 75522B - COVER, GRILLE OPENING MOULDING END, NO.1 | ||||
| 75522-11020 |
GWZ100,URZ100 |
1 | ||
| 75541E - COVER, WINDOW MOULDING JOINT, UPPER | ||||
| 75541-11010 |
GWZ100,URZ100 |
2 | ||
| 75545E - CLIP, ROOF DRIP SIDE FINISH MOULDING, RH | ||||
| 75545-11010 |
GWZ100,URZ100 |
1 | ||
| 75545G - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1 | ||||
| 75545-11020 |
GWZ100,URZ100 |
10 | ||
| 75546C - CLIP, ROOF DRIP SIDE FINISH MOULDING, LH | ||||
| 75546-11010 |
GWZ100,URZ100 |
1 | ||
| 75551E - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-11010 |
GWZ100,URZ100 |
1 | ||
| 75552E - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-11010 |
GWZ100,URZ100 |
1 | ||
| 75553A - MOULDING, ROOF DRIP SIDE FINISH, REAR RH | ||||
| 75553-11040 |
GWZ100,URZ100 |
1 | ||
| 75554A - MOULDING, ROOF DRIP SIDE FINISH, REAR LH | ||||
| 75554-11040 |
GWZ100,URZ100 |
1 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-11020 |
GWZ100,URZ100 |
2 | ||
| 75581B - COVER, BACK WINDOW MOULDING JOINT, UPPER RH | ||||
| 75581-11010 |
GWZ100,URZ100 |
1 | ||
| 75582A - COVER, BACK WINDOW MOULDING JOINT, UPPER LH | ||||
| 75582-11010 |
GWZ100,URZ100 |
1 | ||
| 75621B - MOULDING, SIDE PANEL, NO.1 LH | ||||
| 75621-11010 |
GWZ100,URZ100 |
1 | ||
| 75621C - MOULDING, SIDE PANEL, NO.1 RH | ||||
| 75621-11010 |
GWZ100,URZ100 |
1 | ||
| 75631H - MOULDING, ROOF TOP | ||||
| 75631-11010 |
GWZ100,URZ100 |
2 | ||
| 75681A - MOULDING, CENTER PILLAR EXTENSION BELT | ||||
| 75681-11010 |
GWZ100,URZ100 |
2 | ||
| 75691A - PAD, FRONT FENDER OUTSIDE MOULDING, RH | ||||
| 75691-11010 |
GWZ100,URZ100 |
1 | ||
| 75692A - PAD, FRONT FENDER OUTSIDE MOULDING, LH | ||||
| 75691-11010 |
GWZ100,URZ100 |
1 | ||
| 75710 - MOULDING ASSY, FRONT DOOR BELT, RH | ||||
| 75710-11010 |
GWZ100,URZ100 |
1 | ||
| 75720 - MOULDING ASSY, FRONT DOOR BELT, LH | ||||
| 75720-11010 |
GWZ100,URZ100 |
1 | ||
| 75881B - JOINT, OUTSIDE MOULDING | ||||
| 75881-11010 |
GWZ100,URZ100 |
8 | ||
| 75881B - JOINT, OUTSIDE MOULDING | ||||
| 75881-11010 |
GWZ100,URZ100 |
8 | ||
| 75881B - JOINT, OUTSIDE MOULDING | ||||
| 75881-11010 |
GWZ100,URZ100 |
8 | ||
| 75881B - JOINT, OUTSIDE MOULDING | ||||
| 75881-11010 |
GWZ100,URZ100 |
8 | ||
| 75891A - JOINT, FRONT FENDER MOULDING, NO.1 | ||||
| 75891-11010 |
GWZ100,URZ100 |
4 | ||
| 75891A - JOINT, FRONT FENDER MOULDING, NO.1 | ||||
| 75891-11010 |
GWZ100,URZ100 |
4 | ||
| 76815B - GARNISH, QUARTER WINDOW MOULDING | ||||
| 76815-11010 |
GWZ100,URZ100 |
2 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90167-50022 | ||||
| 90179-06274 | ||||
| 90189-05184 | ||||
| 90189-06242 | ||||
| 90249-06188 | ||||
| 90269-06013 | ||||
| 90467-09112 | ||||
| 90467-12084 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
