Toyota Lexus lc500/500h(cp) GWZ100 CAUTION PLATE (EXTERIOR & INTERIOR)

GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999

Engine 8GRFXS

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

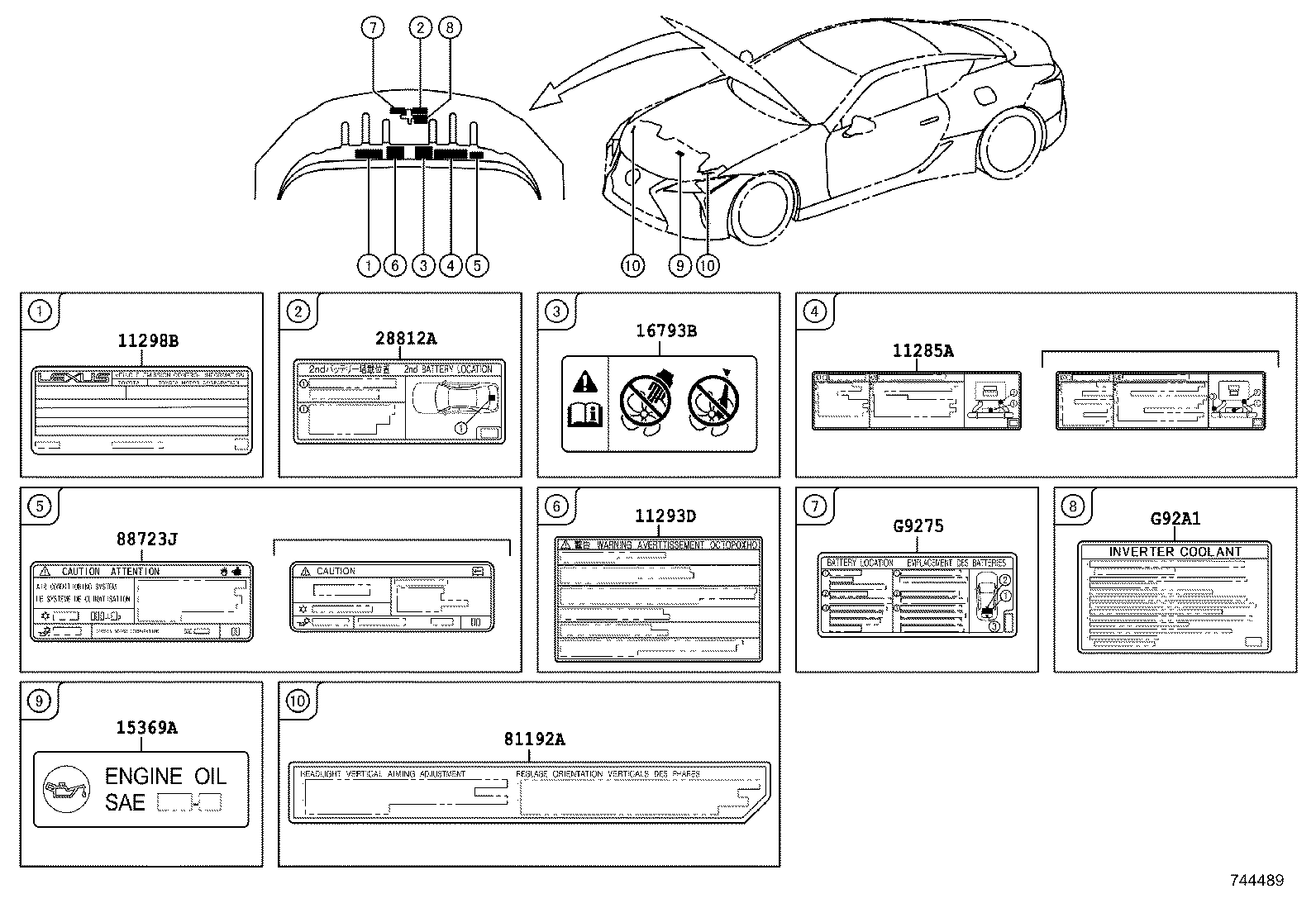

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-31080	8GRFXS..GWZ100	01/2017 - 12/2999	1
11293D - LABEL, ENGINE CAUTION
11293-36070	8GRFXS..GWZ100	01/2017 - 12/2999	1
11298B - LABEL, EMISSION CONTROL INFORMATION
11298-31J30	8GRFXS..GWZ100	01/2017 - 09/2018	1
11298-31M30	8GRFXS..GWZ100	06/2019 - 04/2020	1
11298-31J00	8GRFXS..GWZ100	09/2018 - 06/2019	1
11298-31M60	8GRFXS..GWZ100	04/2020 - 10/2021	1
15369A - LABEL, ENGINE OIL INFORMATION
15369-31010	8GRFXS..GWZ100 KOREA SPEC	01/2017 - 12/2999	1
15369-31010	8GRFXS..GWZ100	01/2017 - 12/2999	1
16793B - LABEL, COOLING FAN INFORMATION
16793-36030	8GRFXS,2URGSE..GWZ100,URZ100	01/2017 - 12/2999	1
28812A - LABEL, SUB-BATTERY INFORMATION
28812-38010	8GRFXS,2URGSE..GWZ100,URZ100	01/2017 - 12/2999	1
81192A - SEAL, HEADLAMP
81192-50010	GWZ100,URZ100	01/2017 - 12/2999	2
88723J - LABEL, COOLER SERVICE CAUTION, NO.2
88723-11060	GWZ100 KOREA SPEC	01/2017 - 12/2999	1
88723-11020	GWZ100	01/2017 - 12/2999	1
G9275 - LABEL, BATTERY CAUTION, NO.1
G9275-11020	GWZ100	01/2017 - 12/2999	1
G9275-11020	GWZ100 CANADA SPEC&HIGH VOLTAGE BATTERY-WITH	01/2017 - 12/2999	1
G92A1 - LABEL, HYBRID COOLANT SYSTEM INFORMATION
G92A1-11010	GWZ100	01/2017 - 08/2020	1

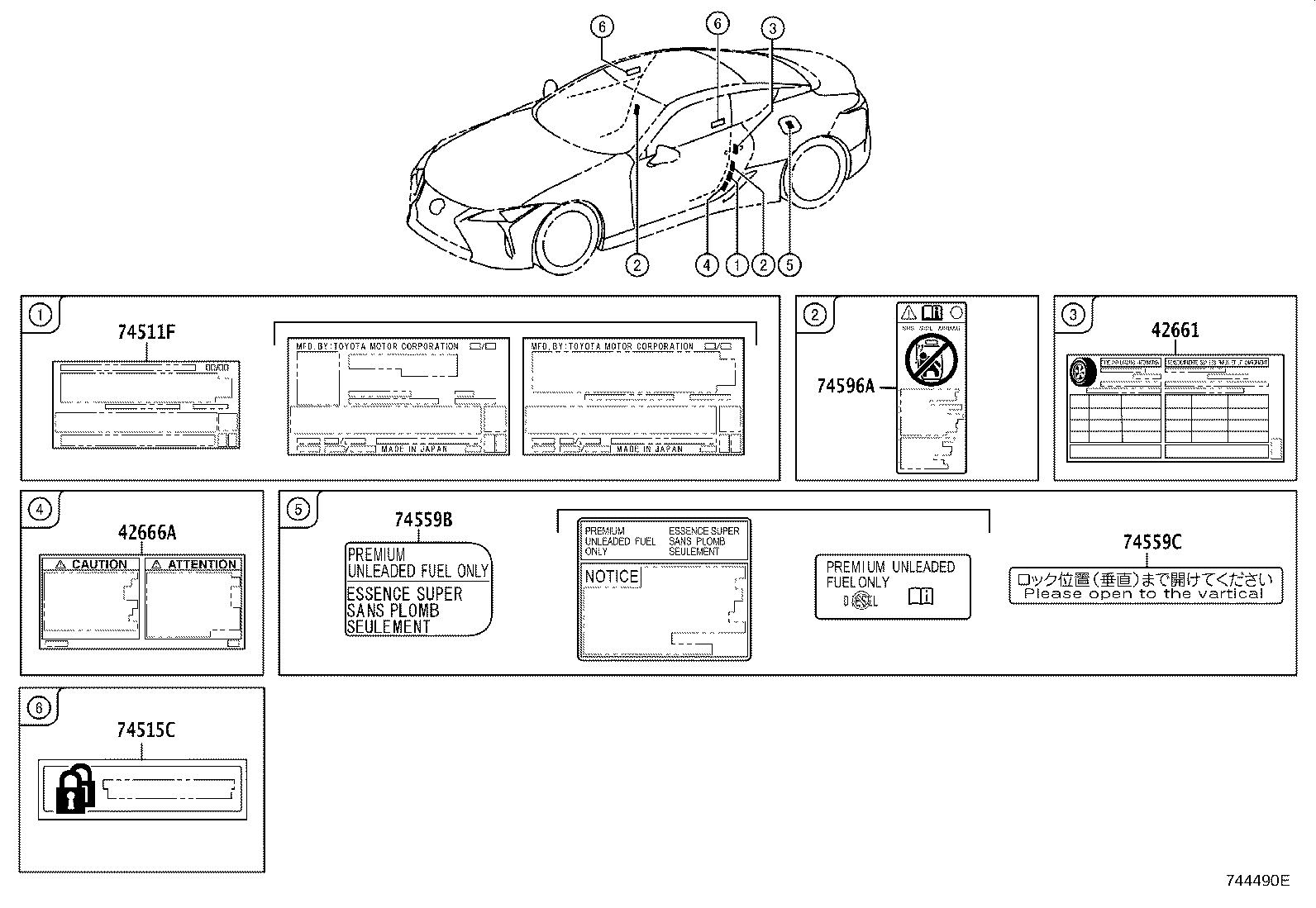

Click highlighted areas on diagram

Part #	Description	Period	Qty
42661 - LABEL, TIRE PRESSURE INFORMATION
42661-11060	GWZ100 TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM	01/2017 - 10/2021	1
42661-11050	GWZ100	01/2017 - 10/2021	1
42661-11060	GWZ100 TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM	01/2021 - 10/2021	1
42666A - LABEL, RUN FLAT TIRE CAUTION
42666-53010	GWZ100,URZ100	01/2017 - 12/2999	1
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74514-47010	GWZ100,URZ100 *111,KOREA SPEC	01/2017 - 12/2999	1
74514-33010	GWZ100,URZ100 *111	01/2017 - 12/2999	1
74514-33020	GWZ100,URZ100 *111,CANADA SPEC	01/2017 - 12/2999	1
74515C - LABEL, THEFT WARNING INFORMATION
74515-50060	GWZ100,URZ100 KOREA SPEC	09/2018 - 12/2999	2
74559B - LABEL, FUEL INFORMATION
74559-30060	GWZ100	01/2017 - 12/2999	1
74559C - LABEL, FUEL INFORMATION, NO.2
74559-11040	GWZ100,URZ100	05/2017 - 08/2020	1
74596A - LABEL, SIDE AIR BAG CAUTION
74596-53012	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2018	2
74596-78010	GWZ100,URZ100	01/2017 - 12/2018	2

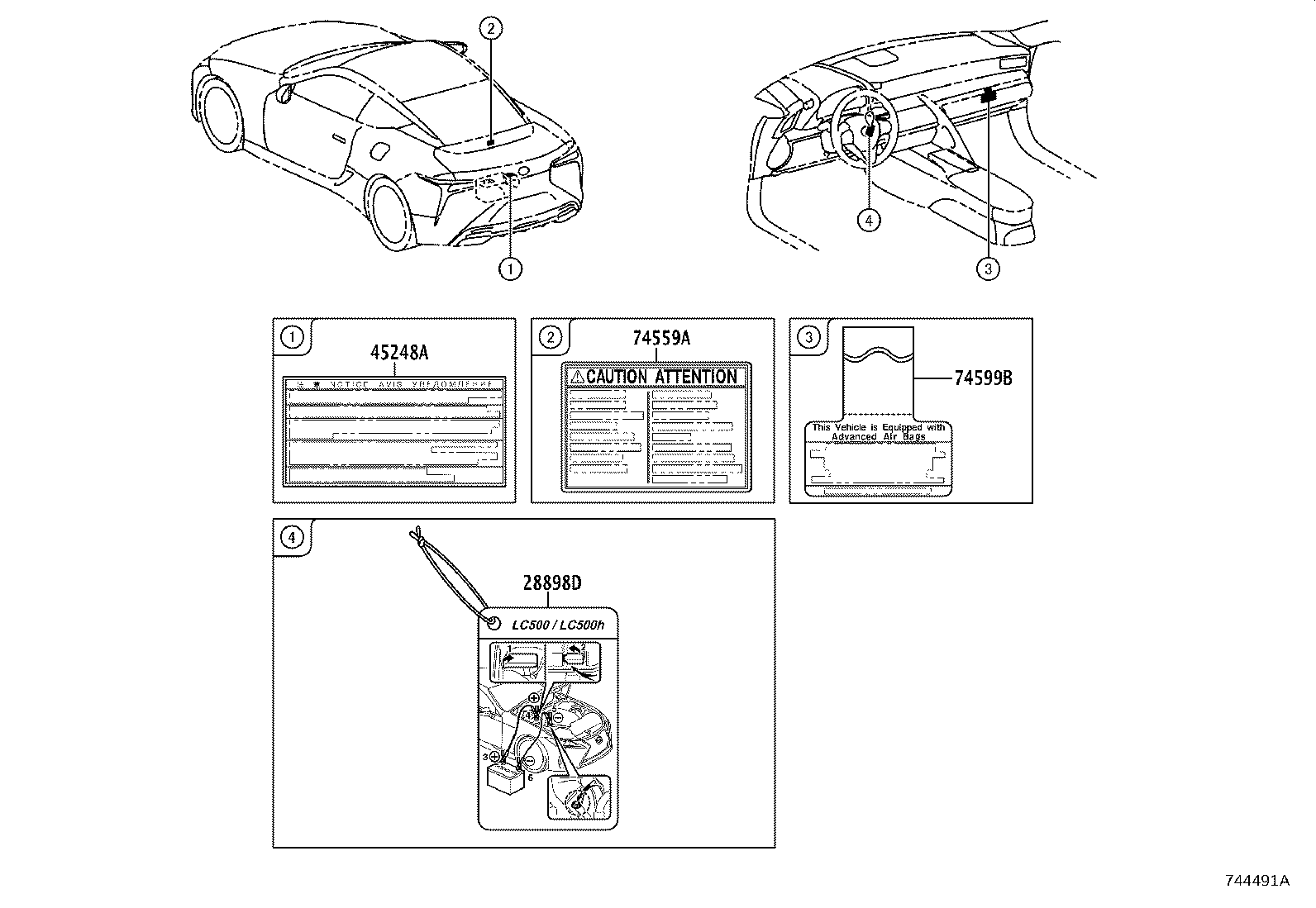

Click highlighted areas on diagram

Part #	Description	Period	Qty
28898D - LABEL, BATTERY INFORMATION
28898-38020	8GRFXS,2URGSE..GWZ100,URZ100	04/2020 - 12/2999	1
28898-38010	8GRFXS,2URGSE..GWZ100,URZ100	01/2017 - 04/2020	1
45248A - LABEL, STEERING ACTUATOR CAUTION
45248-30020	GWZ100,URZ100 "S PACKAGE"	01/2017 - 10/2021	1
45248-30020	GWZ100,URZ100 LUSTER YELLOW*()	09/2018 - 06/2019	1
74559A - PLATE, FUEL CAUTION
74559-30070	GWZ100	01/2017 - 12/2999	1
74599B - LABEL, DRIVER & PASSENGER AIR BAG INFORMATION
74599-48020	GWZ100,URZ100	01/2017 - 12/2999	1
74599-48020	GWZ100,URZ100 CANADA SPEC	01/2017 - 12/2999	1
74599-48020	GWZ100,URZ100 KOREA SPEC	01/2017 - 12/2999	1
