GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

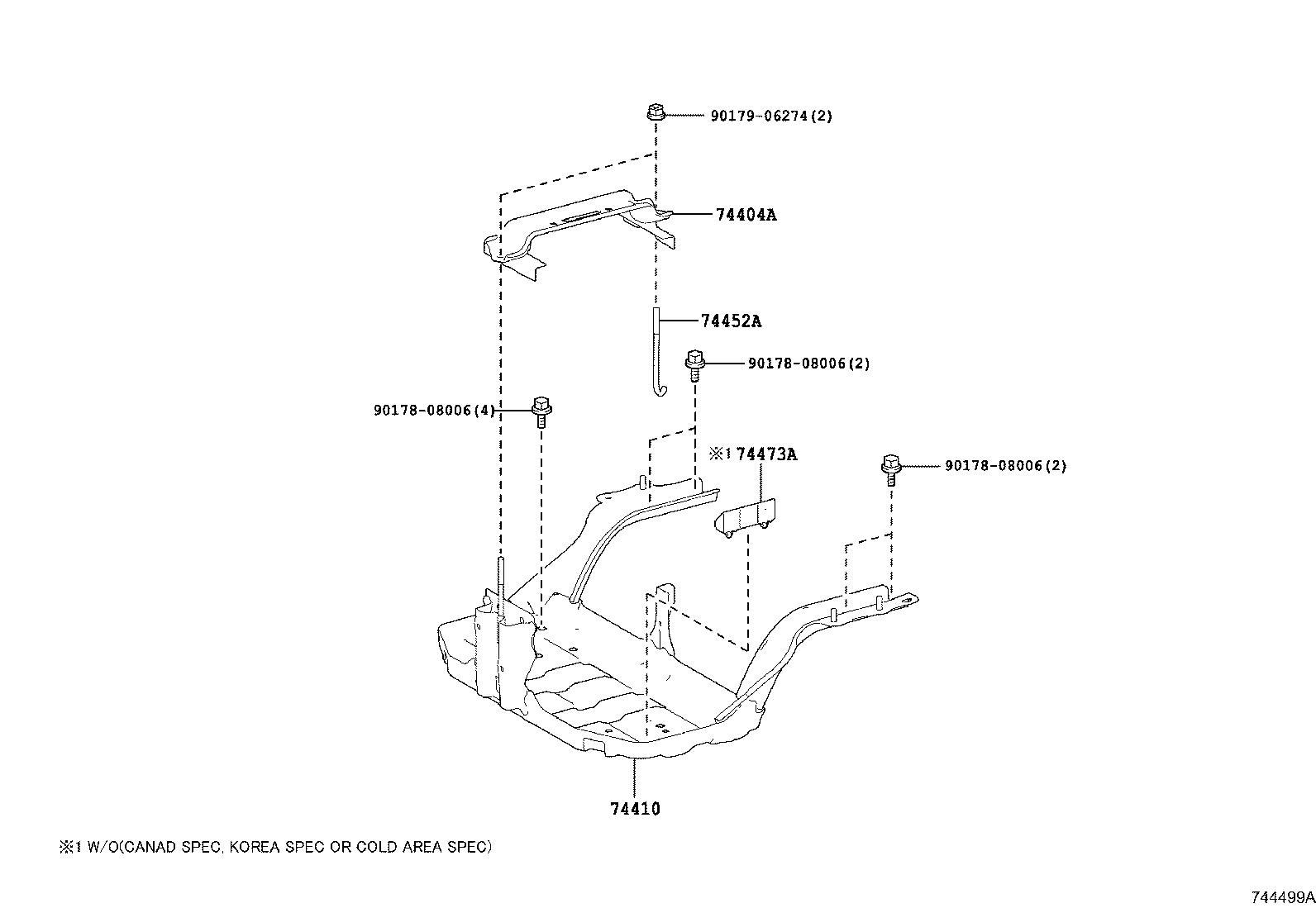

Click highlighted areas on diagram

diagram 74404A 74410 74452A 74473A 9017808006 9017808006 9017808006 9017906274
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-11010

GWZ100,URZ100

 1
74410 - CARRIER ASSY, BATTERY
74410-11010

GWZ100,URZ100

 1
74452A - BOLT, BATTERY CLAMP, NO.2
74452-53040

GWZ100,URZ100

 1
74473A - SPACER, BATTERY, NO.1
74473-11020

GWZ100,URZ100

 1
Common parts
90178-08006
90179-06274
