GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

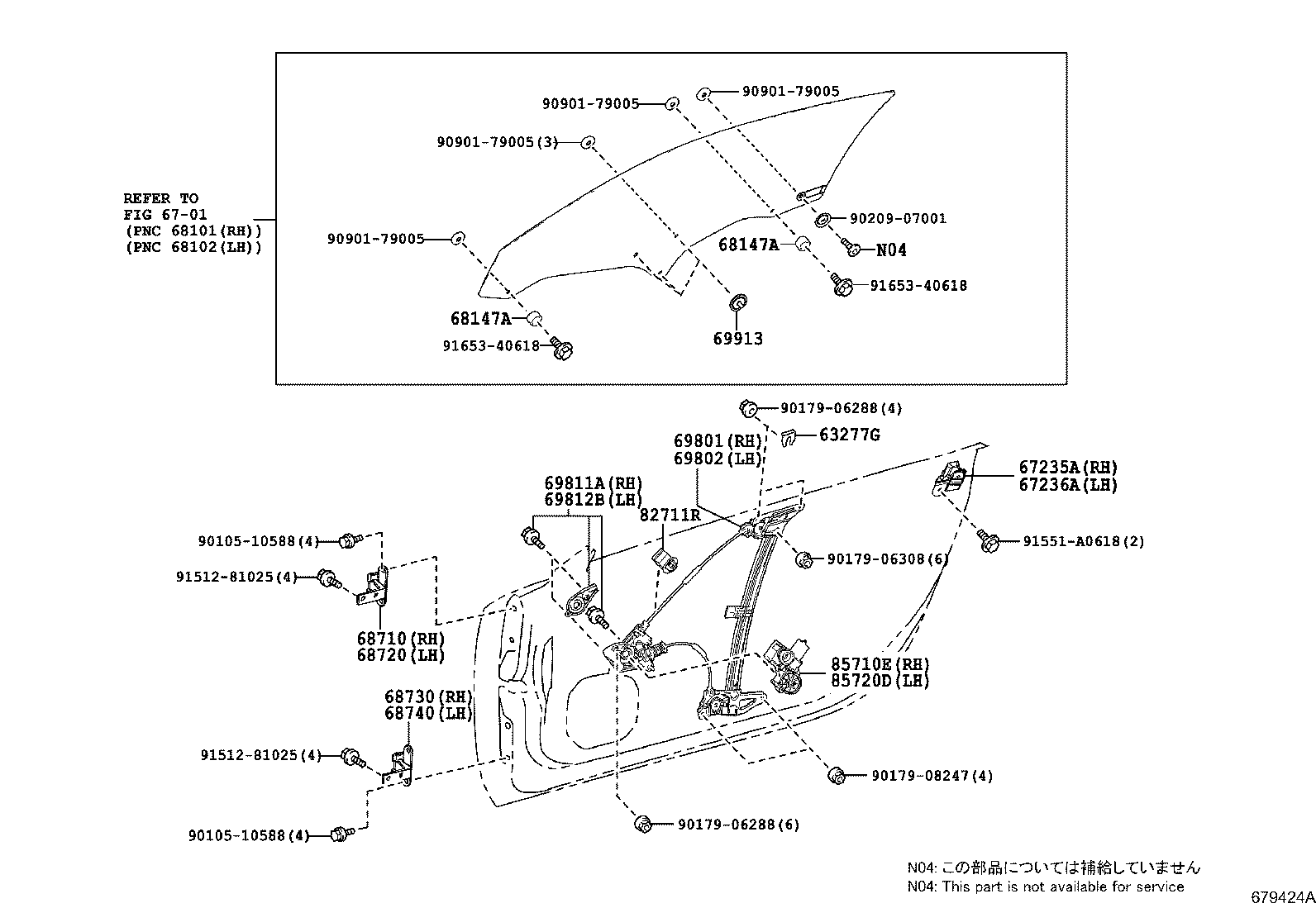

Click highlighted areas on diagram

diagram 63277G 6701 67235A 67236A 68147A 68147A 68710 68720 68730 68740 69801 69802 69811A 69812B 69913 82711R 85710E 85720D 9010510588 9010510588 9017906288 9017906288 9017906308 9017908247 9020907001 9090179005 9090179005 9090179005 9090179005 9151281025 9151281025 91551A0618 9165340618 9165340618
Part # Description Qty Price
63277G - SHIM, WINDOW REGULATOR
63277-30060

GWZ100,URZ100

 1
67235A - STABILIZER, DOOR GLASS FEMALE, RH
67236-11020

GWZ100,URZ100

 1
67236A - STABILIZER, DOOR GLASS FEMALE, LH
67235-11020

GWZ100,URZ100

 1
68147A - STOP, FRONT DOOR GLASS, UPPER
68147-22010

GWZ100,URZ100

 4
68147A - STOP, FRONT DOOR GLASS, UPPER
68147-22010

GWZ100,URZ100

 4
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-11010

GWZ100,URZ100

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-11010

GWZ100,URZ100

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68710-11010

GWZ100,URZ100

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68720-11010

GWZ100,URZ100

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-11010

GWZ100,URZ100

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-11010

GWZ100,URZ100

 1
69811A - PLATE, FRONT DOOR POWER WINDOW REGULATOR BASE
69813-24020

GWZ100,URZ100

 1
69812B - PLATE, FRONT DOOR WINDOW REGULATOR BASE, LH
69814-24020

GWZ100,URZ100

 1
69913 - BOLT, FRONT DOOR GLASS SETTING
69913-30090

GWZ100,URZ100

 6
82711R - CLAMP, WIRING HARNESS
82711-1E350

GWZ100,URZ100

 2
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-11010

GWZ100,URZ100

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-11010

GWZ100,URZ100

 1
Common parts
90105-10588
90179-06288
90179-06308
90179-08247
90209-07001
90901-79005
91512-81025
91551-A0618
91653-40618
Linked diagrams
6701
