GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)

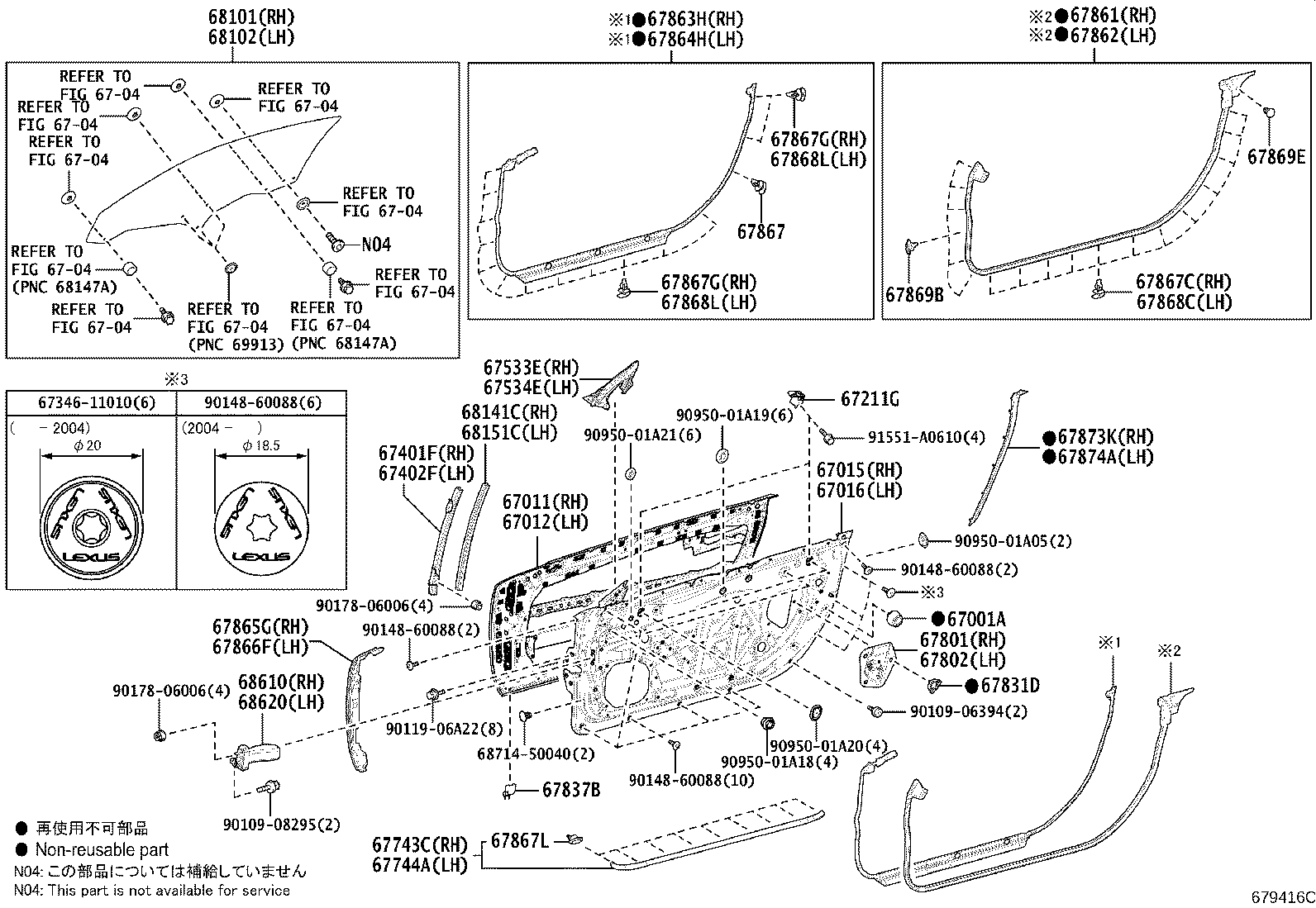

ILLUST NO. 1 OF 2(1701- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09150 |
GWZ100,URZ100 |
2 | ||
| 67011 - PANEL SUB-ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 67011-11020 |
GWZ100,URZ100 CANADA SPEC |
1 | ||
| 67011-11020 |
GWZ100,URZ100 |
1 | ||
| 67011-11020 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 67012 - PANEL SUB-ASSY, FRONT DOOR, OUTSIDE LH | ||||
| 67012-11020 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 67012-11020 |
GWZ100,URZ100 |
1 | ||
| 67012-11020 |
GWZ100,URZ100 CANADA SPEC |
1 | ||
| 67015 - PANEL SUB-ASSY, FRONT DOOR, INSIDE RH | ||||
| 67015-11020 |
GWZ100,URZ100 |
1 | ||
| 67016 - PANEL SUB-ASSY, FRONT DOOR, INSIDE LH | ||||
| 67016-11020 |
GWZ100,URZ100 |
1 | ||
| 67211G - STOP, FRONT DOOR WINDOW, UPPER | ||||
| 67211-11020 |
GWZ100,URZ100 |
4 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-11010 |
GWZ100,URZ100 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-11010 |
GWZ100,URZ100 |
1 | ||
| 67533E - SEAL, FRONT DOOR DIVISION BAR, RH | ||||
| 67533-11010 |
GWZ100,URZ100 |
1 | ||
| 67534E - SEAL, FRONT DOOR DIVISION BAR, LH | ||||
| 67534-11010 |
GWZ100,URZ100 |
1 | ||
| 67743C - SEAL, FRONT DOOR TRIM | ||||
| 67743-11010 |
GWZ100,URZ100 |
1 | ||
| 67744A - SEAL, FRONT DOOR TRIM, LH | ||||
| 67744-11020 |
GWZ100,URZ100 |
1 | ||
| 67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH | ||||
| 67801-11010 |
GWZ100,URZ100 |
1 | ||
| 67802 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH | ||||
| 67802-11010 |
GWZ100,URZ100 |
1 | ||
| 67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER) | ||||
| 67869-11020 |
GWZ100,URZ100 |
6 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-04010 |
GWZ100,URZ100 |
2 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-11010 |
GWZ100,URZ100 |
1 | ||
| 67861-11020 |
GWZ100,URZ100 |
1 | ||
| 67861-11011 |
GWZ100,URZ100 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-11010 |
GWZ100,URZ100 |
1 | ||
| 67862-11011 |
GWZ100,URZ100 |
1 | ||
| 67862-11020 |
GWZ100,URZ100 |
1 | ||
| 67863H - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-11010 |
GWZ100,URZ100 |
1 | ||
| 67864H - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-11010 |
GWZ100,URZ100 |
1 | ||
| 67865G - WEATHERSTRIP, FRONT DOOR, NO.3 RH | ||||
| 67865-11010 |
GWZ100,URZ100 |
1 | ||
| 67866F - WEATHERSTRIP, FRONT DOOR, NO.3 LH | ||||
| 67866-11010 |
GWZ100,URZ100 |
1 | ||
| 67867 - CLIP, DOOR WEATHERSTRIP | ||||
| 90467-04034 |
GWZ100,URZ100 |
2 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GWZ100 |
12 | ||
| 67867-50050 |
GWZ100,URZ100 |
12 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52040 |
GWZ100,URZ100 |
14 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52040 |
GWZ100,URZ100 |
14 | ||
| 67867L - RETAINER, FRONT DOOR TRIM SEAL | ||||
| 67867-50050 |
GWZ100,URZ100 |
18 | ||
| 67867-12150 |
GWZ100 |
18 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GWZ100 |
12 | ||
| 67867-50050 |
GWZ100,URZ100 |
12 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52030 |
GWZ100,URZ100 |
14 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52030 |
GWZ100,URZ100 |
14 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-11010 |
GWZ100,URZ100 |
12 | ||
| 67869E - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 90467-05162C0 |
GWZ100,URZ100 BLACK |
2 | ||
| 67873K - WEATHERSTRIP, ACCESS PANEL, REAR RH | ||||
| 67873-11010 |
GWZ100,URZ100 |
1 | ||
| 67874A - WEATHERSTRIP, ACCESS PANEL, REAR LH | ||||
| 67874-11010 |
GWZ100,URZ100 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-11010 |
GWZ100,URZ100 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-11010 |
GWZ100,URZ100 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-11010 |
GWZ100,URZ100 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68141-11010 |
GWZ100,URZ100 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-11010 |
GWZ100,URZ100 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-11010 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 67346-11010 | ||||
| 68714-50040 | ||||
| 90109-06394 | ||||
| 90109-08295 | ||||
| 90119-06A22 | ||||
| 90148-60088 | ||||
| 90178-06006 | ||||
| 90950-01A05 | ||||
| 90950-01A18 | ||||
| 90950-01A19 | ||||
| 90950-01A20 | ||||
| 90950-01A21 | ||||
| 91551-A0610 | ||||
| Linked diagrams | ||||
| 6704 | ||||

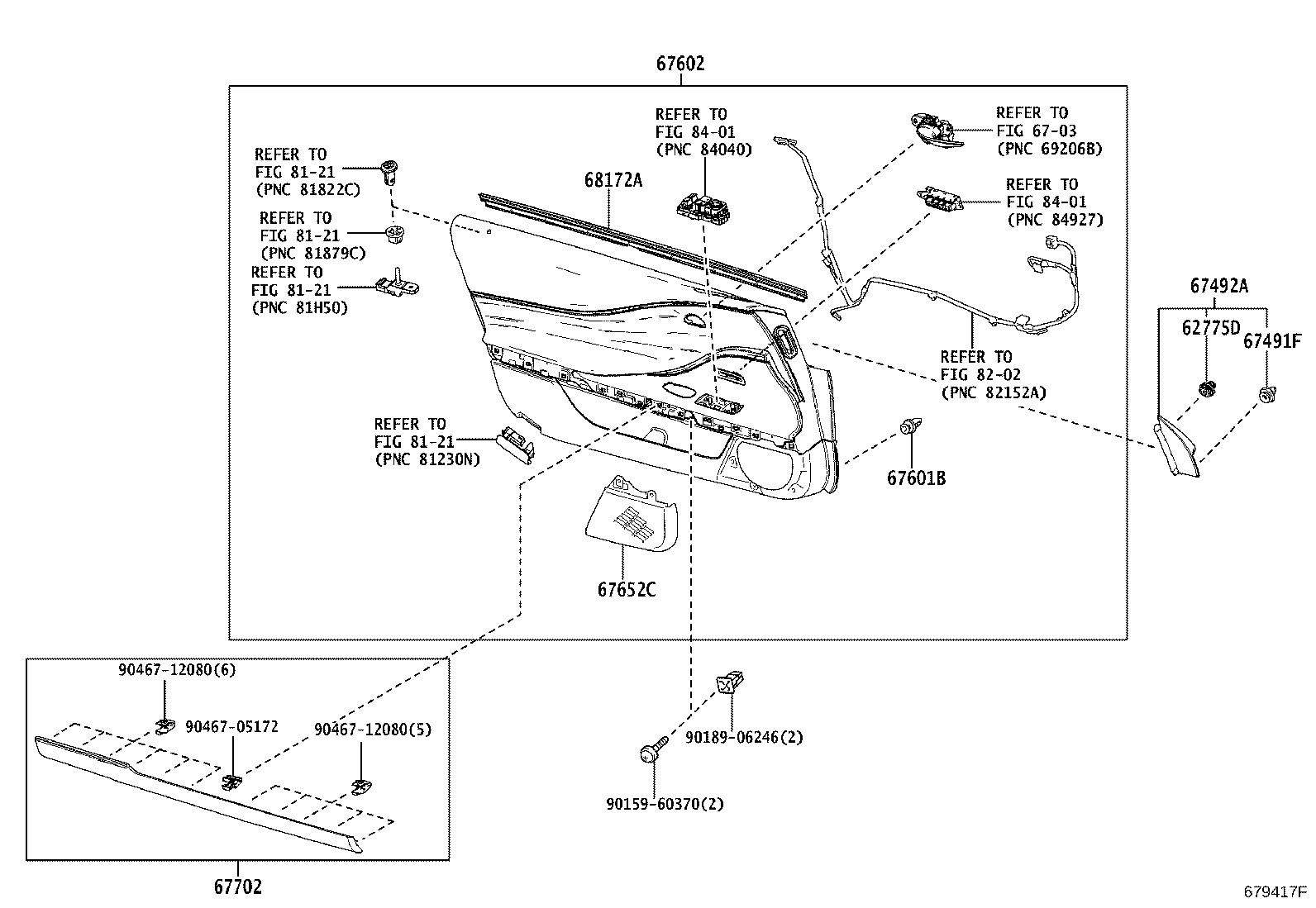

ILLUST NO. 2 OF 2(1701- )
DOOR TRIM DRIVER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62775D - CLIP, FRONT SIDE WINDOW, RH | ||||
| 62707-48010 |
GWZ100,URZ100 |
2 | ||
| 67491F - CLIP(FOR DOOR TRIM) | ||||
| 90467-09233 |
GWZ100,URZ100 |
2 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-11010 |
GWZ100,URZ100 |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09233 |
GWZ100,URZ100 |
19 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1102021 |
GWZ100,URZ100 BLACK,TRIM20 |
1 | ||
| 67620-1102022 |
GWZ100,URZ100 BLACK/YELLOW,TRIM21 |
1 | ||
| 67620-11020J3 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 67620-11020E2 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 67620-1102020 |
GWZ100,URZ100 DK.ROSE,TRIM3# |
1 | ||
| 67620-1102021 |
GWZ100,URZ100 BLACK,TRIM2# |
1 | ||
| 67620-1102021 |
GWZ100,URZ100 BLACK,TRIM2# |
1 | ||
| 67620-1108024 |
GWZ100,URZ100 BLACK,TRIM2# |
1 | ||
| 67620-11020E2 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 67620-11020E4 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 67620-1108023 |
GWZ100,URZ100 BLACK/RED/CRIMSON,TRIM3# |
1 | ||
| 67620-11080C9 |
GWZ100,URZ100 BLACK/RED,TRIM3# |
1 | ||
| 67620-1108021 |
GWZ100,URZ100 BLACK/ORANGE,TRIM42 |
1 | ||
| 67620-1108025 |
GWZ100,URZ100 BLACK/ORENGE,TRIM42 |
1 | ||
| 67620-11080E3 |
GWZ100,URZ100 OCHER/LT.OCHRE,TRIM40 |
1 | ||
| 67620-11100C1 |
GWZ100,URZ100 "AVIATION"*(D),BLACK/SADDLE TAN/BROWN,TRIM2# |
1 | ||
| 67620-11080E4 |
GWZ100,URZ100 OCHER/LT.OCHRE,TRIM40 |
1 | ||
| 67620-1108020 |
GWZ100,URZ100 BLACK,TRIM2# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-11010C0 |
GWZ100,URZ100 "AVIATION"*(D),BLACK,TRIM2# |
1 | ||
| 67652-11010C0 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 67652-11010E0 |
GWZ100,URZ100 OCHER,TRIM40 |
1 | ||
| 67702 - COVER SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67702-11010E1 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 67702-11010C4 |
GWZ100,URZ100 BLACK/BROWN,TRIM21,22 |
1 | ||
| 67702-11010E4 |
GWZ100,URZ100 ORANGE,TRIM42 |
1 | ||
| 67702-11010J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 67702-11010E3 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 67702-11010C3 |
GWZ100,URZ100 BLACK,TRIM20,21,3# |
1 | ||
| 67702-11010E1 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 67702-11010C3 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-11010 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90189-06246 | ||||
| 90467-05172 | ||||
| 90467-12080 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 8121 | ||||
| 8401 | ||||

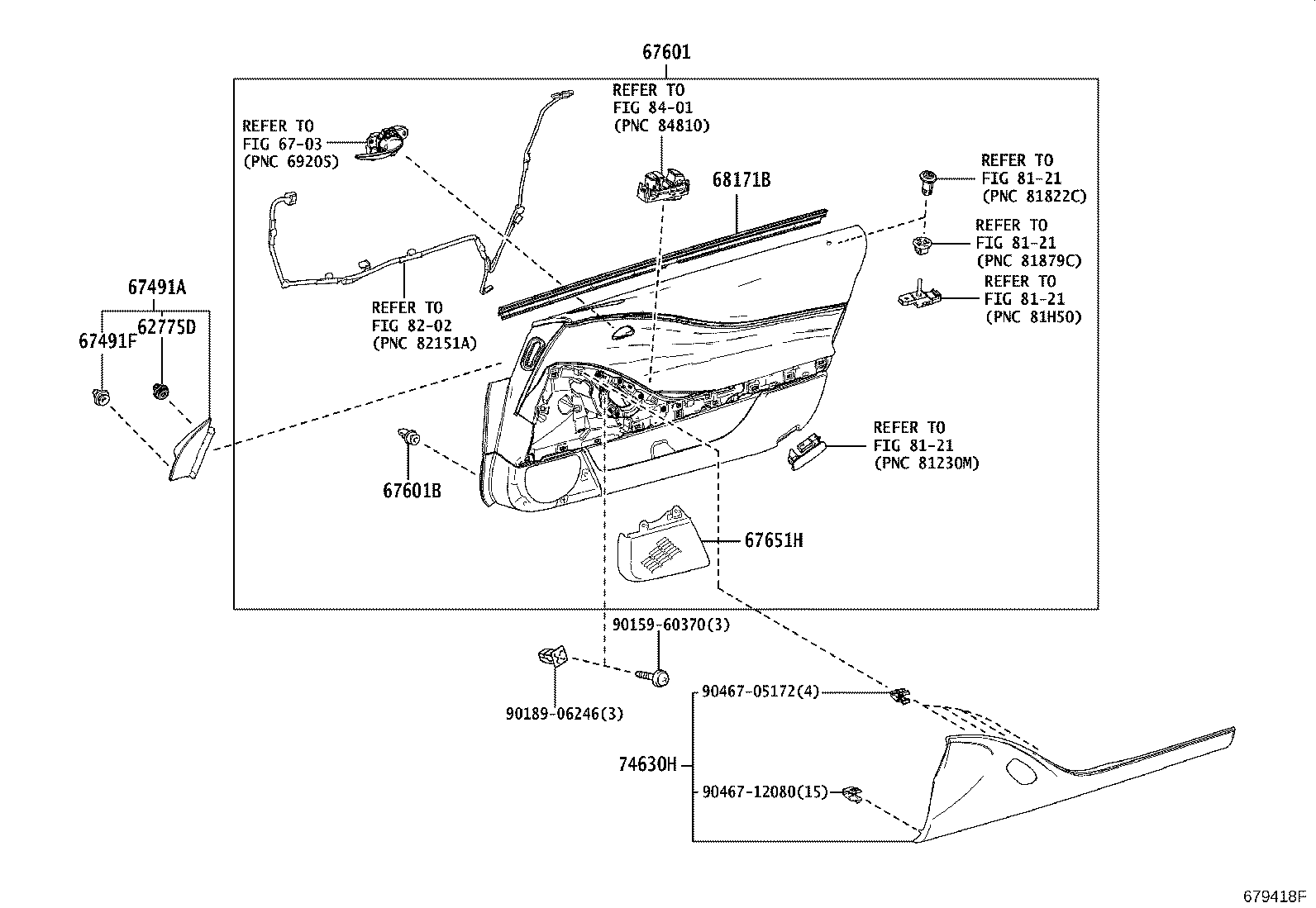

ILLUST NO. 2 OF 2(1701- )
DOOR TRIM PASSENGER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62775D - CLIP, FRONT SIDE WINDOW, RH | ||||
| 62707-48010 |
GWZ100,URZ100 |
2 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-11010 |
GWZ100,URZ100 |
1 | ||
| 67491F - CLIP(FOR DOOR TRIM) | ||||
| 90467-09233 |
GWZ100,URZ100 |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-11020C9 |
GWZ100,URZ100 DK.ROSE,TRIM3# |
1 | ||
| 67610-1102020 |
GWZ100,URZ100 BLACK,TRIM20 |
1 | ||
| 67610-1102021 |
GWZ100,URZ100 BLACK/YELLOW,TRIM21 |
1 | ||
| 67610-11020E2 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 67610-11090C7 |
GWZ100,URZ100 BLACK,TRIM2# |
1 | ||
| 67610-11020E1 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 67610-11020J3 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 67610-1102020 |
GWZ100,URZ100 BLACK,TRIM2# |
1 | ||
| 67610-1109020 |
GWZ100,URZ100 BLACK,TRIM2# |
1 | ||
| 67610-11110C1 |
GWZ100,URZ100 "AVIATION"*(D),BLACK,TRIM2# |
1 | ||
| 67610-1102020 |
GWZ100,URZ100 BLACK,TRIM2# |
1 | ||
| 67610-11090E3 |
GWZ100,URZ100 OCHER/LT.OCHRE,TRIM40 |
1 | ||
| 67610-11090C9 |
GWZ100,URZ100 BLACK/RED,TRIM3# |
1 | ||
| 67610-11090C8 |
GWZ100,URZ100 BLACK/ORANGE,TRIM42 |
1 | ||
| 67610-11090E2 |
GWZ100,URZ100 OCHER/LT.OCHRE,TRIM40 |
1 | ||
| 67610-11020E1 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 67610-1109021 |
GWZ100,URZ100 BLACK/ORENGE,TRIM42 |
1 | ||
| 67610-11090C6 |
GWZ100,URZ100 BLACK/RED,TRIM3# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09233 |
GWZ100,URZ100 |
19 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-11010C0 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 67651-11010C0 |
GWZ100,URZ100 "AVIATION"*(D),BLACK,TRIM2# |
1 | ||
| 67651-11010E0 |
GWZ100,URZ100 OCHER,TRIM40 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-11010 |
GWZ100,URZ100 |
1 | ||
| 74630H - GRIP ASSY, FRONT DOOR ASSIST, RH | ||||
| 74630-11010J3 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 74630-11010E5 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 74630-11010C8 |
GWZ100,URZ100 BLACK/SADDLE TAN/BROWN,TRIM21,22 |
1 | ||
| 74630-11010C5 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 74630-11010E3 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 74630-11010E6 |
GWZ100,URZ100 ORANGE,TRIM42 |
1 | ||
| 74630-11010E3 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 74630-11010C7 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 74630-11010E7 |
GWZ100,URZ100 ORANGE,TRIM42 |
1 | ||
| 74630-11010E8 |
GWZ100,URZ100 OCHER,TRIM40 |
1 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90189-06246 | ||||
| 90467-05172 | ||||
| 90467-12080 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 8121 | ||||
| 8401 | ||||
