GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

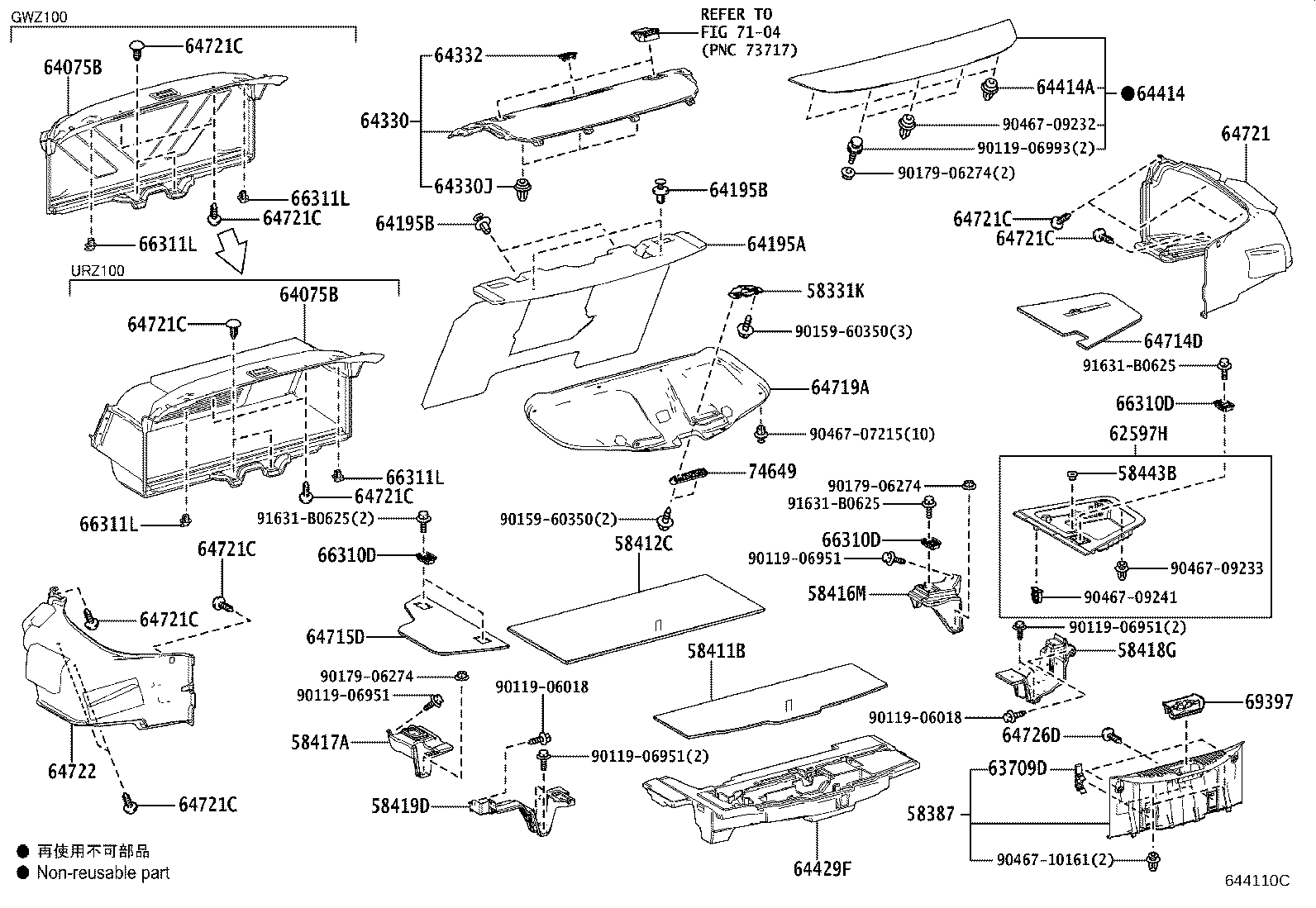

Click highlighted areas on diagram

diagram 58331K 58387 58411B 58412C 58416M 58417A 58418G 58419D 58443B 62597H 63709D 64075B 64075B 64195A 64195B 64195B 64330 64330J 64332 64414 64414A 64429F 64714D 64715D 64719A 64721 64721C 64721C 64721C 64721C 64721C 64721C 64721C 64721C 64721C 64722 64726D 66310D 66310D 66310D 66311L 66311L 66311L 66311L 69397 7104 74649 9011906018 9011906018 9011906951 9011906951 9011906951 9011906951 9011906993 9015960350 9015960350 9017906274 9017906274 9017906274 9046707215 9046709232 9046709233 9046709241 9046710161 91631B0625 91631B0625 91631B0625
Part # Description Qty Price
58331K - BRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58331-11020

GWZ100,URZ100

 1
58387 - PLATE, REAR FLOOR FINISH
58387-11030C1

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 1
58411B - BOARD, DECK, NO.1
58411-11020C1

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 1
58412C - BOARD, DECK, NO.2
58412-11010C1

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 1
58416M - BRACKET, DECK BOARD, NO.1 RH
58416-11020

GWZ100,URZ100

 1
58417A - BRACKET, DECK BOARD, NO.1 LH
58417-11030

GWZ100,URZ100

 1
58418G - BRACKET, DECK BOARD, NO.2
58418-11010

GWZ100,URZ100

 1
58419D - BRACKET, DECK BOARD, NO.3
58419-11010

GWZ100,URZ100

 1
58443B - CUSHION, DECK BOARD, NO.1
58443-33010

GWZ100,URZ100

 1
62597H - BOX, SIDE TRIM
62597-11010C1

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 1
63709D - BAND SUB-ASSY, ROOM RACK
63709-11010C1

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 2
64075B - COVER, LUGGAGE COMPARTMENT TRIM, FRONT
64075-11020C0

GWZ100

BLACK,TRIM2#,3#,4#,8#

 1
64075B - COVER, LUGGAGE COMPARTMENT TRIM, FRONT
64075-11020C0

GWZ100

BLACK,TRIM2#,3#,4#,8#

 1
64195A - INSULATOR, ROOM PARTITION PANEL
64195-11010

GWZ100,URZ100

 1
64195B - CLIP(FOR ROOM PARTITION PANEL INSULATOR)
90467-07215

GWZ100,URZ100

 4
64195B - CLIP(FOR ROOM PARTITION PANEL INSULATOR)
90467-07215

GWZ100,URZ100

 4
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-11010E2

GWZ100,URZ100

OCHRE,TRIM4#

 1
64330-11020E0

GWZ100,URZ100

ROOF HEADLINING-ALCANTARA,OCHRE,TRIM40

 1
64330-11010C2

GWZ100,URZ100

BLACK,TRIM2#,3#

 1
64330-11020J0

GWZ100,URZ100

ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#

 1
64330-11020C2

GWZ100,URZ100

ROOF HEADLINING-ALCANTARA,KUROKOHAKU,TRIM41

 1
64330-11020C1

GWZ100,URZ100

ROOF HEADLINING-ALCANTARA,BLACK,TRIM2#,3#,42

 1
64330J - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-10161

GWZ100,URZ100

 3
64332 - COVER, PACKAGE TRAY TRIM
64332-11010E0

GWZ100,URZ100

OCHRE,TRIM40

 1
64332-11010J0

GWZ100,URZ100

ROOF HEADLINING-ALCANTARA,BLUE,TRIM8#

 1
64332-11010C1

GWZ100,URZ100

BLACK,TRIM2#,3#,42

 1
64414 - PANEL, LUGGAGE COMPARTMENT DOOR, OUTER LOWER
64414-11010

GWZ100,URZ100

 1
64414A - CLIP, LUGGAGE COMPARTMENT DOOR PANEL
62217-13010

GWZ100,URZ100

 2
64429F - BOX, LUGGAGE COMPARTMENT TRIM
64429-11010

GWZ100,URZ100

 1
64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
64714-11020C3

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 1
64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
64715-11010C0

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 1
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-11010C0

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 1
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-11010C0

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 1
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C3

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 12
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C3

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 12
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C3

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 12
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C3

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 12
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C3

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 12
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C3

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 12
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C3

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 12
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C3

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 12
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-08186C3

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 12
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-11010C0

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 1
64726D - CLIP, LUGGAGE TRIM, REAR
90467-08186C3

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 3
66310D - HOOK ASSY, ROPE
66310-30011C1

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 4
66310D - HOOK ASSY, ROPE
66310-30011C1

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 4
66310D - HOOK ASSY, ROPE
66310-30011C1

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 4
66311L - HOOK,ROPE
66311-30010C1

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 2
66311L - HOOK,ROPE
66311-30010C1

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 2
66311L - HOOK,ROPE
66311-30010C1

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 2
66311L - HOOK,ROPE
66311-30010C1

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 2
69397 - PROTECTOR, BACK DOOR LOCK
69358-11010C1

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 1
74649 - GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
74649-51010C3

GWZ100,URZ100

BLACK,TRIM2#,3#,4#,8#

 1
69195-11020C0

GWZ100,URZ100

BLACK,TRIM2#,3#,4#

 1
Common parts
90119-06018
90119-06951
90119-06993
90159-60350
90179-06274
90467-07215
90467-09232
90467-09233
90467-09241
90467-10161
91631-B0625
Linked diagrams
7104
