GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)

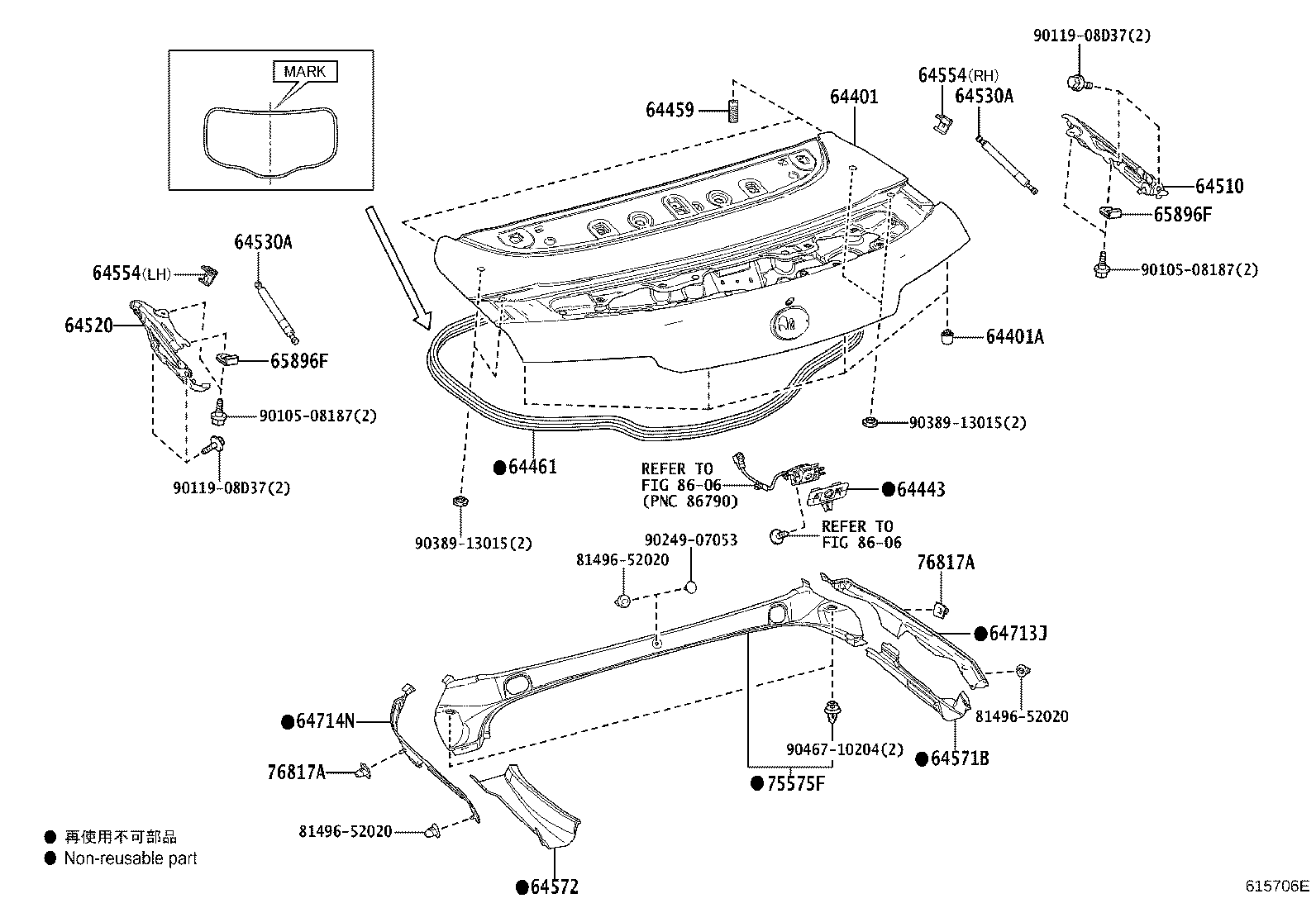

ILLUST NO. 1 OF 2(1701- )
LUGGAGE COMPARTMENT DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-11900 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 64401-11903 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 64401-11900 |
GWZ100,URZ100 REAR SPOILER-WITH(FIXED TYPE) |
1 | ||
| 64401-11902 |
GWZ100,URZ100 |
1 | ||
| 64401-11902 |
GWZ100,URZ100 REAR SPOILER-WITH(FIXED TYPE) |
1 | ||
| 64401-11910 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 64401-11902 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 64401-11903 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09152 |
GWZ100,URZ100 |
4 | ||
| 64443 - HOUSING, LUGGAGE COMPARTMENT DOOR | ||||
| 64443-11010D0 |
GWZ100,URZ100 GARNET RED MC.,3S0 |
1 | ||
| 64443-11010J1 |
GWZ100,URZ100 STRUCTURAL BLUE,8Y0 |
1 | ||
| 64443-11010D0 |
GWZ100,URZ100 "AVIATION"*(D),GARNET RED MC.,3S0 |
1 | ||
| 64443-11010E0 |
GWZ100,URZ100 "AVIATION"*(D),AMBER CS.,4X2 |
1 | ||
| 64443-11010C1 |
GWZ100,URZ100 "AVIATION"*(D),GRAPHITE BLACK GF.,223 |
1 | ||
| 64443-11010B1 |
GWZ100,URZ100 "AVIATION"*(D),SONIC SILVER,1J2 |
1 | ||
| 64443-11010J1 |
GWZ100,URZ100 "AVIATION"*(D),STRUCTURAL BLUE,8Y0 |
1 | ||
| 64443-11010B1 |
GWZ100,URZ100 SONIC SILVER,1J2 |
1 | ||
| 64443-11010E0 |
GWZ100,URZ100 AMBER CS.,4X2 |
1 | ||
| 64443-11010F0 |
GWZ100,URZ100 "AVIATION"*(D),NAPLES YELLOW,5C1 |
1 | ||
| 64443-11010B0 |
GWZ100,URZ100 "AVIATION"*(D),DK.GRAY MC.,1G0 |
1 | ||
| 64443-11010G0 |
GWZ100,URZ100 "S PACKAGE",TERRANE KHAKI M.M.,6X4 |
1 | ||
| 64443-11010B2 |
GWZ100,URZ100 "AVIATION"*(D),SONIC TITANIUM,1J7 |
1 | ||
| 64443-11010J0 |
GWZ100,URZ100 "AVIATION"*(D),DEEP BLUE MC.,8X5 |
1 | ||
| 64443-11010B1 |
GWZ100,URZ100 "AVIATION"*(D),SONIC SILVER,1J2 |
1 | ||
| 64443-11010C0 |
GWZ100,URZ100 BLACK,212 |
1 | ||
| 64443-11010A0 |
GWZ100,URZ100 "AVIATION"*(D),WHITE NOVA GF.,083 |
1 | ||
| 64443-11010A0 |
GWZ100,URZ100 WHITE NOVA GF.,083 |
1 | ||
| 64443-11010A0 |
GWZ100,URZ100 "AVIATION"*(D),WHITE NOVA GF.,083 |
1 | ||
| 64443-11010D1 |
GWZ100,URZ100 "AVIATION"*(D),RADIANT RED CONTRAST LAYE,3T5 |
1 | ||
| 64443-11010B2 |
GWZ100,URZ100 SONIC TITANIUM,1J7 |
1 | ||
| 64443-11010C1 |
GWZ100,URZ100 GRAPHITE BLACK GF.,223 |
1 | ||
| 64443-11010J0 |
GWZ100,URZ100 DEEP BLUE MC.,8X5 |
1 | ||
| 64443-11010G0 |
GWZ100,URZ100 TERRANE KHAKI M.M.,6X4 |
1 | ||
| 64443-11010E1 |
GWZ100,URZ100 "AVIATION"*(D),BLAZING CARNELIAN CONTRAS,4Y1 |
1 | ||
| 64443-11010B0 |
GWZ100,URZ100 DK.GRAY MC.,1G0 |
1 | ||
| 64443-11010F0 |
GWZ100,URZ100 NAPLES YELLOW,5C1 |
1 | ||
| 64443-11010G0 |
GWZ100,URZ100 "AVIATION"*(D),TERRANE KHAKI M.M.,6X4 |
1 | ||
| 64443-11010C0 |
GWZ100,URZ100 "AVIATION"*(D),BLACK,212 |
1 | ||
| 64443-11010E1 |
GWZ100,URZ100 BLAZING CARNELIAN CONTRAS,4Y1 |
1 | ||
| 64443-11010D1 |
GWZ100,URZ100 RADIANT RED CONTRAST LAYE,3T5 |
1 | ||
| 64443-11010C0 |
GWZ100,URZ100 "AVIATION"*(D),BLACK,212 |
1 | ||
| 64459 - CUSHION, LUGGAGE COMPARTMENT DOOR | ||||
| 90541-15036 |
GWZ100,URZ100 |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-11020 |
GWZ100,URZ100 ORANGE MARK |
1 | ||
| 64461-11010 |
GWZ100,URZ100 "S PACKAGE",LIGHT BLUE MARK |
1 | ||
| 64461-11010 |
GWZ100,URZ100 LUSTER YELLOW*(),LIGHT BLUE MARK |
1 | ||
| 64461-11010 |
GWZ100,URZ100 LIGHT BLUE MARK |
1 | ||
| 64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-11010 |
GWZ100,URZ100 |
1 | ||
| 64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-11010 |
GWZ100,URZ100 |
1 | ||
| 64530A - SUPPORT ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64530-0W190 |
GWZ100,URZ100 "S PACKAGE" |
2 | ||
| 64530-0W190 |
GWZ100,URZ100 LUSTER YELLOW*() |
2 | ||
| 64530-0W300 |
GWZ100,URZ100 "AVIATION"*(D) |
2 | ||
| 64530-0W180 |
GWZ100,URZ100 |
2 | ||
| 64530A - SUPPORT ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64530-0W190 |
GWZ100,URZ100 "S PACKAGE" |
2 | ||
| 64530-0W190 |
GWZ100,URZ100 LUSTER YELLOW*() |
2 | ||
| 64530-0W300 |
GWZ100,URZ100 "AVIATION"*(D) |
2 | ||
| 64530-0W180 |
GWZ100,URZ100 |
2 | ||
| 64554 - STOPPER, LUGGAGE DOOR BALANCER | ||||
| 64554-11010 |
GWZ100,URZ100 RH |
1 | ||
| 64554-11020 |
GWZ100,URZ100 LH |
1 | ||
| 64554 - STOPPER, LUGGAGE DOOR BALANCER | ||||
| 64554-11010 |
GWZ100,URZ100 RH |
1 | ||
| 64554-11020 |
GWZ100,URZ100 LH |
1 | ||
| 64571B - COVER, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64571-11010 |
GWZ100,URZ100 |
1 | ||
| 64572 - COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64572-11010 |
GWZ100,URZ100 |
1 | ||
| 64713J - COVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH | ||||
| 64713-11010 |
GWZ100,URZ100 |
1 | ||
| 64714N - COVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH | ||||
| 64714-11010 |
GWZ100,URZ100 |
1 | ||
| 65896F - CAP, COVER TOP SET BOLT | ||||
| 65896-11030 |
GWZ100,URZ100 |
2 | ||
| 65896F - CAP, COVER TOP SET BOLT | ||||
| 65896-11030 |
GWZ100,URZ100 |
2 | ||
| 75575F - MOULDING, BACK WINDOW, OUTSIDE LOWER | ||||
| 75575-11010 |
GWZ100,URZ100 |
1 | ||
| 76817A - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
GWZ100,URZ100 |
2 | ||
| 76817A - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-26040 |
GWZ100,URZ100 |
2 | ||
| Common parts | ||||
| 81496-52020 | ||||
| 90105-08187 | ||||
| 90119-08D37 | ||||
| 90249-07053 | ||||
| 90389-13015 | ||||
| 90467-10204 | ||||
| Linked diagrams | ||||
| 8606 | ||||

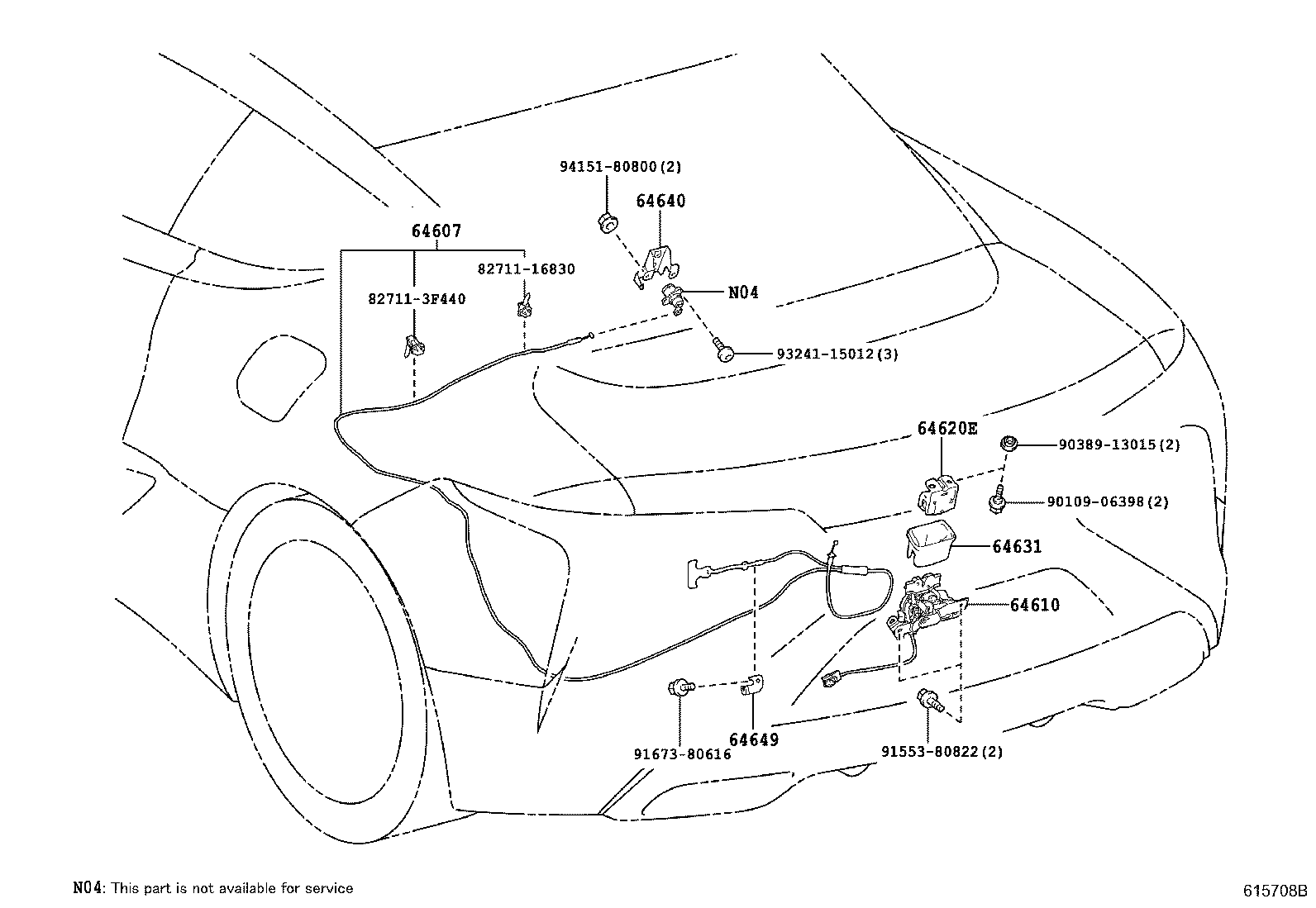

ILLUST NO. 2 OF 2(1701- )
LUGGAGE DOOR LOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-11010 |
GWZ100,URZ100 |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64600-11010 |
GWZ100,URZ100 |
1 | ||
| 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64620-24030 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 64620-24030 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 64620-11010 |
GWZ100,URZ100 |
1 | ||
| 64631 - PROTECTOR, LUGGAGE DOOR LOCK | ||||
| 64631-53020 |
GWZ100,URZ100 |
1 | ||
| 64640 - OPENER ASSY, LUGGAGE DOOR LOCK | ||||
| 64640-11010 |
GWZ100,URZ100 |
1 | ||
| 64649 - RETAINER, LUGGAGE DOOR LOCK CONTROL BASE | ||||
| 64649-11010 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 82711-3F440 | ||||
| 90109-06398 | ||||
| 90389-13015 | ||||
| 91553-80822 | ||||
| 91673-80616 | ||||
| 93241-15012 | ||||
| 94151-80800 | ||||
