GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)

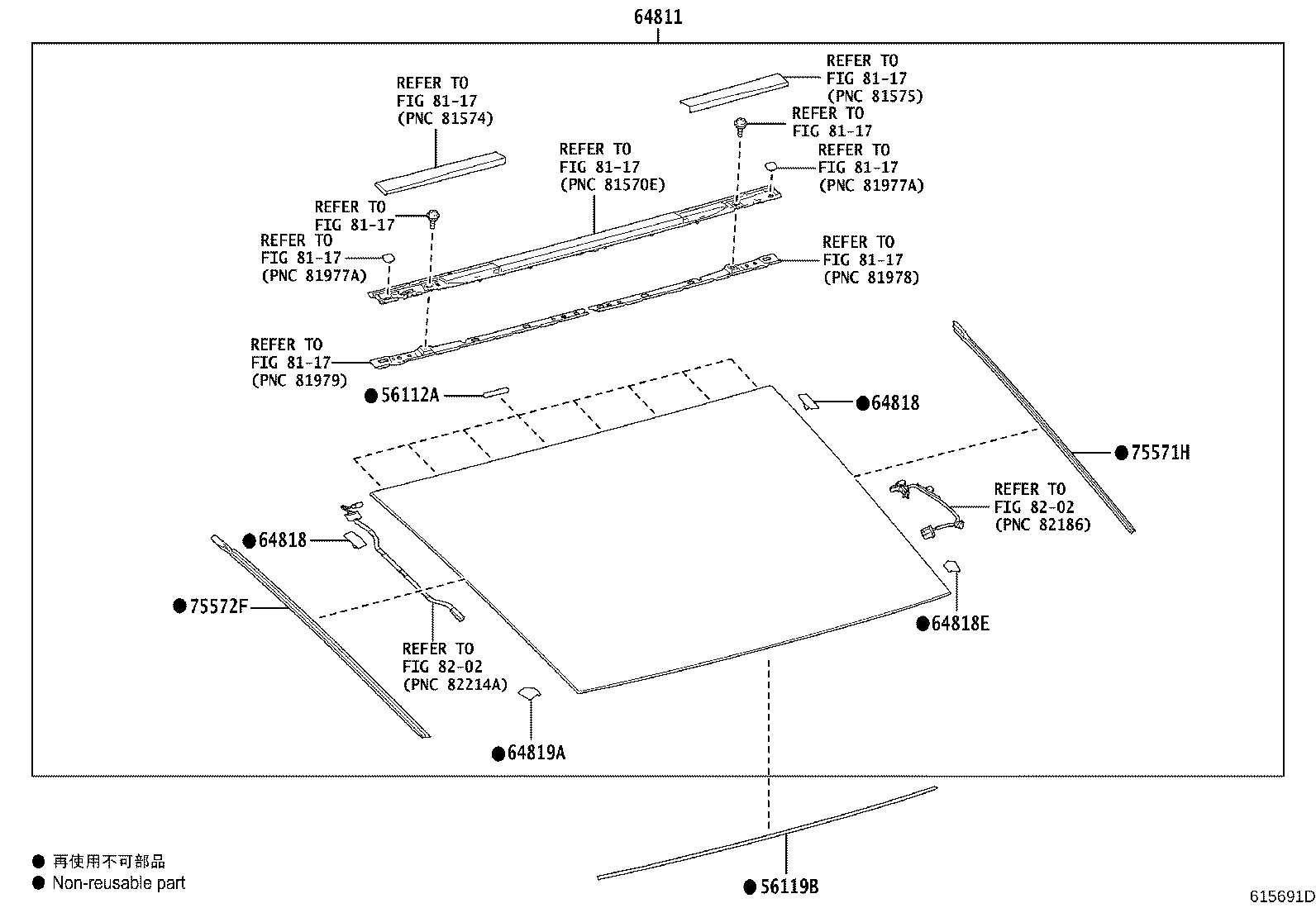

ILLUST NO. 2 OF 2(1701- )
BACK WINDOW GLASS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56112A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-24070 |
GWZ100,URZ100 |
8 | ||
| 56119B - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 56117-50140 |
GWZ100,URZ100 |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64810-11050 |
GWZ100,URZ100 |
1 | ||
| 64810-11060 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 64818-11020 |
GWZ100,URZ100 |
2 | ||
| 64818 - SPACER, BACK WINDOW GLASS | ||||
| 64818-11020 |
GWZ100,URZ100 |
2 | ||
| 64818E - SPACER, BACK WINDOW GLASS, NO.1 | ||||
| 64818-11010 |
GWZ100,URZ100 |
1 | ||
| 64819A - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-11010 |
GWZ100,URZ100 |
1 | ||
| 75571H - MOULDING, BACK WINDOW, OUTSIDE UPPER RH | ||||
| 75571-11030 |
GWZ100,URZ100 |
1 | ||
| 75572F - MOULDING, BACK WINDOW, OUTSIDE UPPER LH | ||||
| 75572-11030 |
GWZ100,URZ100 |
1 | ||
| Linked diagrams | ||||
| 8117 | ||||
| 8202 | ||||

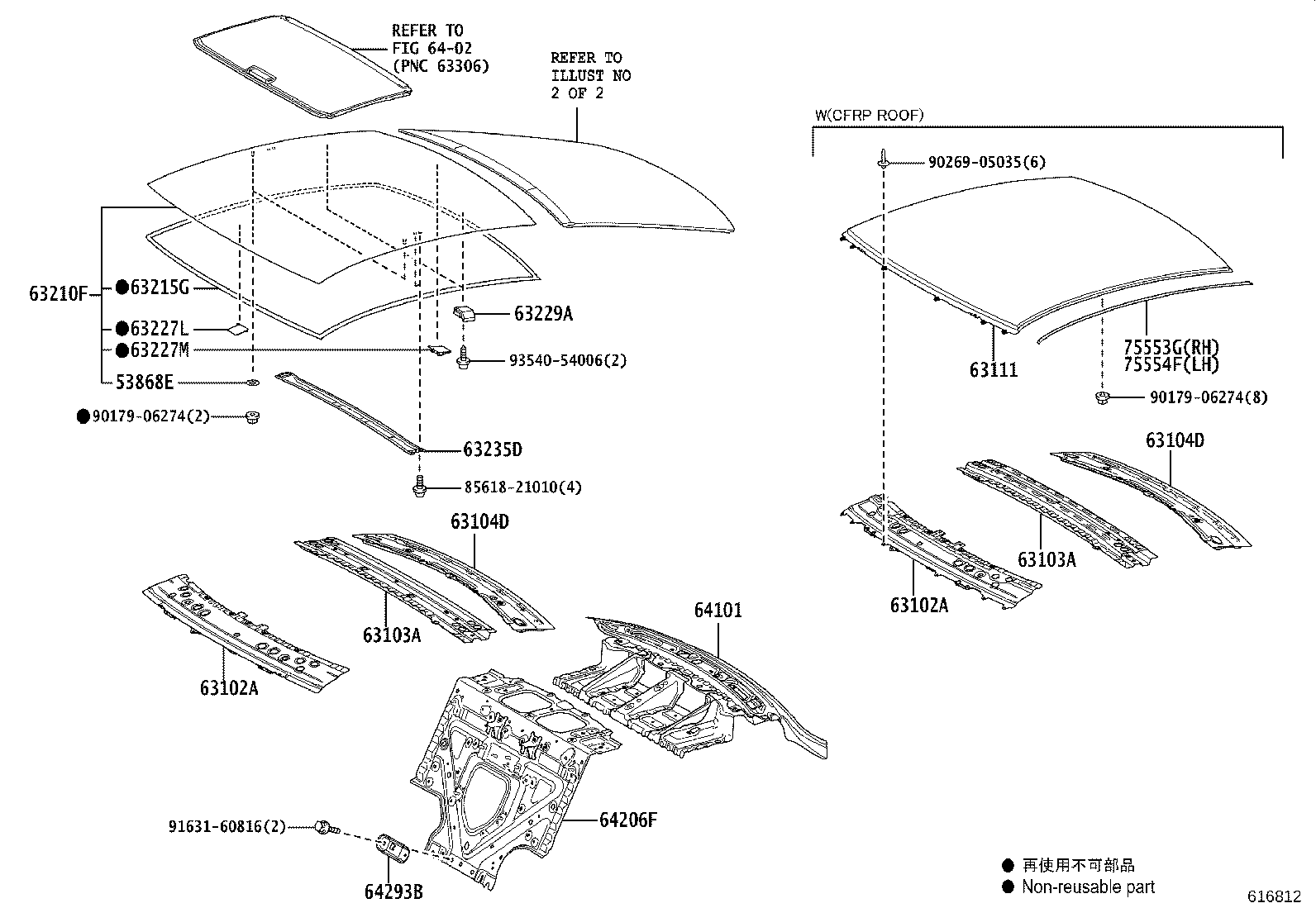

ILLUST NO. 1 OF 2(1701- )
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53868E - SEAL, FRONT FENDER TO COWL SIDE, NO.2 RH | ||||
| 53868-11010 |
GWZ100,URZ100 |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-11020 |
GWZ100,URZ100 |
1 | ||
| 63102-11010 |
GWZ100,URZ100 WITH(CFRP ROOF) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-11020 |
GWZ100,URZ100 |
1 | ||
| 63102-11010 |
GWZ100,URZ100 WITH(CFRP ROOF) |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-11010 |
GWZ100,URZ100 WITH(CFRP ROOF) |
1 | ||
| 63103-11020 |
GWZ100,URZ100 |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-11010 |
GWZ100,URZ100 WITH(CFRP ROOF) |
1 | ||
| 63103-11020 |
GWZ100,URZ100 |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-11010 |
GWZ100,URZ100 |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-11010 |
GWZ100,URZ100 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63101-11030 |
GWZ100,URZ100 WITH(CFRP ROOF) |
1 | ||
| 63210F - GLASS ASSY, MOON ROOF | ||||
| 63210-11010 |
GWZ100,URZ100 |
1 | ||
| 63215G - MOULDING, MOON ROOF, FRONT | ||||
| 63215-11010 |
GWZ100,URZ100 |
1 | ||
| 63227L - CLIP, ROOF WINDOW | ||||
| 63227-11010 |
GWZ100,URZ100 |
1 | ||
| 63227M - CLIP, ROOF WINDOW, LOWER | ||||
| 63227-11020 |
GWZ100,URZ100 |
1 | ||
| 63229A - STOPPER, SLIDING ROOF SUNSHADE | ||||
| 63229-11010 |
GWZ100,URZ100 |
2 | ||
| 63235D - FRAME, SLIDING ROOF HOUSING, CENTER | ||||
| 63235-11010 |
GWZ100,URZ100 |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-11040 |
GWZ100,URZ100 |
1 | ||
| 64206F - PANEL SUB-ASSY, ROOM PARTITION | ||||
| 64206-11010 |
GWZ100,URZ100 |
1 | ||
| 64293B - RETAINER, ROOM PARTITION | ||||
| 64293-11010 |
GWZ100,URZ100 |
1 | ||
| 75553G - MOULDING, ROOF DRIP SIDE, REAR RH | ||||
| 75553-11030 |
GWZ100,URZ100 WITH(CFRP ROOF) |
1 | ||
| 75554F - MOULDING, ROOF DRIP SIDE, REAR LH | ||||
| 75554-11030 |
GWZ100,URZ100 WITH(CFRP ROOF) |
1 | ||
| Common parts | ||||
| 85618-21010 | ||||
| 90179-06274 | ||||
| 90269-05035 | ||||
| 91631-60816 | ||||
| 93540-54006 | ||||
| Linked diagrams | ||||
| 6402 | ||||
