GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

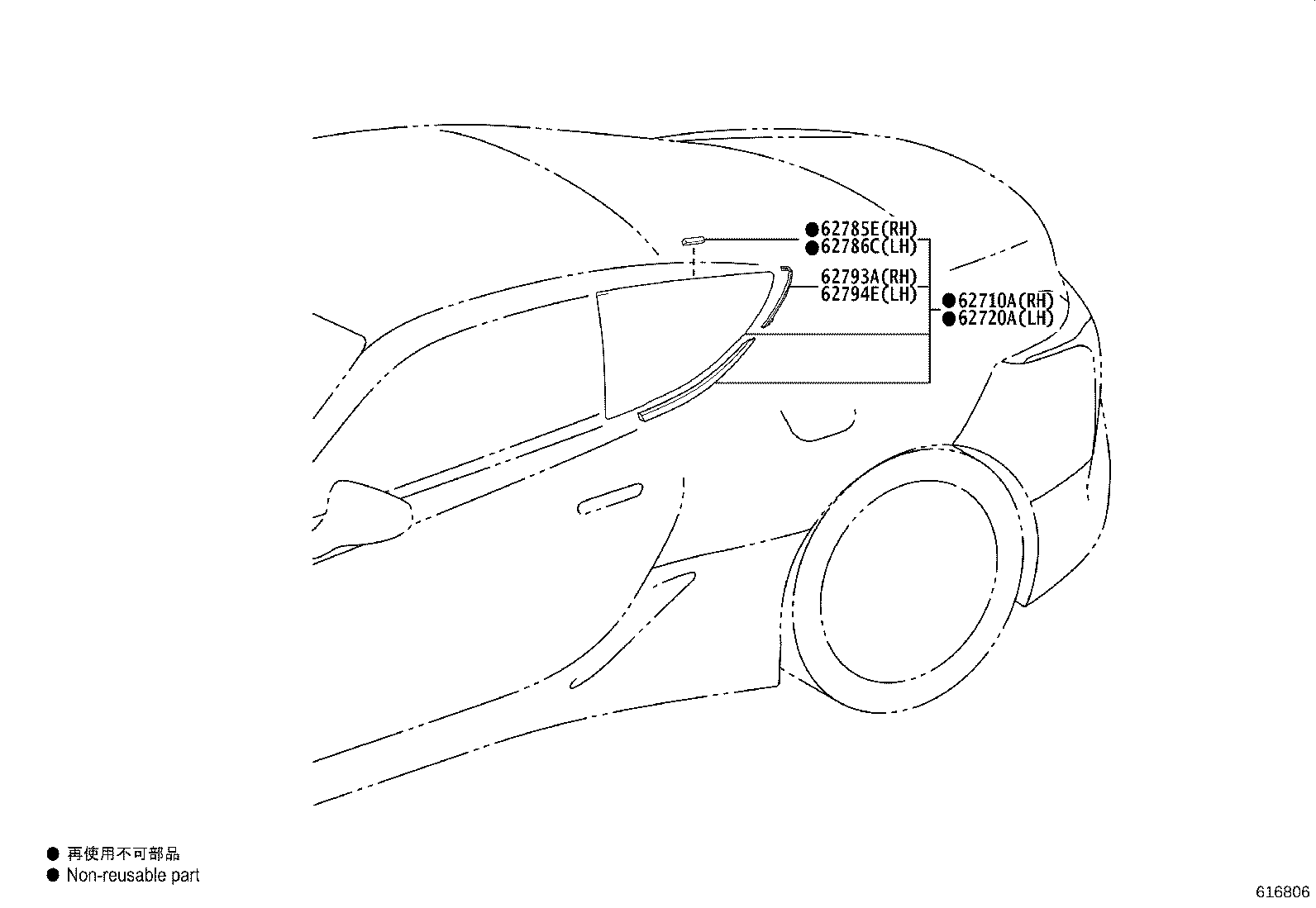

Click highlighted areas on diagram

diagram 62710A 62720A 62785E 62786C 62793A 62794E
Part # Description Qty Price
62710A - WINDOW ASSY, QUARTER, RH
62710-11120

GWZ100,URZ100

 1
62710-11150

GWZ100,URZ100

KOREA SPEC

 1
62720A - WINDOW ASSY, QUARTER, LH
62720-11130

GWZ100,URZ100

KOREA SPEC

 1
62720-11120

GWZ100,URZ100

 1
62785E - SPACER, QUARTER WINDOW GLASS, RH
62785-12050

GWZ100,URZ100

 1
62786C - SPACER, QUARTER WINDOW GLASS LH
62785-12050

GWZ100,URZ100

 1
62793A - MOULDING, QUARTER WINDOW, LOWER
62793-11020

GWZ100,URZ100

 1
62794E - MOULDING, QUARTER WINDOW, LOWER LH
62794-11020

GWZ100,URZ100

 1
