GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)

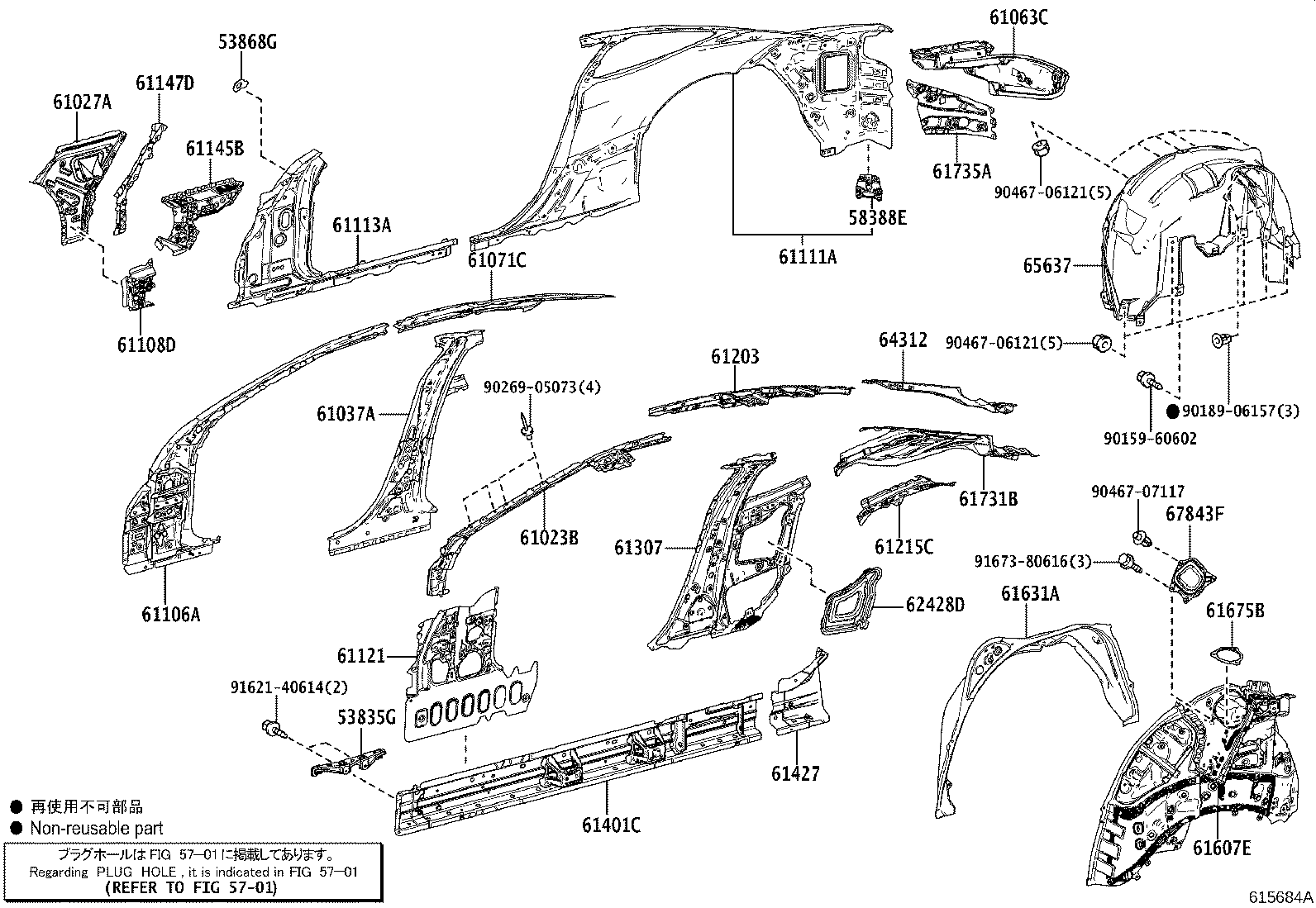

ILLUST NO. 1 OF 2(1701- )
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53835G - BRACKET, FRONT SIDE PANEL, RH | ||||
| 53835-11010 |
GWZ100,URZ100 |
1 | ||
| 53868G - SEAL, FRONT FENDER TO COWL SIDE, NO.2 RH | ||||
| 53868-11010 |
GWZ100,URZ100 |
1 | ||
| 58388E - PLATE, BODY LOWER BACK REINFORCEMENT, RH | ||||
| 58388-11040 |
GWZ100,URZ100 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-11010 |
GWZ100,URZ100 |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-11010 |
GWZ100,URZ100 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-11010 |
GWZ100,URZ100 |
1 | ||
| 61063C - TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH | ||||
| 61063-11010 |
GWZ100,URZ100 |
1 | ||
| 61071C - REINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER RH | ||||
| 61071-11900 |
GWZ100,URZ100 |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-11900 |
GWZ100,URZ100 |
1 | ||
| 61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH | ||||
| 61108-11010 |
GWZ100,URZ100 |
1 | ||
| 61111A - PANEL, FRONT SIDE, OUTER RH | ||||
| 61111-11020 |
GWZ100,URZ100 |
1 | ||
| 61113A - PANEL, SIDE, OUTER NO.2 RH | ||||
| 61113-11060 |
GWZ100,URZ100 |
1 | ||
| 61121 - PANEL, COWL SIDE, OUTER RH | ||||
| 61121-11010 |
GWZ100,URZ100 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61015-11010 |
GWZ100,URZ100 |
1 | ||
| 61147D - EXTENSION, FRONT BODY PILLAR, UPPER OUTER RH | ||||
| 61147-11010 |
GWZ100,URZ100 |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-11010 |
GWZ100,URZ100 |
1 | ||
| 61215C - RAIL, ROOF SIDE, OUTER REAR RH | ||||
| 61215-11010 |
GWZ100,URZ100 |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-11010 |
GWZ100,URZ100 |
1 | ||
| 61401C - PANEL SUB-ASSY, ROCKER, OUTER RH | ||||
| 61401-11900 |
GWZ100,URZ100 |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-11010 |
GWZ100,URZ100 |
1 | ||
| 61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-11030 |
GWZ100,URZ100 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-11040 |
GWZ100,URZ100 |
1 | ||
| 61675B - REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT | ||||
| 61675-11010 |
GWZ100,URZ100 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-11080 |
GWZ100,URZ100 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-11020 |
GWZ100,URZ100 |
1 | ||
| 62428D - COVER, CENTER PILLAR, RH | ||||
| 62428-11010 |
GWZ100,URZ100 |
1 | ||
| 64312 - BRACKET, PACKAGE TRAY, RH | ||||
| 64312-11010 |
GWZ100,URZ100 |
1 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-11010 |
GWZ100,URZ100 |
1 | ||
| 67843F - COVER, QUARTER SERVICE HOLE, NO.2 RH | ||||
| 67843-11010 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90189-06157 | ||||
| 90269-05073 | ||||
| 90467-06121 | ||||
| 90467-07117 | ||||
| 91621-40614 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 5701 | ||||

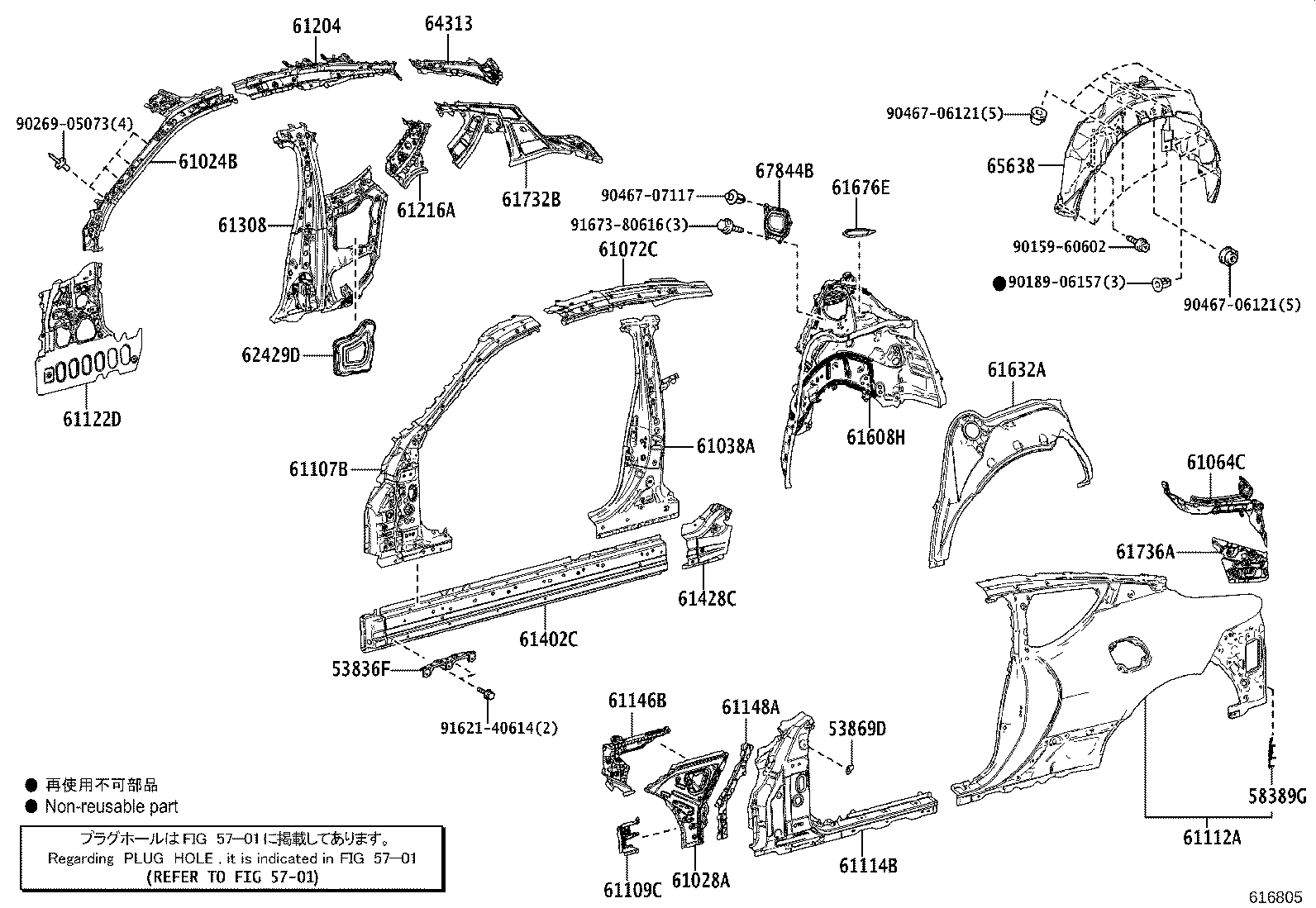

ILLUST NO. 2 OF 2(1701- )
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53836F - BRACKET, FRONT SIDE PANEL, LH | ||||
| 53836-11010 |
GWZ100,URZ100 |
1 | ||
| 53869D - SEAL, FRONT FENDER TO COWL SIDE, NO.2 LH | ||||
| 53868-11010 |
GWZ100,URZ100 |
1 | ||
| 58389G - PLATE, BODY LOWER BACK REINFORCEMENT, LH | ||||
| 58388-11040 |
GWZ100,URZ100 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-11010 |
GWZ100,URZ100 |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-11010 |
GWZ100,URZ100 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-11010 |
GWZ100,URZ100 |
1 | ||
| 61064C - TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT LH | ||||
| 61064-11010 |
GWZ100,URZ100 |
1 | ||
| 61072C - REINFORCEMENT SUB-ASSY, SEAT BELT ANCER, UPPER LH | ||||
| 61072-11900 |
GWZ100,URZ100 |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-11900 |
GWZ100,URZ100 |
1 | ||
| 61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH | ||||
| 61109-11010 |
GWZ100,URZ100 |
1 | ||
| 61112A - PANEL, FRONT SIDE, OUTER LH | ||||
| 61112-11020 |
GWZ100,URZ100 |
1 | ||
| 61114B - PANEL, SIDE, OUTER NO.2 LH | ||||
| 61114-11060 |
GWZ100,URZ100 |
1 | ||
| 61122D - PANEL, COWL SIDE, LH | ||||
| 61122-11010 |
GWZ100,URZ100 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61016-11010 |
GWZ100,URZ100 |
1 | ||
| 61148A - EXTENSION, FRONT BODY PILLAR, UPPER OUTER LH | ||||
| 61148-11010 |
GWZ100,URZ100 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-11010 |
GWZ100,URZ100 |
1 | ||
| 61216A - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61216-11010 |
GWZ100,URZ100 |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-11010 |
GWZ100,URZ100 |
1 | ||
| 61402C - PANEL SUB-ASSY, ROCKER, OUTER LH | ||||
| 61402-11900 |
GWZ100,URZ100 |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-11010 |
GWZ100,URZ100 |
1 | ||
| 61608H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-11020 |
GWZ100,URZ100 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-11040 |
GWZ100,URZ100 |
1 | ||
| 61676E - REINFORCEMENT, REAR SUSPENSION SPRING SUPPORT | ||||
| 61675-11010 |
GWZ100,URZ100 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-11080 |
GWZ100,URZ100 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-11020 |
GWZ100,URZ100 |
1 | ||
| 62429D - COVER, CENTER PILLAR, LH | ||||
| 62429-11010 |
GWZ100,URZ100 |
1 | ||
| 64313 - BRACKET, PACKAGE TRAY, LH | ||||
| 64313-11010 |
GWZ100,URZ100 |
1 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-11010 |
GWZ100,URZ100 |
1 | ||
| 67844B - COVER, QUARTER SERVICE HOLE, NO.2 LH | ||||
| 67844-11010 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90159-60602 | ||||
| 90189-06157 | ||||
| 90269-05073 | ||||
| 90467-06121 | ||||
| 90467-07117 | ||||
| 91621-40614 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 5701 | ||||
