GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)

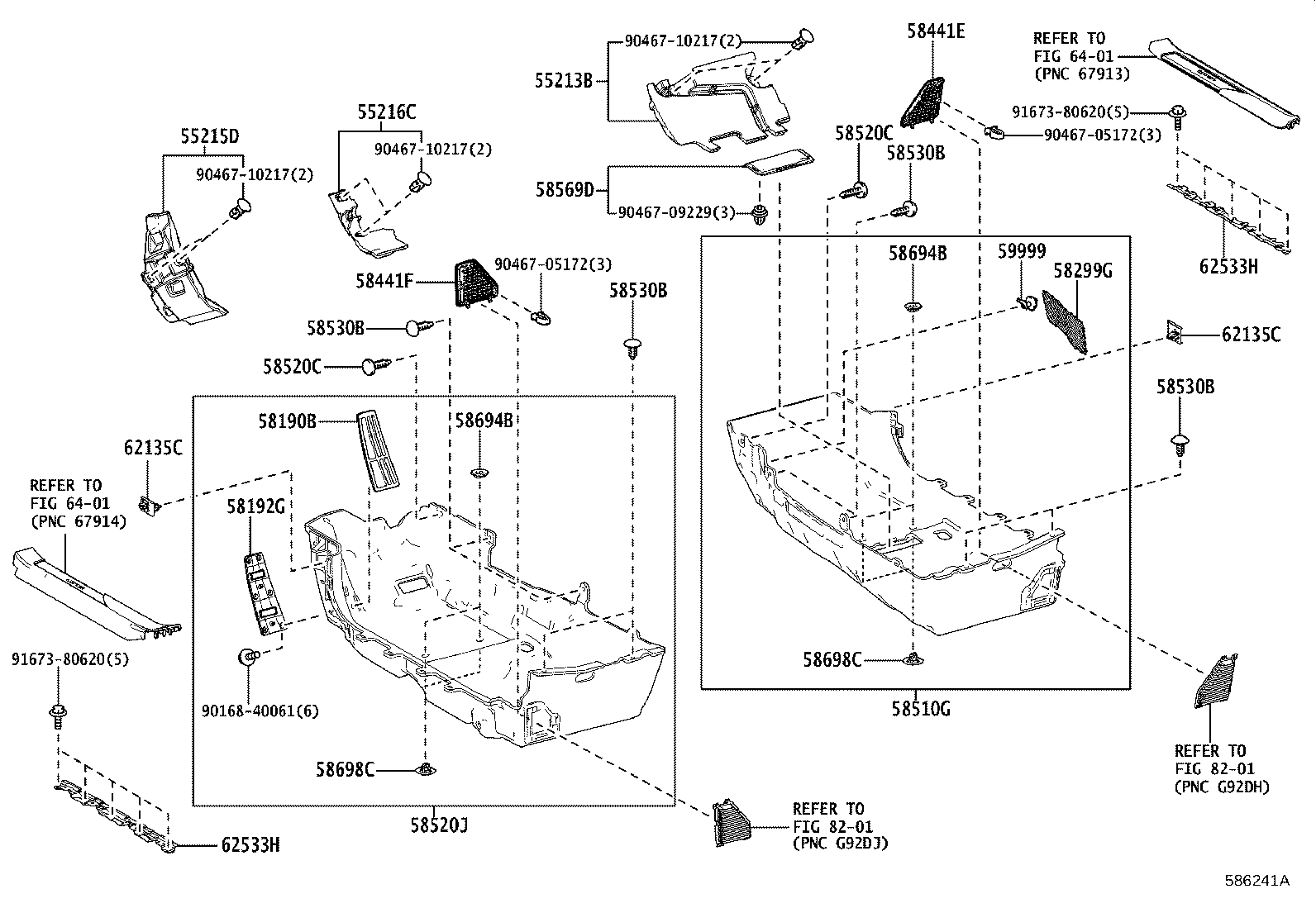

ILLUST NO. 1 OF 2(1701- )GWZ100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55213B - PAD, DASH PANEL INSULATOR, NO.1 | ||||
| 55213-11010 |
GWZ100,URZ100 |
1 | ||
| 55215D - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-11010 |
GWZ100,URZ100 |
1 | ||
| 55216C - PAD, DASH PANEL INSULATOR, NO.4 | ||||
| 55216-11010 |
GWZ100,URZ100 |
1 | ||
| 58190B - REST ASSY, FRONT FLOOR FOOT | ||||
| 58190-11010 |
GWZ100,URZ100 |
1 | ||
| 58192G - PANEL, FOOTREST, NO.2 | ||||
| 58192-11010 |
GWZ100,URZ100 |
1 | ||
| 58299G - NET, BAGGAGE HOLDER | ||||
| 58299-11010C1 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 58299-11010C1 |
GWZ100,URZ100 BLACK,TRIM2#,3#,41 |
1 | ||
| 58299-11010E2 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 58299-11010J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 58441E - COVER, BATTERY SERVICE HOLE | ||||
| 58441-11010J0 |
GWZ100 BLUE,TRIM8# |
1 | ||
| 58441-11010C1 |
GWZ100 BLACK,TRIM2#,3#,41,42 |
1 | ||
| 58441-11010E0 |
GWZ100 OCHRE,TRIM40 |
1 | ||
| 58441F - COVER, BATTERY SERVICE HOLE | ||||
| 58441-11020J0 |
GWZ100 BLUE,TRIM8# |
1 | ||
| 58441-11020C1 |
GWZ100 BLACK,TRIM2#,3#,41,42 |
1 | ||
| 58441-11020E0 |
GWZ100 OCHRE,TRIM40 |
1 | ||
| 58510G - CARPET ASSY, FLOOR, FRONT RH | ||||
| 58510-11060J2 |
GWZ100 BLUE,TRIM8# |
1 | ||
| 58510-11060E3 |
GWZ100 OCHRE,TRIM40 |
1 | ||
| 58510-11110E0 |
GWZ100 OCHER,TRIM40 |
1 | ||
| 58510-11110C0 |
GWZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 58510-11060C4 |
GWZ100 BLACK,TRIM2#,3#,41 |
1 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-07049L4 |
GWZ100,URZ100 OCHRE,TRIM40 |
2 | ||
| 90467-07049J4 |
GWZ100,URZ100 BLUE,TRIM8# |
2 | ||
| 90467-0704923 |
GWZ100,URZ100 BLACK,TRIM2#,3#,41,42 |
2 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-07049L4 |
GWZ100,URZ100 OCHRE,TRIM40 |
2 | ||
| 90467-07049J4 |
GWZ100,URZ100 BLUE,TRIM8# |
2 | ||
| 90467-0704923 |
GWZ100,URZ100 BLACK,TRIM2#,3#,41,42 |
2 | ||
| 58520J - CARPET ASSY, FLOOR, FRONT LH | ||||
| 58520-11040C1 |
GWZ100 BLACK,TRIM2#,3#,41 |
1 | ||
| 58520-11090C0 |
GWZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 58520-11090E0 |
GWZ100 OCHRE,TRIM40 |
1 | ||
| 58520-11040E0 |
GWZ100 OCHRE,TRIM40 |
1 | ||
| 58520-11040J0 |
GWZ100 BLUE,TRIM8# |
1 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 63399-26050B0 |
GWZ100,URZ100 LT.GRAY |
8 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 63399-26050B0 |
GWZ100,URZ100 LT.GRAY |
8 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 63399-26050B0 |
GWZ100,URZ100 LT.GRAY |
8 | ||
| 58530B - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 63399-26050B0 |
GWZ100,URZ100 LT.GRAY |
8 | ||
| 58569D - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-11010J0 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 58569-11010C1 |
GWZ100,URZ100 BLACK,TRIM2#,3#,41,42 |
1 | ||
| 58569-11010E0 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 58694B - PLATE, MAT SET, UPPER | ||||
| 58694-78010 |
GWZ100,URZ100 |
4 | ||
| 58694B - PLATE, MAT SET, UPPER | ||||
| 58694-78010 |
GWZ100,URZ100 |
4 | ||
| 58698C - PLATE, MAT SET, LOWER | ||||
| 58698-78010 |
GWZ100,URZ100 |
4 | ||
| 58698C - PLATE, MAT SET, LOWER | ||||
| 58698-78010 |
GWZ100,URZ100 |
4 | ||
| 59999 - CLAMP(FOR FLOOR MAT) | ||||
| 59999-24010J1 |
GWZ100,URZ100 BLUE,TRIM8# |
5 | ||
| 59999-24010C4 |
GWZ100,URZ100 BLACK,TRIM2#,3#,41 |
5 | ||
| 59999-24010C4 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
5 | ||
| 59999-24010E3 |
GWZ100,URZ100 OCHRE,TRIM40 |
5 | ||
| 62135C - RETAINER, COWL SIDE CARPET | ||||
| 62135-30020 |
GWZ100,URZ100 |
2 | ||
| 62135C - RETAINER, COWL SIDE CARPET | ||||
| 62135-30020 |
GWZ100,URZ100 |
2 | ||
| 62533H - BRACKET, SIDE TRIM, NO.1 | ||||
| 62533-11010 |
GWZ100,URZ100 SCUFF PLATE-CFRP |
2 | ||
| 62533-11010 |
GWZ100,URZ100 "S PACKAGE" |
2 | ||
| 62533-11010 |
GWZ100,URZ100 SCUFF PLATE-CFRP |
2 | ||
| 62533-11010 |
GWZ100,URZ100 |
2 | ||
| 62533-11010 |
GWZ100,URZ100 "AVIATION"*(D)&SCUFF PLATE-CFRP |
2 | ||
| 62533-11010 |
GWZ100,URZ100 "S PACKAGE" |
2 | ||
| 62533-11010 |
GWZ100,URZ100 SCUFF PLATE-CFRP |
2 | ||
| 62533-11010 |
GWZ100,URZ100 "AVIATION"*(D)&SCUFF PLATE-CFRP |
2 | ||
| 62533-11010 |
GWZ100,URZ100 "AVIATION"*(D)&SCUFF PLATE-CFRP |
2 | ||
| 62533H - BRACKET, SIDE TRIM, NO.1 | ||||
| 62533-11010 |
GWZ100,URZ100 SCUFF PLATE-CFRP |
2 | ||
| 62533-11010 |
GWZ100,URZ100 "S PACKAGE" |
2 | ||
| 62533-11010 |
GWZ100,URZ100 SCUFF PLATE-CFRP |
2 | ||
| 62533-11010 |
GWZ100,URZ100 |
2 | ||
| 62533-11010 |
GWZ100,URZ100 "AVIATION"*(D)&SCUFF PLATE-CFRP |
2 | ||
| 62533-11010 |
GWZ100,URZ100 "S PACKAGE" |
2 | ||
| 62533-11010 |
GWZ100,URZ100 SCUFF PLATE-CFRP |
2 | ||
| 62533-11010 |
GWZ100,URZ100 "AVIATION"*(D)&SCUFF PLATE-CFRP |
2 | ||
| 62533-11010 |
GWZ100,URZ100 "AVIATION"*(D)&SCUFF PLATE-CFRP |
2 | ||
| Common parts | ||||
| 90168-40061 | ||||
| 90467-05172 | ||||
| 90467-09229 | ||||
| 90467-10217 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 6401 | ||||
| 8201 | ||||

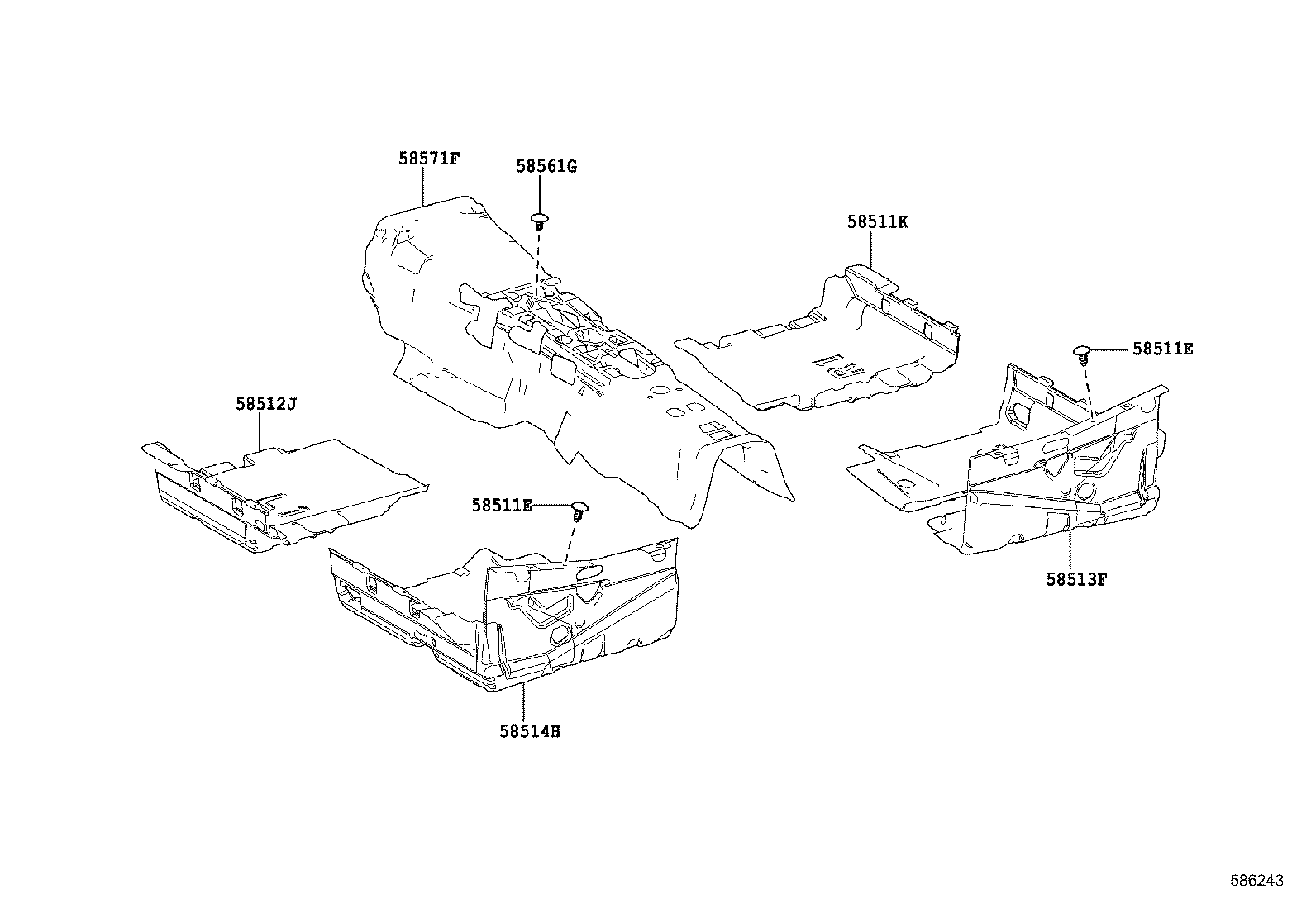

ILLUST NO. 2 OF 2(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 63399-26050B0 |
GWZ100,URZ100 LT.GRAY |
2 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 63399-26050B0 |
GWZ100,URZ100 LT.GRAY |
2 | ||
| 58511K - MAT, FLOOR, NO.1 | ||||
| 58511-11030 |
GWZ100,URZ100 |
1 | ||
| 58512J - MAT, FLOOR, NO.2 | ||||
| 58512-11010 |
GWZ100,URZ100 |
1 | ||
| 58513F - MAT, FLOOR, NO.3 | ||||
| 58513-11060 |
GWZ100,URZ100 |
1 | ||
| 58514H - MAT, FLOOR, NO.4 | ||||
| 58514-11010 |
GWZ100,URZ100 |
1 | ||
| 58561G - CLIP(FOR FRONT FLOOR SILENCER) | ||||
| 90467-07042B9 |
GWZ100,URZ100 LT.GRAY |
1 | ||
| 58571F - PAD, FRONT FLOOR, FRONT | ||||
| 58571-11020 |
GWZ100,URZ100 |
1 | ||
