GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
(1701-1802)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-11010 |
GWZ100,URZ100 |
1 | ||
| 53383D - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 90467-08108 |
GWZ100,URZ100 |
9 | ||
| 55211F - COVER, DASH PANEL INSULATOR | ||||
| 55211-11030 |
GWZ100,URZ100 |
1 | ||
| 55211G - CLIP, DASH PANEL INSULATOR COVER | ||||
| 90467-11122 |
GWZ100,URZ100 |
3 | ||
| 55355D - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-11040 |
GWZ100,URZ100 |
2 | ||
| 55355D - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-11040 |
GWZ100,URZ100 |
2 | ||
| 55700B - COWL ASSY | ||||
| 55700-11010 |
GWZ100,URZ100 |
1 | ||
| 55700-11011 |
GWZ100,URZ100 |
1 | ||
| 55708 - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-11031 |
GWZ100,URZ100 |
1 | ||
| 55708-11030 |
GWZ100,URZ100 |
1 | ||
| 55708-11041 |
GWZ100,URZ100 COLD AREA SPEC |
1 | ||
| 55708-11040 |
GWZ100,URZ100 COLD AREA SPEC |
1 | ||
| 55753F - BRACKET, INSTRUMENT PANEL TO COWL, NO.1 | ||||
| 55753-11010 |
GWZ100,URZ100 |
1 | ||
| 55754G - BRACKET, INSTRUMENT PANEL TO COWL, NO.2 | ||||
| 55754-11010 |
GWZ100,URZ100 |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-09242 |
GWZ100,URZ100 |
4 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-09242 |
GWZ100,URZ100 |
4 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-09242 |
GWZ100,URZ100 |
4 | ||
| 55783A - PAD, COWL TOP SILENCER | ||||
| 55783-11010 |
GWZ100,URZ100 |
1 | ||
| 55783E - LOUVER, COWL TOP VENTILATOR, CENTER | ||||
| 55783-11030 |
GWZ100,URZ100 |
1 | ||
| 55788D - INSULATOR, COWL TOP PANEL, NO.2 | ||||
| 55788-11020 |
GWZ100,URZ100 |
1 | ||
| 55789D - INSULATOR, COWL TOP PANEL, NO.3 | ||||
| 55789-11020 |
GWZ100,URZ100 |
1 | ||
| 55791G - COVER, COWL REINFORCEMENT, UPPER RH | ||||
| 55791-11010 |
GWZ100,URZ100 |
1 | ||
| 55792B - COVER, COWL REINFORCEMENT, UPPER LH | ||||
| 55792-11010 |
GWZ100,URZ100 |
1 | ||
| 55793F - COVER, COWL REINFORCEMENT, UPPER NO.2 RH | ||||
| 55793-11010 |
GWZ100,URZ100 |
1 | ||
| 55794D - COVER, COWL REINFORCEMENT, UPPER NO.2 LH | ||||
| 55794-11010 |
GWZ100,URZ100 |
1 | ||
| 55795G - COVER, COWL REINFORCEMENT, UPPER NO.3 RH | ||||
| 55795-11010 |
GWZ100,URZ100 |
1 | ||
| 55796B - COVER, COWL REINFORCEMENT, UPPER NO.3 LH | ||||
| 55796-11010 |
GWZ100,URZ100 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-11902 |
GWZ100,URZ100 COLD AREA SPEC&HEAD UP DISPLAY-WITH |
1 | ||
| 56101-11916 |
GWZ100,URZ100 |
1 | ||
| 56101-11915 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH |
1 | ||
| 56101-11934 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH |
1 | ||
| 56101-11930 |
GWZ100,URZ100 COLD AREA SPEC |
1 | ||
| 56101-11909 |
GWZ100,URZ100 COLD AREA SPEC |
1 | ||
| 56101-11928 |
GWZ100,URZ100 COLD AREA SPEC&HEAD UP DISPLAY-WITH |
1 | ||
| 56101-11935 |
GWZ100,URZ100 |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-48010 |
GWZ100,URZ100 |
2 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30120 |
GWZ100,URZ100 |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
GWZ100,URZ100 |
1 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-64010 |
GWZ100,URZ100 L=3500,COLD AREA SPEC |
1 | ||
| 56117-64010 |
GWZ100,URZ100 L=3500,COLD AREA SPEC&HEAD UP DISPLAY-WITH |
1 | ||
| 56117-64010 |
GWZ100,URZ100 L=3500 |
1 | ||
| 56117-64010 |
GWZ100,URZ100 L=3500,HEAD UP DISPLAY-WITH |
1 | ||
| 56153C - MOULDING, FRONT WINDOW, INNER CENTER | ||||
| 56153-11020 |
GWZ100,URZ100 |
1 | ||
| 56165 - COVER, FRONT WINDOW INNER MOULDING, LH | ||||
| 56165-30010 |
GWZ100,URZ100 |
1 | ||
| 75533G - MOULDING, WINDSHIELD, OUTSIDE | ||||
| 75533-11010 |
GWZ100,URZ100 |
1 | ||

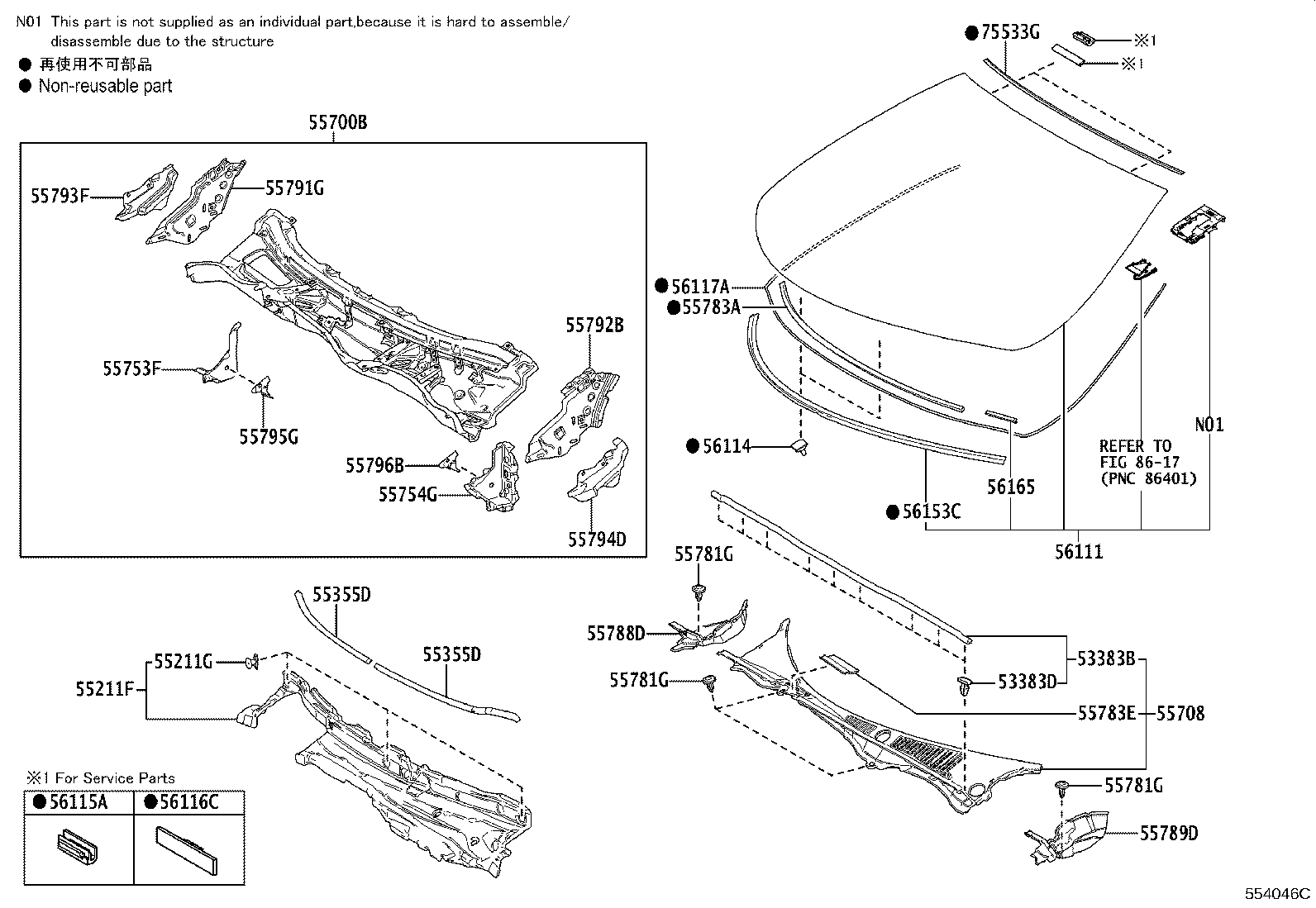

| Linked diagrams | ||||
| 8617 | ||||
(1803- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383B - SEAL, HOOD TO COWL TOP | ||||
| 53383-11010 |
GWZ100,URZ100 |
1 | ||
| 53383D - CLIP(FOR HOOD TO COWL TOP SEAL) | ||||
| 90467-08108 |
GWZ100,URZ100 |
9 | ||
| 55211F - COVER, DASH PANEL INSULATOR | ||||
| 55211-11030 |
GWZ100,URZ100 |
1 | ||
| 55211G - CLIP, DASH PANEL INSULATOR COVER | ||||
| 90467-11122 |
GWZ100,URZ100 |
3 | ||
| 55355D - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-11040 |
GWZ100,URZ100 |
2 | ||
| 55355D - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-11040 |
GWZ100,URZ100 |
2 | ||
| 55700B - COWL ASSY | ||||
| 55700-11010 |
GWZ100,URZ100 |
1 | ||
| 55700-11011 |
GWZ100,URZ100 |
1 | ||
| 55708 - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-11031 |
GWZ100,URZ100 |
1 | ||
| 55708-11030 |
GWZ100,URZ100 |
1 | ||
| 55708-11041 |
GWZ100,URZ100 COLD AREA SPEC |
1 | ||
| 55708-11040 |
GWZ100,URZ100 COLD AREA SPEC |
1 | ||
| 55753F - BRACKET, INSTRUMENT PANEL TO COWL, NO.1 | ||||
| 55753-11010 |
GWZ100,URZ100 |
1 | ||
| 55754G - BRACKET, INSTRUMENT PANEL TO COWL, NO.2 | ||||
| 55754-11010 |
GWZ100,URZ100 |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-09242 |
GWZ100,URZ100 |
4 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-09242 |
GWZ100,URZ100 |
4 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-09242 |
GWZ100,URZ100 |
4 | ||
| 55783A - PAD, COWL TOP SILENCER | ||||
| 55783-11010 |
GWZ100,URZ100 |
1 | ||
| 55783E - LOUVER, COWL TOP VENTILATOR, CENTER | ||||
| 55783-11030 |
GWZ100,URZ100 |
1 | ||
| 55788D - INSULATOR, COWL TOP PANEL, NO.2 | ||||
| 55788-11020 |
GWZ100,URZ100 |
1 | ||
| 55789D - INSULATOR, COWL TOP PANEL, NO.3 | ||||
| 55789-11020 |
GWZ100,URZ100 |
1 | ||
| 55791G - COVER, COWL REINFORCEMENT, UPPER RH | ||||
| 55791-11010 |
GWZ100,URZ100 |
1 | ||
| 55792B - COVER, COWL REINFORCEMENT, UPPER LH | ||||
| 55792-11010 |
GWZ100,URZ100 |
1 | ||
| 55793F - COVER, COWL REINFORCEMENT, UPPER NO.2 RH | ||||
| 55793-11010 |
GWZ100,URZ100 |
1 | ||
| 55794D - COVER, COWL REINFORCEMENT, UPPER NO.2 LH | ||||
| 55794-11010 |
GWZ100,URZ100 |
1 | ||
| 55795G - COVER, COWL REINFORCEMENT, UPPER NO.3 RH | ||||
| 55795-11010 |
GWZ100,URZ100 |
1 | ||
| 55796B - COVER, COWL REINFORCEMENT, UPPER NO.3 LH | ||||
| 55796-11010 |
GWZ100,URZ100 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-11902 |
GWZ100,URZ100 COLD AREA SPEC&HEAD UP DISPLAY-WITH |
1 | ||
| 56101-11916 |
GWZ100,URZ100 |
1 | ||
| 56101-11915 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH |
1 | ||
| 56101-11934 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH |
1 | ||
| 56101-11930 |
GWZ100,URZ100 COLD AREA SPEC |
1 | ||
| 56101-11909 |
GWZ100,URZ100 COLD AREA SPEC |
1 | ||
| 56101-11928 |
GWZ100,URZ100 COLD AREA SPEC&HEAD UP DISPLAY-WITH |
1 | ||
| 56101-11935 |
GWZ100,URZ100 |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56114-48010 |
GWZ100,URZ100 |
2 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30120 |
GWZ100,URZ100 |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
GWZ100,URZ100 |
1 | ||
| 56117A - DAM, WINDOW GLASS ADHESIVE | ||||
| 56117-64010 |
GWZ100,URZ100 L=3500,COLD AREA SPEC |
1 | ||
| 56117-64010 |
GWZ100,URZ100 L=3500,COLD AREA SPEC&HEAD UP DISPLAY-WITH |
1 | ||
| 56117-64010 |
GWZ100,URZ100 L=3500 |
1 | ||
| 56117-64010 |
GWZ100,URZ100 L=3500,HEAD UP DISPLAY-WITH |
1 | ||
| 56153C - MOULDING, FRONT WINDOW, INNER CENTER | ||||
| 56153-11020 |
GWZ100,URZ100 |
1 | ||
| 56165 - COVER, FRONT WINDOW INNER MOULDING, LH | ||||
| 56165-30010 |
GWZ100,URZ100 |
1 | ||
| 75533G - MOULDING, WINDSHIELD, OUTSIDE | ||||
| 75533-11010 |
GWZ100,URZ100 |
1 | ||

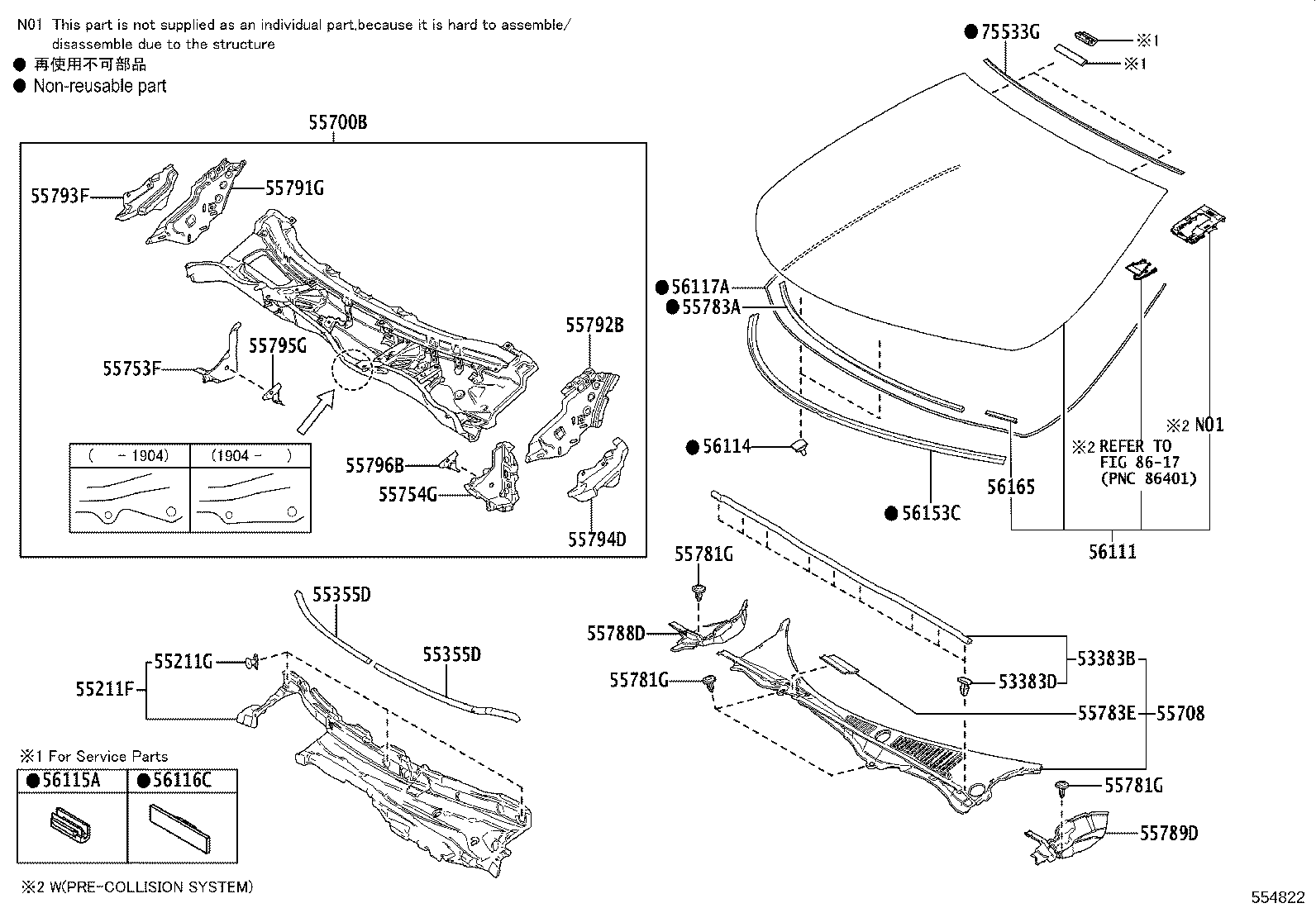

| Linked diagrams | ||||
| 8617 | ||||
