GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)

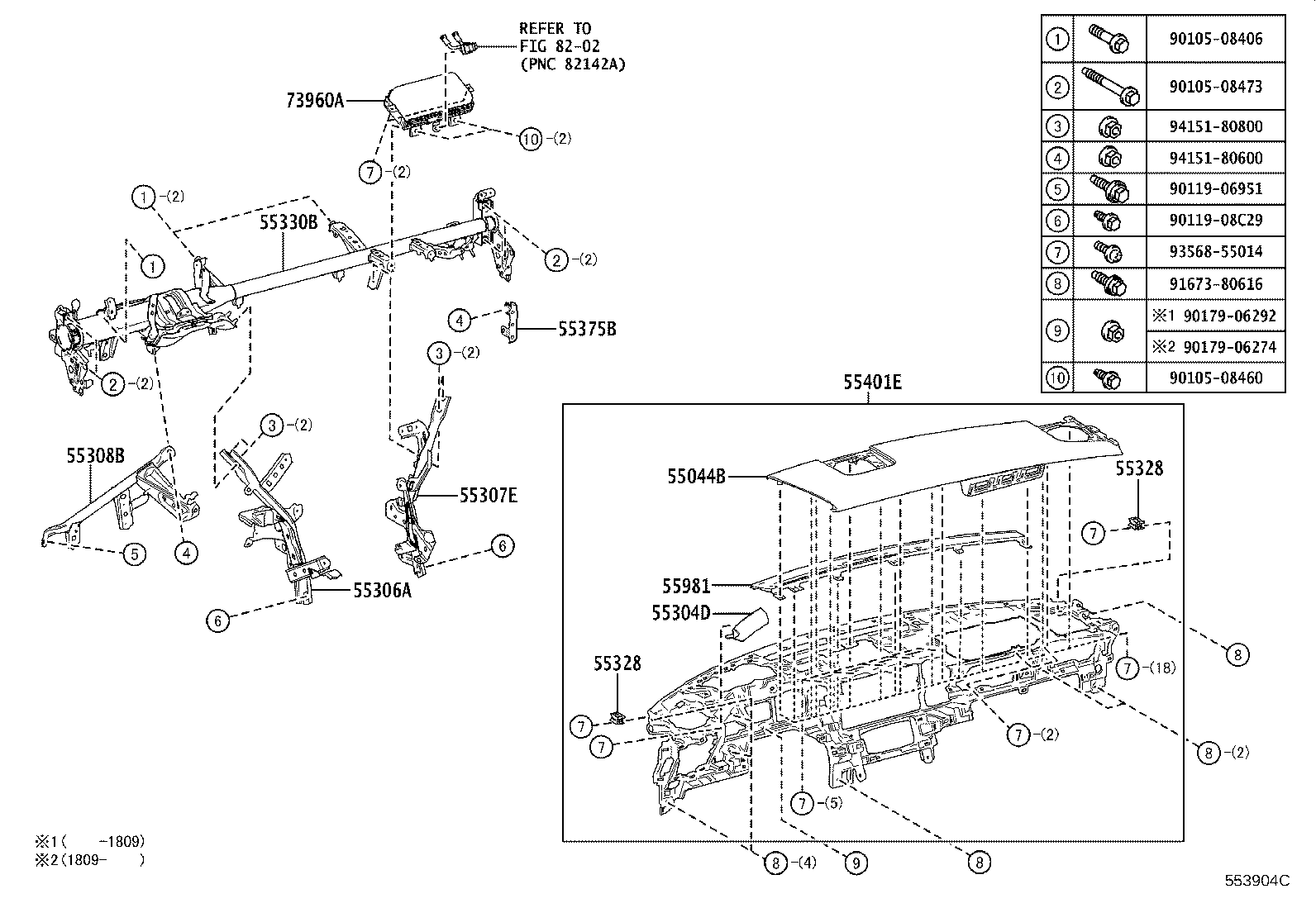

ILLUST NO. 1 OF 2(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55044B - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55044-11010C3 |
GWZ100,URZ100 BLACK/ORANGE,TRIM42 |
1 | ||
| 55044-11010E1 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55044-11010C1 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55044-11010C1 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 55044-11010E3 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55044-11010E1 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 55044-11010J0 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55044-11010C1 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 55044-11010C4 |
GWZ100,URZ100 BLACK/BROWN,TRIM21,22 |
1 | ||
| 55044-11010C1 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55044-11010C2 |
GWZ100,URZ100 BLACK/MUSTARD YELLOW,TRIM21 |
1 | ||
| 55304D - PANEL SUB-ASSY, INSTRUMENT, MAIN | ||||
| 55304-11010E1 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 55304-11010C2 |
GWZ100,URZ100 BLACK/MUSTARD YELLOW,TRIM21 |
1 | ||
| 55304-11010C4 |
GWZ100,URZ100 BLACK/BROWN,TRIM21,22 |
1 | ||
| 55304-11010J0 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55304-11010C1 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 55304-11010E1 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55304-11010C1 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 55304-11010E3 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55304-11010C1 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55304-11010C3 |
GWZ100,URZ100 BLACK/ORANGE,TRIM42 |
1 | ||
| 55304-11010C1 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-11030 |
GWZ100,URZ100 |
1 | ||
| 55306-11010 |
GWZ100,URZ100 |
1 | ||
| 55307E - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-11030 |
GWZ100,URZ100 |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-11030 |
GWZ100,URZ100 |
1 | ||
| 55308-11010 |
GWZ100,URZ100 |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
GWZ100,URZ100 |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
GWZ100,URZ100 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-11010 |
GWZ100,URZ100 |
1 | ||
| 55330-11030 |
GWZ100,URZ100 |
1 | ||
| 55330-11050 |
GWZ100,URZ100 |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-11030 |
GWZ100,URZ100 |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-11040C2 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 55401-11040C2 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55401-11040E5 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55401-11040J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55401-11040E2 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55401-11040C3 |
GWZ100,URZ100 BLACK/MUSTARD YELLOW,TRIM21 |
1 | ||
| 55401-11040C5 |
GWZ100,URZ100 BLACK/BROWN,TRIM21,22 |
1 | ||
| 55401-11040C2 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55401-11040C4 |
GWZ100,URZ100 BLACK/ORANGE,TRIM42 |
1 | ||
| 55401-11040E2 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 55401-11040C2 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-11010E3 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55981-11010J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55981-11010E1 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55981-11010C1 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-11010 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 73960-11030 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90105-08406 | ||||
| 90105-08460 | ||||
| 90105-08473 | ||||
| 90119-06951 | ||||
| 90119-08C29 | ||||
| 90179-06274 | ||||
| 90179-06292 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

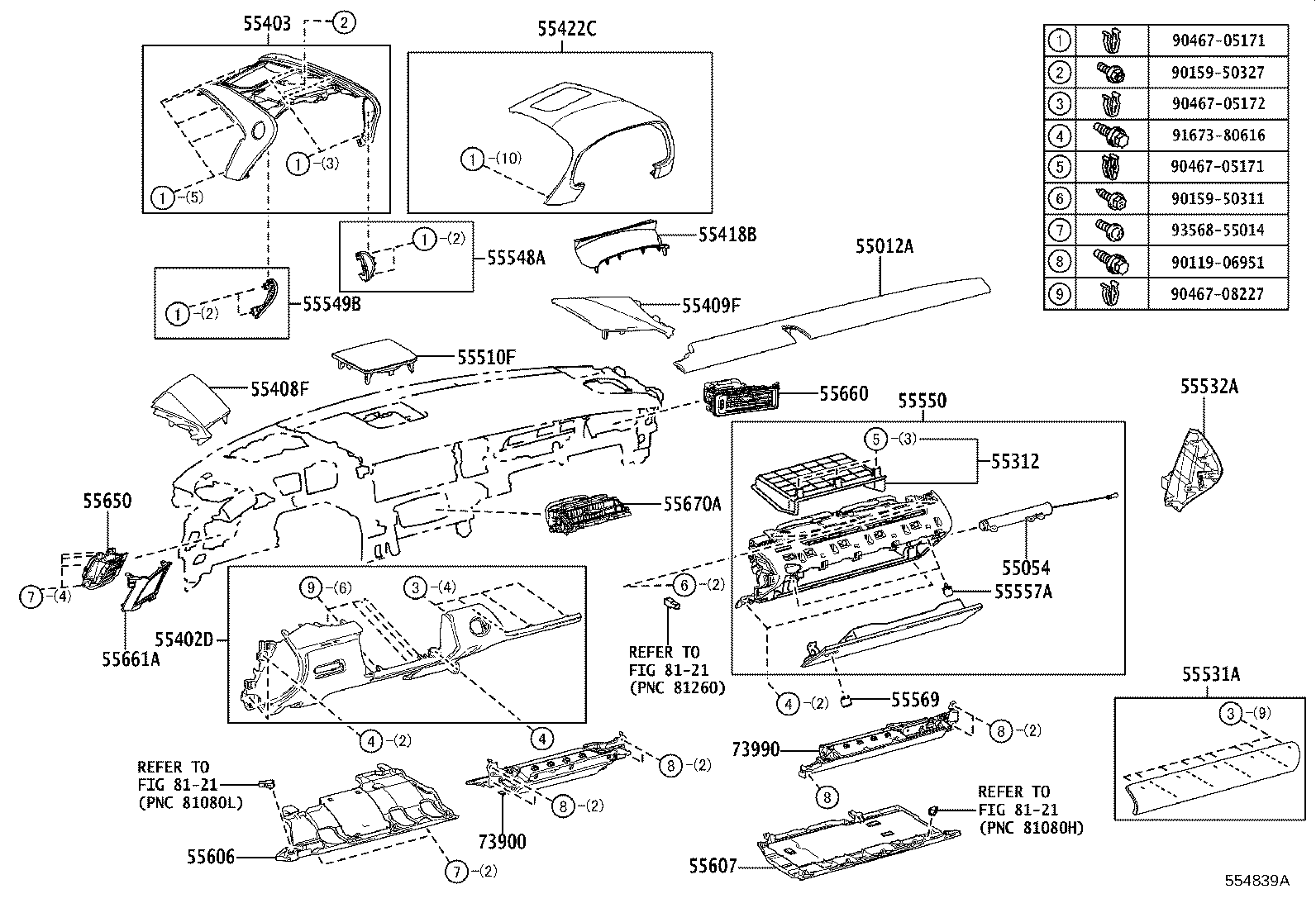

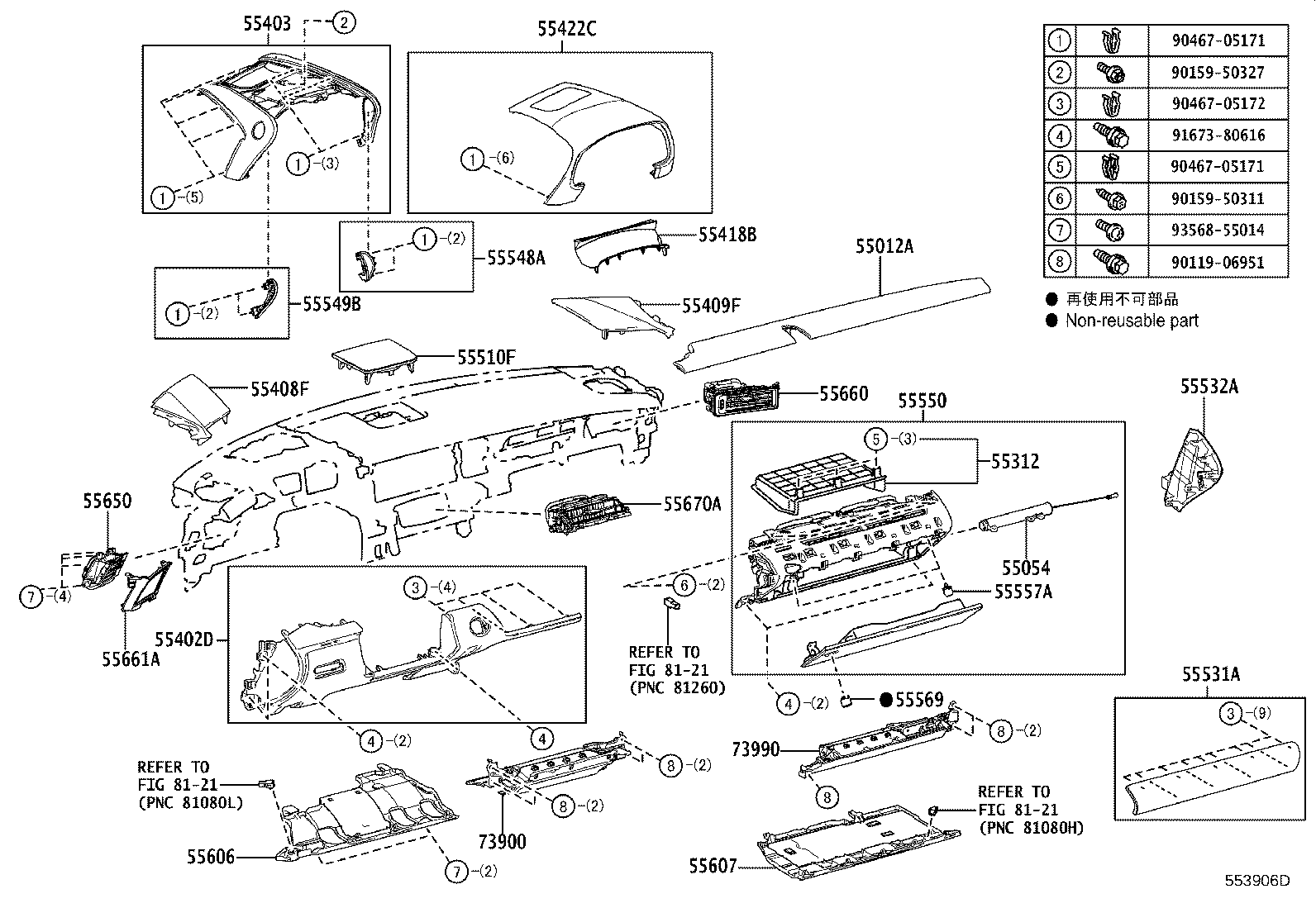

ILLUST NO. 2 OF 2(1701-2006)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-11030E2 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55012-11030E3 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55012-11030J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55012-11030C2 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-11020 |
GWZ100,URZ100 |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-11080 |
GWZ100,URZ100 |
1 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-11010C8 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55402-11010E6 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55402-11010C4 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55402-11010J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55402-11010C2 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55402-1101021 |
GWZ100,URZ100 BLACK/BROWN,TRIM21,22 |
1 | ||
| 55402-11010J2 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55402-11010C8 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 55402-11010E3 |
GWZ100,URZ100 OCHER,TRIM40 |
1 | ||
| 55402-11010E8 |
GWZ100,URZ100 OCHER,TRIM40 |
1 | ||
| 55402-11010C5 |
GWZ100,URZ100 BLACK/MUSTARD YELLOW,TRIM21 |
1 | ||
| 55402-11010L0 |
GWZ100,URZ100 BLACK/ORANGE,TRIM42 |
1 | ||
| 55402-11010C4 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 55402-11010E3 |
GWZ100,URZ100 OCHER,TRIM4# |
1 | ||
| 55402-11010E2 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-11010C6 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK,TRIM20,30 |
1 | ||
| 55403-11010C5 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK,TRIM20,21,30 |
1 | ||
| 55403-11020C3 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 55403-11010C8 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK,TRIM20,30,31,42 |
1 | ||
| 55403-11020J2 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55403-11010J5 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLUE,TRIM8# |
1 | ||
| 55403-11020E3 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55403-11010J3 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLUE,TRIM8# |
1 | ||
| 55403-11020C4 |
GWZ100,URZ100 BLACK/BROWN,TRIM21,22 |
1 | ||
| 55403-11010C9 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK,TRIM20,31,42 |
1 | ||
| 55403-11010C7 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK,TRIM20,21,30,31,42 |
1 | ||
| 55403-11020C3 |
GWZ100,URZ100 BLACK,TRIM20,21,3#,42 |
1 | ||
| 55403-11010E9 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,KUROKOHAKU,TRIM41 |
1 | ||
| 55403-11010E6 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,OCHER,TRIM40 |
1 | ||
| 55403-1101020 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK/BROWN,TRIM21,22 |
1 | ||
| 55403-11010L1 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,OCHRE,TRIM40 |
1 | ||
| 55403-11010E4 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,OCHRE,TRIM4# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-11010C4 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 55408-11010E2 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55408-11010E5 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55408-11010J2 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55408-11010E6 |
GWZ100,URZ100 OCHER,TRIM40 |
1 | ||
| 55408-11010C8 |
GWZ100,URZ100 BLACK/ORANGE,TRIM42 |
1 | ||
| 55408-11010C6 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-11010C6 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55409-11010C4 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 55409-11010J2 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55409-11010E6 |
GWZ100,URZ100 OCHER,TRIM40 |
1 | ||
| 55409-11010E5 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55409-11010E2 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55409-11010C8 |
GWZ100,URZ100 BLACK/ORANGE,TRIM42 |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-11010C4 |
GWZ100,URZ100 BLACK,TRIM2#,3#,4# |
1 | ||
| 55418-11010J2 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-11130E4 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 55422-11150E3 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,OCHRE,TRIM4# |
1 | ||
| 55422-1113020 |
GWZ100,URZ100 BLACK/BROWN,TRIM21,22 |
1 | ||
| 55422-11150E6 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,KUROKOHAKU,TRIM41 |
1 | ||
| 55422-11150C5 |
GWZ100,URZ100 SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&HEAD UP DISPLAY-WITH,BLACK,TRIM20,30,31 |
1 | ||
| 55422-11150J2 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLUE,TRIM8# |
1 | ||
| 55422-11150C6 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK/MUSTARD YELLOW,TRIM21 |
1 | ||
| 55422-11150C7 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK/ORANGE,TRIM42 |
1 | ||
| 55422-11130C9 |
GWZ100,URZ100 SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42 |
1 | ||
| 55422-11130J3 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55422-11130C6 |
GWZ100,URZ100 SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK,TRIM20,30,31 |
1 | ||
| 55422-11130C8 |
GWZ100,URZ100 BLACK/ORANGE,TRIM42 |
1 | ||
| 55422-11130E4 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55422-11150C8 |
GWZ100,URZ100 SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&HEAD UP DISPLAY-WITH,BLACK/ORANGE,TRIM42 |
1 | ||
| 55422-11130C5 |
GWZ100,URZ100 BLACK,TRIM20,30,31 |
1 | ||
| 55422-11150C9 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK/BROWN,TRIM21,22 |
1 | ||
| 55422-11150E3 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,OCHRE,TRIM40 |
1 | ||
| 55422-11150C4 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK,TRIM20,30,31 |
1 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-11010E3 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55510-11010E1 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55510-11010J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55510-11010C2 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 55531A - PANEL, GLOVE COMPARTMENT, NO.1 | ||||
| 55531-11010C1 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55531-11010C2 |
GWZ100,URZ100 BLACK/MUSTARD YELLOW,TRIM21 |
1 | ||
| 55531-11010C5 |
GWZ100,URZ100 BLACK/BROWN,TRIM21,22 |
1 | ||
| 55531-11010E0 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 55531-11010E0 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55531-11010J0 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55531-11010C1 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 55531-11010C1 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 55531-11010E2 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55531-11010E3 |
GWZ100,URZ100 ORANGE,TRIM42 |
1 | ||
| 55531-11010C1 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55532A - PANEL, GLOVE COMPARTMENT, NO.2 | ||||
| 55532-11020E3 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55532-11020J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55532-11020C1 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 55532-11020E1 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-11010J3 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55548-11010E4 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,KUROKOHAKU,TRIM41 |
1 | ||
| 55548-11010E3 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55548-11010C4 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-11010E4 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,KUROKOHAKU,TRIM41 |
1 | ||
| 55549-11010J3 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55549-11010E3 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55549-11010C4 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-11010J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55550-11010E4 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55550-11010C2 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55550-11010C2 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55550-11010C2 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 55550-11010E2 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55550-11010E5 |
GWZ100,URZ100 ORANGE,TRIM42 |
1 | ||
| 55550-11010E2 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 55550-11010C2 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 55550-11010C6 |
GWZ100,URZ100 BLACK/BROWN,TRIM21,22 |
1 | ||
| 55550-11010C3 |
GWZ100,URZ100 BLACK/MUSTARD YELLOW,TRIM21 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-47050 |
GWZ100,URZ100 |
2 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-11030C2 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 55569-11030J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55569-11030E1 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55569-11030E3 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-11010 |
GWZ100,URZ100 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-11010 |
GWZ100,URZ100 |
1 | ||
| 55607-11030 |
GWZ100,URZ100 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-11010 |
GWZ100,URZ100 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-11010 |
GWZ100,URZ100 |
1 | ||
| 55661A - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| 55661-11090 |
GWZ100,URZ100 |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-11030 |
GWZ100,URZ100 |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-11010E2 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 73900-11010J2 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 73900-11010E4 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 73900-11010C3 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-11010C3 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 73990-11010J2 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 73990-11010E2 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 73990-11010E4 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50311 | ||||
| 90159-50327 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 2 OF 2(2006- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-11030E2 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55012-11030E3 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55012-11030J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55012-11030C2 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-11020 |
GWZ100,URZ100 |
1 | ||
| 55312 - PANEL, INSTRUMENT, LOWER | ||||
| 55312-11080 |
GWZ100,URZ100 |
1 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-11010C8 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55402-11010E6 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55402-11010C4 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55402-11010J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55402-11010C2 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55402-1101021 |
GWZ100,URZ100 BLACK/BROWN,TRIM21,22 |
1 | ||
| 55402-11010J2 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55402-11010C8 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 55402-11010E3 |
GWZ100,URZ100 OCHER,TRIM40 |
1 | ||
| 55402-11010E8 |
GWZ100,URZ100 OCHER,TRIM40 |
1 | ||
| 55402-11010C5 |
GWZ100,URZ100 BLACK/MUSTARD YELLOW,TRIM21 |
1 | ||
| 55402-11010L0 |
GWZ100,URZ100 BLACK/ORANGE,TRIM42 |
1 | ||
| 55402-11010C4 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 55402-11010E3 |
GWZ100,URZ100 OCHER,TRIM4# |
1 | ||
| 55402-11010E2 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-11010C6 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK,TRIM20,30 |
1 | ||
| 55403-11010C5 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK,TRIM20,21,30 |
1 | ||
| 55403-11020C3 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 55403-11010C8 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK,TRIM20,30,31,42 |
1 | ||
| 55403-11020J2 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55403-11010J5 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLUE,TRIM8# |
1 | ||
| 55403-11020E3 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55403-11010J3 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLUE,TRIM8# |
1 | ||
| 55403-11020C4 |
GWZ100,URZ100 BLACK/BROWN,TRIM21,22 |
1 | ||
| 55403-11010C9 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK,TRIM20,31,42 |
1 | ||
| 55403-11010C7 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK,TRIM20,21,30,31,42 |
1 | ||
| 55403-11020C3 |
GWZ100,URZ100 BLACK,TRIM20,21,3#,42 |
1 | ||
| 55403-11010E9 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,KUROKOHAKU,TRIM41 |
1 | ||
| 55403-11010E6 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,OCHER,TRIM40 |
1 | ||
| 55403-1101020 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK/BROWN,TRIM21,22 |
1 | ||
| 55403-11010L1 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,OCHRE,TRIM40 |
1 | ||
| 55403-11010E4 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,OCHRE,TRIM4# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-11010C4 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 55408-11010E2 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55408-11010E5 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55408-11010J2 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55408-11010E6 |
GWZ100,URZ100 OCHER,TRIM40 |
1 | ||
| 55408-11010C8 |
GWZ100,URZ100 BLACK/ORANGE,TRIM42 |
1 | ||
| 55408-11010C6 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-11010C6 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55409-11010C4 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 55409-11010J2 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55409-11010E6 |
GWZ100,URZ100 OCHER,TRIM40 |
1 | ||
| 55409-11010E5 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55409-11010E2 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55409-11010C8 |
GWZ100,URZ100 BLACK/ORANGE,TRIM42 |
1 | ||
| 55418B - SPACER,METER HOOD | ||||
| 55418-11010C4 |
GWZ100,URZ100 BLACK,TRIM2#,3#,4# |
1 | ||
| 55418-11010J2 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-11130E4 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 55422-11150E3 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,OCHRE,TRIM4# |
1 | ||
| 55422-1113020 |
GWZ100,URZ100 BLACK/BROWN,TRIM21,22 |
1 | ||
| 55422-11150E6 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,KUROKOHAKU,TRIM41 |
1 | ||
| 55422-11150C5 |
GWZ100,URZ100 SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&HEAD UP DISPLAY-WITH,BLACK,TRIM20,30,31 |
1 | ||
| 55422-11150J2 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLUE,TRIM8# |
1 | ||
| 55422-11150C6 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK/MUSTARD YELLOW,TRIM21 |
1 | ||
| 55422-11150C7 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK/ORANGE,TRIM42 |
1 | ||
| 55422-11130C9 |
GWZ100,URZ100 SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK/ORANGE,TRIM42 |
1 | ||
| 55422-11130J3 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55422-11130C6 |
GWZ100,URZ100 SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT),BLACK,TRIM20,30,31 |
1 | ||
| 55422-11130C8 |
GWZ100,URZ100 BLACK/ORANGE,TRIM42 |
1 | ||
| 55422-11130E4 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55422-11150C8 |
GWZ100,URZ100 SEAT COVER MATERIAL-ALCANTARA(FRONT & REAR SEAT)&HEAD UP DISPLAY-WITH,BLACK/ORANGE,TRIM42 |
1 | ||
| 55422-11130C5 |
GWZ100,URZ100 BLACK,TRIM20,30,31 |
1 | ||
| 55422-11150C9 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK/BROWN,TRIM21,22 |
1 | ||
| 55422-11150E3 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,OCHRE,TRIM40 |
1 | ||
| 55422-11150C4 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,BLACK,TRIM20,30,31 |
1 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-11010E3 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55510-11010E1 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55510-11010J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55510-11010C2 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 55531A - PANEL, GLOVE COMPARTMENT, NO.1 | ||||
| 55531-11010C1 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55531-11010C2 |
GWZ100,URZ100 BLACK/MUSTARD YELLOW,TRIM21 |
1 | ||
| 55531-11010C5 |
GWZ100,URZ100 BLACK/BROWN,TRIM21,22 |
1 | ||
| 55531-11010E0 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 55531-11010E0 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55531-11010J0 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55531-11010C1 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 55531-11010C1 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 55531-11010E2 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55531-11010E3 |
GWZ100,URZ100 ORANGE,TRIM42 |
1 | ||
| 55531-11010C1 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55532A - PANEL, GLOVE COMPARTMENT, NO.2 | ||||
| 55532-11020E3 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55532-11020J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55532-11020C1 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 55532-11020E1 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-11010J3 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55548-11010E4 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,KUROKOHAKU,TRIM41 |
1 | ||
| 55548-11010E3 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55548-11010C4 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-11010E4 |
GWZ100,URZ100 HEAD UP DISPLAY-WITH,KUROKOHAKU,TRIM41 |
1 | ||
| 55549-11010J3 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55549-11010E3 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55549-11010C4 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-11010J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55550-11010E4 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55550-11010C2 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55550-11010C2 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 55550-11010C2 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 55550-11010E2 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55550-11010E5 |
GWZ100,URZ100 ORANGE,TRIM42 |
1 | ||
| 55550-11010E2 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 55550-11010C2 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 55550-11010C6 |
GWZ100,URZ100 BLACK/BROWN,TRIM21,22 |
1 | ||
| 55550-11010C3 |
GWZ100,URZ100 BLACK/MUSTARD YELLOW,TRIM21 |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-47050 |
GWZ100,URZ100 |
2 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-11030C2 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 55569-11030J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 55569-11030E1 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 55569-11030E3 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-11010 |
GWZ100,URZ100 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-11010 |
GWZ100,URZ100 |
1 | ||
| 55607-11030 |
GWZ100,URZ100 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-11010 |
GWZ100,URZ100 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-11010 |
GWZ100,URZ100 |
1 | ||
| 55661A - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| 55661-11090 |
GWZ100,URZ100 |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-11030 |
GWZ100,URZ100 |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-11010E2 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 73900-11010J2 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 73900-11010E4 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 73900-11010C3 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-11010C3 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 73990-11010J2 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 73990-11010E2 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 73990-11010E4 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50311 | ||||
| 90159-50327 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-08227 | ||||
| 91673-80616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
