GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
Production
Jan 2017
-
Sep 9999
Engine
8GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )

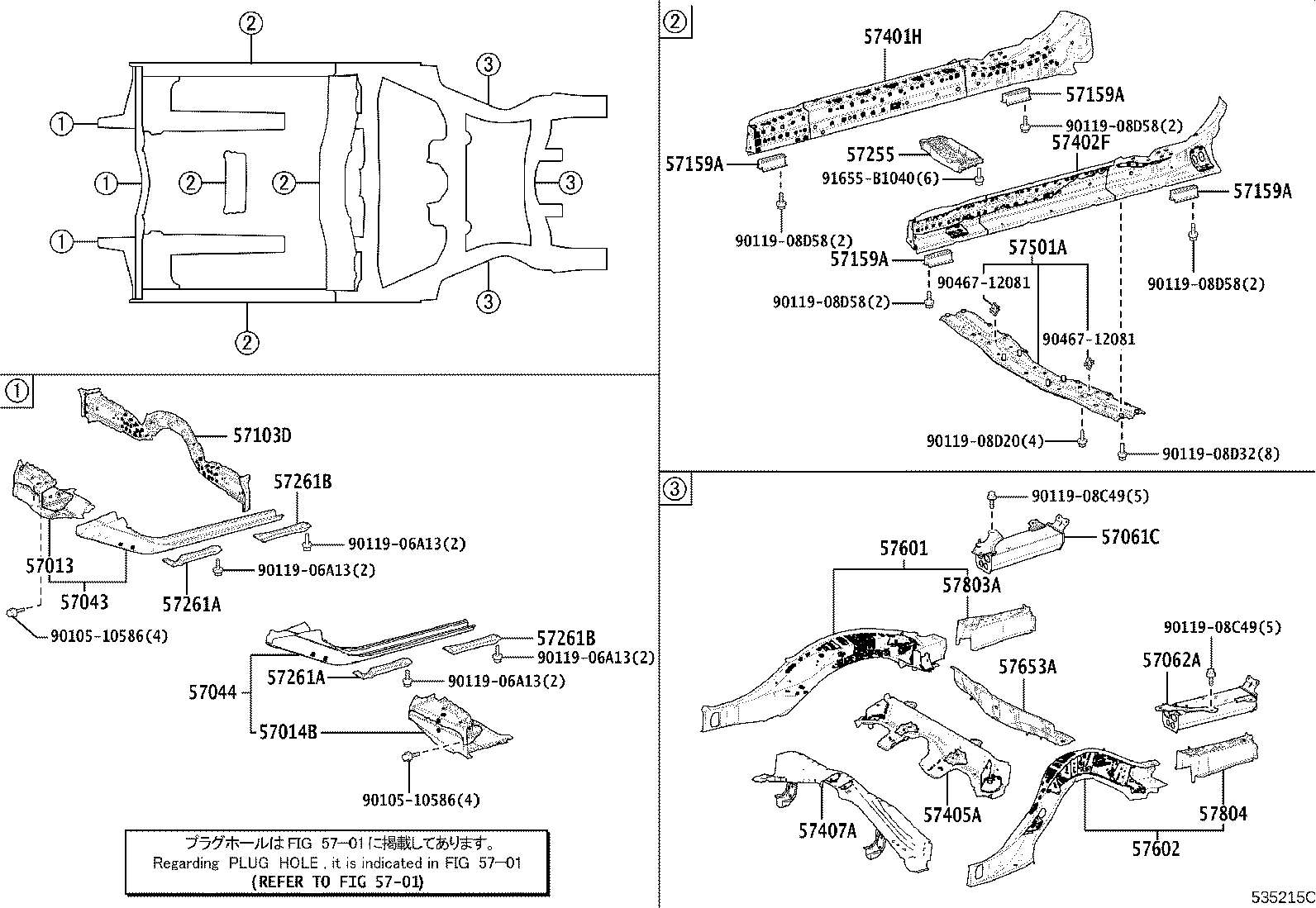

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57013 - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-11010 |
GWZ100,URZ100 |
1 | ||
| 57014B - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-11010 |
GWZ100,URZ100 |
1 | ||
| 57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-11010 |
GWZ100,URZ100 |
1 | ||
| 57044 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-11010 |
GWZ100,URZ100 |
1 | ||
| 57061C - MEMBER SUB-ASSY, UNDER REAR, RH | ||||
| 57061-11060 |
GWZ100,URZ100 |
1 | ||
| 57062A - MEMBER SUB-ASSY, UNDER REAR, LH | ||||
| 57062-11010 |
GWZ100,URZ100 |
1 | ||
| 57103D - CROSSMEMBER SUB-ASSY, FRONT SIDE MEMBER TO DASH PANEL | ||||
| 57103-11010 |
GWZ100,URZ100 |
1 | ||
| 57159A - REINFORCEMENT, ENGINE UNDER COVER MOUNTING | ||||
| 57159-11010 |
GWZ100,URZ100 |
4 | ||
| 57159-11011 |
GWZ100,URZ100 |
4 | ||
| 57159A - REINFORCEMENT, ENGINE UNDER COVER MOUNTING | ||||
| 57159-11010 |
GWZ100,URZ100 |
4 | ||
| 57159-11011 |
GWZ100,URZ100 |
4 | ||
| 57159A - REINFORCEMENT, ENGINE UNDER COVER MOUNTING | ||||
| 57159-11010 |
GWZ100,URZ100 |
4 | ||
| 57159-11011 |
GWZ100,URZ100 |
4 | ||
| 57159A - REINFORCEMENT, ENGINE UNDER COVER MOUNTING | ||||
| 57159-11010 |
GWZ100,URZ100 |
4 | ||
| 57159-11011 |
GWZ100,URZ100 |
4 | ||
| 57255 - MEMBER, ENGINE REAR MOUNTING | ||||
| 57255-11010 |
GWZ100,URZ100 |
1 | ||
| 57261A - PLATE, ENGINE REAR MOUNTING MEMBER | ||||
| 57261-11010 |
GWZ100,URZ100 |
2 | ||
| 57261A - PLATE, ENGINE REAR MOUNTING MEMBER | ||||
| 57261-11010 |
GWZ100,URZ100 |
2 | ||
| 57261B - PLATE, ENGINE REAR MOUNTING MEMBER | ||||
| 57261-11020 |
GWZ100,URZ100 |
2 | ||
| 57261B - PLATE, ENGINE REAR MOUNTING MEMBER | ||||
| 57261-11020 |
GWZ100,URZ100 |
2 | ||
| 57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-11010 |
GWZ100,URZ100 |
1 | ||
| 57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-11010 |
GWZ100,URZ100 |
1 | ||
| 57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2 | ||||
| 57405-11010 |
GWZ100,URZ100 |
1 | ||
| 57405-11011 |
GWZ100,URZ100 |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-11010 |
GWZ100,URZ100 |
1 | ||
| 57501A - BRACE SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57501-11010 |
GWZ100,URZ100 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-11070 |
GWZ100 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-11070 |
GWZ100 |
1 | ||
| 57653A - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-11060 |
GWZ100,URZ100 |
1 | ||
| 57653-11040 |
GWZ100,URZ100 |
1 | ||
| 57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57803-11010 |
GWZ100,URZ100 |
1 | ||
| 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57804-11010 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90105-10586 | ||||
| 90119-06A13 | ||||
| 90119-08C49 | ||||
| 90119-08D20 | ||||
| 90119-08D32 | ||||
| 90119-08D58 | ||||
| 90467-12081 | ||||
| 91655-B1040 | ||||
| Linked diagrams | ||||
| 5701 | ||||
