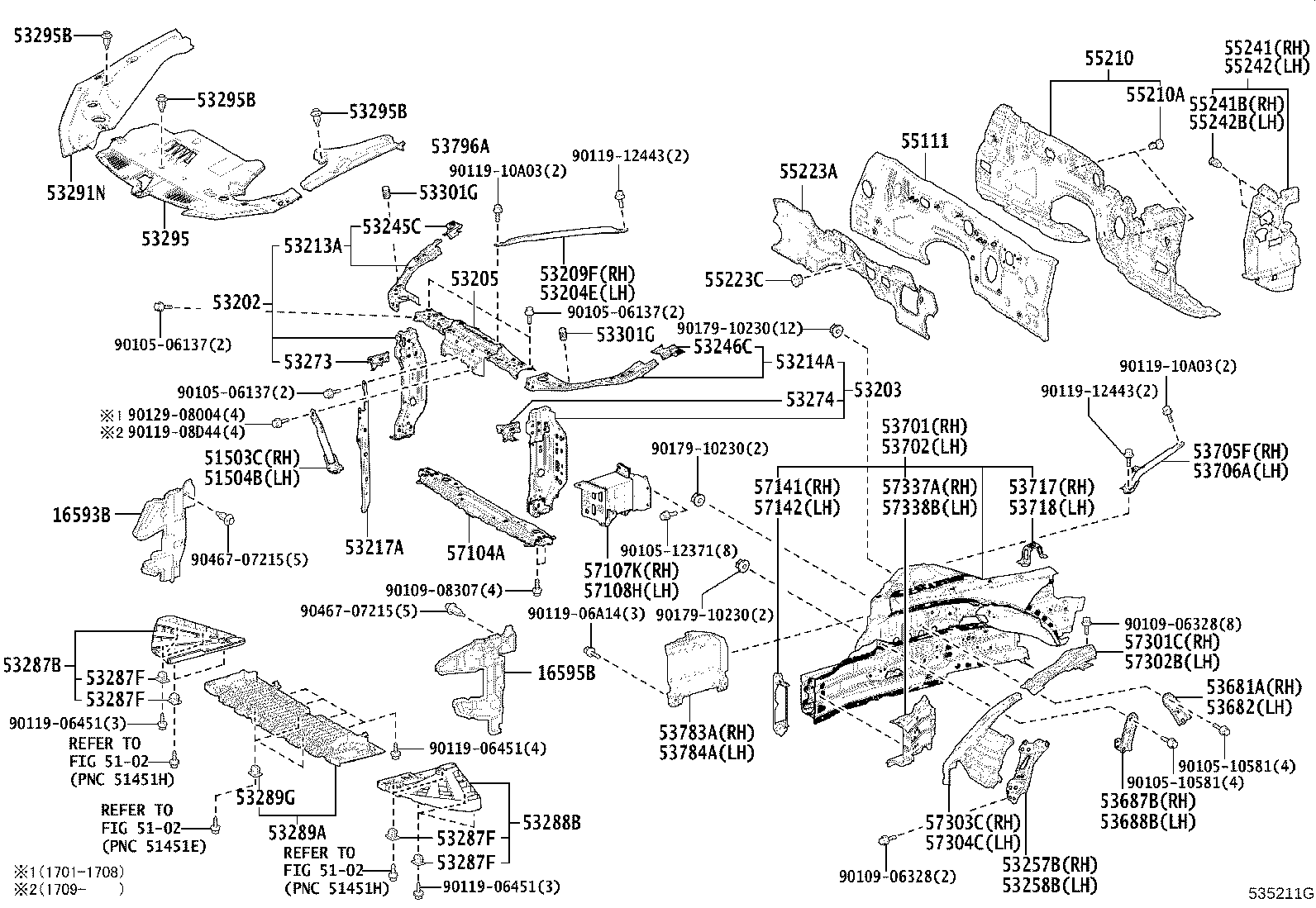

GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
(1701- )GWZ100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16593B - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-31010 |
8GRFXS,2URGSE..GWZ100,URZ100 |
1 | ||
| 16595B - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-31010 |
8GRFXS,2URGSE..GWZ100,URZ100 |
1 | ||
| 51503C - BRACE SUB-ASSY, LOWER ARM BRACKET, RH | ||||
| 51503-11010 |
GWZ100,URZ100 |
1 | ||
| 51503-11020 |
GWZ100 |
1 | ||
| 51504B - BRACE SUB-ASSY, LOWER ARM BRACKET, LH | ||||
| 51504-11010 |
GWZ100,URZ100 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-11900 |
GWZ100,URZ100 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-11900 |
GWZ100,URZ100 |
1 | ||
| 53204E - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, LH | ||||
| 53204-11020 |
GWZ100,URZ100 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-11901 |
GWZ100,URZ100 |
1 | ||
| 53205-11900 |
GWZ100,URZ100 |
1 | ||
| 53205-11902 |
GWZ100,URZ100 |
1 | ||
| 53209F - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, RH | ||||
| 53209-11020 |
GWZ100,URZ100 |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-11900 |
GWZ100,URZ100 |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-11900 |
GWZ100,URZ100 |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53217-11011 |
GWZ100,URZ100 |
1 | ||
| 53217-11010 |
GWZ100,URZ100 |
1 | ||
| 53245C - BRACKET, HEADLAMP MOUNTING, UPPER RH | ||||
| 53245-11010 |
GWZ100,URZ100 |
1 | ||
| 53246C - BRACKET, HEADLAMP MOUNTING, UPPER LH | ||||
| 53246-11010 |
GWZ100,URZ100 |
1 | ||
| 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER | ||||
| 53257-11010 |
GWZ100,URZ100 |
1 | ||
| 53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH | ||||
| 53258-11010 |
GWZ100,URZ100 |
1 | ||
| 53273 - BRACKET, FRONT BUMPER ARM MOUNTING, RH | ||||
| 53273-11010 |
GWZ100,URZ100 |
1 | ||
| 53274 - BRACKET, FRONT BUMPER ARM MOUNTING, LH | ||||
| 53274-11010 |
GWZ100,URZ100 |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-11010 |
GWZ100,URZ100 |
1 | ||
| 53287F - GROMMET, NO.1 | ||||
| 90189-06237 |
GWZ100,URZ100 |
10 | ||
| 53287F - GROMMET, NO.1 | ||||
| 90189-06237 |
GWZ100,URZ100 |
10 | ||
| 53287F - GROMMET, NO.1 | ||||
| 90189-06237 |
GWZ100,URZ100 |
10 | ||
| 53287F - GROMMET, NO.1 | ||||
| 90189-06237 |
GWZ100,URZ100 |
10 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-11010 |
GWZ100,URZ100 |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-11010 |
GWZ100,URZ100 |
1 | ||
| 53289G - GROMMET, NO.2 | ||||
| 90189-06237 |
GWZ100,URZ100 |
3 | ||
| 53291N - SEAL, RADIATOR SUPPORT TO FRAME, RH | ||||
| 53291-11020 |
GWZ100,URZ100 |
1 | ||
| 53295 - DEFLECTOR, RADIATOR LOWER AIR | ||||
| 53295-11020 |
GWZ100 |
1 | ||
| 53295B - CLIP(FOR RADIATOR LOWER AIR DEFLECTOR) | ||||
| 90467-07217 |
GWZ100 |
18 | ||
| 53295B - CLIP(FOR RADIATOR LOWER AIR DEFLECTOR) | ||||
| 90467-07217 |
GWZ100 |
18 | ||
| 53295B - CLIP(FOR RADIATOR LOWER AIR DEFLECTOR) | ||||
| 90467-07217 |
GWZ100 |
18 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15034 |
GWZ100,URZ100 |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 90541-15034 |
GWZ100,URZ100 |
2 | ||
| 53681A - BRACE, FRONT SUSPENSION UPPER TO COWL, RH | ||||
| 53681-11010 |
GWZ100,URZ100 |
1 | ||
| 53682 - BRACE, FRONT SUSPENSION UPPER TO COWL, LH | ||||
| 53682-11010 |
GWZ100,URZ100 |
1 | ||
| 53687B - BRACE, FRONT SUSPENSION LOWER TO CROSS MEMBER, RH | ||||
| 53687-11010 |
GWZ100,URZ100 |
1 | ||
| 53688B - BRACE, FRONT SUSPENSION LOWER TO CROSS MEMBER, LH | ||||
| 53688-11010 |
GWZ100,URZ100 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-11010 |
GWZ100,URZ100 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-11010 |
GWZ100,URZ100 |
1 | ||
| 53705F - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-11020 |
GWZ100 |
1 | ||
| 53706A - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-11020 |
GWZ100 |
1 | ||
| 53717 - PLATE, FENDER APRON, RH | ||||
| 53717-11010 |
GWZ100,URZ100 |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53718-11010 |
GWZ100,URZ100 |
1 | ||
| 53783A - INSULATOR, APRON FRONT FENDER, RH | ||||
| 53783-11020 |
GWZ100 |
1 | ||
| 53784A - INSULATOR, APRON FRONT FENDER, LH | ||||
| 53784-11020 |
GWZ100 |
1 | ||
| 53796A - COVER, ENGINE ROOM SIDE, LH | ||||
| 53796-11050 |
GWZ100 |
1 | ||
| 55111 - PANEL, DASH | ||||
| 55111-11010 |
GWZ100,URZ100 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-11010 |
GWZ100,URZ100 |
1 | ||
| 55210-11030 |
GWZ100,URZ100 |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
GWZ100,URZ100 |
2 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-11010 |
GWZ100,URZ100 |
1 | ||
| 55223C - CLIP | ||||
| 90467-06206C0 |
GWZ100,URZ100 BLACK |
1 | ||
| 55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH | ||||
| 55241-11020 |
GWZ100,URZ100 |
1 | ||
| 55241B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-13079 |
GWZ100,URZ100 |
2 | ||
| 55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH | ||||
| 55242-11020 |
GWZ100,URZ100 |
1 | ||
| 55242B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-13079 |
GWZ100,URZ100 |
2 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-11010 |
GWZ100,URZ100 |
1 | ||
| 57107K - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH | ||||
| 57107-11010 |
GWZ100,URZ100 |
1 | ||
| 57108H - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH | ||||
| 57108-11011 |
GWZ100,URZ100 |
1 | ||
| 57108-11010 |
GWZ100,URZ100 |
1 | ||
| 57141 - SUPPORT, FRONT BUMPER ARM, RH | ||||
| 57141-11010 |
GWZ100,URZ100 |
1 | ||
| 57142 - SUPPORT, FRONT BUMPER ARM, RH | ||||
| 57142-11010 |
GWZ100,URZ100 |
1 | ||
| 57301C - OUTRIGGER SUB-ASSY, NO.1 RH | ||||
| 57301-11010 |
GWZ100,URZ100 |
1 | ||
| 57302B - OUTRIGGER SUB-ASSY, NO.1 LH | ||||
| 57302-11010 |
GWZ100,URZ100 |
1 | ||
| 57303C - OUTRIGGER SUB-ASSY, NO.2 RH | ||||
| 57303-11010 |
GWZ100,URZ100 |
1 | ||
| 57304C - OUTRIGGER SUB-ASSY, NO.2 LH | ||||
| 57304-11010 |
GWZ100,URZ100 |
1 | ||
| 57337A - GUSSET, OUTRIGGER, NO.1 RH | ||||
| 57337-11010 |
GWZ100,URZ100 |
1 | ||
| 57338B - GUSSET, OUTRIGGER, NO.1 LH | ||||
| 57338-11010 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90105-10581 | ||||
| 90105-12371 | ||||
| 90109-06328 | ||||
| 90109-08307 | ||||
| 90119-06451 | ||||
| 90119-06A14 | ||||
| 90119-08D44 | ||||
| 90119-10A03 | ||||
| 90119-12443 | ||||
| 90129-08004 | ||||
| 90179-10230 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 5102 | ||||
