GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)

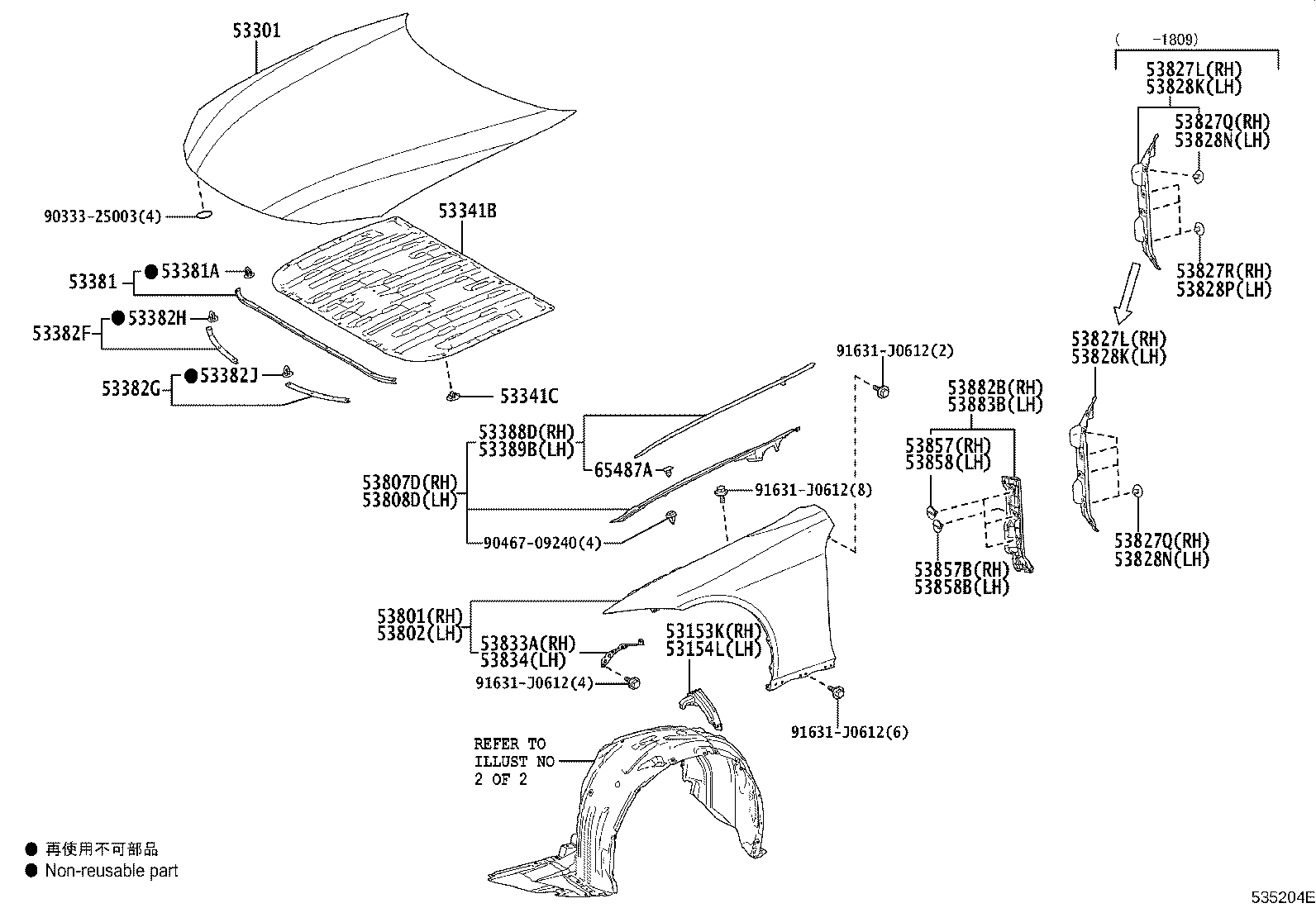

ILLUST NO. 1 OF 2(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53153K - GUIDE, RADIATOR GRILLE SIDE AIR, RH | ||||
| 53153-11010 |
GWZ100,URZ100 |
1 | ||
| 53154L - GUIDE, RADIATOR GRILLE SIDE AIR, LH | ||||
| 53154-11010 |
GWZ100,URZ100 |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-11020 |
GWZ100,URZ100 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-11010 |
GWZ100,URZ100 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
GWZ100,URZ100 |
15 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-11010 |
GWZ100,URZ100 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
GWZ100,URZ100 |
9 | ||
| 53382F - SEAL, HOOD TO RADIATOR SUPPORT, RH | ||||
| 53382-11010 |
GWZ100,URZ100 |
1 | ||
| 53382G - SEAL, HOOD TO RADIATOR SUPPORT, LH | ||||
| 53382-11020 |
GWZ100,URZ100 |
1 | ||
| 53382H - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
GWZ100,URZ100 |
3 | ||
| 53382J - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
GWZ100,URZ100 |
3 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-11010 |
GWZ100,URZ100 |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53389-11010 |
GWZ100,URZ100 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-11050 |
GWZ100,URZ100 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-11040 |
GWZ100,URZ100 |
1 | ||
| 53807D - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH | ||||
| 53807-11010 |
GWZ100,URZ100 |
1 | ||
| 53808D - REINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH | ||||
| 53808-11010 |
GWZ100,URZ100 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-11010 |
GWZ100,URZ100 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-11010 |
GWZ100,URZ100 |
1 | ||
| 53827Q - CLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1 | ||||
| 90467-06205C0 |
GWZ100,URZ100 BLACK |
1 | ||
| 90467-06205C0 |
GWZ100,URZ100 BLACK |
4 | ||
| 53827Q - CLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1 | ||||
| 90467-06205C0 |
GWZ100,URZ100 BLACK |
1 | ||
| 90467-06205C0 |
GWZ100,URZ100 BLACK |
4 | ||
| 53827R - CLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.2 | ||||
| 90467-06205C0 |
GWZ100,URZ100 BLACK |
3 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-11010 |
GWZ100,URZ100 |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-11010 |
GWZ100,URZ100 |
1 | ||
| 53828N - CLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1 | ||||
| 90467-06205C0 |
GWZ100,URZ100 BLACK |
1 | ||
| 90467-06205C0 |
GWZ100,URZ100 BLACK |
4 | ||
| 53828N - CLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1 | ||||
| 90467-06205C0 |
GWZ100,URZ100 BLACK |
1 | ||
| 90467-06205C0 |
GWZ100,URZ100 BLACK |
4 | ||
| 53828P - CLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.2 | ||||
| 90467-06205C0 |
GWZ100,URZ100 BLACK |
3 | ||
| 53833A - PANEL, FRONT FENDER SIDE, LOWER RH | ||||
| 53833-11010 |
GWZ100,URZ100 |
1 | ||
| 53834 - PANEL, FRONT FENDER SIDE, LOWER LH | ||||
| 53834-11010 |
GWZ100,URZ100 |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
GWZ100,URZ100 |
3 | ||
| 53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-47011 |
GWZ100,URZ100 |
1 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
GWZ100,URZ100 |
3 | ||
| 53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
GWZ100,URZ100 |
1 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-11010 |
GWZ100,URZ100 |
1 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53883-11010 |
GWZ100,URZ100 |
1 | ||
| 65487A - CLIP, CORNER PROTECTOR | ||||
| 65487-60010 |
GWZ100,URZ100 |
26 | ||
| Common parts | ||||
| 90333-25003 | ||||
| 90467-09240 | ||||
| 91631-J0612 | ||||

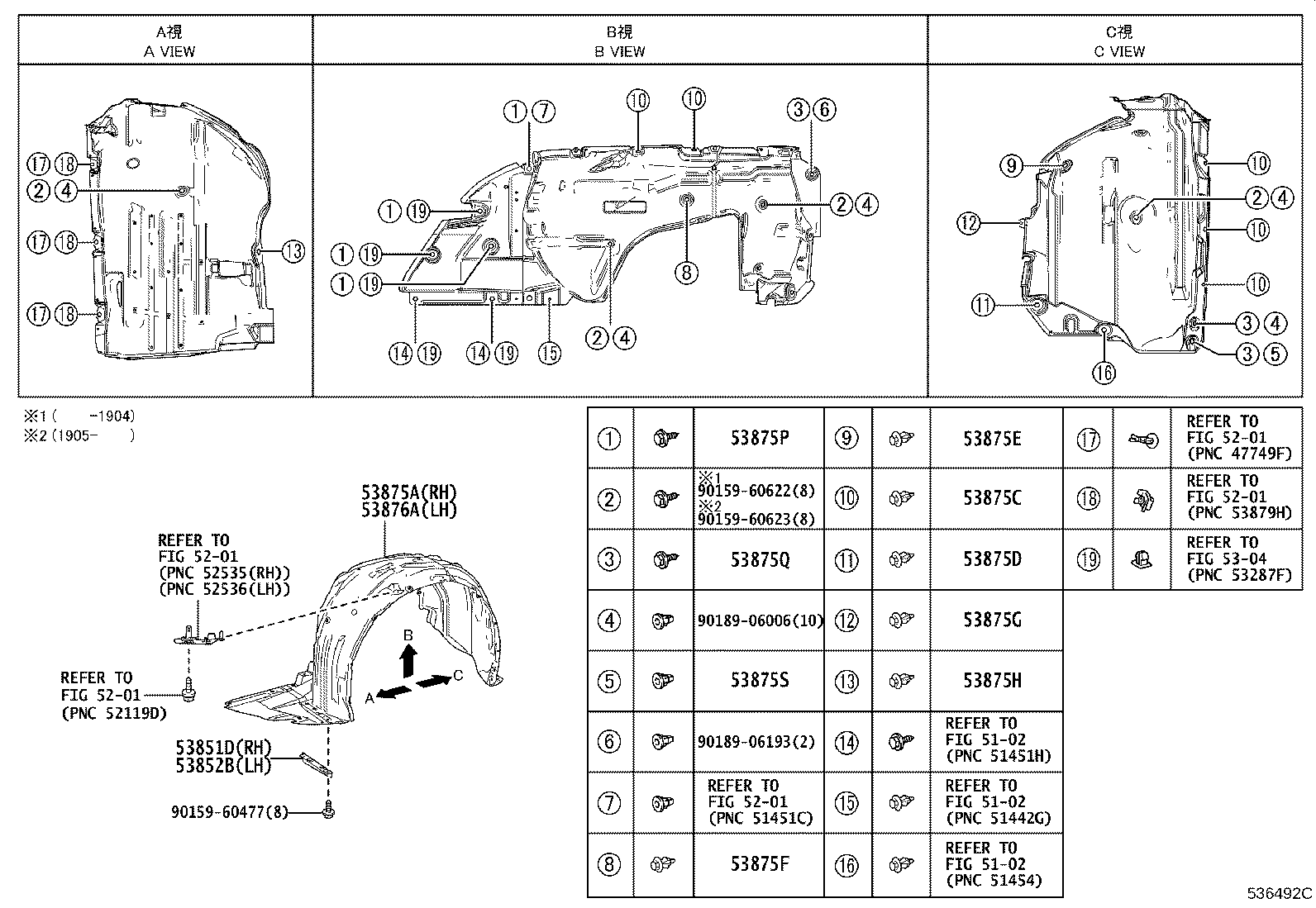

ILLUST NO. 2 OF 2(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-11010 |
GWZ100,URZ100 |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-11010 |
GWZ100,URZ100 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53805-11020 |
GWZ100,URZ100 |
1 | ||
| 53875C - CLIP, FRONT FENDER LINER | ||||
| 90467-07214 |
GWZ100,URZ100 |
10 | ||
| 53875D - CLIP, FRONT FENDER LINER, NO.2 | ||||
| 90467-07214 |
GWZ100,URZ100 |
2 | ||
| 53875E - CLIP, FRONT FENDER LINER, NO.3 | ||||
| 90467-07214 |
GWZ100,URZ100 |
2 | ||
| 53875F - CLIP, FRONT FENDER LINER, NO.4 | ||||
| 90467-07214 |
GWZ100,URZ100 |
2 | ||
| 53875G - CLIP, FRONT FENDER LINER, NO.5 | ||||
| 90467-07214 |
GWZ100,URZ100 |
2 | ||
| 53875H - CLIP, FRONT FENDER LINER, NO.6 | ||||
| 90467-07214 |
GWZ100,URZ100 |
2 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60477 |
GWZ100,URZ100 |
8 | ||
| 53875Q - SCREW, NO.2 | ||||
| 90159-60625 |
GWZ100,URZ100 |
6 | ||
| 90159-60622 |
GWZ100,URZ100 |
6 | ||
| 53875S - GROMMET, NO.1 | ||||
| 90189-06145 |
GWZ100,URZ100 |
2 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53806-11020 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90159-60477 | ||||
| 90159-60622 | ||||
| 90159-60623 | ||||
| 90189-06006 | ||||
| 90189-06193 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5201 | ||||
| 5304 | ||||
