GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

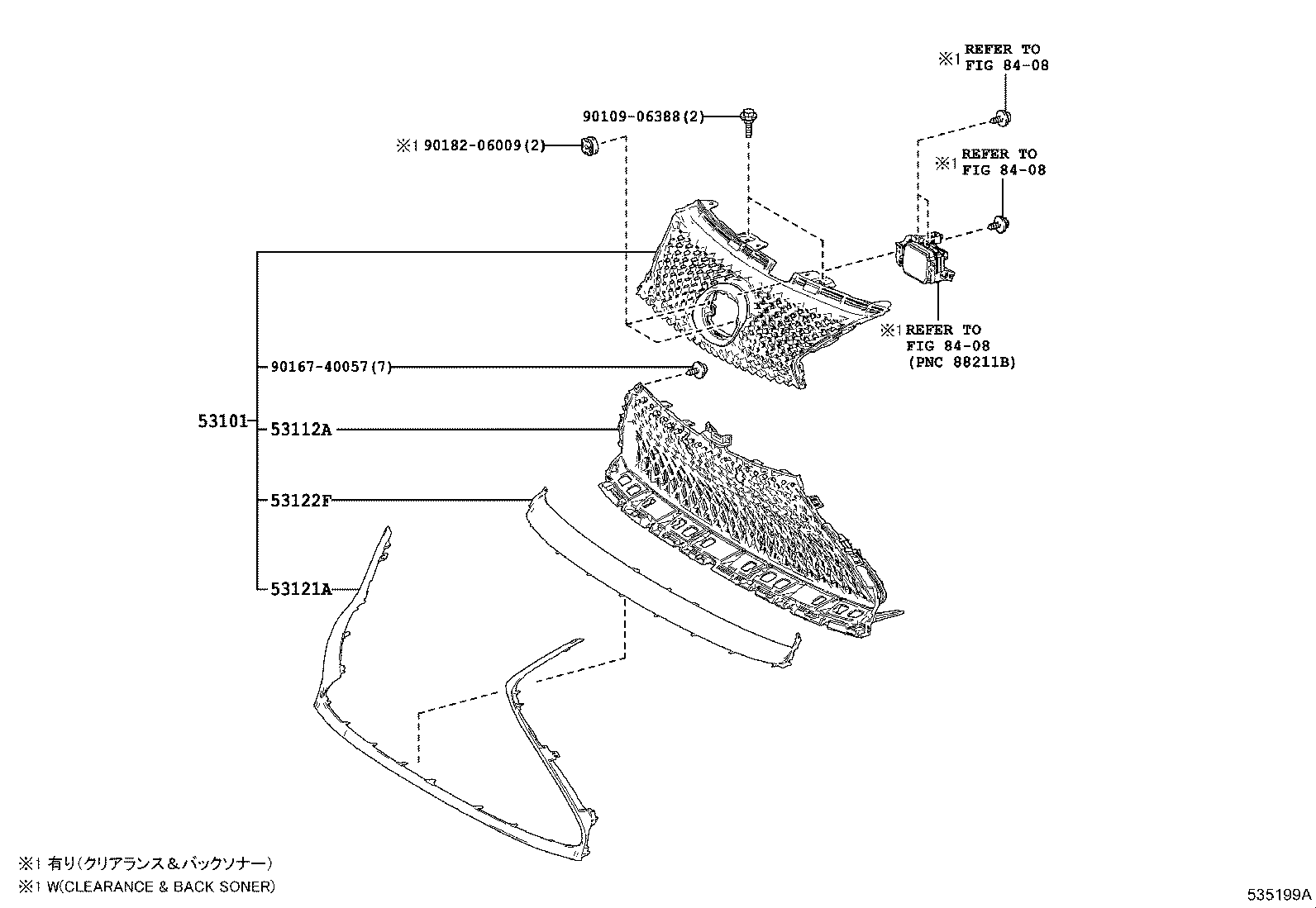

Click highlighted areas on diagram

diagram 53101 53112A 53121A 53122F 8408 8408 8408 9010906388 9016740057 9018206009
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-11110

GWZ100,URZ100

PLATED,"AVIATION"*(D)

 1
53101-11060

GWZ100,URZ100

PLATED,"AVIATION"*(D)&CLEARANCE & BACK SONAR-WITH

 1
53101-11020

GWZ100,URZ100

PLATED,CLEARANCE & BACK SONAR-WITH

 1
53101-11080

GWZ100,URZ100

PLATED

 1
53112A - GRILLE, RADIATOR, LOWER
53112-11907

GWZ100,URZ100

"AVIATION"*(D)

 1
53112-11900

GWZ100,URZ100

CLEARANCE & BACK SONAR-WITH

 1
53112-11905

GWZ100,URZ100

"AVIATION"*(D)&CLEARANCE & BACK SONAR-WITH

 1
53112-11902

GWZ100,URZ100

 1
53121A - MOULDING, RADIATOR GRILLE
53121-11010

GWZ100,URZ100

 1
53121-11030

GWZ100,URZ100

"AVIATION"*(D)

 1
53121-11030

GWZ100,URZ100

"AVIATION"*(D)&CLEARANCE & BACK SONAR-WITH

 1
53122F - MOULDING, RADIATOR GRILLE, NO.2
53122-11030

GWZ100,URZ100

"AVIATION"*(D)

 1
53122-11030

GWZ100,URZ100

"AVIATION"*(D)&CLEARANCE & BACK SONAR-WITH

 1
53122-11010

GWZ100,URZ100

 1
Common parts
90109-06388
90167-40057
90182-06009
Linked diagrams
8408
