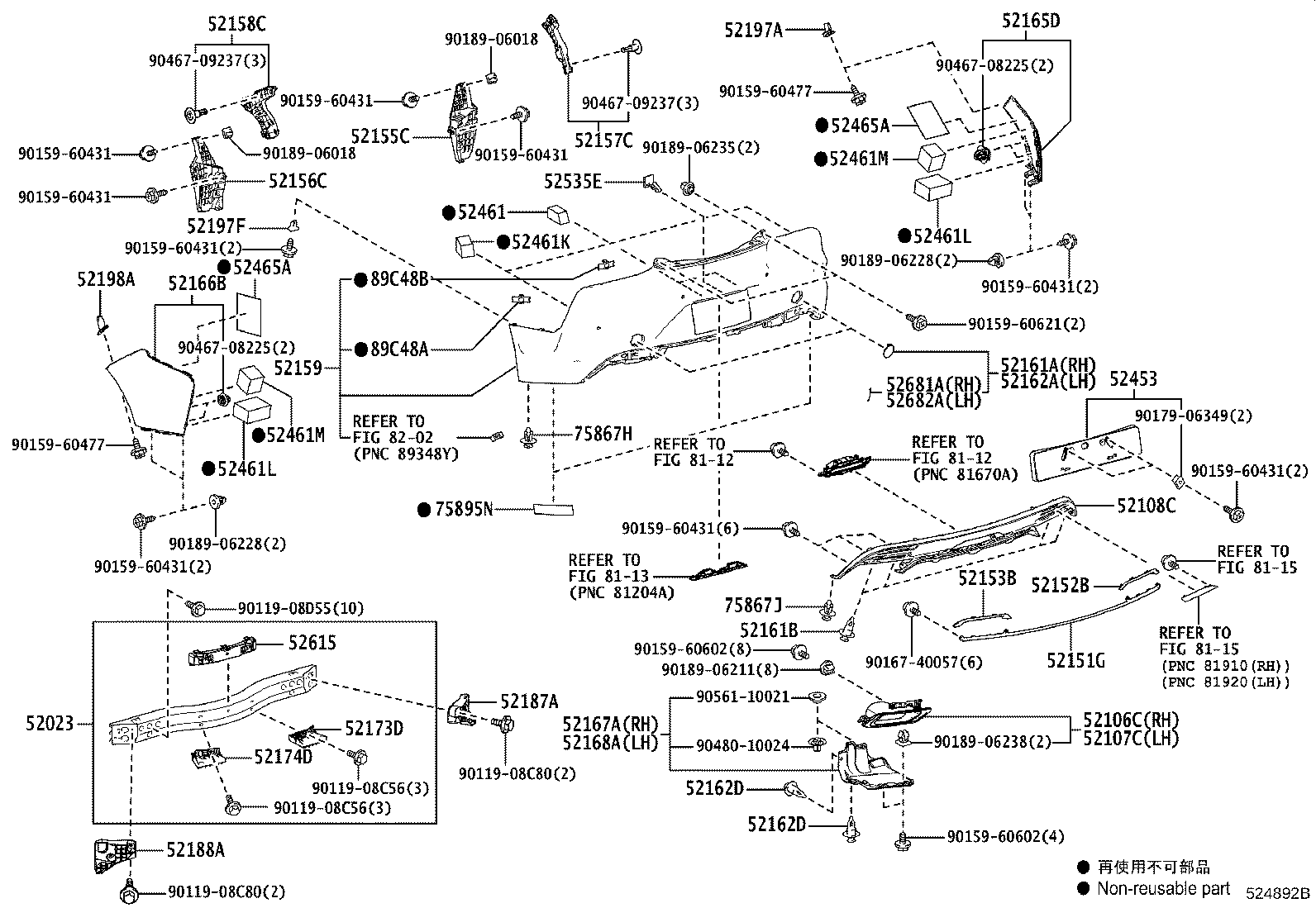

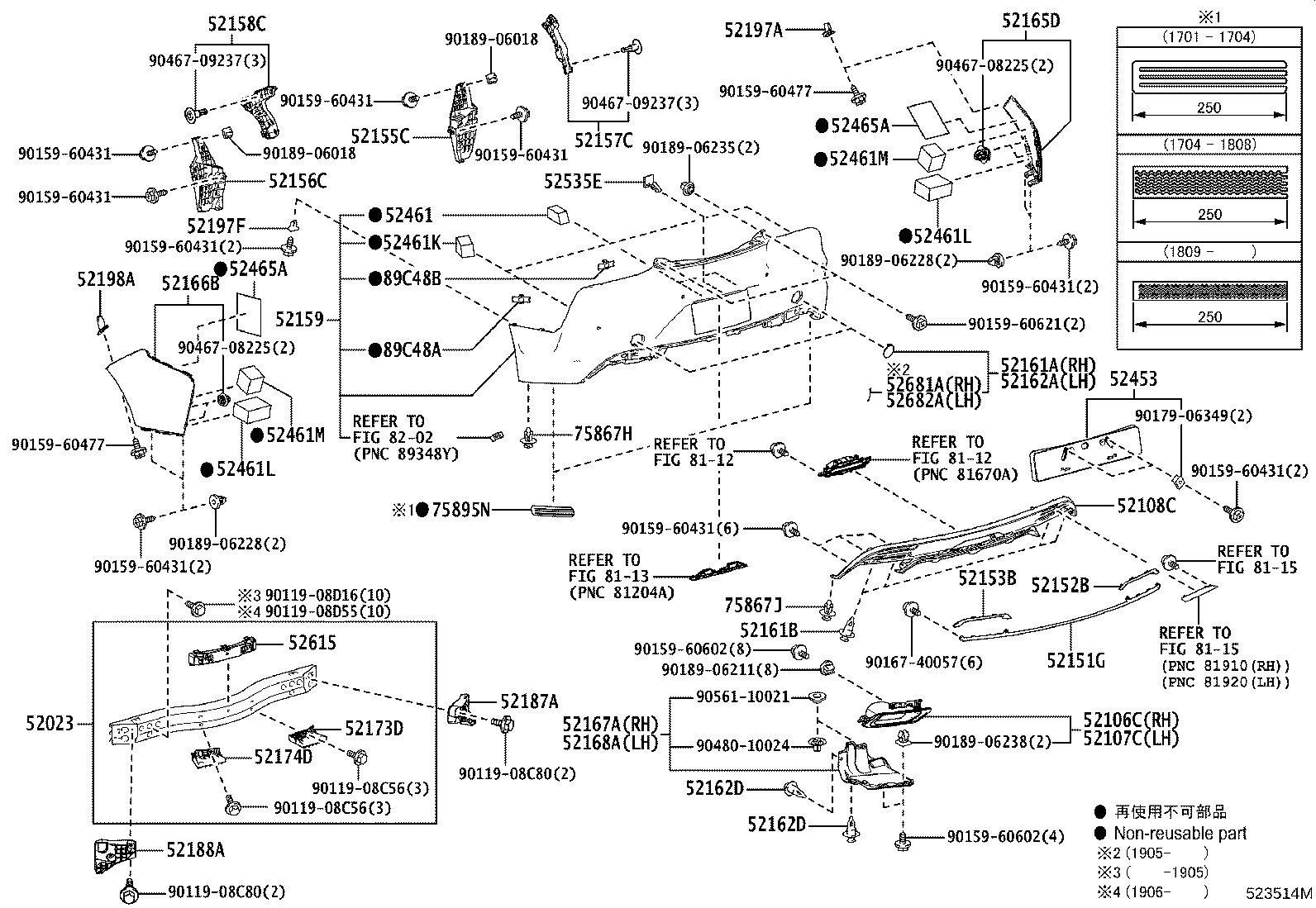

GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
(1701-2004)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 52023-11030 |
GWZ100,URZ100 |
1 | ||
| 52023-11030 |
GWZ100,URZ100 CANADA SPEC |
1 | ||
| 52106C - EXTENSION SUB-ASSY, REAR BUMPER, RH | ||||
| 52106-11020 |
GWZ100,URZ100 |
1 | ||
| 52107C - EXTENSION SUB-ASSY, REAR BUMPER, LH | ||||
| 52107-11020 |
GWZ100,URZ100 |
1 | ||
| 52108C - EXTENSION SUB-ASSY, REAR BUMPER, CENTER | ||||
| 52108-11010 |
GWZ100,URZ100 NO PAINT REQ. |
1 | ||
| 52151G - EXTENSION, REAR BUMPER | ||||
| 52151-11040 |
GWZ100,URZ100 |
1 | ||
| 52151-11050 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52152-11040 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52152-11030 |
GWZ100,URZ100 |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52153-11030 |
GWZ100,URZ100 |
1 | ||
| 52153-11040 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH | ||||
| 52155-11010 |
GWZ100,URZ100 |
1 | ||
| 52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH | ||||
| 52156-11010 |
GWZ100,URZ100 |
1 | ||
| 52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-11010 |
GWZ100,URZ100 |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-11010 |
GWZ100,URZ100 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-11910 |
GWZ100,URZ100 |
1 | ||
| 52159-11916 |
GWZ100,URZ100 PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-11906 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-11920 |
GWZ100,URZ100 PAINT REQ. |
1 | ||
| 52159-11918 |
GWZ100,URZ100 PAINT REQ.,KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-11902 |
GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52161A - PIECE, REAR BUMPER, RH | ||||
| 52161-11901 |
GWZ100,URZ100 |
1 | ||
| 52161-11900 |
GWZ100,URZ100 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GWZ100,URZ100 |
4 | ||
| 52162A - PIECE, REAR BUMPER, LH | ||||
| 52162-11901 |
GWZ100,URZ100 |
1 | ||
| 52162-11900 |
GWZ100,URZ100 |
1 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GWZ100,URZ100 |
4 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GWZ100,URZ100 |
4 | ||
| 52165D - EXTENSION, REAR BUMPER CORNER, RH | ||||
| 52165-11901 |
GWZ100,URZ100 |
1 | ||
| 52166B - EXTENSION, REAR BUMPER CORNER, LH | ||||
| 52166-11901 |
GWZ100,URZ100 |
1 | ||
| 52167A - SUPPORT, REAR BUMPER SIDE, NO.4 RH | ||||
| 52167-11010 |
GWZ100,URZ100 |
1 | ||
| 52168A - SUPPORT, REAR BUMPER SIDE, NO.4 LH | ||||
| 52168-11010 |
GWZ100,URZ100 |
1 | ||
| 52173D - REINFORCEMENT, REAR BUMPER BAR, RH | ||||
| 52173-11020 |
GWZ100,URZ100 |
1 | ||
| 52174D - REINFORCEMENT, REAR BUMPER BAR, LH | ||||
| 52174-11020 |
GWZ100,URZ100 |
1 | ||
| 52187A - REINFORCEMENT, REAR BUMPER ARM, RH | ||||
| 52187-11010 |
GWZ100,URZ100 |
1 | ||
| 52188A - REINFORCEMENT, REAR BUMPER ARM, LH | ||||
| 52188-11010 |
GWZ100,URZ100 |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-53040 |
GWZ100,URZ100 |
1 | ||
| 52197F - BRACKET, REAR BUMPER SEAL | ||||
| 52197-62020 |
GWZ100,URZ100 |
2 | ||
| 52198A - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52198-53020 |
GWZ100,URZ100 |
1 | ||
| 52453 - GUARD, REAR BUMPER, CENTER | ||||
| 52453-11060 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 52453-11020 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 52453-11020 |
GWZ100,URZ100 |
1 | ||
| 52461 - PAD, REAR BUMPER, CENTER | ||||
| 52461-11010 |
GWZ100,URZ100 |
2 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-11020 |
GWZ100,URZ100 |
2 | ||
| 52461K - PAD, REAR BUMPER, NO.1 | ||||
| 52461-11030 |
GWZ100,URZ100 |
2 | ||
| 52461K - PAD, REAR BUMPER, NO.1 | ||||
| 52461-11030 |
GWZ100,URZ100 |
2 | ||
| 52461L - PAD, REAR BUMPER, NO.2 | ||||
| 52461-11040 |
GWZ100,URZ100 |
2 | ||
| 52461L - PAD, REAR BUMPER, NO.2 | ||||
| 52461-11040 |
GWZ100,URZ100 |
2 | ||
| 52461M - PAD, REAR BUMPER, NO.3 | ||||
| 52462-53030 |
GWZ100,URZ100 |
2 | ||
| 52461M - PAD, REAR BUMPER, NO.3 | ||||
| 52462-53030 |
GWZ100,URZ100 |
2 | ||
| 52465A - INSERT, REAR BUMPER PAD | ||||
| 52465-11010 |
GWZ100,URZ100 |
2 | ||
| 52465A - INSERT, REAR BUMPER PAD | ||||
| 52465-11010 |
GWZ100,URZ100 |
2 | ||
| 52535E - RETAINER, REAR BUMPER SIDE | ||||
| 52535-28020 |
GWZ100,URZ100 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-11010 |
GWZ100,URZ100 |
1 | ||
| 52681A - EXTENSION, REAR BUMPER ARM, RH | ||||
| 52681-11030 |
GWZ100,URZ100 |
1 | ||
| 52682A - EXTENSION, REAR BUMPER ARM, LH | ||||
| 52682-11010 |
GWZ100,URZ100 |
1 | ||
| 75867H - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-33050 |
GWZ100,URZ100 |
2 | ||
| 75867J - CLIP, ROCKER PANEL MOULDING, NO.2 | ||||
| 75867-33050 |
GWZ100,URZ100 |
2 | ||
| 75895N - TAPE, MOULDING, NO.1 | ||||
| 75895-30050 |
GWZ100,URZ100 |
2 | ||
| 75895-28010 |
GWZ100,URZ100 |
2 | ||
| 75895-53010 |
GWZ100,URZ100 |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-78020 |
GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-78020 |
GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH |
2 | ||
| Common parts | ||||
| 90119-08C56 | ||||
| 90119-08C80 | ||||
| 90119-08D16 | ||||
| 90119-08D55 | ||||
| 90159-60431 | ||||
| 90159-60477 | ||||
| 90159-60602 | ||||
| 90159-60621 | ||||
| 90167-40057 | ||||
| 90179-06349 | ||||
| 90189-06018 | ||||
| 90189-06211 | ||||
| 90189-06228 | ||||
| 90189-06235 | ||||
| 90189-06238 | ||||
| 90467-08225 | ||||
| 90467-09237 | ||||
| 90480-10024 | ||||
| 90561-10021 | ||||
| Linked diagrams | ||||
| 8112 | ||||
| 8113 | ||||
| 8115 | ||||
| 8202 | ||||

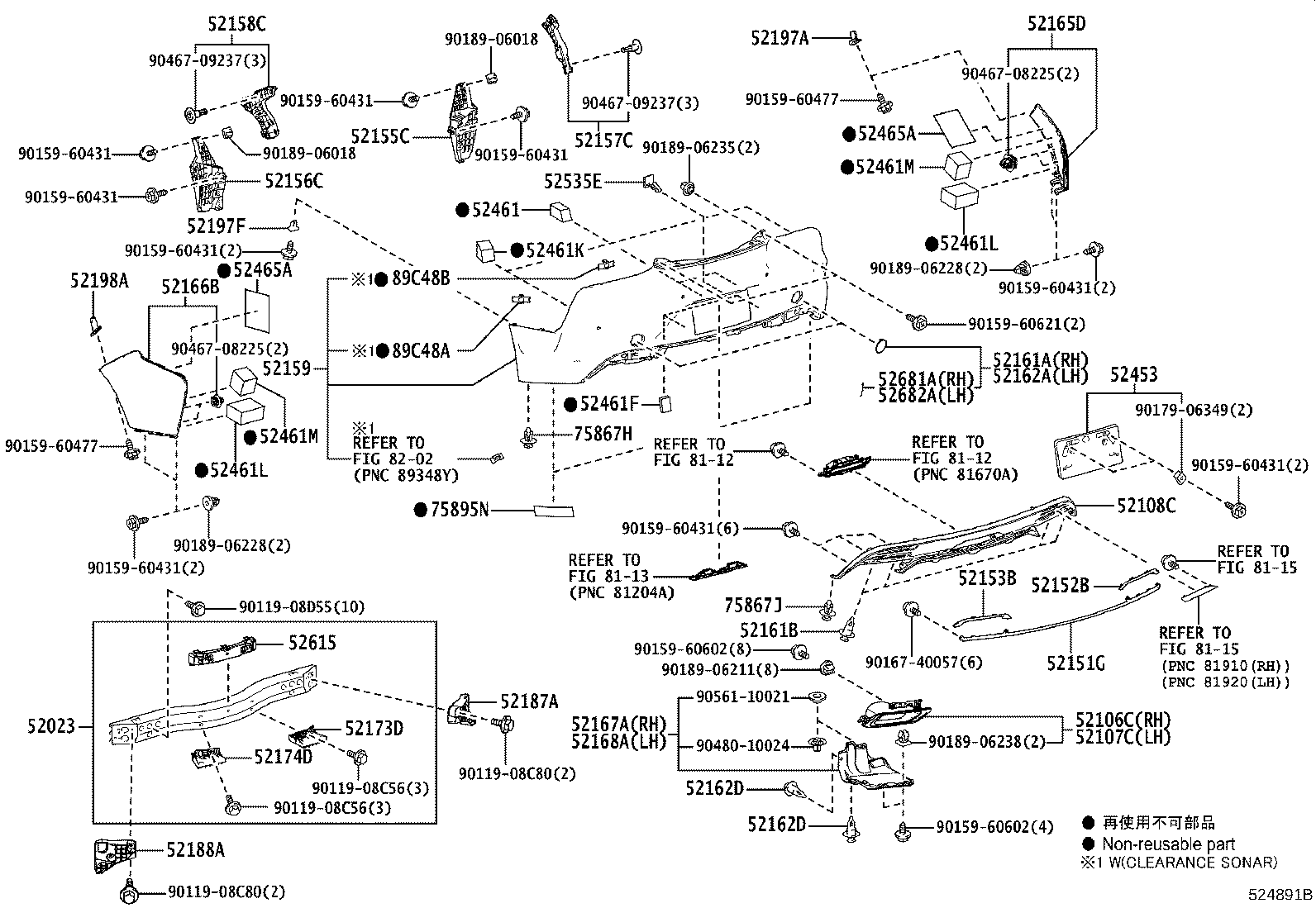

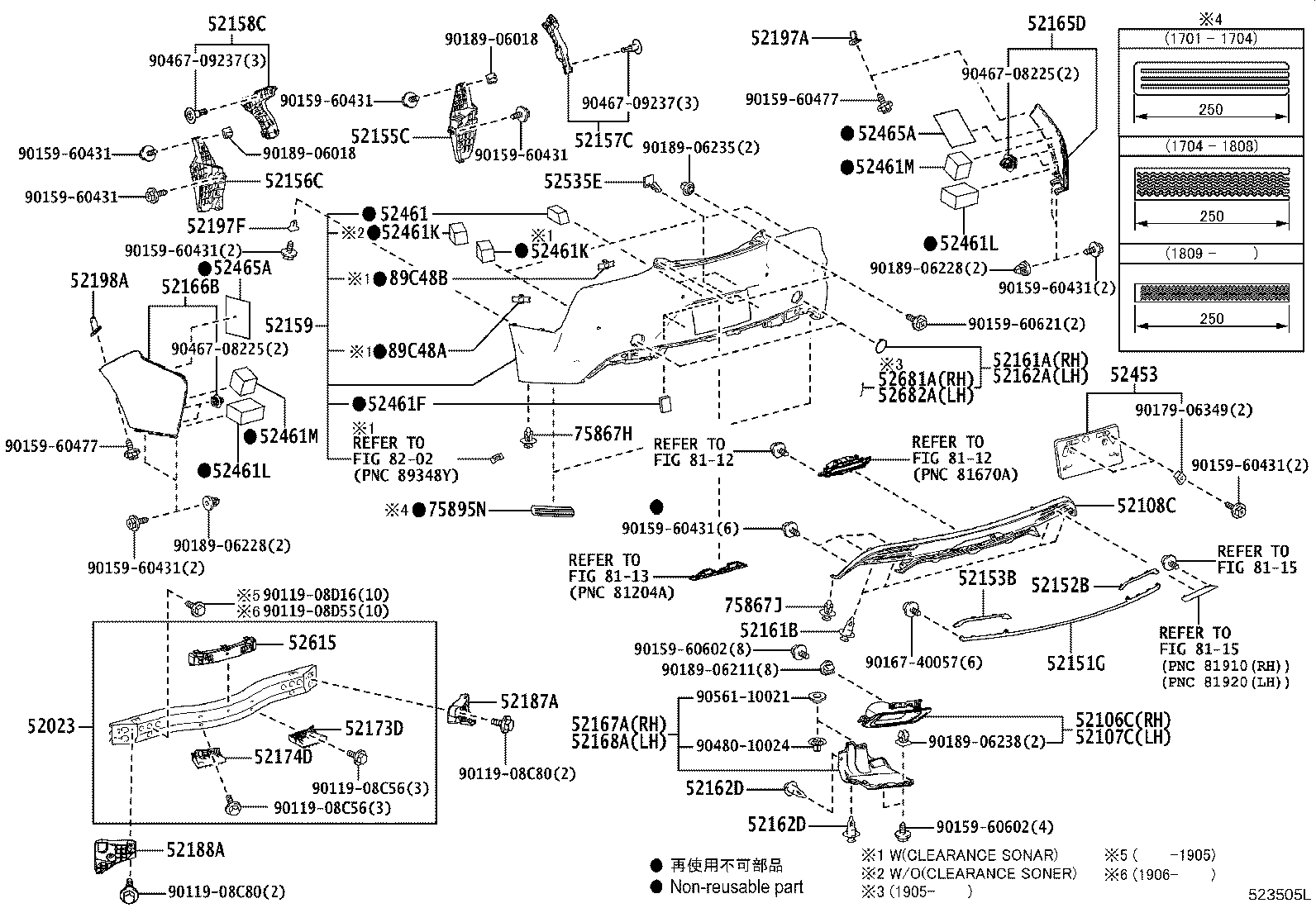

(1701-2004)
KOREA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 52023-11030 |
GWZ100,URZ100 |
1 | ||
| 52023-11030 |
GWZ100,URZ100 CANADA SPEC |
1 | ||
| 52106C - EXTENSION SUB-ASSY, REAR BUMPER, RH | ||||
| 52106-11020 |
GWZ100,URZ100 |
1 | ||
| 52107C - EXTENSION SUB-ASSY, REAR BUMPER, LH | ||||
| 52107-11020 |
GWZ100,URZ100 |
1 | ||
| 52108C - EXTENSION SUB-ASSY, REAR BUMPER, CENTER | ||||
| 52108-11010 |
GWZ100,URZ100 NO PAINT REQ. |
1 | ||
| 52151G - EXTENSION, REAR BUMPER | ||||
| 52151-11040 |
GWZ100,URZ100 |
1 | ||
| 52151-11050 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52152-11040 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52152-11030 |
GWZ100,URZ100 |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52153-11030 |
GWZ100,URZ100 |
1 | ||
| 52153-11040 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH | ||||
| 52155-11010 |
GWZ100,URZ100 |
1 | ||
| 52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH | ||||
| 52156-11010 |
GWZ100,URZ100 |
1 | ||
| 52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-11010 |
GWZ100,URZ100 |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-11010 |
GWZ100,URZ100 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-11910 |
GWZ100,URZ100 |
1 | ||
| 52159-11916 |
GWZ100,URZ100 PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-11906 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-11920 |
GWZ100,URZ100 PAINT REQ. |
1 | ||
| 52159-11918 |
GWZ100,URZ100 PAINT REQ.,KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-11902 |
GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52161A - PIECE, REAR BUMPER, RH | ||||
| 52161-11901 |
GWZ100,URZ100 |
1 | ||
| 52161-11900 |
GWZ100,URZ100 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GWZ100,URZ100 |
4 | ||
| 52162A - PIECE, REAR BUMPER, LH | ||||
| 52162-11901 |
GWZ100,URZ100 |
1 | ||
| 52162-11900 |
GWZ100,URZ100 |
1 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GWZ100,URZ100 |
4 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GWZ100,URZ100 |
4 | ||
| 52165D - EXTENSION, REAR BUMPER CORNER, RH | ||||
| 52165-11901 |
GWZ100,URZ100 |
1 | ||
| 52166B - EXTENSION, REAR BUMPER CORNER, LH | ||||
| 52166-11901 |
GWZ100,URZ100 |
1 | ||
| 52167A - SUPPORT, REAR BUMPER SIDE, NO.4 RH | ||||
| 52167-11010 |
GWZ100,URZ100 |
1 | ||
| 52168A - SUPPORT, REAR BUMPER SIDE, NO.4 LH | ||||
| 52168-11010 |
GWZ100,URZ100 |
1 | ||
| 52173D - REINFORCEMENT, REAR BUMPER BAR, RH | ||||
| 52173-11020 |
GWZ100,URZ100 |
1 | ||
| 52174D - REINFORCEMENT, REAR BUMPER BAR, LH | ||||
| 52174-11020 |
GWZ100,URZ100 |
1 | ||
| 52187A - REINFORCEMENT, REAR BUMPER ARM, RH | ||||
| 52187-11010 |
GWZ100,URZ100 |
1 | ||
| 52188A - REINFORCEMENT, REAR BUMPER ARM, LH | ||||
| 52188-11010 |
GWZ100,URZ100 |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-53040 |
GWZ100,URZ100 |
1 | ||
| 52197F - BRACKET, REAR BUMPER SEAL | ||||
| 52197-62020 |
GWZ100,URZ100 |
2 | ||
| 52198A - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52198-53020 |
GWZ100,URZ100 |
1 | ||
| 52453 - GUARD, REAR BUMPER, CENTER | ||||
| 52453-11060 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 52453-11020 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 52453-11020 |
GWZ100,URZ100 |
1 | ||
| 52461 - PAD, REAR BUMPER, CENTER | ||||
| 52461-11010 |
GWZ100,URZ100 |
2 | ||
| 52461K - PAD, REAR BUMPER, NO.1 | ||||
| 52461-11030 |
GWZ100,URZ100 |
2 | ||
| 52461L - PAD, REAR BUMPER, NO.2 | ||||
| 52461-11040 |
GWZ100,URZ100 |
2 | ||
| 52461L - PAD, REAR BUMPER, NO.2 | ||||
| 52461-11040 |
GWZ100,URZ100 |
2 | ||
| 52461M - PAD, REAR BUMPER, NO.3 | ||||
| 52462-53030 |
GWZ100,URZ100 |
2 | ||
| 52461M - PAD, REAR BUMPER, NO.3 | ||||
| 52462-53030 |
GWZ100,URZ100 |
2 | ||
| 52465A - INSERT, REAR BUMPER PAD | ||||
| 52465-11010 |
GWZ100,URZ100 |
2 | ||
| 52465A - INSERT, REAR BUMPER PAD | ||||
| 52465-11010 |
GWZ100,URZ100 |
2 | ||
| 52535E - RETAINER, REAR BUMPER SIDE | ||||
| 52535-28020 |
GWZ100,URZ100 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-11010 |
GWZ100,URZ100 |
1 | ||
| 52681A - EXTENSION, REAR BUMPER ARM, RH | ||||
| 52681-11030 |
GWZ100,URZ100 |
1 | ||
| 52682A - EXTENSION, REAR BUMPER ARM, LH | ||||
| 52682-11010 |
GWZ100,URZ100 |
1 | ||
| 75867H - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-33050 |
GWZ100,URZ100 |
2 | ||
| 75867J - CLIP, ROCKER PANEL MOULDING, NO.2 | ||||
| 75867-33050 |
GWZ100,URZ100 |
2 | ||
| 75895N - TAPE, MOULDING, NO.1 | ||||
| 75895-30050 |
GWZ100,URZ100 |
2 | ||
| 75895-28010 |
GWZ100,URZ100 |
2 | ||
| 75895-53010 |
GWZ100,URZ100 |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-78020 |
GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-78020 |
GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH |
2 | ||
| Common parts | ||||
| 90119-08C56 | ||||
| 90119-08C80 | ||||
| 90119-08D16 | ||||
| 90119-08D55 | ||||
| 90159-60431 | ||||
| 90159-60477 | ||||
| 90159-60602 | ||||
| 90159-60621 | ||||
| 90167-40057 | ||||
| 90179-06349 | ||||
| 90189-06018 | ||||
| 90189-06211 | ||||
| 90189-06228 | ||||
| 90189-06235 | ||||
| 90189-06238 | ||||
| 90467-08225 | ||||
| 90467-09237 | ||||
| 90480-10024 | ||||
| 90561-10021 | ||||
| Linked diagrams | ||||
| 8112 | ||||
| 8113 | ||||
| 8115 | ||||
| 8202 | ||||
(2004- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 52023-11030 |
GWZ100,URZ100 |
1 | ||
| 52023-11030 |
GWZ100,URZ100 CANADA SPEC |
1 | ||
| 52106C - EXTENSION SUB-ASSY, REAR BUMPER, RH | ||||
| 52106-11020 |
GWZ100,URZ100 |
1 | ||
| 52107C - EXTENSION SUB-ASSY, REAR BUMPER, LH | ||||
| 52107-11020 |
GWZ100,URZ100 |
1 | ||
| 52108C - EXTENSION SUB-ASSY, REAR BUMPER, CENTER | ||||
| 52108-11010 |
GWZ100,URZ100 NO PAINT REQ. |
1 | ||
| 52151G - EXTENSION, REAR BUMPER | ||||
| 52151-11040 |
GWZ100,URZ100 |
1 | ||
| 52151-11050 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52152-11040 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52152-11030 |
GWZ100,URZ100 |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52153-11030 |
GWZ100,URZ100 |
1 | ||
| 52153-11040 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH | ||||
| 52155-11010 |
GWZ100,URZ100 |
1 | ||
| 52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH | ||||
| 52156-11010 |
GWZ100,URZ100 |
1 | ||
| 52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-11010 |
GWZ100,URZ100 |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-11010 |
GWZ100,URZ100 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-11910 |
GWZ100,URZ100 |
1 | ||
| 52159-11916 |
GWZ100,URZ100 PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-11906 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-11920 |
GWZ100,URZ100 PAINT REQ. |
1 | ||
| 52159-11918 |
GWZ100,URZ100 PAINT REQ.,KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-11902 |
GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52161A - PIECE, REAR BUMPER, RH | ||||
| 52161-11901 |
GWZ100,URZ100 |
1 | ||
| 52161-11900 |
GWZ100,URZ100 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GWZ100,URZ100 |
4 | ||
| 52162A - PIECE, REAR BUMPER, LH | ||||
| 52162-11901 |
GWZ100,URZ100 |
1 | ||
| 52162-11900 |
GWZ100,URZ100 |
1 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GWZ100,URZ100 |
4 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GWZ100,URZ100 |
4 | ||
| 52165D - EXTENSION, REAR BUMPER CORNER, RH | ||||
| 52165-11901 |
GWZ100,URZ100 |
1 | ||
| 52166B - EXTENSION, REAR BUMPER CORNER, LH | ||||
| 52166-11901 |
GWZ100,URZ100 |
1 | ||
| 52167A - SUPPORT, REAR BUMPER SIDE, NO.4 RH | ||||
| 52167-11010 |
GWZ100,URZ100 |
1 | ||
| 52168A - SUPPORT, REAR BUMPER SIDE, NO.4 LH | ||||
| 52168-11010 |
GWZ100,URZ100 |
1 | ||
| 52173D - REINFORCEMENT, REAR BUMPER BAR, RH | ||||
| 52173-11020 |
GWZ100,URZ100 |
1 | ||
| 52174D - REINFORCEMENT, REAR BUMPER BAR, LH | ||||
| 52174-11020 |
GWZ100,URZ100 |
1 | ||
| 52187A - REINFORCEMENT, REAR BUMPER ARM, RH | ||||
| 52187-11010 |
GWZ100,URZ100 |
1 | ||
| 52188A - REINFORCEMENT, REAR BUMPER ARM, LH | ||||
| 52188-11010 |
GWZ100,URZ100 |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-53040 |
GWZ100,URZ100 |
1 | ||
| 52197F - BRACKET, REAR BUMPER SEAL | ||||
| 52197-62020 |
GWZ100,URZ100 |
2 | ||
| 52198A - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52198-53020 |
GWZ100,URZ100 |
1 | ||
| 52453 - GUARD, REAR BUMPER, CENTER | ||||
| 52453-11060 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 52453-11020 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 52453-11020 |
GWZ100,URZ100 |
1 | ||
| 52461 - PAD, REAR BUMPER, CENTER | ||||
| 52461-11010 |
GWZ100,URZ100 |
2 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-11020 |
GWZ100,URZ100 |
2 | ||
| 52461K - PAD, REAR BUMPER, NO.1 | ||||
| 52461-11030 |
GWZ100,URZ100 |
2 | ||
| 52461L - PAD, REAR BUMPER, NO.2 | ||||
| 52461-11040 |
GWZ100,URZ100 |
2 | ||
| 52461L - PAD, REAR BUMPER, NO.2 | ||||
| 52461-11040 |
GWZ100,URZ100 |
2 | ||
| 52461M - PAD, REAR BUMPER, NO.3 | ||||
| 52462-53030 |
GWZ100,URZ100 |
2 | ||
| 52461M - PAD, REAR BUMPER, NO.3 | ||||
| 52462-53030 |
GWZ100,URZ100 |
2 | ||
| 52465A - INSERT, REAR BUMPER PAD | ||||
| 52465-11010 |
GWZ100,URZ100 |
2 | ||
| 52465A - INSERT, REAR BUMPER PAD | ||||
| 52465-11010 |
GWZ100,URZ100 |
2 | ||
| 52535E - RETAINER, REAR BUMPER SIDE | ||||
| 52535-28020 |
GWZ100,URZ100 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-11010 |
GWZ100,URZ100 |
1 | ||
| 52681A - EXTENSION, REAR BUMPER ARM, RH | ||||
| 52681-11030 |
GWZ100,URZ100 |
1 | ||
| 52682A - EXTENSION, REAR BUMPER ARM, LH | ||||
| 52682-11010 |
GWZ100,URZ100 |
1 | ||
| 75867H - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-33050 |
GWZ100,URZ100 |
2 | ||
| 75867J - CLIP, ROCKER PANEL MOULDING, NO.2 | ||||
| 75867-33050 |
GWZ100,URZ100 |
2 | ||
| 75895N - TAPE, MOULDING, NO.1 | ||||
| 75895-30050 |
GWZ100,URZ100 |
2 | ||
| 75895-28010 |
GWZ100,URZ100 |
2 | ||
| 75895-53010 |
GWZ100,URZ100 |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-78020 |
GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-78020 |
GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH |
2 | ||
| Common parts | ||||
| 90119-08C56 | ||||
| 90119-08C80 | ||||
| 90119-08D55 | ||||
| 90159-60431 | ||||
| 90159-60477 | ||||
| 90159-60602 | ||||
| 90159-60621 | ||||
| 90167-40057 | ||||
| 90179-06349 | ||||
| 90189-06018 | ||||
| 90189-06211 | ||||
| 90189-06228 | ||||
| 90189-06235 | ||||
| 90189-06238 | ||||
| 90467-08225 | ||||
| 90467-09237 | ||||
| 90480-10024 | ||||
| 90561-10021 | ||||
| Linked diagrams | ||||
| 8112 | ||||
| 8113 | ||||
| 8115 | ||||
| 8202 | ||||
(2004- )
KOREA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-11030 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 52023-11030 |
GWZ100,URZ100 |
1 | ||
| 52023-11030 |
GWZ100,URZ100 CANADA SPEC |
1 | ||
| 52106C - EXTENSION SUB-ASSY, REAR BUMPER, RH | ||||
| 52106-11020 |
GWZ100,URZ100 |
1 | ||
| 52107C - EXTENSION SUB-ASSY, REAR BUMPER, LH | ||||
| 52107-11020 |
GWZ100,URZ100 |
1 | ||
| 52108C - EXTENSION SUB-ASSY, REAR BUMPER, CENTER | ||||
| 52108-11010 |
GWZ100,URZ100 NO PAINT REQ. |
1 | ||
| 52151G - EXTENSION, REAR BUMPER | ||||
| 52151-11040 |
GWZ100,URZ100 |
1 | ||
| 52151-11050 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52152-11040 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52152-11030 |
GWZ100,URZ100 |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52153-11030 |
GWZ100,URZ100 |
1 | ||
| 52153-11040 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH | ||||
| 52155-11010 |
GWZ100,URZ100 |
1 | ||
| 52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH | ||||
| 52156-11010 |
GWZ100,URZ100 |
1 | ||
| 52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-11010 |
GWZ100,URZ100 |
1 | ||
| 52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-11010 |
GWZ100,URZ100 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-11910 |
GWZ100,URZ100 |
1 | ||
| 52159-11916 |
GWZ100,URZ100 PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-11906 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-11920 |
GWZ100,URZ100 PAINT REQ. |
1 | ||
| 52159-11918 |
GWZ100,URZ100 PAINT REQ.,KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-11902 |
GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52161A - PIECE, REAR BUMPER, RH | ||||
| 52161-11901 |
GWZ100,URZ100 |
1 | ||
| 52161-11900 |
GWZ100,URZ100 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GWZ100,URZ100 |
4 | ||
| 52162A - PIECE, REAR BUMPER, LH | ||||
| 52162-11901 |
GWZ100,URZ100 |
1 | ||
| 52162-11900 |
GWZ100,URZ100 |
1 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GWZ100,URZ100 |
4 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GWZ100,URZ100 |
4 | ||
| 52165D - EXTENSION, REAR BUMPER CORNER, RH | ||||
| 52165-11901 |
GWZ100,URZ100 |
1 | ||
| 52166B - EXTENSION, REAR BUMPER CORNER, LH | ||||
| 52166-11901 |
GWZ100,URZ100 |
1 | ||
| 52167A - SUPPORT, REAR BUMPER SIDE, NO.4 RH | ||||
| 52167-11010 |
GWZ100,URZ100 |
1 | ||
| 52168A - SUPPORT, REAR BUMPER SIDE, NO.4 LH | ||||
| 52168-11010 |
GWZ100,URZ100 |
1 | ||
| 52173D - REINFORCEMENT, REAR BUMPER BAR, RH | ||||
| 52173-11020 |
GWZ100,URZ100 |
1 | ||
| 52174D - REINFORCEMENT, REAR BUMPER BAR, LH | ||||
| 52174-11020 |
GWZ100,URZ100 |
1 | ||
| 52187A - REINFORCEMENT, REAR BUMPER ARM, RH | ||||
| 52187-11010 |
GWZ100,URZ100 |
1 | ||
| 52188A - REINFORCEMENT, REAR BUMPER ARM, LH | ||||
| 52188-11010 |
GWZ100,URZ100 |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-53040 |
GWZ100,URZ100 |
1 | ||
| 52197F - BRACKET, REAR BUMPER SEAL | ||||
| 52197-62020 |
GWZ100,URZ100 |
2 | ||
| 52198A - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52198-53020 |
GWZ100,URZ100 |
1 | ||
| 52453 - GUARD, REAR BUMPER, CENTER | ||||
| 52453-11060 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 52453-11020 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 52453-11020 |
GWZ100,URZ100 |
1 | ||
| 52461 - PAD, REAR BUMPER, CENTER | ||||
| 52461-11010 |
GWZ100,URZ100 |
2 | ||
| 52461K - PAD, REAR BUMPER, NO.1 | ||||
| 52461-11030 |
GWZ100,URZ100 |
2 | ||
| 52461L - PAD, REAR BUMPER, NO.2 | ||||
| 52461-11040 |
GWZ100,URZ100 |
2 | ||
| 52461L - PAD, REAR BUMPER, NO.2 | ||||
| 52461-11040 |
GWZ100,URZ100 |
2 | ||
| 52461M - PAD, REAR BUMPER, NO.3 | ||||
| 52462-53030 |
GWZ100,URZ100 |
2 | ||
| 52461M - PAD, REAR BUMPER, NO.3 | ||||
| 52462-53030 |
GWZ100,URZ100 |
2 | ||
| 52465A - INSERT, REAR BUMPER PAD | ||||
| 52465-11010 |
GWZ100,URZ100 |
2 | ||
| 52465A - INSERT, REAR BUMPER PAD | ||||
| 52465-11010 |
GWZ100,URZ100 |
2 | ||
| 52535E - RETAINER, REAR BUMPER SIDE | ||||
| 52535-28020 |
GWZ100,URZ100 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-11010 |
GWZ100,URZ100 |
1 | ||
| 52681A - EXTENSION, REAR BUMPER ARM, RH | ||||
| 52681-11030 |
GWZ100,URZ100 |
1 | ||
| 52682A - EXTENSION, REAR BUMPER ARM, LH | ||||
| 52682-11010 |
GWZ100,URZ100 |
1 | ||
| 75867H - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-33050 |
GWZ100,URZ100 |
2 | ||
| 75867J - CLIP, ROCKER PANEL MOULDING, NO.2 | ||||
| 75867-33050 |
GWZ100,URZ100 |
2 | ||
| 75895N - TAPE, MOULDING, NO.1 | ||||
| 75895-30050 |
GWZ100,URZ100 |
2 | ||
| 75895-28010 |
GWZ100,URZ100 |
2 | ||
| 75895-53010 |
GWZ100,URZ100 |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-78020 |
GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-78020 |
GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH |
2 | ||
| Common parts | ||||
| 90119-08C56 | ||||
| 90119-08C80 | ||||
| 90119-08D55 | ||||
| 90159-60431 | ||||
| 90159-60477 | ||||
| 90159-60602 | ||||
| 90159-60621 | ||||
| 90167-40057 | ||||
| 90179-06349 | ||||
| 90189-06018 | ||||
| 90189-06211 | ||||
| 90189-06228 | ||||
| 90189-06235 | ||||
| 90189-06238 | ||||
| 90467-08225 | ||||
| 90467-09237 | ||||
| 90480-10024 | ||||
| 90561-10021 | ||||
| Linked diagrams | ||||
| 8112 | ||||
| 8113 | ||||
| 8115 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
