GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)

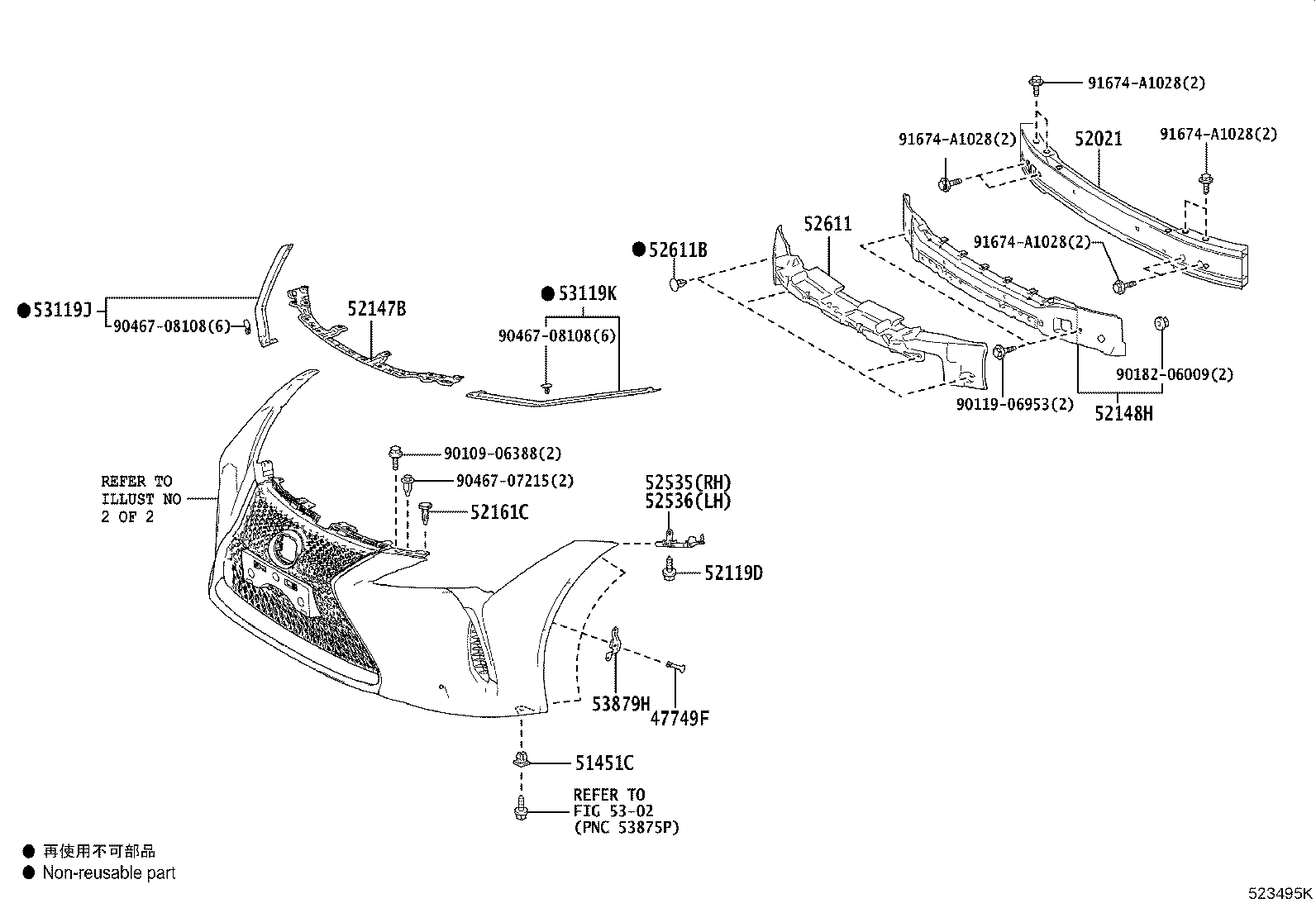

ILLUST NO. 1 OF 2(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749F - CLIP, PIN HOLD | ||||
| 47749-50090 |
GWZ100,URZ100 |
6 | ||
| 51451C - GROMMET(FOR ENGINE UNDER COVER) | ||||
| 90189-06237 |
GWZ100,URZ100 |
2 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-11020 |
GWZ100,URZ100 |
1 | ||
| 52021-11020 |
GWZ100,URZ100 CANADA SPEC |
1 | ||
| 52021-11020 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60431 |
GWZ100,URZ100 |
2 | ||
| 52147B - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-11010 |
GWZ100,URZ100 |
1 | ||
| 52148H - BRACKET, FRONT BUMPER MOUNTING, NO.2 | ||||
| 52148-11010 |
GWZ100,URZ100 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
GWZ100,URZ100 |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-11020 |
GWZ100,URZ100 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-11020 |
GWZ100,URZ100 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-11010 |
GWZ100,URZ100 |
1 | ||
| 52611B - CLIP, FRONT BUMPER ENERGY ABSORBER | ||||
| 90467-0704923 |
GWZ100,URZ100 BLACK |
4 | ||
| 53119J - PROTECTOR, RADIATOR GRILLE, RH | ||||
| 53119-11010 |
GWZ100,URZ100 |
1 | ||
| 53119K - PROTECTOR, RADIATOR GRILLE, LH | ||||
| 53119-11020 |
GWZ100,URZ100 |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-11010 |
GWZ100,URZ100 |
6 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90119-06953 | ||||
| 90182-06009 | ||||
| 90467-07215 | ||||
| 90467-08108 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5302 | ||||

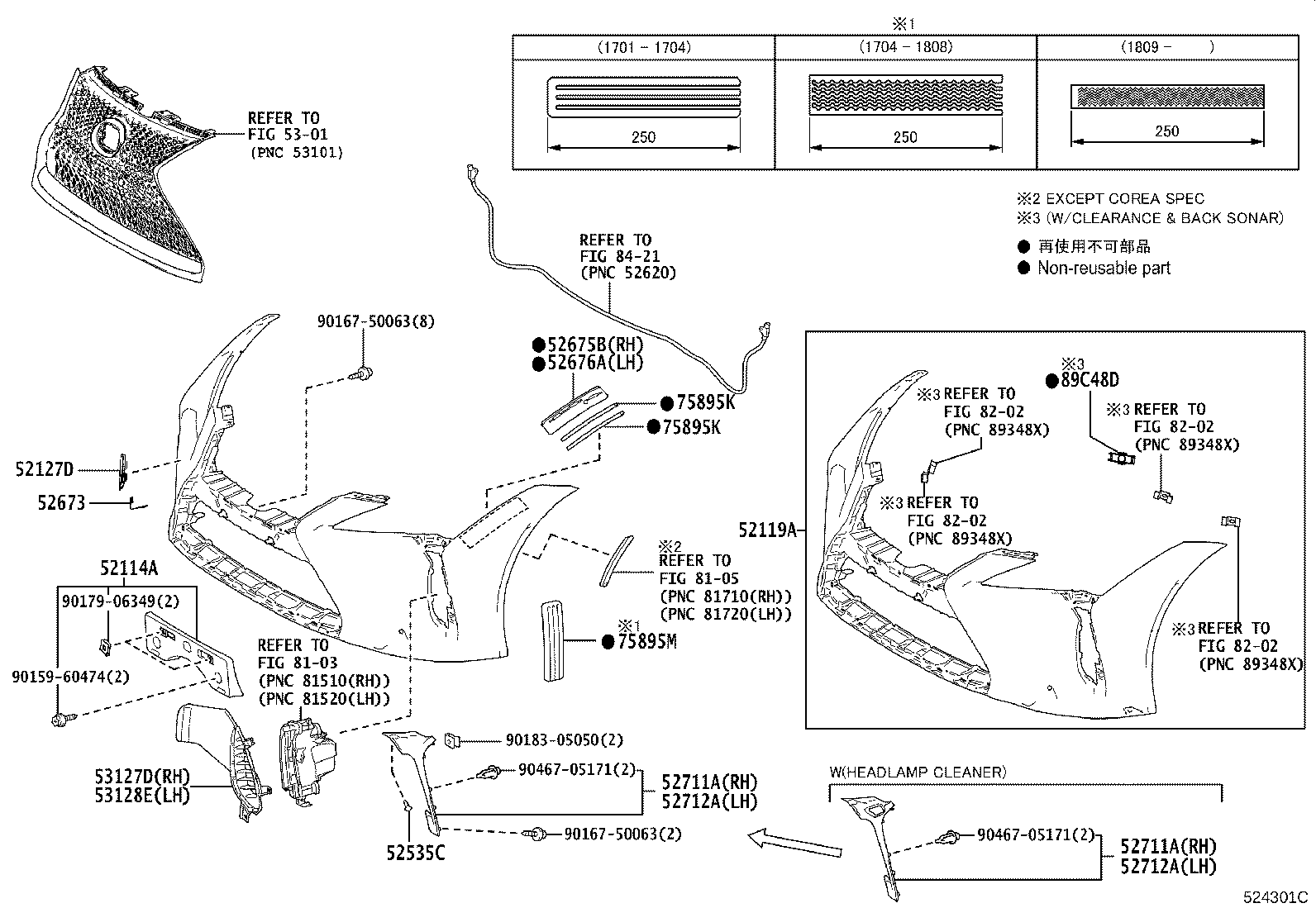

ILLUST NO. 2 OF 2(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-11021 |
GWZ100,URZ100 |
1 | ||
| 52114-11021 |
GWZ100,URZ100 KOREA SPEC |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-11908 |
GWZ100,URZ100 PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-11903 |
GWZ100,URZ100 PAINT REQ.,KOREA SPEC&"AVIATION"*(D)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-11909 |
GWZ100,URZ100 PAINT REQ. |
1 | ||
| 52119-11908 |
GWZ100,URZ100 PAINT REQ.,"AVIATION"*(D)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-11903 |
GWZ100,URZ100 PAINT REQ.,KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52128-11901 |
GWZ100,URZ100 |
1 | ||
| 52128-11900 |
GWZ100,URZ100 |
1 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-28020 |
GWZ100,URZ100 |
2 | ||
| 52673 - ARM, FRONT BUMPER, NO.1 | ||||
| 52673-11010 |
GWZ100,URZ100 |
1 | ||
| 52675B - SUPPORT, FRONT BUMPER SIDE, NO.1 RH | ||||
| 52675-11020 |
GWZ100,URZ100 |
1 | ||
| 52676A - SUPPORT, FRONT BUMPER SIDE, NO.1 LH | ||||
| 52676-11020 |
GWZ100,URZ100 |
1 | ||
| 52711A - GARNISH, FRONT BUMPER | ||||
| 52711-11030 |
GWZ100,URZ100 NO PAINT REQ.,"AVIATION"*(D)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52711-11010 |
GWZ100,URZ100 |
1 | ||
| 52711-11030 |
GWZ100,URZ100 NO PAINT REQ.,"AVIATION"*(D) |
1 | ||
| 52711-11020 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52711-11040 |
GWZ100,URZ100 NO PAINT REQ.,KOREA SPEC&"AVIATION"*(D)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52711A - GARNISH, FRONT BUMPER | ||||
| 52711-11030 |
GWZ100,URZ100 NO PAINT REQ.,"AVIATION"*(D)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52711-11010 |
GWZ100,URZ100 |
1 | ||
| 52711-11030 |
GWZ100,URZ100 NO PAINT REQ.,"AVIATION"*(D) |
1 | ||
| 52711-11020 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52711-11040 |
GWZ100,URZ100 NO PAINT REQ.,KOREA SPEC&"AVIATION"*(D)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52712A - GARNISH, FRONT BUMPER, LH | ||||
| 52712-11010 |
GWZ100,URZ100 |
1 | ||
| 52712-11030 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 52712-11040 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52712-11020 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52712-11030 |
GWZ100,URZ100 "AVIATION"*(D)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52712A - GARNISH, FRONT BUMPER, LH | ||||
| 52712-11010 |
GWZ100,URZ100 |
1 | ||
| 52712-11030 |
GWZ100,URZ100 "AVIATION"*(D) |
1 | ||
| 52712-11040 |
GWZ100,URZ100 KOREA SPEC&"AVIATION"*(D)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52712-11020 |
GWZ100,URZ100 KOREA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52712-11030 |
GWZ100,URZ100 "AVIATION"*(D)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53127D - GRILLE, RADIATOR, LOWER SIDE RH | ||||
| 53127-11010 |
GWZ100,URZ100 |
1 | ||
| 53128E - GRILLE, RADIATOR, LOWER SIDE LH | ||||
| 53128-11010 |
GWZ100,URZ100 |
1 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-11020 |
GWZ100,URZ100 |
4 | ||
| 75895K - TAPE, MOULDING, NO.1 | ||||
| 75895-11020 |
GWZ100,URZ100 |
4 | ||
| 75895M - TAPE, MOULDING, NO.2 | ||||
| 75895-53010 |
GWZ100,URZ100 |
2 | ||
| 75895-28010 |
GWZ100,URZ100 |
2 | ||
| 75895-30050 |
GWZ100,URZ100 |
2 | ||
| 89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER | ||||
| 89348-78030 |
GWZ100,URZ100 CLEARANCE & BACK SONAR-WITH |
2 | ||
| Common parts | ||||
| 90159-60474 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90183-05050 | ||||
| 90467-05171 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 8103 | ||||
| 8105 | ||||
| 8202 | ||||
| 8421 | ||||
