GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)

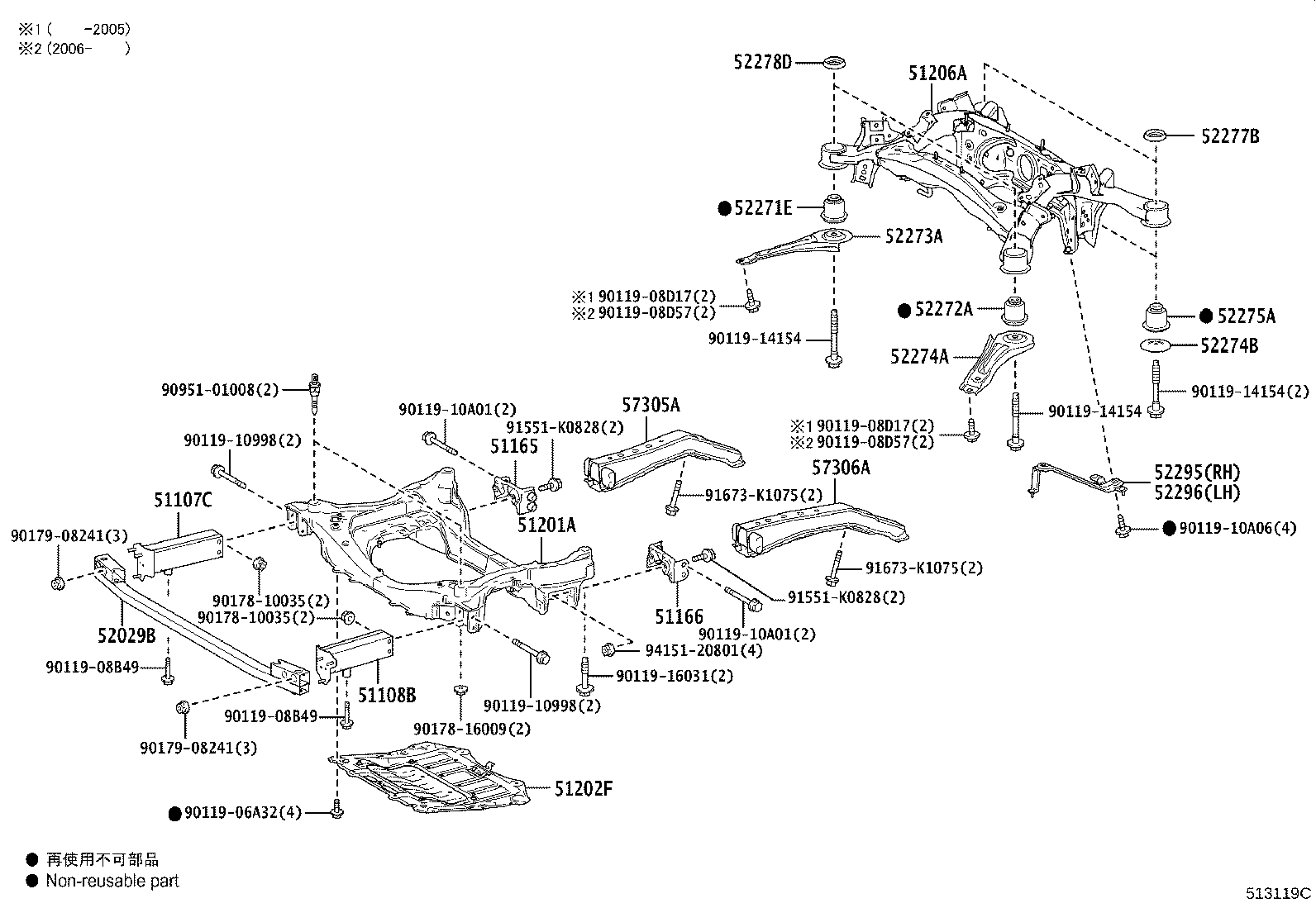

ILLUST NO. 1 OF 2(1701- )
SUSPENSION CROSSMEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51107C - RAIL SUB-ASSY, REAR FRAME, RH | ||||
| 51107-11010 |
GWZ100,URZ100 |
1 | ||
| 51108B - RAIL SUB-ASSY, REAR FRAME, LH | ||||
| 51108-11010 |
GWZ100,URZ100 |
1 | ||
| 51165 - REINFORCEMENT, SIDE RAIL, NO.2 RH | ||||
| 51165-11010 |
GWZ100,URZ100 |
1 | ||
| 51166 - REINFORCEMENT, SIDE RAIL, NO.2 LH | ||||
| 51166-11010 |
GWZ100,URZ100 |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-11020 |
GWZ100,URZ100 |
1 | ||
| 51202F - SUPPORT SUB-ASSY, STRUT BAR BRACKET | ||||
| 51202-11020 |
GWZ100,URZ100 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-11010 |
GWZ100,URZ100 LUSTER YELLOW*() |
1 | ||
| 51206-11010 |
GWZ100,URZ100 "S PACKAGE" |
1 | ||
| 51206-11020 |
GWZ100,URZ100 |
1 | ||
| 52029B - REINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2 | ||||
| 52029-11010 |
GWZ100,URZ100 |
1 | ||
| 52271E - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH | ||||
| 52271-11010 |
GWZ100,URZ100 |
1 | ||
| 52272A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH | ||||
| 52272-11010 |
GWZ100,URZ100 |
1 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52273-11010 |
GWZ100,URZ100 |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52274-11010 |
GWZ100,URZ100 |
1 | ||
| 52274B - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER | ||||
| 52274-50020 |
GWZ100,URZ100 |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-11010 |
GWZ100,URZ100 |
2 | ||
| 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52277-11010 |
GWZ100,URZ100 |
2 | ||
| 52278D - STOPPER, REAR SUSPENSION MEMBER, FRONT UPPER | ||||
| 52278-11010 |
GWZ100,URZ100 |
2 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-11010 |
GWZ100,URZ100 |
1 | ||
| 52296 - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52296-11010 |
GWZ100,URZ100 |
1 | ||
| 57305A - REINFORCEMENT SUB-ASSY, LOWER ARM MOUNTING, REAR RH | ||||
| 57305-11010 |
GWZ100,URZ100 |
1 | ||
| 57305-30060 |
GWZ100,URZ100 |
1 | ||
| 57306A - REINFORCEMENT SUB-ASSY, LOWER ARM MOUNTING, REAR LH | ||||
| 57306-30080 |
GWZ100,URZ100 |
1 | ||
| 57306-11010 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90119-06A32 | ||||
| 90119-08B49 | ||||
| 90119-08D17 | ||||
| 90119-08D57 | ||||
| 90119-10998 | ||||
| 90119-10A01 | ||||
| 90119-10A06 | ||||
| 90119-14154 | ||||
| 90119-16031 | ||||
| 90178-10035 | ||||
| 90178-16009 | ||||
| 90179-08241 | ||||
| 90951-01008 | ||||
| 91551-K0828 | ||||
| 91673-K1075 | ||||
| 94151-20801 | ||||

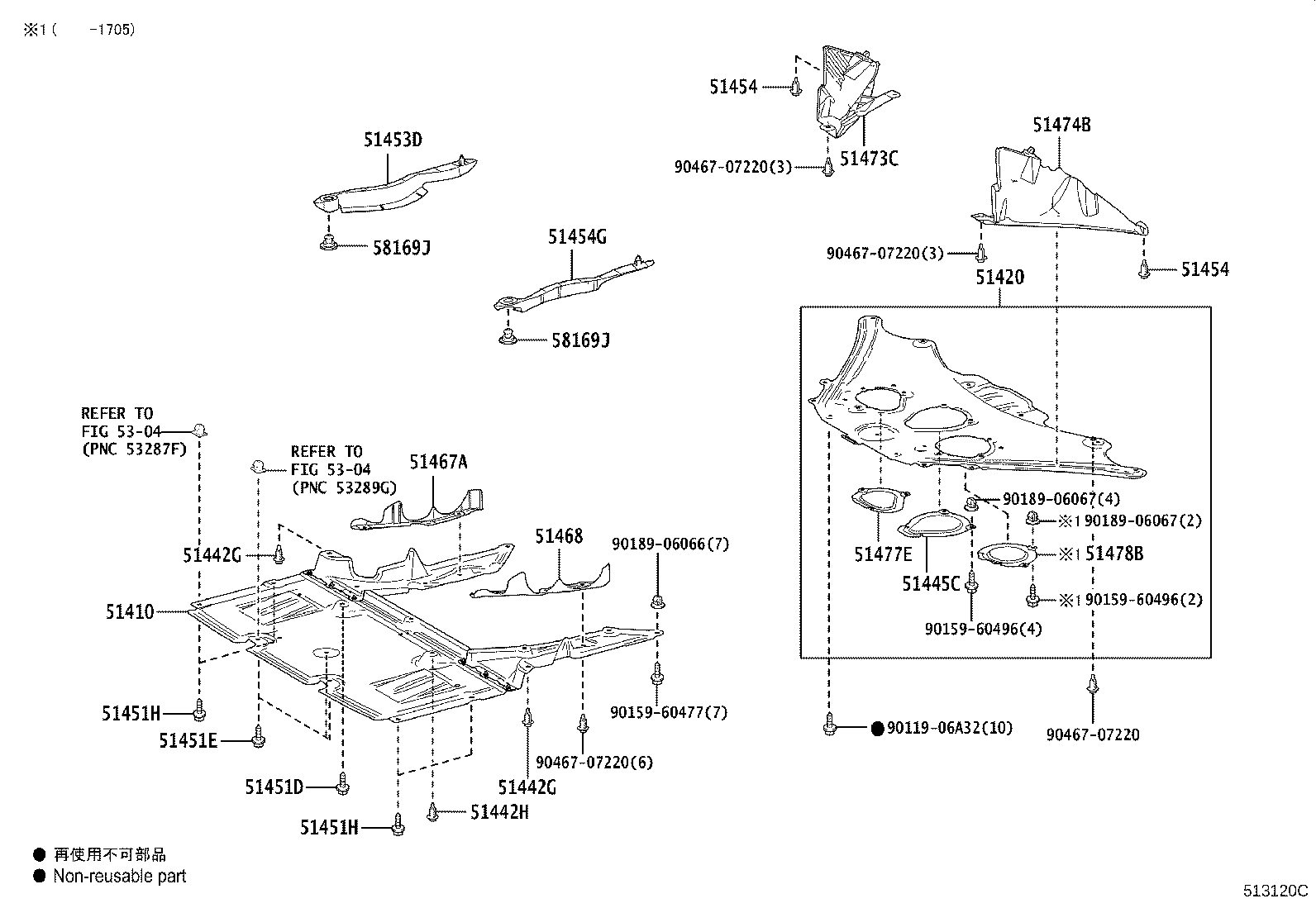

ILLUST NO. 2 OF 2(1701- )
UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51410 - COVER ASSY, ENGINE UNDER, NO.1 | ||||
| 51410-11010 |
GWZ100,URZ100 |
1 | ||
| 51420 - COVER ASSY, ENGINE UNDER, NO.2 | ||||
| 51420-11010 |
GWZ100,URZ100 |
1 | ||
| 51442G - CLIP, ENGINE UNDER COVER, NO.1 | ||||
| 90467-07220 |
GWZ100,URZ100 |
2 | ||
| 51442G - CLIP, ENGINE UNDER COVER, NO.1 | ||||
| 90467-07220 |
GWZ100,URZ100 |
2 | ||
| 51442H - CLIP, ENGINE UNDER COVER, NO.2 | ||||
| 90467-07220 |
GWZ100,URZ100 |
1 | ||
| 51445C - BRACKET, ENGINE REAR COVER | ||||
| 51445-11010 |
GWZ100,URZ100 |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60477 |
GWZ100,URZ100 |
1 | ||
| 51451E - SCREW, NO.2 | ||||
| 90159-60477 |
GWZ100,URZ100 |
3 | ||
| 51451H - SCREW, NO.3 | ||||
| 90159-60477 |
GWZ100,URZ100 |
4 | ||
| 51451H - SCREW, NO.3 | ||||
| 90159-60477 |
GWZ100,URZ100 |
4 | ||
| 51453D - COVER, ENGINE ROOM UNDER, RH | ||||
| 51453-11010 |
GWZ100,URZ100 |
1 | ||
| 51454 - CLIP | ||||
| 90467-07220 |
GWZ100,URZ100 |
2 | ||
| 51454 - CLIP | ||||
| 90467-07220 |
GWZ100,URZ100 |
2 | ||
| 51454G - COVER, ENGINE ROOM UNDER, LH | ||||
| 51454-11020 |
GWZ100,URZ100 |
1 | ||
| 51467A - SILENCER, SIDE RAIL INNER, NO.2 RH | ||||
| 51467-11010 |
GWZ100,URZ100 |
1 | ||
| 51468 - SILENCER, SIDE RAIL INNER, NO.2 LH | ||||
| 51468-11010 |
GWZ100,URZ100 |
1 | ||
| 51473C - COVER, ENGINE SIDE, RH | ||||
| 51473-11010 |
GWZ100,URZ100 |
1 | ||
| 51474B - COVER, ENGINE SIDE, LH | ||||
| 51474-11010 |
GWZ100,URZ100 |
1 | ||
| 51477E - PLATE, ENGINE UNDER COVER SIDE, RH | ||||
| 51477-11010 |
GWZ100,URZ100 |
1 | ||
| 51478B - PLATE, ENGINE UNDER COVER SIDE, LH | ||||
| 51478-11010 |
GWZ100,URZ100 |
1 | ||
| 58169J - PATCH, FRONT FLOOR, REAR | ||||
| 58169-48010 |
GWZ100,URZ100 |
2 | ||
| 58169J - PATCH, FRONT FLOOR, REAR | ||||
| 58169-48010 |
GWZ100,URZ100 |
2 | ||
| Common parts | ||||
| 90119-06A32 | ||||
| 90159-60477 | ||||
| 90159-60496 | ||||
| 90189-06066 | ||||
| 90189-06067 | ||||
| 90467-07220 | ||||
| Linked diagrams | ||||
| 5304 | ||||
