GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)

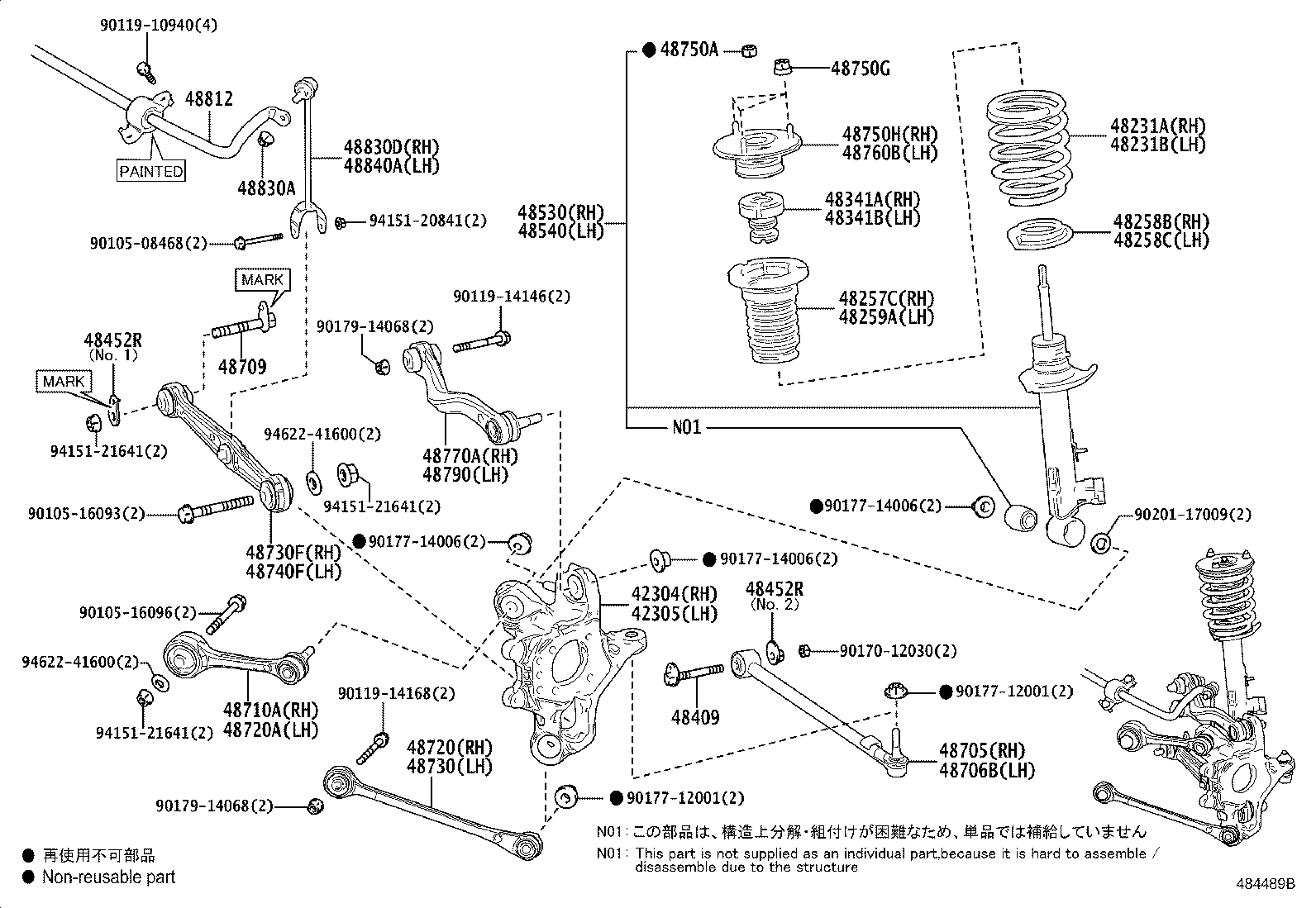

ILLUST NO. 1 OF 2(1701-2004)
2WS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-11010 |
GWZ100,URZ100 |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-11010 |
GWZ100,URZ100 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-11020 |
GWZ100 REFER TO PNC 48530 |
1 | ||
| 48231-11030 |
GWZ100 REFER TO PNC 48530 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-11020 |
GWZ100 REFER TO PNC 48540 |
1 | ||
| 48231-11030 |
GWZ100 REFER TO PNC 48540 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-11010 |
GWZ100,URZ100 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48158-30020 |
GWZ100,URZ100 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48158-30020 |
GWZ100,URZ100 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-11010 |
GWZ100,URZ100 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-11050 |
GWZ100,URZ100 |
1 | ||
| 48341-11060 |
GWZ100,URZ100 REFER TO PNC 48530 |
1 | ||
| 48341-11050 |
GWZ100,URZ100 REFER TO PNC 48530 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-11060 |
GWZ100,URZ100 REFER TO PNC 48540 |
1 | ||
| 48341-11050 |
GWZ100,URZ100 |
1 | ||
| 48341-11050 |
GWZ100,URZ100 REFER TO PNC 48540 |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-11040 |
GWZ100,URZ100 |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-11010 |
GWZ100,URZ100 MARK A****,NO.1 |
2 | ||
| 48452-50040 |
GWZ100,URZ100 NO.2 |
2 | ||
| 48452-11030 |
GWZ100,URZ100 MARK C,NO.1 |
2 | ||
| 48452-11020 |
GWZ100,URZ100 MARK B,NO.1 |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-11010 |
GWZ100,URZ100 MARK A****,NO.1 |
2 | ||
| 48452-50040 |
GWZ100,URZ100 NO.2 |
2 | ||
| 48452-11030 |
GWZ100,URZ100 MARK C,NO.1 |
2 | ||
| 48452-11020 |
GWZ100,URZ100 MARK B,NO.1 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80808 |
GWZ100,URZ100 MARK 48530-11010 |
1 | ||
| 48530-80A39 |
GWZ100,URZ100 MARK 48530-11030 |
1 | ||
| 48530-80865 |
GWZ100,URZ100 MARK 48530-11011 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-19765 |
GWZ100,URZ100 MARK 48540-11030 |
1 | ||
| 48540-19746 |
GWZ100,URZ100 MARK 48540-11011 |
1 | ||
| 48540-19745 |
GWZ100,URZ100 MARK 48540-11010 |
1 | ||
| 48705 - LINK SUB-ASSY, TOE CONTROL, RH | ||||
| 48705-11010 |
GWZ100,URZ100 |
1 | ||
| 48706B - LINK SUB-ASSY, TOE CONTROL, LH | ||||
| 48706-11010 |
GWZ100,URZ100 |
1 | ||
| 48709 - ATTACHMENT SUB-ASSY, REAR SUSPENSION ARM | ||||
| 48709-11030 |
GWZ100,URZ100 MARK B |
2 | ||
| 48709-11040 |
GWZ100,URZ100 MARK C |
2 | ||
| 48709-11020 |
GWZ100,URZ100 MARK A |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-11010 |
GWZ100,URZ100 |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-11010 |
GWZ100,URZ100 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-11010 |
GWZ100,URZ100 |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-11010 |
GWZ100,URZ100 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-11010 |
GWZ100,URZ100 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-11010 |
GWZ100,URZ100 |
1 | ||
| 48750A - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER) | ||||
| 90177-12002 |
GWZ100,URZ100 |
2 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90178-10033 |
GWZ100,URZ100 |
6 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48755-11010 |
GWZ100,URZ100 |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48755-11010 |
GWZ100,URZ100 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-11010 |
GWZ100,URZ100 |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-11020 |
GWZ100,URZ100 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48805-11010 |
GWZ100,URZ100 PAINTED=YELLOW GREEN |
1 | ||
| 48805-11030 |
GWZ100,URZ100 PAINTED=LIGHT BLUE |
1 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-12151 |
GWZ100,URZ100 |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-11010 |
GWZ100,URZ100 |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48840-11010 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90105-08468 | ||||
| 90105-16093 | ||||
| 90105-16096 | ||||
| 90119-10940 | ||||
| 90119-14146 | ||||
| 90119-14168 | ||||
| 90170-12030 | ||||
| 90177-12001 | ||||
| 90177-14006 | ||||
| 90179-14068 | ||||
| 90201-17009 | ||||
| 94151-20841 | ||||
| 94151-21641 | ||||
| 94622-41600 | ||||

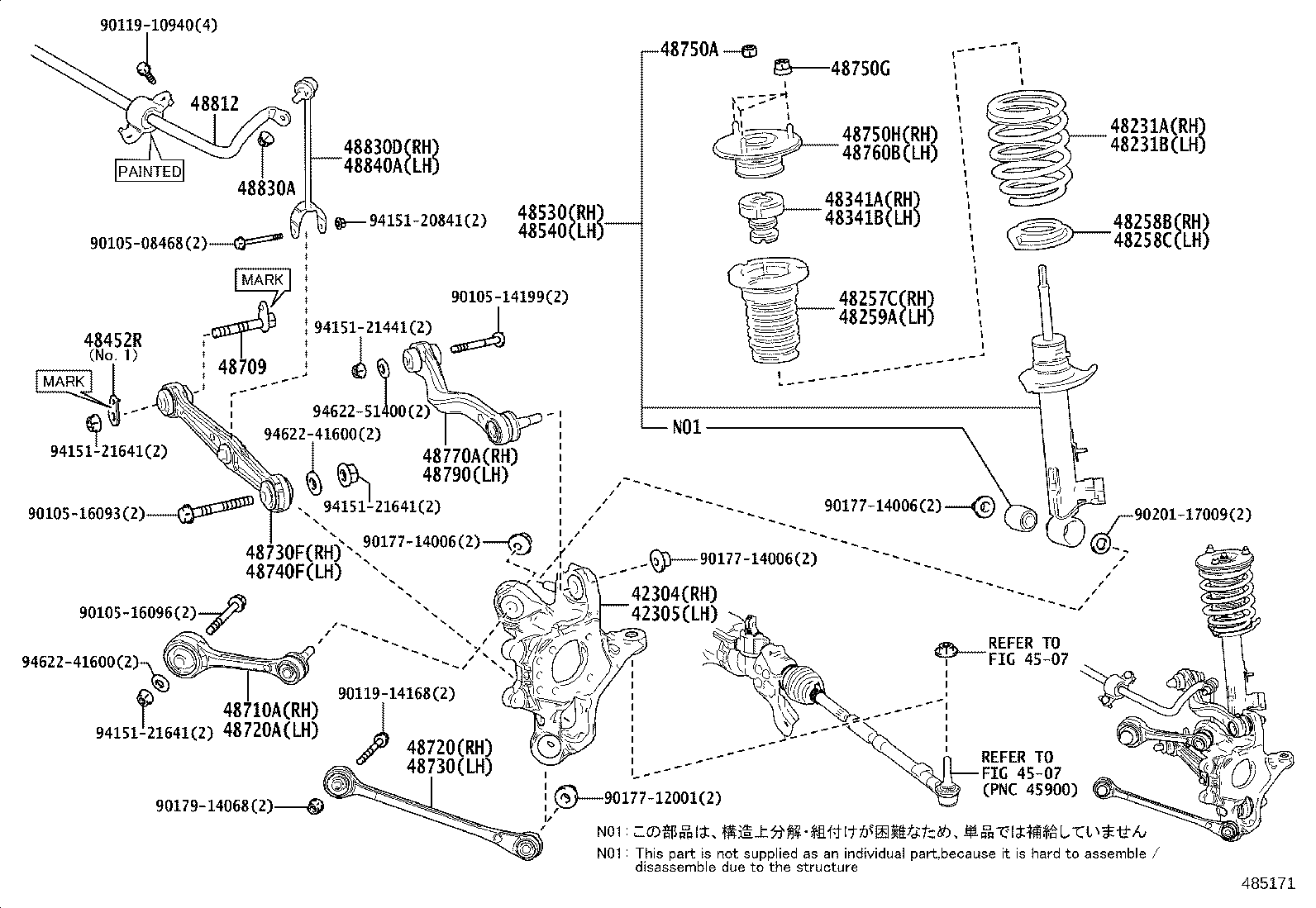

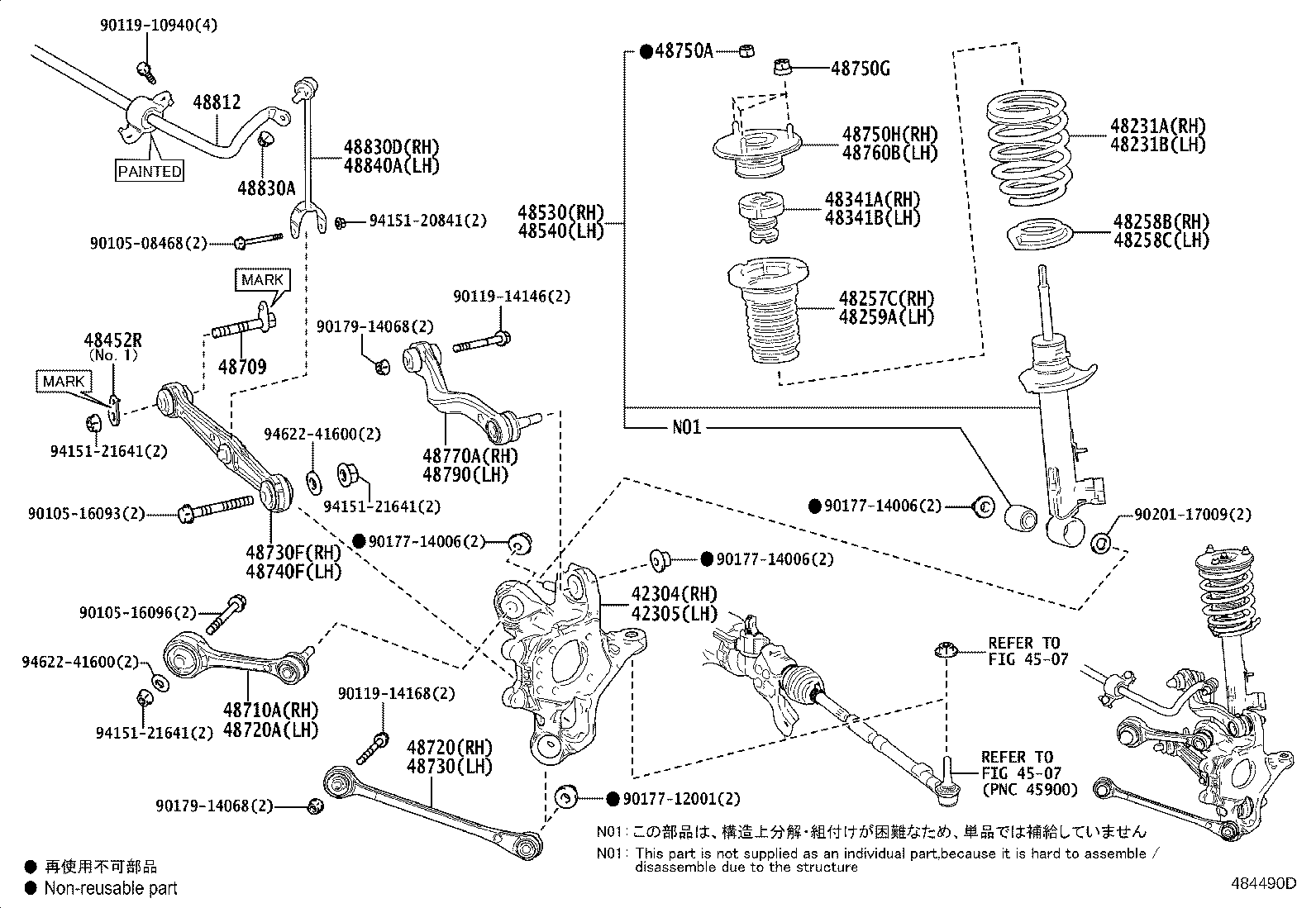

ILLUST NO. 2 OF 2(1701-2004)
4WS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-11010 |
GWZ100,URZ100 |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-11010 |
GWZ100,URZ100 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-11020 |
GWZ100 REFER TO PNC 48530 |
1 | ||
| 48231-11030 |
GWZ100 REFER TO PNC 48530 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-11020 |
GWZ100 REFER TO PNC 48540 |
1 | ||
| 48231-11030 |
GWZ100 REFER TO PNC 48540 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-11010 |
GWZ100,URZ100 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48158-30020 |
GWZ100,URZ100 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48158-30020 |
GWZ100,URZ100 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-11010 |
GWZ100,URZ100 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-11050 |
GWZ100,URZ100 |
1 | ||
| 48341-11060 |
GWZ100,URZ100 REFER TO PNC 48530 |
1 | ||
| 48341-11050 |
GWZ100,URZ100 REFER TO PNC 48530 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-11060 |
GWZ100,URZ100 REFER TO PNC 48540 |
1 | ||
| 48341-11050 |
GWZ100,URZ100 |
1 | ||
| 48341-11050 |
GWZ100,URZ100 REFER TO PNC 48540 |
1 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-11010 |
GWZ100,URZ100 MARK A****,NO.1 |
2 | ||
| 48452-50040 |
GWZ100,URZ100 NO.2 |
2 | ||
| 48452-11030 |
GWZ100,URZ100 MARK C,NO.1 |
2 | ||
| 48452-11020 |
GWZ100,URZ100 MARK B,NO.1 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80808 |
GWZ100,URZ100 MARK 48530-11010 |
1 | ||
| 48530-80A39 |
GWZ100,URZ100 MARK 48530-11030 |
1 | ||
| 48530-80865 |
GWZ100,URZ100 MARK 48530-11011 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-19765 |
GWZ100,URZ100 MARK 48540-11030 |
1 | ||
| 48540-19746 |
GWZ100,URZ100 MARK 48540-11011 |
1 | ||
| 48540-19745 |
GWZ100,URZ100 MARK 48540-11010 |
1 | ||
| 48709 - ATTACHMENT SUB-ASSY, REAR SUSPENSION ARM | ||||
| 48709-11030 |
GWZ100,URZ100 MARK B |
2 | ||
| 48709-11040 |
GWZ100,URZ100 MARK C |
2 | ||
| 48709-11020 |
GWZ100,URZ100 MARK A |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-11010 |
GWZ100,URZ100 |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-11010 |
GWZ100,URZ100 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-11010 |
GWZ100,URZ100 |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-11010 |
GWZ100,URZ100 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-11010 |
GWZ100,URZ100 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-11010 |
GWZ100,URZ100 |
1 | ||
| 48750A - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER) | ||||
| 90177-12002 |
GWZ100,URZ100 |
2 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90178-10033 |
GWZ100,URZ100 |
6 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48755-11010 |
GWZ100,URZ100 |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48755-11010 |
GWZ100,URZ100 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-11010 |
GWZ100,URZ100 |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-11020 |
GWZ100,URZ100 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48805-11010 |
GWZ100,URZ100 PAINTED=YELLOW GREEN |
1 | ||
| 48805-11030 |
GWZ100,URZ100 PAINTED=LIGHT BLUE |
1 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-12151 |
GWZ100,URZ100 |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-11010 |
GWZ100,URZ100 |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48840-11010 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90105-08468 | ||||
| 90105-16093 | ||||
| 90105-16096 | ||||
| 90119-10940 | ||||
| 90119-14146 | ||||
| 90119-14168 | ||||
| 90177-12001 | ||||
| 90177-14006 | ||||
| 90179-14068 | ||||
| 90201-17009 | ||||
| 94151-20841 | ||||
| 94151-21641 | ||||
| 94622-41600 | ||||
| Linked diagrams | ||||
| 4507 | ||||

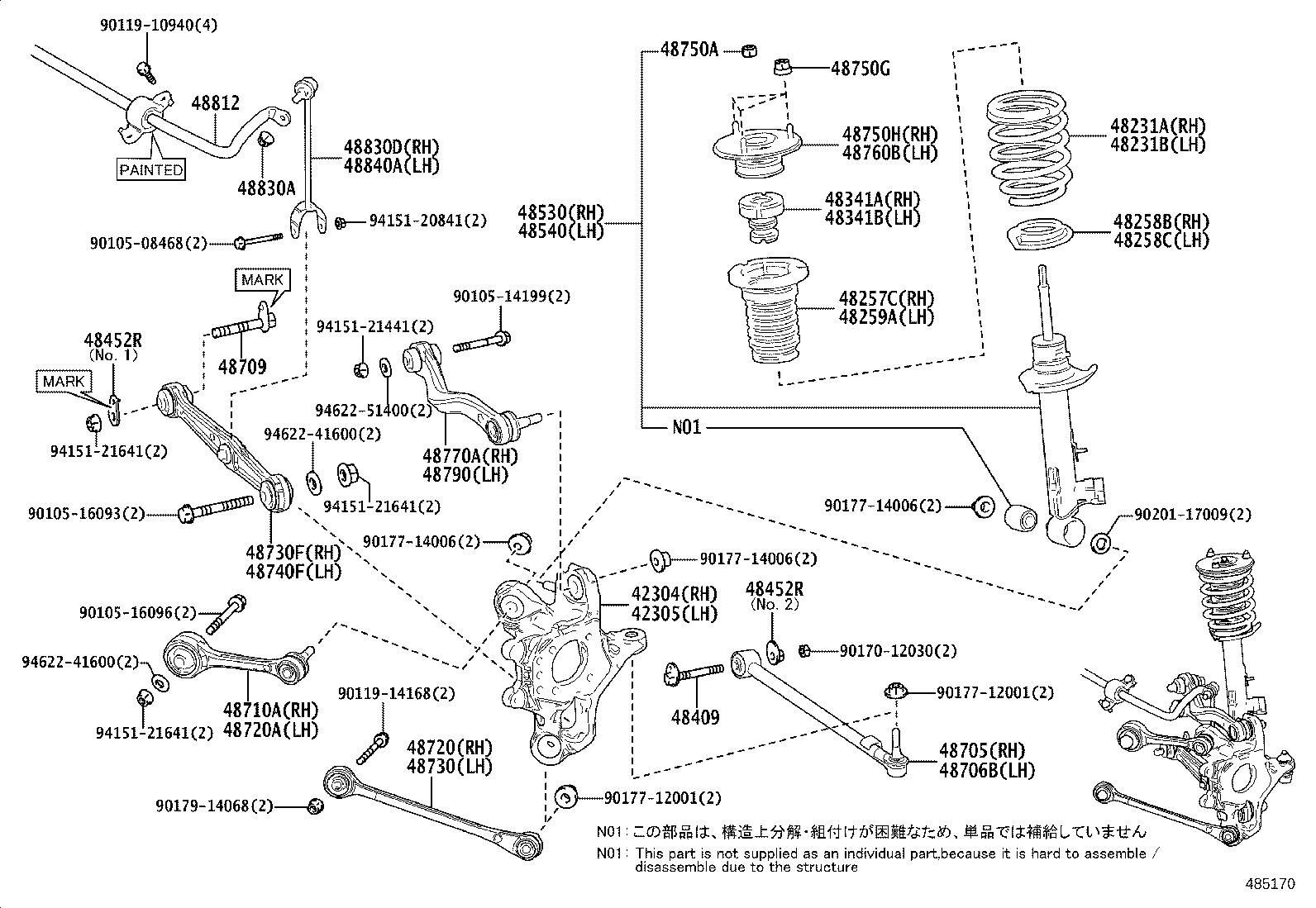

ILLUST NO. 1 OF 2(2004- )
2WS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-11010 |
GWZ100,URZ100 |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-11010 |
GWZ100,URZ100 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-11020 |
GWZ100 REFER TO PNC 48530 |
1 | ||
| 48231-11030 |
GWZ100 REFER TO PNC 48530 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-11020 |
GWZ100 REFER TO PNC 48540 |
1 | ||
| 48231-11030 |
GWZ100 REFER TO PNC 48540 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-11010 |
GWZ100,URZ100 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48158-30020 |
GWZ100,URZ100 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48158-30020 |
GWZ100,URZ100 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-11010 |
GWZ100,URZ100 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-11050 |
GWZ100,URZ100 |
1 | ||
| 48341-11060 |
GWZ100,URZ100 REFER TO PNC 48530 |
1 | ||
| 48341-11050 |
GWZ100,URZ100 REFER TO PNC 48530 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-11060 |
GWZ100,URZ100 REFER TO PNC 48540 |
1 | ||
| 48341-11050 |
GWZ100,URZ100 |
1 | ||
| 48341-11050 |
GWZ100,URZ100 REFER TO PNC 48540 |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-11040 |
GWZ100,URZ100 |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-11010 |
GWZ100,URZ100 MARK A****,NO.1 |
2 | ||
| 48452-50040 |
GWZ100,URZ100 NO.2 |
2 | ||
| 48452-11030 |
GWZ100,URZ100 MARK C,NO.1 |
2 | ||
| 48452-11020 |
GWZ100,URZ100 MARK B,NO.1 |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-11010 |
GWZ100,URZ100 MARK A****,NO.1 |
2 | ||
| 48452-50040 |
GWZ100,URZ100 NO.2 |
2 | ||
| 48452-11030 |
GWZ100,URZ100 MARK C,NO.1 |
2 | ||
| 48452-11020 |
GWZ100,URZ100 MARK B,NO.1 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80808 |
GWZ100,URZ100 MARK 48530-11010 |
1 | ||
| 48530-80A39 |
GWZ100,URZ100 MARK 48530-11030 |
1 | ||
| 48530-80865 |
GWZ100,URZ100 MARK 48530-11011 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-19765 |
GWZ100,URZ100 MARK 48540-11030 |
1 | ||
| 48540-19746 |
GWZ100,URZ100 MARK 48540-11011 |
1 | ||
| 48540-19745 |
GWZ100,URZ100 MARK 48540-11010 |
1 | ||
| 48705 - LINK SUB-ASSY, TOE CONTROL, RH | ||||
| 48705-11010 |
GWZ100,URZ100 |
1 | ||
| 48706B - LINK SUB-ASSY, TOE CONTROL, LH | ||||
| 48706-11010 |
GWZ100,URZ100 |
1 | ||
| 48709 - ATTACHMENT SUB-ASSY, REAR SUSPENSION ARM | ||||
| 48709-11030 |
GWZ100,URZ100 MARK B |
2 | ||
| 48709-11040 |
GWZ100,URZ100 MARK C |
2 | ||
| 48709-11020 |
GWZ100,URZ100 MARK A |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-11010 |
GWZ100,URZ100 |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-11010 |
GWZ100,URZ100 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-11010 |
GWZ100,URZ100 |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-11010 |
GWZ100,URZ100 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-11010 |
GWZ100,URZ100 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-11010 |
GWZ100,URZ100 |
1 | ||
| 48750A - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER) | ||||
| 90177-12002 |
GWZ100,URZ100 |
2 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90178-10033 |
GWZ100,URZ100 |
6 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48755-11010 |
GWZ100,URZ100 |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48755-11010 |
GWZ100,URZ100 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-11010 |
GWZ100,URZ100 |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-11020 |
GWZ100,URZ100 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48805-11010 |
GWZ100,URZ100 PAINTED=YELLOW GREEN |
1 | ||
| 48805-11030 |
GWZ100,URZ100 PAINTED=LIGHT BLUE |
1 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-12151 |
GWZ100,URZ100 |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-11010 |
GWZ100,URZ100 |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48840-11010 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90105-08468 | ||||
| 90105-14199 | ||||
| 90105-16093 | ||||
| 90105-16096 | ||||
| 90119-10940 | ||||
| 90119-14168 | ||||
| 90170-12030 | ||||
| 90177-12001 | ||||
| 90177-14006 | ||||
| 90179-14068 | ||||
| 90201-17009 | ||||
| 94151-20841 | ||||
| 94151-21441 | ||||
| 94151-21641 | ||||
| 94622-41600 | ||||
| 94622-51400 | ||||
ILLUST NO. 2 OF 2(2004- )
4WS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-11010 |
GWZ100,URZ100 |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-11010 |
GWZ100,URZ100 |
1 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-11020 |
GWZ100 REFER TO PNC 48530 |
1 | ||
| 48231-11030 |
GWZ100 REFER TO PNC 48530 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-11020 |
GWZ100 REFER TO PNC 48540 |
1 | ||
| 48231-11030 |
GWZ100 REFER TO PNC 48540 |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-11010 |
GWZ100,URZ100 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48158-30020 |
GWZ100,URZ100 |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48158-30020 |
GWZ100,URZ100 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-11010 |
GWZ100,URZ100 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-11050 |
GWZ100,URZ100 |
1 | ||
| 48341-11060 |
GWZ100,URZ100 REFER TO PNC 48530 |
1 | ||
| 48341-11050 |
GWZ100,URZ100 REFER TO PNC 48530 |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-11060 |
GWZ100,URZ100 REFER TO PNC 48540 |
1 | ||
| 48341-11050 |
GWZ100,URZ100 |
1 | ||
| 48341-11050 |
GWZ100,URZ100 REFER TO PNC 48540 |
1 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-11010 |
GWZ100,URZ100 MARK A****,NO.1 |
2 | ||
| 48452-50040 |
GWZ100,URZ100 NO.2 |
2 | ||
| 48452-11030 |
GWZ100,URZ100 MARK C,NO.1 |
2 | ||
| 48452-11020 |
GWZ100,URZ100 MARK B,NO.1 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80808 |
GWZ100,URZ100 MARK 48530-11010 |
1 | ||
| 48530-80A39 |
GWZ100,URZ100 MARK 48530-11030 |
1 | ||
| 48530-80865 |
GWZ100,URZ100 MARK 48530-11011 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-19765 |
GWZ100,URZ100 MARK 48540-11030 |
1 | ||
| 48540-19746 |
GWZ100,URZ100 MARK 48540-11011 |
1 | ||
| 48540-19745 |
GWZ100,URZ100 MARK 48540-11010 |
1 | ||
| 48709 - ATTACHMENT SUB-ASSY, REAR SUSPENSION ARM | ||||
| 48709-11030 |
GWZ100,URZ100 MARK B |
2 | ||
| 48709-11040 |
GWZ100,URZ100 MARK C |
2 | ||
| 48709-11020 |
GWZ100,URZ100 MARK A |
2 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-11010 |
GWZ100,URZ100 |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-11010 |
GWZ100,URZ100 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-11010 |
GWZ100,URZ100 |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-11010 |
GWZ100,URZ100 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-11010 |
GWZ100,URZ100 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-11010 |
GWZ100,URZ100 |
1 | ||
| 48750A - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER) | ||||
| 90177-12002 |
GWZ100,URZ100 |
2 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90178-10033 |
GWZ100,URZ100 |
6 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48755-11010 |
GWZ100,URZ100 |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48755-11010 |
GWZ100,URZ100 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-11010 |
GWZ100,URZ100 |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-11020 |
GWZ100,URZ100 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48805-11010 |
GWZ100,URZ100 PAINTED=YELLOW GREEN |
1 | ||
| 48805-11030 |
GWZ100,URZ100 PAINTED=LIGHT BLUE |
1 | ||
| 48830A - NUT(FOR REAR STABILIZER LINK) | ||||
| 90179-12151 |
GWZ100,URZ100 |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-11010 |
GWZ100,URZ100 |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48840-11010 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90105-08468 | ||||
| 90105-14199 | ||||
| 90105-16093 | ||||
| 90105-16096 | ||||
| 90119-10940 | ||||
| 90119-14168 | ||||
| 90177-12001 | ||||
| 90177-14006 | ||||
| 90179-14068 | ||||
| 90201-17009 | ||||
| 94151-20841 | ||||
| 94151-21441 | ||||
| 94151-21641 | ||||
| 94622-41600 | ||||
| 94622-51400 | ||||
| Linked diagrams | ||||
| 4507 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
