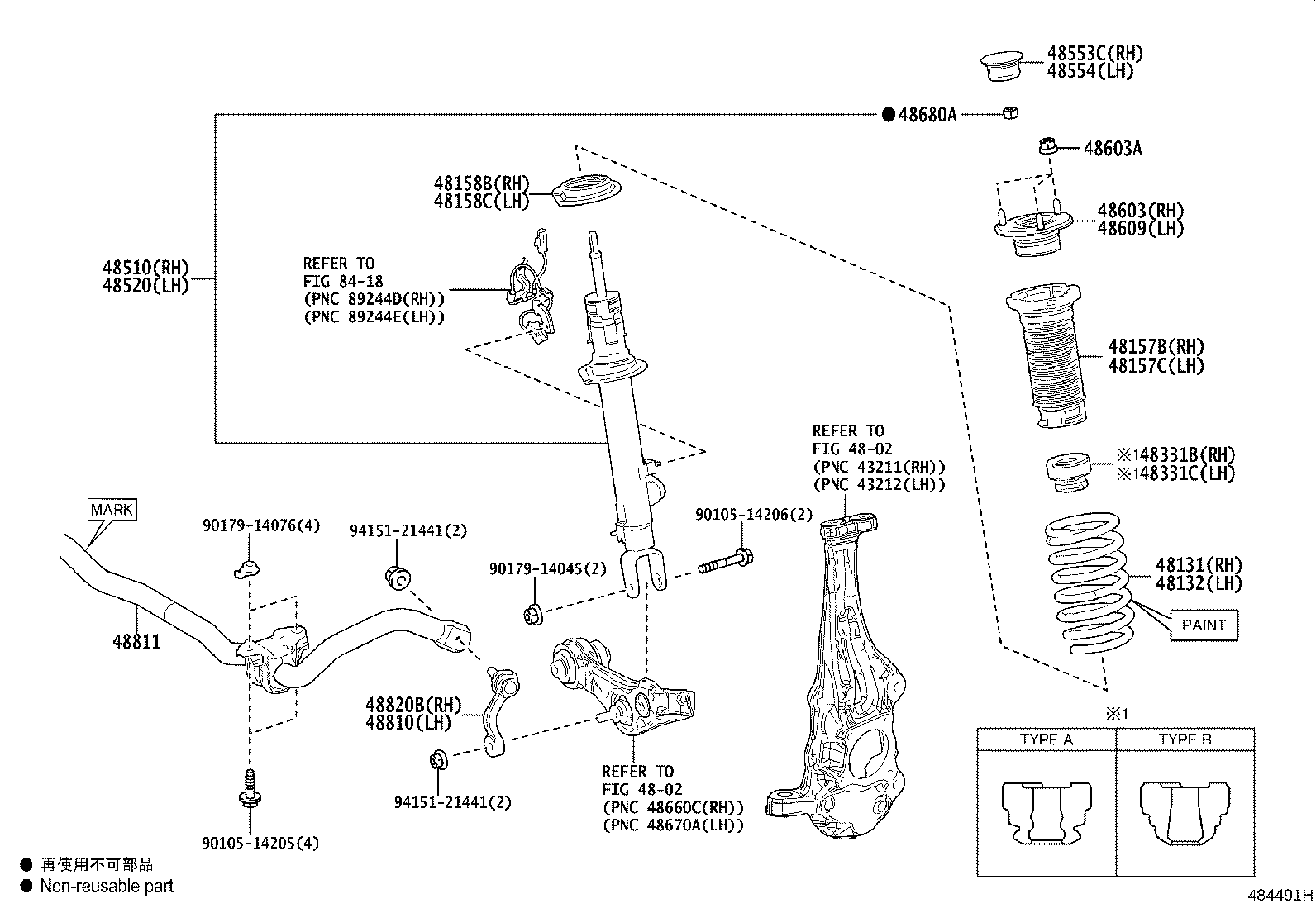

GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-11050 |
GWZ100,URZ100 PAINTED=YELLOW GREEN |
1 | ||
| 48131-11030 |
GWZ100,URZ100 PAINTED=BULE |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-11050 |
GWZ100,URZ100 PAINTED=YELLOW GREEN |
1 | ||
| 48131-11030 |
GWZ100,URZ100 PAINTED=BULE |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-11010 |
GWZ100,URZ100 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-11010 |
GWZ100,URZ100 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-30020 |
GWZ100,URZ100 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-30020 |
GWZ100,URZ100 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-11020 |
GWZ100,URZ100 |
1 | ||
| 48331-11020 |
GWZ100,URZ100 TYPE A:REFER ILLUST. |
1 | ||
| 48331-11030 |
GWZ100,URZ100 TYPE B:REFER ILLUST. |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-11030 |
GWZ100,URZ100 TYPE B:REFER ILLUST. |
1 | ||
| 48331-11020 |
GWZ100,URZ100 TYPE A:REFER ILLUST. |
1 | ||
| 48331-11020 |
GWZ100,URZ100 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80859 |
GWZ100,URZ100 MARK 48510-11020 |
1 | ||
| 48510-80B24 |
GWZ100,URZ100 MARK 48510-11050 |
1 | ||
| 48510-80A36 |
GWZ100,URZ100 MARK 48510-11022 |
1 | ||
| 48510-80890 |
GWZ100,URZ100 MARK 48510-11021 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80532 |
GWZ100,URZ100 MARK 48520-11020 |
1 | ||
| 48520-80594 |
GWZ100,URZ100 MARK 48520-11022 |
1 | ||
| 48520-80682 |
GWZ100,URZ100 MARK 48520-11040 |
1 | ||
| 48520-80557 |
GWZ100,URZ100 MARK 48520-11021 |
1 | ||
| 48553C - CAP, FRONT SHOCK ABSORBER, RH | ||||
| 48553-50150 |
GWZ100,URZ100 |
1 | ||
| 48554 - CAP, FRONT SHOCK ABSORBER, LH | ||||
| 48553-50150 |
GWZ100,URZ100 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-11010 |
GWZ100,URZ100 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10033 |
GWZ100,URZ100 |
6 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-11010 |
GWZ100,URZ100 |
1 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 90177-12002 |
GWZ100,URZ100 |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-11010 |
GWZ100,URZ100 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48804-11010 |
GWZ100,URZ100 W/O(MARK) |
1 | ||
| 48804-50020 |
GWZ100,URZ100 W(MARK) |
1 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-11010 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90105-14205 | ||||
| 90105-14206 | ||||
| 90179-14045 | ||||
| 90179-14076 | ||||
| 94151-21441 | ||||
| Linked diagrams | ||||
| 4802 | ||||
| 8418 | ||||
