GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

Click highlighted areas on diagram

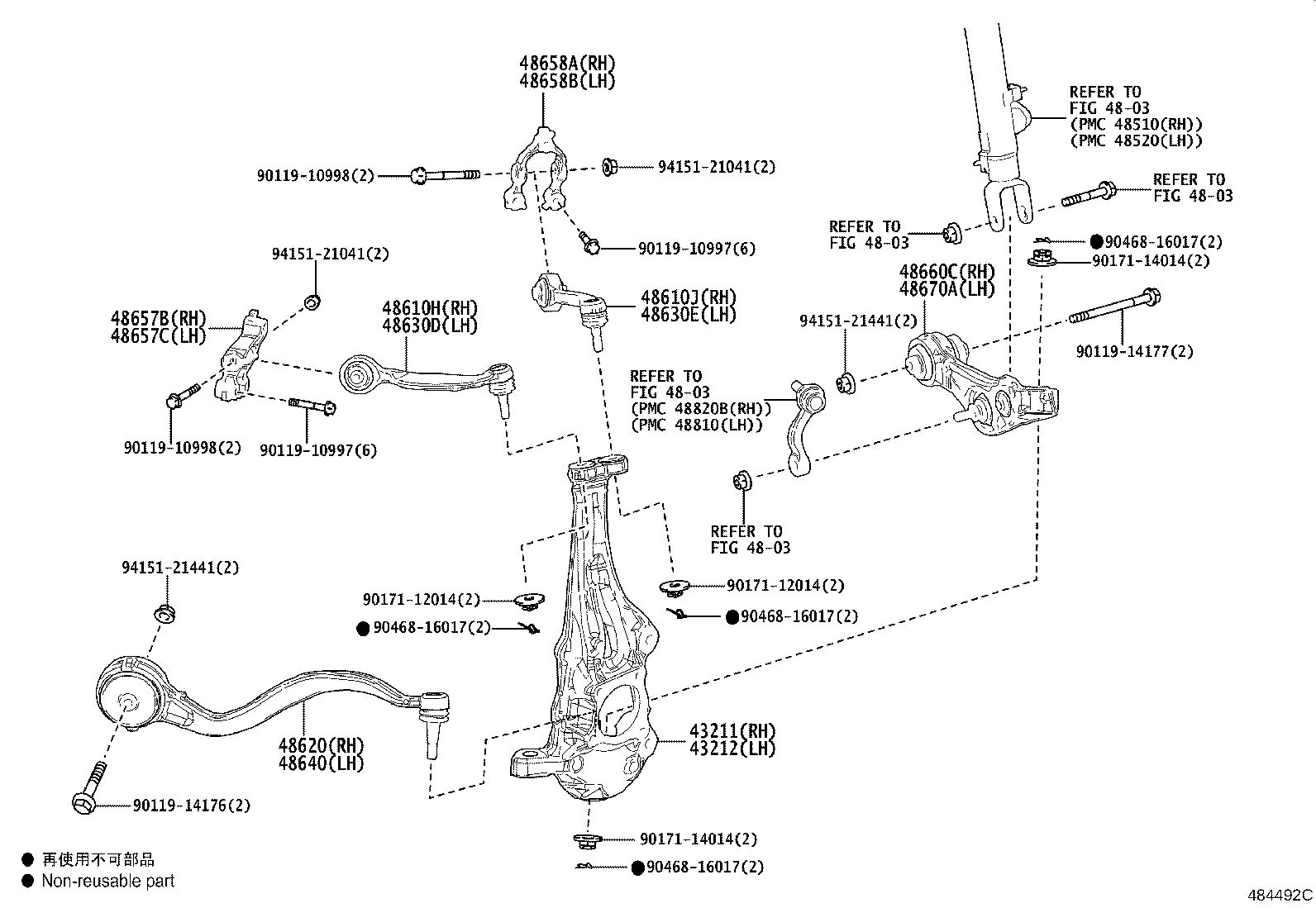

diagram 43211 43212 4803 4803 4803 4803 4803 48610H 48610J 48620 48630D 48630E 48640 48657B 48657C 48658A 48658B 48660C 48670A 9011910997 9011910997 9011910998 9011910998 9011914176 9011914177 9017112014 9017112014 9017114014 9017114014 9046816017 9046816017 9046816017 9046816017 9415121041 9415121041 9415121441 9415121441
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43201-19005

GWZ100,URZ100

 1
43212 - KNUCKLE, STEERING, LH
43202-19005

GWZ100,URZ100

 1
48610H - ARM ASSY, FRONT SUSPENSION UPPER, NO.1 RH
48610-11010

GWZ100,URZ100

 1
48610J - ARM ASSY, FRONT SUSPENSION UPPER, NO.2 RH
48610-11020

GWZ100,URZ100

 1
48620 - ARM ASSY, FRONT SUSPENSION, LOWER RH
48620-11030

GWZ100,URZ100

 1
48620-11010

GWZ100,URZ100

 1
48630D - ARM ASSY, FRONT SUSPENSION UPPER, NO.1 LH
48630-11010

GWZ100,URZ100

 1
48630E - ARM ASSY, FRONT SUSPENSION UPPER, NO.2 LH
48630-11020

GWZ100,URZ100

 1
48640 - ARM ASSY, FRONT SUSPENSION LOWER, LH
48640-11030

GWZ100,URZ100

 1
48640-11010

GWZ100,URZ100

 1
48657B - BRACKET, FRONT UPPER ARM, NO.1 RH
48657-11010

GWZ100,URZ100

 1
48657C - BRACKET, FRONT UPPER ARM, NO.1 LH
48657-11020

GWZ100,URZ100

 1
48658A - BRACKET, FRONT UPPER ARM, NO.2 RH
48658-11010

GWZ100,URZ100

 1
48658B - BRACKET, FRONT UPPER ARM, NO.2 LH
48658-11020

GWZ100,URZ100

 1
48660C - ARM ASSY, SUSPENSION, LOWER NO.2 RH
48620-11020

GWZ100,URZ100

 1
48620-11040

GWZ100,URZ100

 1
48670A - ARM ASSY, SUSPENSION, LOWER NO.2 LH
48640-11040

GWZ100,URZ100

 1
48640-11020

GWZ100,URZ100

 1
Common parts
90119-10997
90119-10998
90119-14176
90119-14177
90171-12014
90171-14014
90468-16017
94151-21041
94151-21441
Linked diagrams
4803
