GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
ILLUST NO. 1 OF 2(1701- )

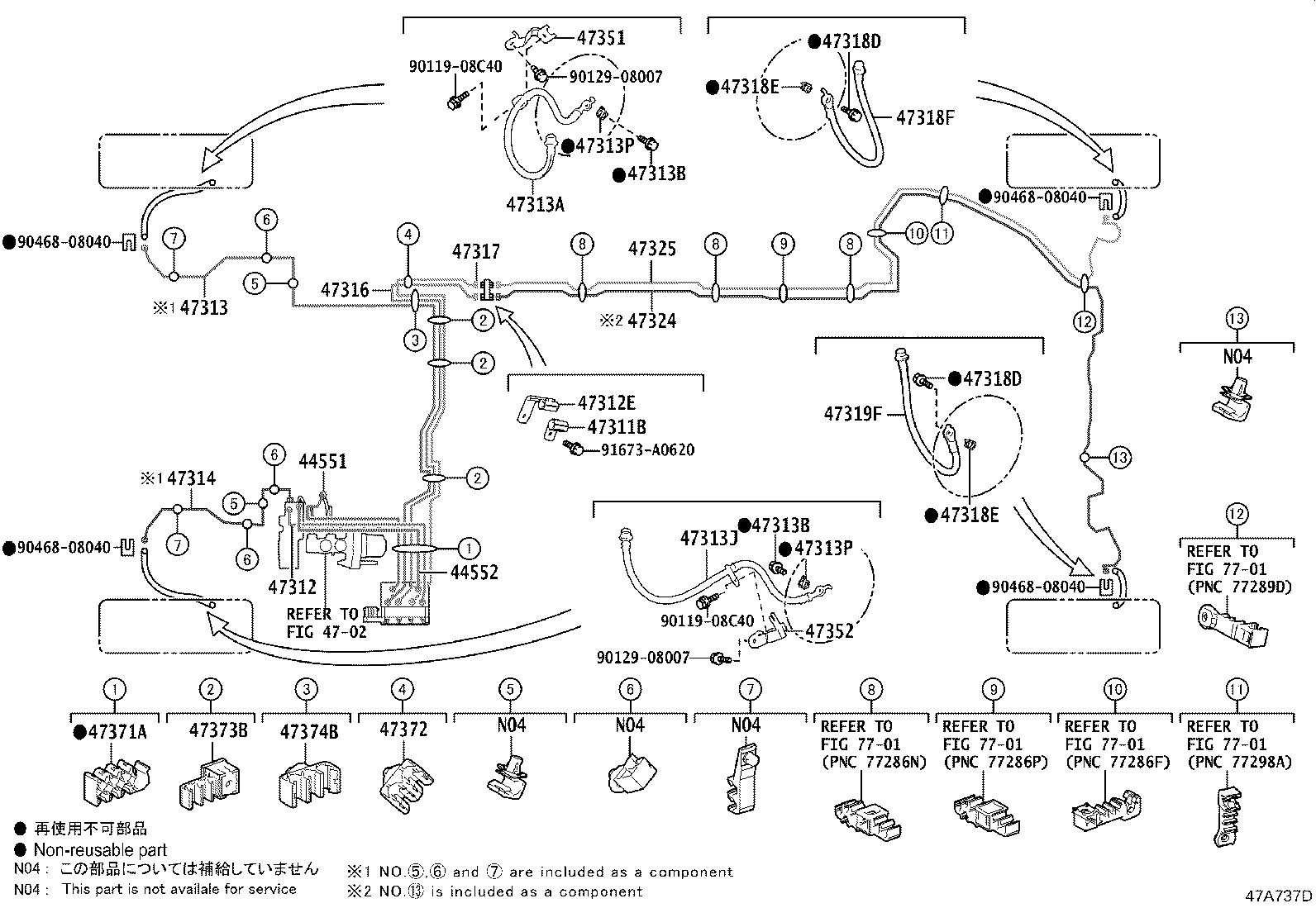

BRAKE TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-11020 |
GWZ100,URZ100 |
1 | ||
| 44551-11021 |
GWZ100,URZ100 |
1 | ||
| 44552 - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-11021 |
GWZ100,URZ100 |
1 | ||
| 44552-11020 |
GWZ100,URZ100 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10292 |
GWZ100,URZ100 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-11051 |
GWZ100,URZ100 |
1 | ||
| 47312-11050 |
GWZ100,URZ100 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10297 |
GWZ100,URZ100 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-11070 |
GWZ100 |
1 | ||
| 47313-11071 |
GWZ100 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02H62 |
GWZ100,URZ100 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GWZ100,URZ100 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GWZ100,URZ100 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02H67 |
GWZ100,URZ100 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GWZ100,URZ100 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GWZ100,URZ100 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-11050 |
GWZ100 |
1 | ||
| 47314-11051 |
GWZ100 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47322-11091 |
GWZ100 |
1 | ||
| 47322-11090 |
GWZ100 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47323-11031 |
GWZ100 |
1 | ||
| 47323-11030 |
GWZ100 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GWZ100,URZ100 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GWZ100,URZ100 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GWZ100,URZ100 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GWZ100,URZ100 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02H68 |
GWZ100,URZ100 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02H68 |
GWZ100,URZ100 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-11021 |
GWZ100,URZ100 |
1 | ||
| 47324-11020 |
GWZ100,URZ100 |
1 | ||
| 47324-11022 |
GWZ100,URZ100 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-11011 |
GWZ100,URZ100 |
1 | ||
| 47325-11010 |
GWZ100,URZ100 |
1 | ||
| 47325-11012 |
GWZ100,URZ100 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-11040 |
GWZ100,URZ100 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-11020 |
GWZ100,URZ100 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-11010 |
GWZ100,URZ100 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90469-07020 |
GWZ100,URZ100 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D21 |
GWZ100,URZ100 |
3 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D41 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90119-08C40 | ||||
| 90129-08007 | ||||
| 90468-08040 | ||||
| 91673-A0620 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
ILLUST NO. 2 OF 2(1701- )

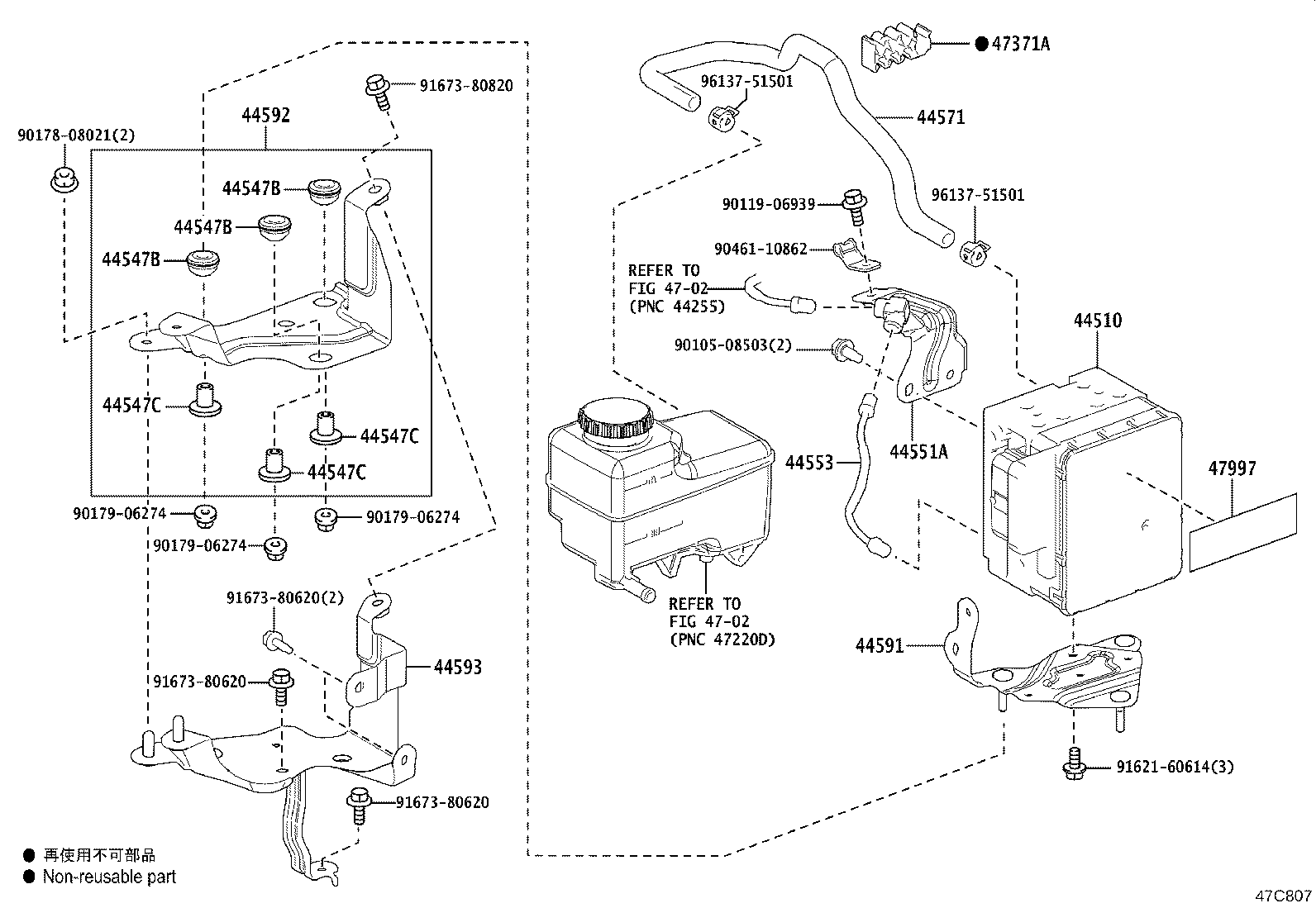

BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-11010 |
GWZ100,URZ100 |
1 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-50120 |
GWZ100,URZ100 |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-50120 |
GWZ100,URZ100 |
3 | ||
| 44547B - CUSHION, BRAKE ACTUATOR BRACKET | ||||
| 44547-50120 |
GWZ100,URZ100 |
3 | ||
| 44547C - SPACER(FOR BRAKE ACTUATOR BRACKET) | ||||
| 90561-08061 |
GWZ100,URZ100 |
3 | ||
| 44547C - SPACER(FOR BRAKE ACTUATOR BRACKET) | ||||
| 90561-08061 |
GWZ100,URZ100 |
3 | ||
| 44547C - SPACER(FOR BRAKE ACTUATOR BRACKET) | ||||
| 90561-08061 |
GWZ100,URZ100 |
3 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 90412-10312 |
GWZ100,URZ100 |
1 | ||
| 44553 - TUBE, BRAKE ACTUATOR, NO.3 | ||||
| 44553-11010 |
GWZ100,URZ100 |
1 | ||
| 44553-50080 |
GWZ100,URZ100 |
1 | ||
| 44571 - HOSE, BRAKE ACTUATOR | ||||
| 44571-11010 |
GWZ100,URZ100 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-11010 |
GWZ100,URZ100 |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-11010 |
GWZ100,URZ100 |
1 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44593-11010 |
GWZ100,URZ100 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-11010 |
GWZ100,URZ100 |
1 | ||
| 47997 - LABEL, BRAKE BOOSTER ACCUMLATOR CAUTION, NO.1 | ||||
| 47997-48010 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90105-08503 | ||||
| 90119-06939 | ||||
| 90178-08021 | ||||
| 90179-06274 | ||||
| 90461-10862 | ||||
| 91621-60614 | ||||
| 91673-80620 | ||||
| 91673-80820 | ||||
| 96137-51501 | ||||
| Linked diagrams | ||||
| 4702 | ||||
