GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

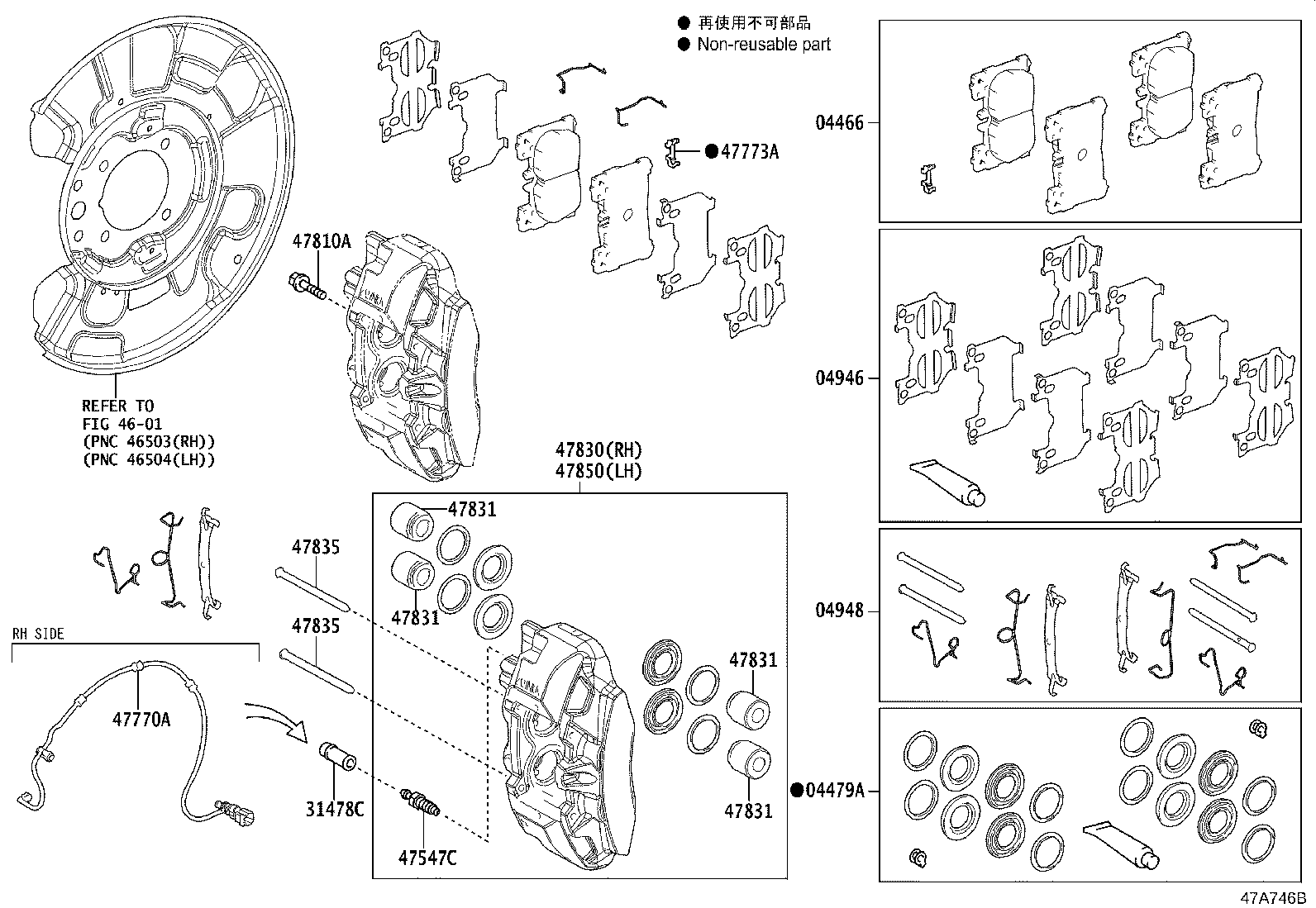

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 4601 47547C 47770A 47773A 47810A 47830 47831 47831 47831 47831 47835 47835 47850
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-11010

GWZ100,URZ100

MARK AK NS380H

 1
04466-11010

GWZ100,URZ100

MARK AK NS380H,FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD)

 1
04466-11020

GWZ100,URZ100

MARK NBK D6994H

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-11010

GWZ100,URZ100

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-11010

GWZ100,URZ100

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-11010

GWZ100,URZ100

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-14010

GWZ100,URZ100

 1
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-50010

GWZ100,URZ100

 2
47770A - WIRE ASSY, PAD WEAR INDICATOR, RH
47770-11020

GWZ100,URZ100

 1
47773A - RETAINER, PAD WEAR INDICATOR
47773-50030

GWZ100,URZ100

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90105-12396

GWZ100,URZ100

 4
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-11010

GWZ100,URZ100

 1
47831 - PISTON, REAR DISC BRAKE
47831-11010

GWZ100,URZ100

 8
47831 - PISTON, REAR DISC BRAKE
47831-11010

GWZ100,URZ100

 8
47831 - PISTON, REAR DISC BRAKE
47831-11010

GWZ100,URZ100

 8
47831 - PISTON, REAR DISC BRAKE
47831-11010

GWZ100,URZ100

 8
47835 - PIN, REAR DISC BRAKE PAD GUIDE
47835-50140

GWZ100,URZ100

 4
47835 - PIN, REAR DISC BRAKE PAD GUIDE
47835-50140

GWZ100,URZ100

 4
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-11010

GWZ100,URZ100

 1
Linked diagrams
4601
