GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
Production
Jan 2017
-
Sep 9999
Engine
8GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )

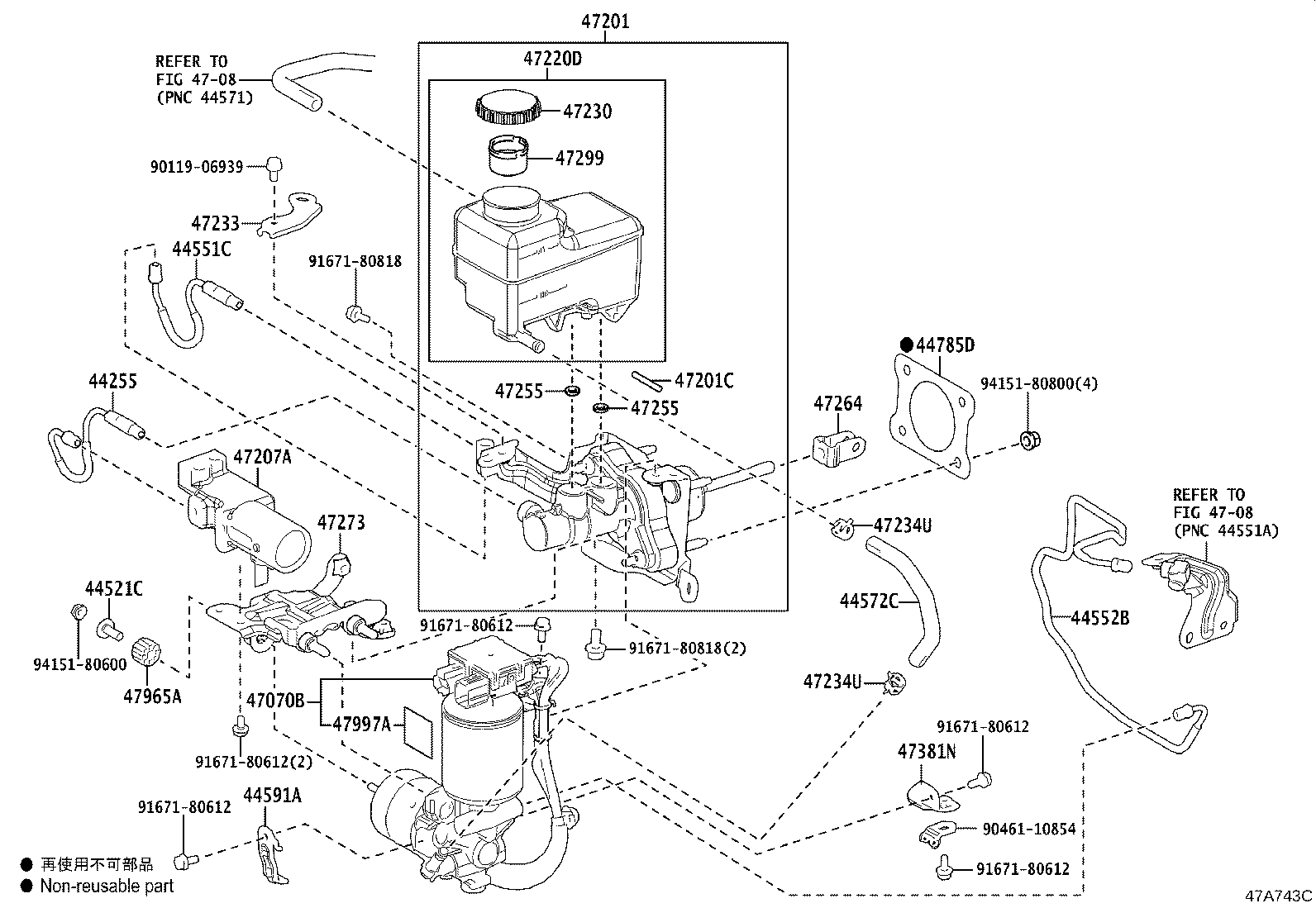

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44255 - TUBE, BRAKE MASTER CYLINDER | ||||
| 44255-11010 |
GWZ100,URZ100 |
1 | ||
| 44521C - COLLAR, BRAKE ACTUATOR CASE | ||||
| 44521-47010 |
GWZ100,URZ100 |
1 | ||
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-11030 |
GWZ100,URZ100 |
1 | ||
| 44552B - TUBE, BRAKE ACTUATOR, NO.2 | ||||
| 44552-11030 |
GWZ100,URZ100 |
1 | ||
| 44572C - HOSE, BRAKE ACTUATOR, NO.2 | ||||
| 44572-11010 |
GWZ100,URZ100 |
1 | ||
| 44591A - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-11030 |
GWZ100,URZ100 |
1 | ||
| 44785D - GASKET, BRAKE MASTER CYLINDER | ||||
| 44785-12040 |
GWZ100,URZ100 |
1 | ||
| 47070B - PUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR | ||||
| 47070-11030 |
GWZ100,URZ100 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-11030 |
GWZ100,URZ100 |
1 | ||
| 47201-11031 |
GWZ100,URZ100 |
1 | ||
| 47201C - RING PIN, BRAKE MASTER CYLINDER | ||||
| 90029-15803 |
GWZ100,URZ100 |
1 | ||
| 47207A - CYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR | ||||
| 47207-11010 |
GWZ100,URZ100 |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-11010 |
GWZ100,URZ100 |
1 | ||
| 47220-11030 |
GWZ100,URZ100 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-11010 |
GWZ100,URZ100 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-11010 |
GWZ100,URZ100 |
1 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96137-51501 |
GWZ100,URZ100 |
2 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96137-51501 |
GWZ100,URZ100 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90029-48001 |
GWZ100,URZ100 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 90029-48001 |
GWZ100,URZ100 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-63020 |
GWZ100,URZ100 |
1 | ||
| 47273 - BRACKET, BRAKE STROKE SIMULATOR | ||||
| 47273-11010 |
GWZ100,URZ100 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-30190 |
GWZ100,URZ100 |
1 | ||
| 47381N - BRACKET, TUBE CLAMP | ||||
| 47381-11010 |
GWZ100,URZ100 |
1 | ||
| 47965A - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-30010 |
GWZ100,URZ100 |
1 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-76010 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90119-06939 | ||||
| 90461-10854 | ||||
| 91671-80612 | ||||
| 91671-80818 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4708 | ||||
