GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
Production
Jan 2017
-
Sep 9999
Engine
8GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )

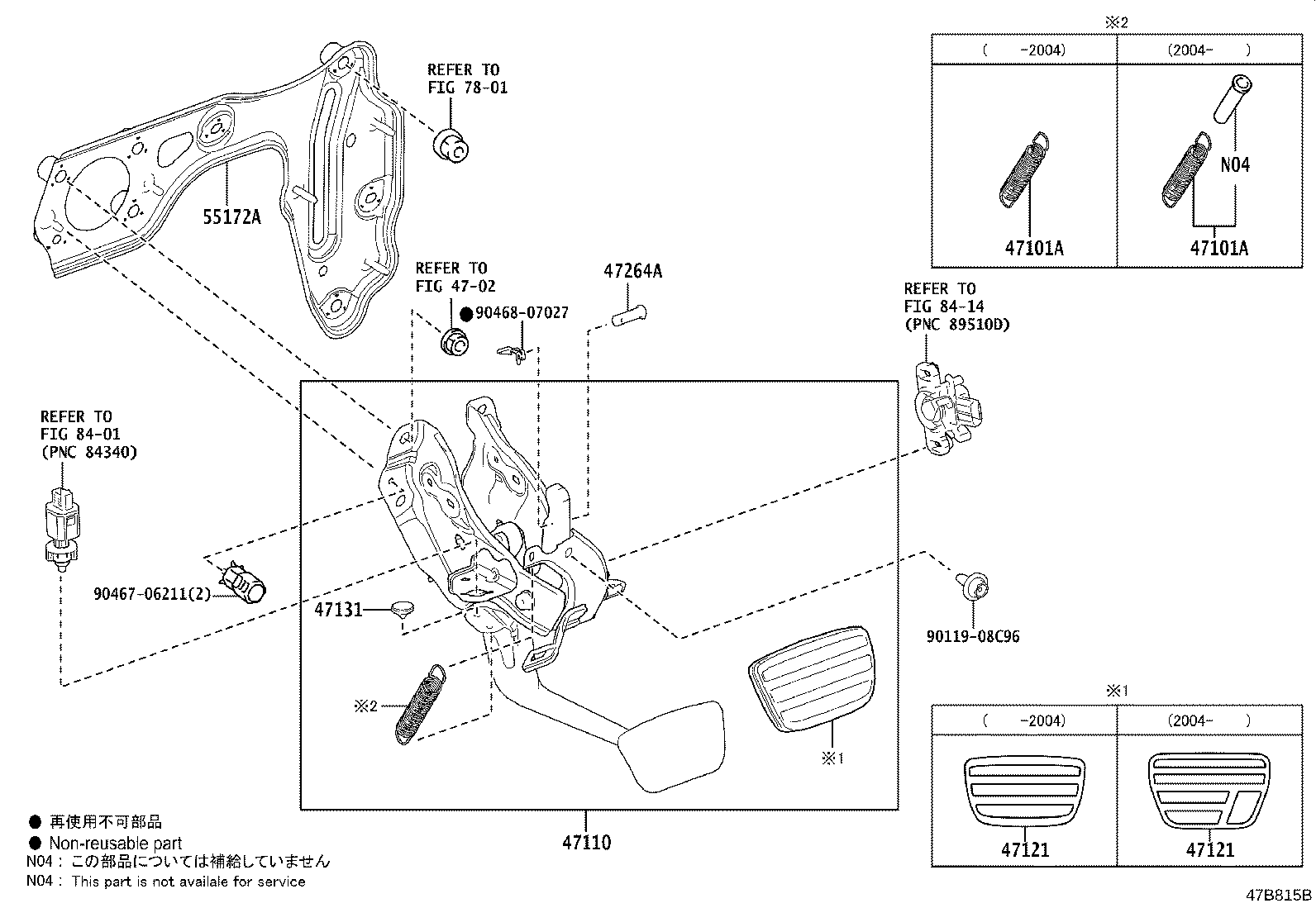

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-13014 |
GWZ100,URZ100 |
1 | ||
| 90507-14054 |
GWZ100,URZ100 |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-13014 |
GWZ100,URZ100 |
1 | ||
| 90507-14054 |
GWZ100,URZ100 |
1 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-11010 |
GWZ100,URZ100 |
1 | ||
| 47110-11011 |
GWZ100,URZ100 |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-11020 |
GWZ100,URZ100 |
1 | ||
| 47121-11010 |
GWZ100,URZ100 |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-11020 |
GWZ100,URZ100 |
1 | ||
| 47121-11010 |
GWZ100,URZ100 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
GWZ100,URZ100 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90240-08078 |
GWZ100,URZ100 |
1 | ||
| 90240-08082 |
GWZ100,URZ100 |
1 | ||
| 55172A - BASE, BRAKE PEDAL SUPPORT | ||||
| 55172-11010 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90119-08C96 | ||||
| 90467-06211 | ||||
| 90468-07027 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7801 | ||||
| 8401 | ||||
| 8414 | ||||
