GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
Production
Jan 2017
-
Sep 9999
Engine
8GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

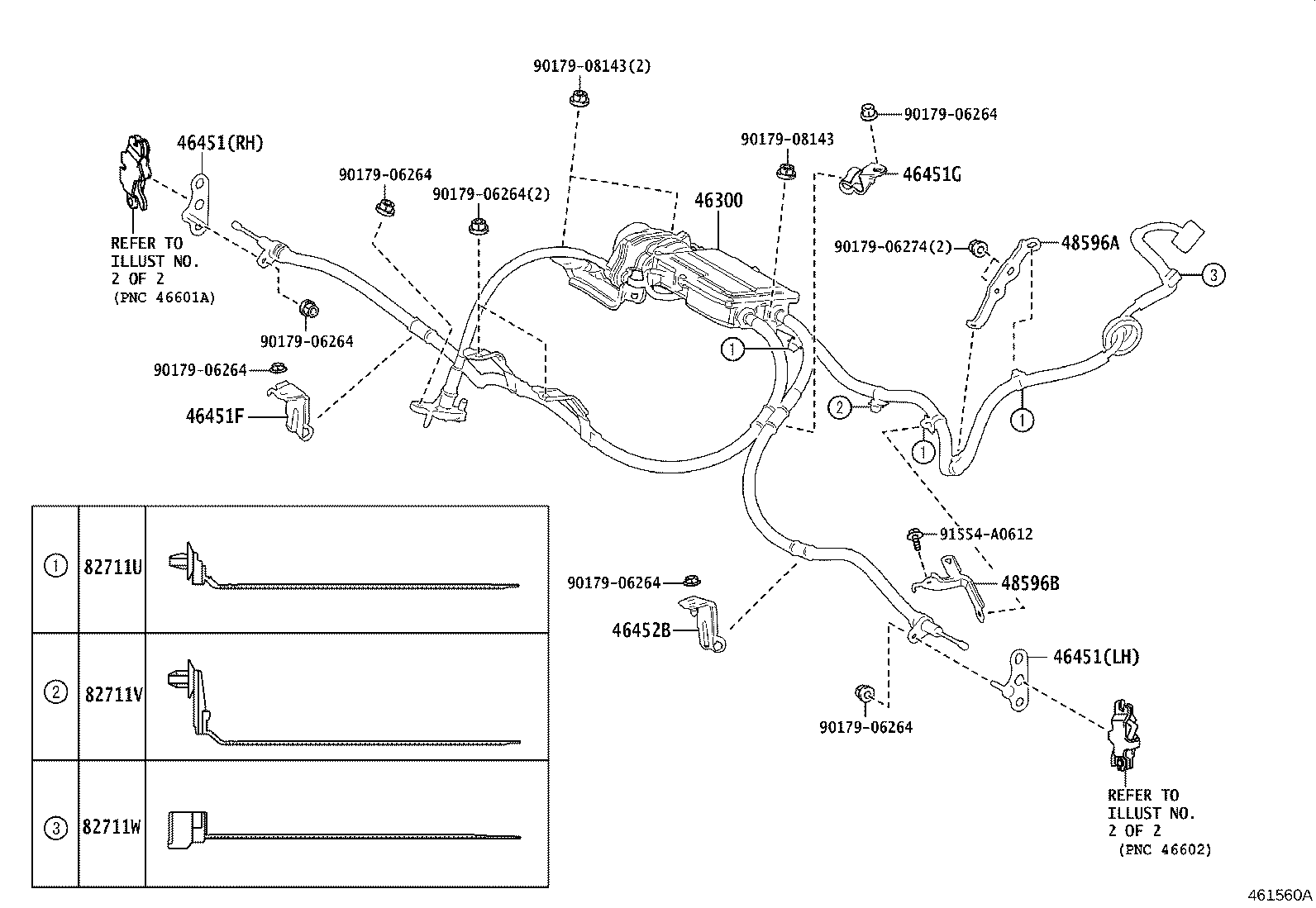

ILLUST NO. 1 OF 2(1701- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46300 - ACTUATOR ASSY, PARKING BRAKE W/BRACKET | ||||
| 46300-11010 |
GWZ100,URZ100 |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-30280 |
GWZ100,URZ100 LH |
1 | ||
| 46451-30270 |
GWZ100,URZ100 RH |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-30280 |
GWZ100,URZ100 LH |
1 | ||
| 46451-30270 |
GWZ100,URZ100 RH |
1 | ||
| 46451F - BRACKET, CABLE SUPPORT | ||||
| 46451-11070 |
GWZ100,URZ100 |
1 | ||
| 46451G - BRACKET, CABLE SUPPORT | ||||
| 46451-11030 |
GWZ100,URZ100 |
1 | ||
| 46452B - BRACKET, CABLE SUPPORT, NO.2 | ||||
| 46451-11040 |
GWZ100,URZ100 |
1 | ||
| 48596A - CLAMP, ACTUATOR HARNESS, NO.1 | ||||
| 48596-11020 |
GWZ100,URZ100 |
1 | ||
| 48596B - CLAMP, ACTUATOR HARNESS, NO.2 | ||||
| 48596-11010 |
GWZ100,URZ100 |
1 | ||
| 82711U - CLAMP, WIRING HARNESS, NO.1 | ||||
| 82711-16830 |
GWZ100,URZ100 |
4 | ||
| 82711V - CLAMP, WIRING HARNESS, NO.2 | ||||
| 82711-3F400 |
GWZ100,URZ100 |
1 | ||
| 82711W - CLAMP, WIRING HARNESS, NO.3 | ||||
| 82711-3F240 |
GWZ100,URZ100 |
1 | ||
| Common parts | ||||
| 90179-06264 | ||||
| 90179-06274 | ||||
| 90179-08143 | ||||
| 91554-A0612 | ||||

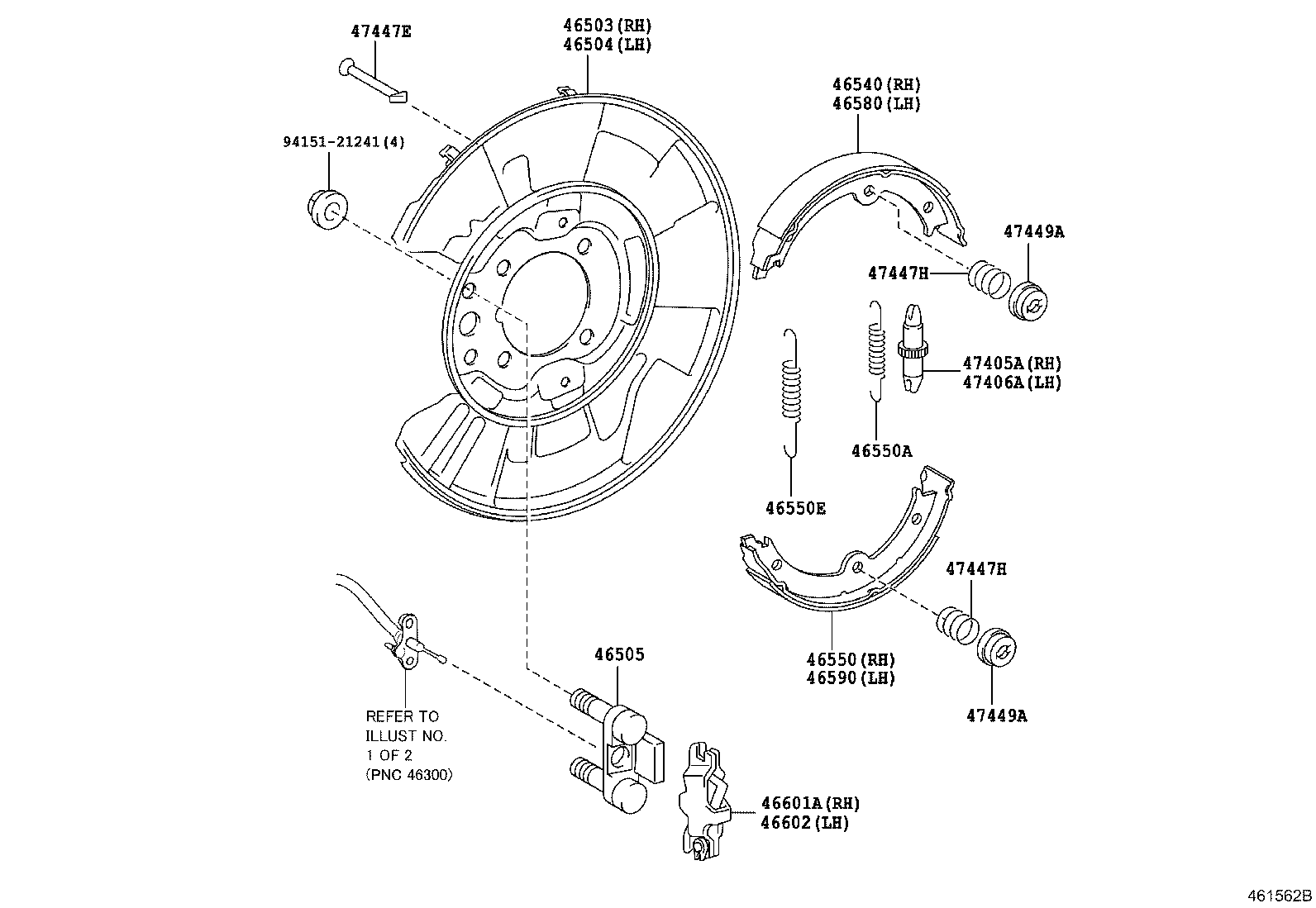

ILLUST NO. 2 OF 2(1701- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-11021 |
GWZ100,URZ100 |
1 | ||
| 46503-11020 |
GWZ100,URZ100 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-11020 |
GWZ100,URZ100 |
1 | ||
| 46504-11021 |
GWZ100,URZ100 |
1 | ||
| 46505 - BLOCK SUB-ASSY, PARKING BRAKE ANCHOR | ||||
| 46505-50050 |
GWZ100,URZ100 |
2 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-50041 |
GWZ100,URZ100 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46530-50041 |
GWZ100,URZ100 |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14080 |
GWZ100,URZ100 |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-23052 |
GWZ100,URZ100 |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46530-50041 |
GWZ100,URZ100 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46530-50041 |
GWZ100,URZ100 |
1 | ||
| 46601A - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH | ||||
| 46601-50050 |
GWZ100,URZ100 |
1 | ||
| 46602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH | ||||
| 46602-50050 |
GWZ100,URZ100 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-32010 |
GWZ100,URZ100 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-32010 |
GWZ100,URZ100 |
1 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-10020 |
GWZ100,URZ100 |
4 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16118 |
GWZ100,URZ100 |
4 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16118 |
GWZ100,URZ100 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GWZ100,URZ100 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GWZ100,URZ100 |
4 | ||
| Common parts | ||||
| 94151-21241 | ||||
