GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

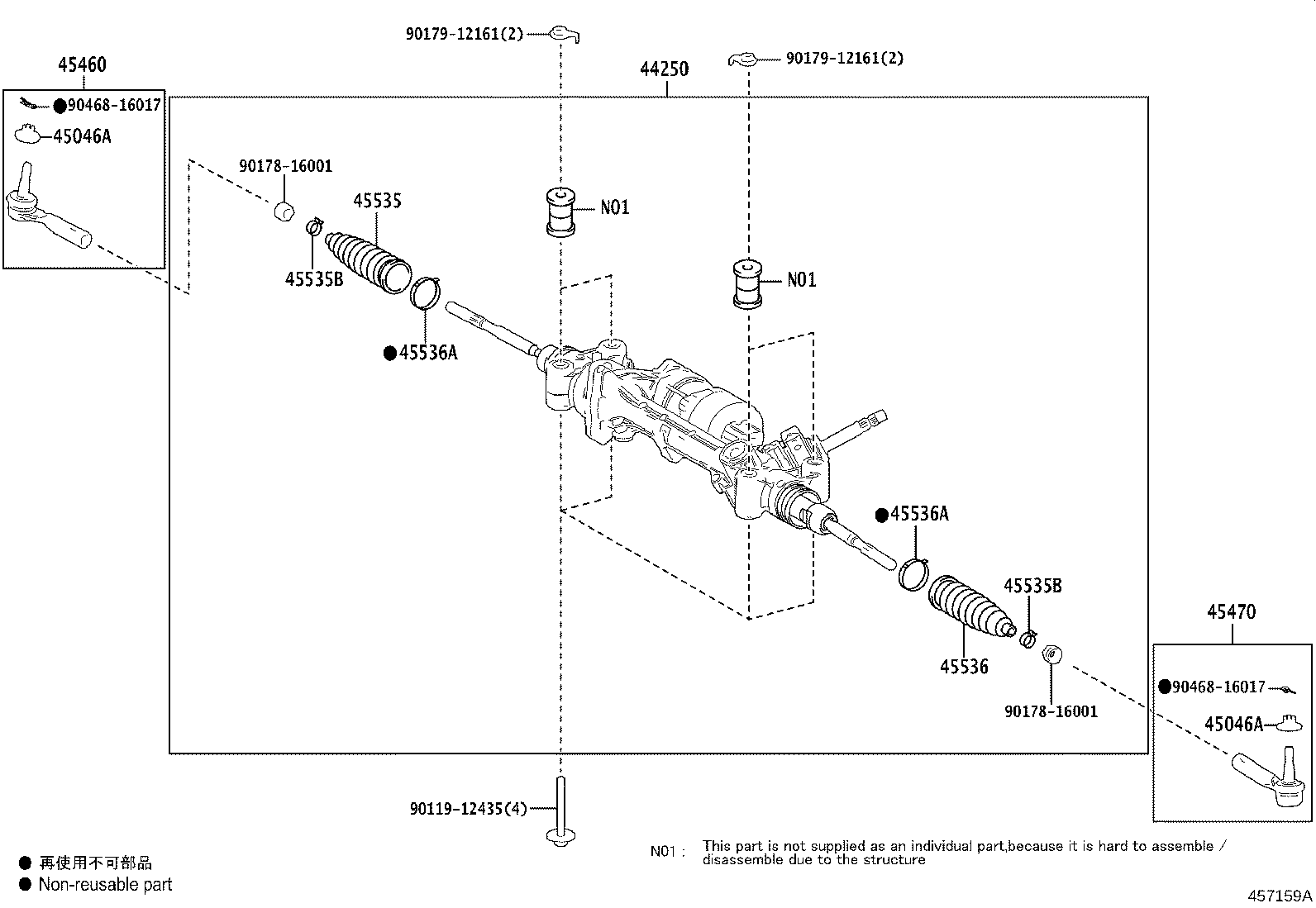

Click highlighted areas on diagram

diagram 44250 45046A 45046A 45460 45470 45535 45535B 45535B 45536 45536A 45536A 9011912435 9017816001 9017816001 9017912161 9017912161 9046816017 9046816017
Part # Description Qty Price
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-11070

GWZ100,URZ100

 1
44250-11030

GWZ100,URZ100

 1
44250-11010

GWZ100,URZ100

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12014

GWZ100,URZ100

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12014

GWZ100,URZ100

 2
45460 - ROD ASSY, TIE, RH
45460-19255

GWZ100,URZ100

 1
45470 - ROD ASSY, TIE, LH
45470-19085

GWZ100,URZ100

 1
45535 - BOOT, STEERING RACK, NO.1
45535-19005

GWZ100,URZ100

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

GWZ100,URZ100

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

GWZ100,URZ100

 2
45536 - BOOT, STEERING RACK, NO.2
45535-19005

GWZ100,URZ100

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-02070

GWZ100,URZ100

 2
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-02070

GWZ100,URZ100

 2
Common parts
90119-12435
90178-16001
90179-12161
90468-16017
