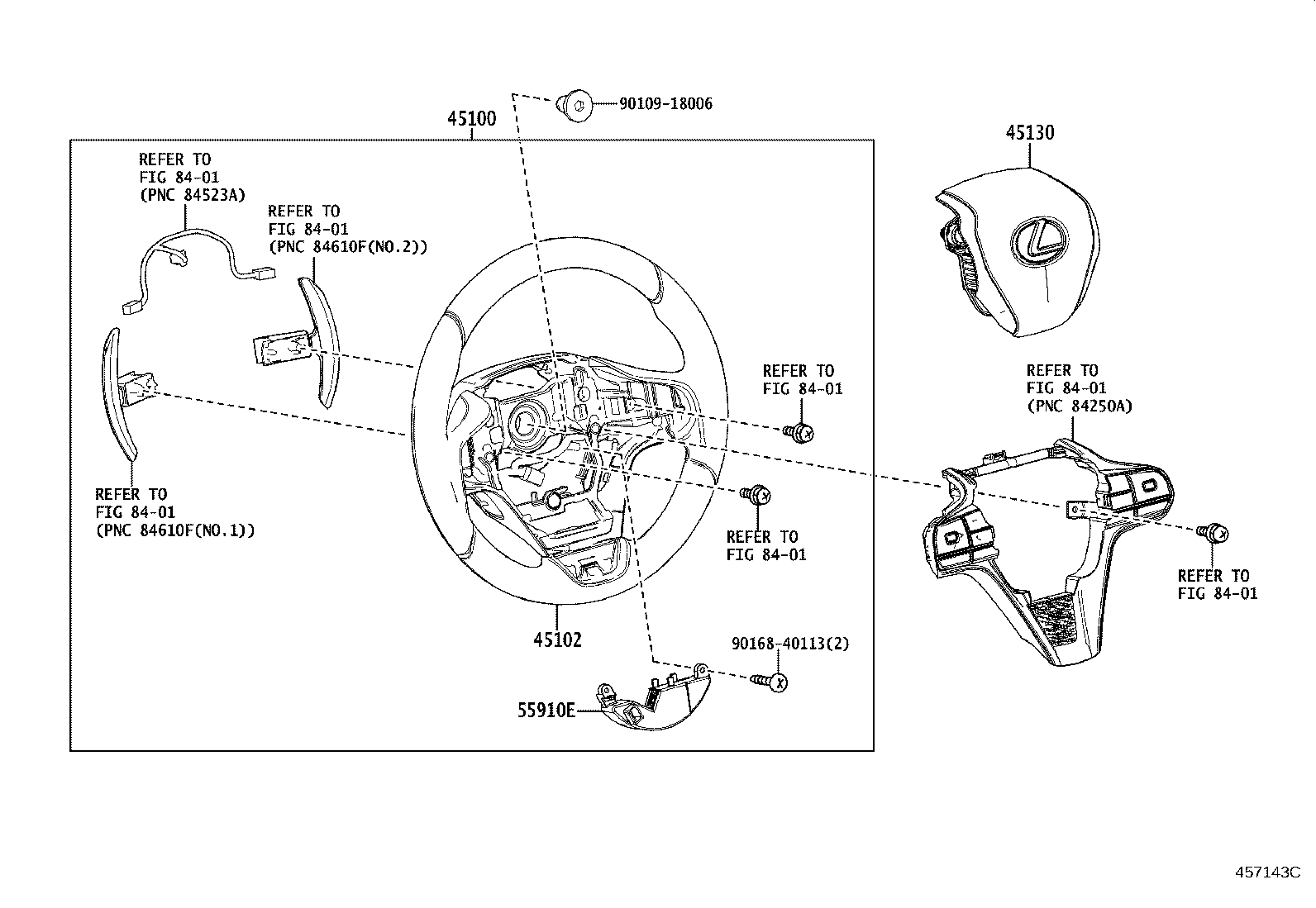

GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
(1701- )
W(STEERING WHEEL HEATER CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-11030E2 |
GWZ100,URZ100 3-SPOKE,LEATHER,OCHRE,TRIM4# |
1 | ||
| 45100-11020C2 |
GWZ100,URZ100 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(STEERING HEATER),BLACK,TRIM2#,3# |
1 | ||
| 45100-11030J1 |
GWZ100,URZ100 3-SPOKE,LEATHER,BLUE,TRIM8# |
1 | ||
| 45100-11020E2 |
GWZ100,URZ100 3-SPOKE,LEATHER,COLD AREA SPEC,OCHRE,TRIM4# |
1 | ||
| 45100-11040E1 |
GWZ100,URZ100 STEERING WHEEL-LEATHER (LIMITED),KUROKOHAKU,TRIM4# |
1 | ||
| 45100-11020J1 |
GWZ100,URZ100 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(STEERING HEATER),BLUE,TRIM8# |
1 | ||
| 45100-11020J1 |
GWZ100,URZ100 3-SPOKE,LEATHER,COLD AREA SPEC,BLUE,TRIM8# |
1 | ||
| 45100-11020C2 |
GWZ100,URZ100 3-SPOKE,LEATHER,COLD AREA SPEC,BLACK,TRIM2#,3# |
1 | ||
| 45100-11050E1 |
GWZ100,URZ100 STEERING WHEEL-LEATHER+HEATER(LIMITED),KUROKOHAKU,TRIM4# |
1 | ||
| 45100-11020E2 |
GWZ100,URZ100 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(STEERING HEATER),OCHRE,TRIM4# |
1 | ||
| 45100-11060C0 |
GWZ100,URZ100 3-SPOKE,LEATHER,STEERING WHEEL-ALCANTARA & HEATER(LIMITED),BLACK & BROWN,TRIM2# |
1 | ||
| 45100-11020E4 |
GWZ100,URZ100 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(STEERING HEATER),ORANGE & BLACK & ORANGE,TRIM42 |
1 | ||
| 45100-11020E5 |
GWZ100,URZ100 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(STEERING HEATER),OCHER,TRIM40 |
1 | ||
| 45100-11030C4 |
GWZ100,URZ100 3-SPOKE,LEATHER,BLACK,TRIM2#,3# |
1 | ||
| 45100-11030E4 |
GWZ100,URZ100 3-SPOKE,LEATHER,ORANGE & BLACK & ORANGE,TRIM42 |
1 | ||
| 45100-11030C2 |
GWZ100,URZ100 3-SPOKE,LEATHER,BLACK,TRIM2#,3# |
1 | ||
| 45100-11020C4 |
GWZ100,URZ100 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(STEERING HEATER),BLACK,TRIM2#,3# |
1 | ||
| 45100-11030E5 |
GWZ100,URZ100 3-SPOKE,LEATHER,OCHER,TRIM40 |
1 | ||
| 45102 - WHEEL SUB-ASSY, STEERING | ||||
| 45111-11010C0 |
GWZ100,URZ100 COLD AREA SPEC,BLACK,TRIM2#,3# |
1 | ||
| 45102-11010J0 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 45111-11010J0 |
GWZ100,URZ100 COLD AREA SPEC,BLUE,TRIM8# |
1 | ||
| 45111-11010E0 |
GWZ100,URZ100 STEERING WHEEL-LEATHER, WITH(STEERING HEATER),OCHRE,TRIM4# |
1 | ||
| 45111-11010E0 |
GWZ100,URZ100 COLD AREA SPEC,OCHRE,TRIM4# |
1 | ||
| 45102-11010E1 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 45111-11010E2 |
GWZ100,URZ100 STEERING WHEEL-LEATHER, WITH(STEERING HEATER),ORANGE & BLACK & ORANGE,TRIM42 |
1 | ||
| 45111-11010C0 |
GWZ100,URZ100 STEERING WHEEL-LEATHER, WITH(STEERING HEATER),BLACK,TRIM2#,3# |
1 | ||
| 45111-11010C3 |
GWZ100,URZ100 STEERING WHEEL-LEATHER, WITH(STEERING HEATER),BLACK,TRIM2#,3# |
1 | ||
| 45102-11040E1 |
GWZ100,URZ100 STEERING WHEEL-LEATHER (LIMITED),KUROKOHAKU,TRIM4# |
1 | ||
| 45111-11010E3 |
GWZ100,URZ100 STEERING WHEEL-LEATHER, WITH(STEERING HEATER),OCHER,TRIM40 |
1 | ||
| 45111-11010J0 |
GWZ100,URZ100 STEERING WHEEL-LEATHER, WITH(STEERING HEATER),BLUE,TRIM8# |
1 | ||
| 45102-11010E1 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 45102-11010C1 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 45111-11020E1 |
GWZ100,URZ100 STEERING WHEEL-LEATHER+HEATER(LIMITED),KUROKOHAKU,TRIM4# |
1 | ||
| 45102-11010E3 |
GWZ100,URZ100 ORANGE & ORANGE,TRIM42 |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-11010C3 |
GWZ100,URZ100 BLACK/MUSTARD YELLOW,TRIM21 |
1 | ||
| 45130-11010J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 45130-11010E2 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 45130-11010C2 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 45130-11010C2 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 45130-11010C2 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 45130-11010E5 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 45130-11010E6 |
GWZ100,URZ100 ORANGE & ORANGE,TRIM42 |
1 | ||
| 45130-11010C5 |
GWZ100,URZ100 BLACK & BROWN,TRIM21,22 |
1 | ||
| 45130-11010E2 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 45130-11010C2 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 55910E - CONTROL ASSY, STEERING WHEEL HEATER | ||||
| 55910-11010 |
GWZ100,URZ100 STEERING WHEEL-LEATHER+HEATER(LIMITED) |
1 | ||
| 55910-11010 |
GWZ100,URZ100 STEERING WHEEL-LEATHER, WITH(STEERING HEATER) |
1 | ||
| 55910-11010 |
GWZ100,URZ100 COLD AREA SPEC |
1 | ||
| Common parts | ||||
| 90109-18006 | ||||
| 90168-40113 | ||||
| Linked diagrams | ||||
| 8401 | ||||

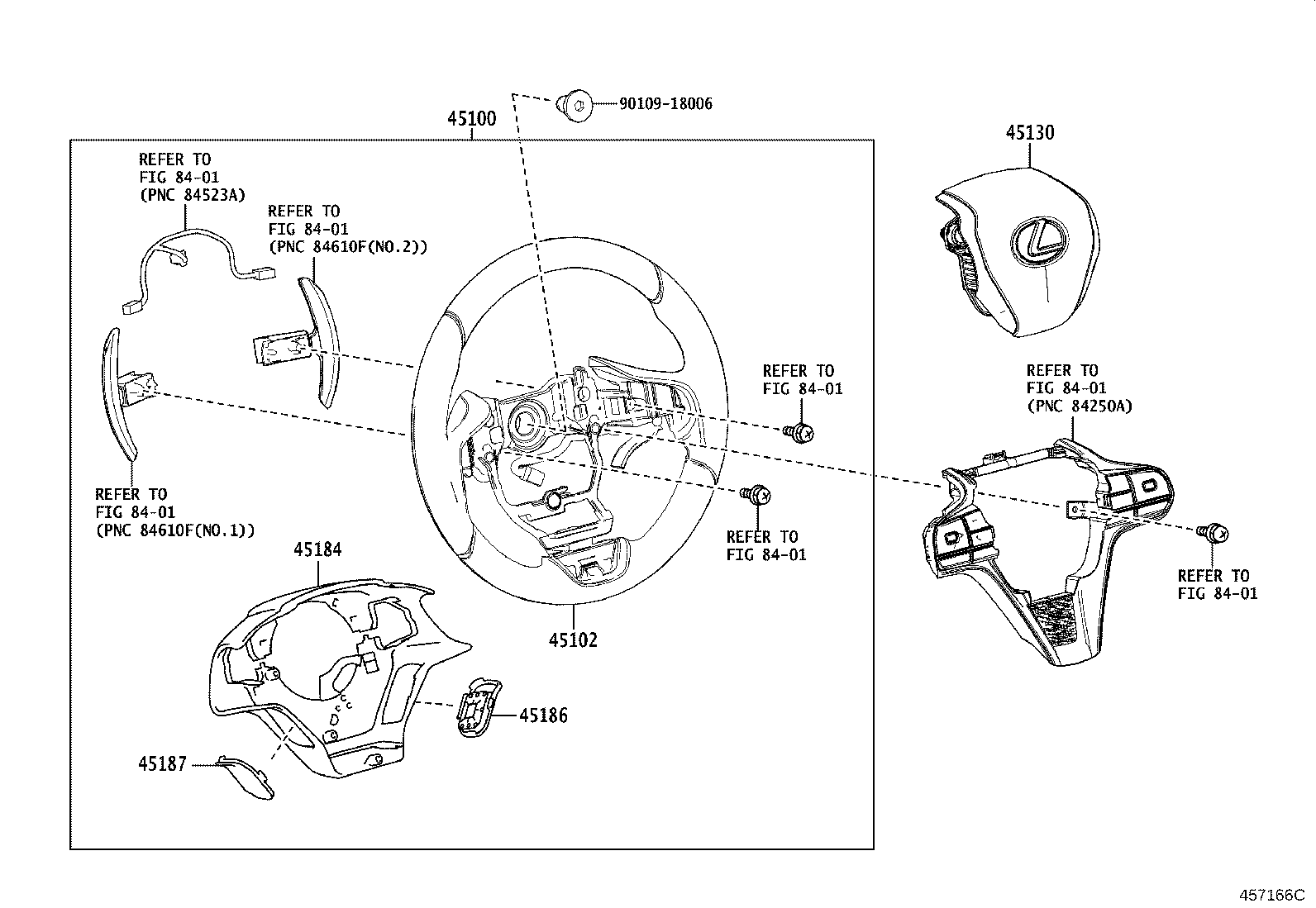

(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-11030E2 |
GWZ100,URZ100 3-SPOKE,LEATHER,OCHRE,TRIM4# |
1 | ||
| 45100-11020C2 |
GWZ100,URZ100 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(STEERING HEATER),BLACK,TRIM2#,3# |
1 | ||
| 45100-11030J1 |
GWZ100,URZ100 3-SPOKE,LEATHER,BLUE,TRIM8# |
1 | ||
| 45100-11020E2 |
GWZ100,URZ100 3-SPOKE,LEATHER,COLD AREA SPEC,OCHRE,TRIM4# |
1 | ||
| 45100-11040E1 |
GWZ100,URZ100 STEERING WHEEL-LEATHER (LIMITED),KUROKOHAKU,TRIM4# |
1 | ||
| 45100-11020J1 |
GWZ100,URZ100 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(STEERING HEATER),BLUE,TRIM8# |
1 | ||
| 45100-11020J1 |
GWZ100,URZ100 3-SPOKE,LEATHER,COLD AREA SPEC,BLUE,TRIM8# |
1 | ||
| 45100-11020C2 |
GWZ100,URZ100 3-SPOKE,LEATHER,COLD AREA SPEC,BLACK,TRIM2#,3# |
1 | ||
| 45100-11050E1 |
GWZ100,URZ100 STEERING WHEEL-LEATHER+HEATER(LIMITED),KUROKOHAKU,TRIM4# |
1 | ||
| 45100-11020E2 |
GWZ100,URZ100 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(STEERING HEATER),OCHRE,TRIM4# |
1 | ||
| 45100-11060C0 |
GWZ100,URZ100 3-SPOKE,LEATHER,STEERING WHEEL-ALCANTARA & HEATER(LIMITED),BLACK & BROWN,TRIM2# |
1 | ||
| 45100-11020E4 |
GWZ100,URZ100 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(STEERING HEATER),ORANGE & BLACK & ORANGE,TRIM42 |
1 | ||
| 45100-11020E5 |
GWZ100,URZ100 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(STEERING HEATER),OCHER,TRIM40 |
1 | ||
| 45100-11030C4 |
GWZ100,URZ100 3-SPOKE,LEATHER,BLACK,TRIM2#,3# |
1 | ||
| 45100-11030E4 |
GWZ100,URZ100 3-SPOKE,LEATHER,ORANGE & BLACK & ORANGE,TRIM42 |
1 | ||
| 45100-11030C2 |
GWZ100,URZ100 3-SPOKE,LEATHER,BLACK,TRIM2#,3# |
1 | ||
| 45100-11020C4 |
GWZ100,URZ100 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(STEERING HEATER),BLACK,TRIM2#,3# |
1 | ||
| 45100-11030E5 |
GWZ100,URZ100 3-SPOKE,LEATHER,OCHER,TRIM40 |
1 | ||
| 45102 - WHEEL SUB-ASSY, STEERING | ||||
| 45111-11010C0 |
GWZ100,URZ100 COLD AREA SPEC,BLACK,TRIM2#,3# |
1 | ||
| 45102-11010J0 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 45111-11010J0 |
GWZ100,URZ100 COLD AREA SPEC,BLUE,TRIM8# |
1 | ||
| 45111-11010E0 |
GWZ100,URZ100 STEERING WHEEL-LEATHER, WITH(STEERING HEATER),OCHRE,TRIM4# |
1 | ||
| 45111-11010E0 |
GWZ100,URZ100 COLD AREA SPEC,OCHRE,TRIM4# |
1 | ||
| 45102-11010E1 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 45111-11010E2 |
GWZ100,URZ100 STEERING WHEEL-LEATHER, WITH(STEERING HEATER),ORANGE & BLACK & ORANGE,TRIM42 |
1 | ||
| 45111-11010C0 |
GWZ100,URZ100 STEERING WHEEL-LEATHER, WITH(STEERING HEATER),BLACK,TRIM2#,3# |
1 | ||
| 45111-11010C3 |
GWZ100,URZ100 STEERING WHEEL-LEATHER, WITH(STEERING HEATER),BLACK,TRIM2#,3# |
1 | ||
| 45102-11040E1 |
GWZ100,URZ100 STEERING WHEEL-LEATHER (LIMITED),KUROKOHAKU,TRIM4# |
1 | ||
| 45111-11010E3 |
GWZ100,URZ100 STEERING WHEEL-LEATHER, WITH(STEERING HEATER),OCHER,TRIM40 |
1 | ||
| 45111-11010J0 |
GWZ100,URZ100 STEERING WHEEL-LEATHER, WITH(STEERING HEATER),BLUE,TRIM8# |
1 | ||
| 45102-11010E1 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 45102-11010C1 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 45111-11020E1 |
GWZ100,URZ100 STEERING WHEEL-LEATHER+HEATER(LIMITED),KUROKOHAKU,TRIM4# |
1 | ||
| 45102-11010E3 |
GWZ100,URZ100 ORANGE & ORANGE,TRIM42 |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-11010C3 |
GWZ100,URZ100 BLACK/MUSTARD YELLOW,TRIM21 |
1 | ||
| 45130-11010J1 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 45130-11010E2 |
GWZ100,URZ100 OCHRE,TRIM4# |
1 | ||
| 45130-11010C2 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 45130-11010C2 |
GWZ100,URZ100 BLACK,TRIM2#,3# |
1 | ||
| 45130-11010C2 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 45130-11010E5 |
GWZ100,URZ100 KUROKOHAKU,TRIM41 |
1 | ||
| 45130-11010E6 |
GWZ100,URZ100 ORANGE & ORANGE,TRIM42 |
1 | ||
| 45130-11010C5 |
GWZ100,URZ100 BLACK & BROWN,TRIM21,22 |
1 | ||
| 45130-11010E2 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 45130-11010C2 |
GWZ100,URZ100 BLACK,TRIM20,3# |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| 45184-11010E3 |
GWZ100,URZ100 STEERING WHEEL-LEATHER (LIMITED),KUROKOHAKU,TRIM4# |
1 | ||
| 45184-11010C1 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 45184-11010E1 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 45184-11010J0 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-11010C1 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 45186-11010J0 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 45186-11010E1 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 45186-11010E3 |
GWZ100,URZ100 STEERING WHEEL-LEATHER (LIMITED),KUROKOHAKU,TRIM4# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-11010C1 |
GWZ100,URZ100 BLACK,TRIM2#,3#,42 |
1 | ||
| 45187-11010J0 |
GWZ100,URZ100 BLUE,TRIM8# |
1 | ||
| 45187-11010E1 |
GWZ100,URZ100 OCHRE,TRIM40 |
1 | ||
| 45187-11010E3 |
GWZ100,URZ100 STEERING WHEEL-LEATHER (LIMITED),KUROKOHAKU,TRIM4# |
1 | ||
| Common parts | ||||
| 90109-18006 | ||||
| Linked diagrams | ||||
| 8401 | ||||
