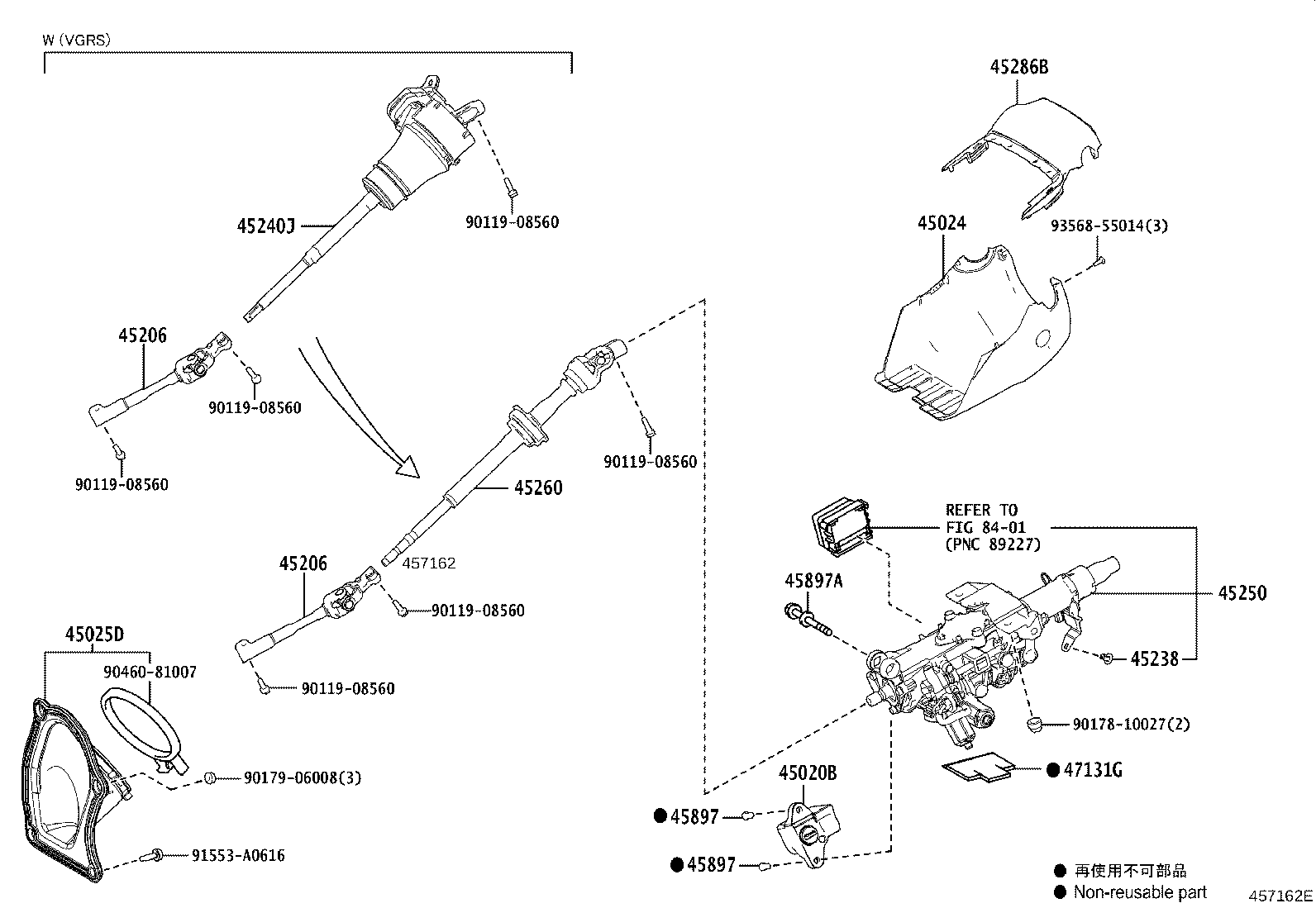

Toyota Lexus lc500/500h(cp) GWZ100 STEERING COLUMN & SHAFT

Part #	Description	Period	Qty
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-33250	GWZ100,URZ100 KOREA SPEC	09/2018 - 12/2999	1
45020-33260	GWZ100,URZ100	01/2017 - 12/2999	1
45024 - COVER SUB-ASSY, STEERING COLUMN, LOWER
45024-11010C1	GWZ100,URZ100 BLACK,TRIM2#,3#,4#	01/2017 - 12/2999	1
45024-11010J0	GWZ100,URZ100 BLUE,TRIM8#	01/2017 - 04/2020	1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-11010	GWZ100,URZ100	01/2017 - 12/2999	1
45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45206-11010	GWZ100,URZ100	01/2017 - 12/2999	1
45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45206-11010	GWZ100,URZ100	01/2017 - 12/2999	1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-11010	GWZ100,URZ100	01/2017 - 12/2999	1
45240J - ACTUATOR ASSY, STEERING
45240-11010	GWZ100,URZ100 LUSTER YELLOW*()	09/2018 - 06/2019	1
45240-11010	GWZ100,URZ100 "S PACKAGE"	01/2017 - 10/2021	1
45250 - COLUMN ASSY, STEERING
45250-33D50	GWZ100,URZ100	01/2017 - 06/2020	1
45250-48420	GWZ100,URZ100	07/2020 - 12/2999	1
45250-33D60	GWZ100,URZ100 KOREA SPEC	09/2018 - 05/2020	1
45250-48430	GWZ100,URZ100 KOREA SPEC	06/2020 - 12/2999	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-11030	GWZ100,URZ100	09/2018 - 12/2999	1
45260-11010	GWZ100,URZ100	01/2017 - 08/2018	1
45286B - COVER, STEERING COLUMN, UPR
45286-11010J0	GWZ100,URZ100 BLUE,TRIM8#	01/2017 - 04/2020	1
45286-11010C1	GWZ100,URZ100 BLACK,TRIM2#,3#,4#	01/2017 - 12/2999	1
45897 - BOLT, STEERING LOCK SET
45897-12020	GWZ100,URZ100	01/2017 - 12/2999	2
45897 - BOLT, STEERING LOCK SET
45897-12020	GWZ100,URZ100	01/2017 - 12/2999	2
45897A - BOLT, TILT STEERING PAWL SET
90119-10980	GWZ100,URZ100	01/2017 - 09/2018	1
45897-42010	GWZ100,URZ100	09/2018 - 12/2999	1
47131G - CUSHION
47131-11030	GWZ100,URZ100	01/2017 - 12/2999	1
Common parts
90119-08560
90178-10027
90179-06008
90460-81007
91553-A0616
93568-55014
Linked diagrams
8401

GWZ100L-ACVBBA (2017)

(1701- )
