GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

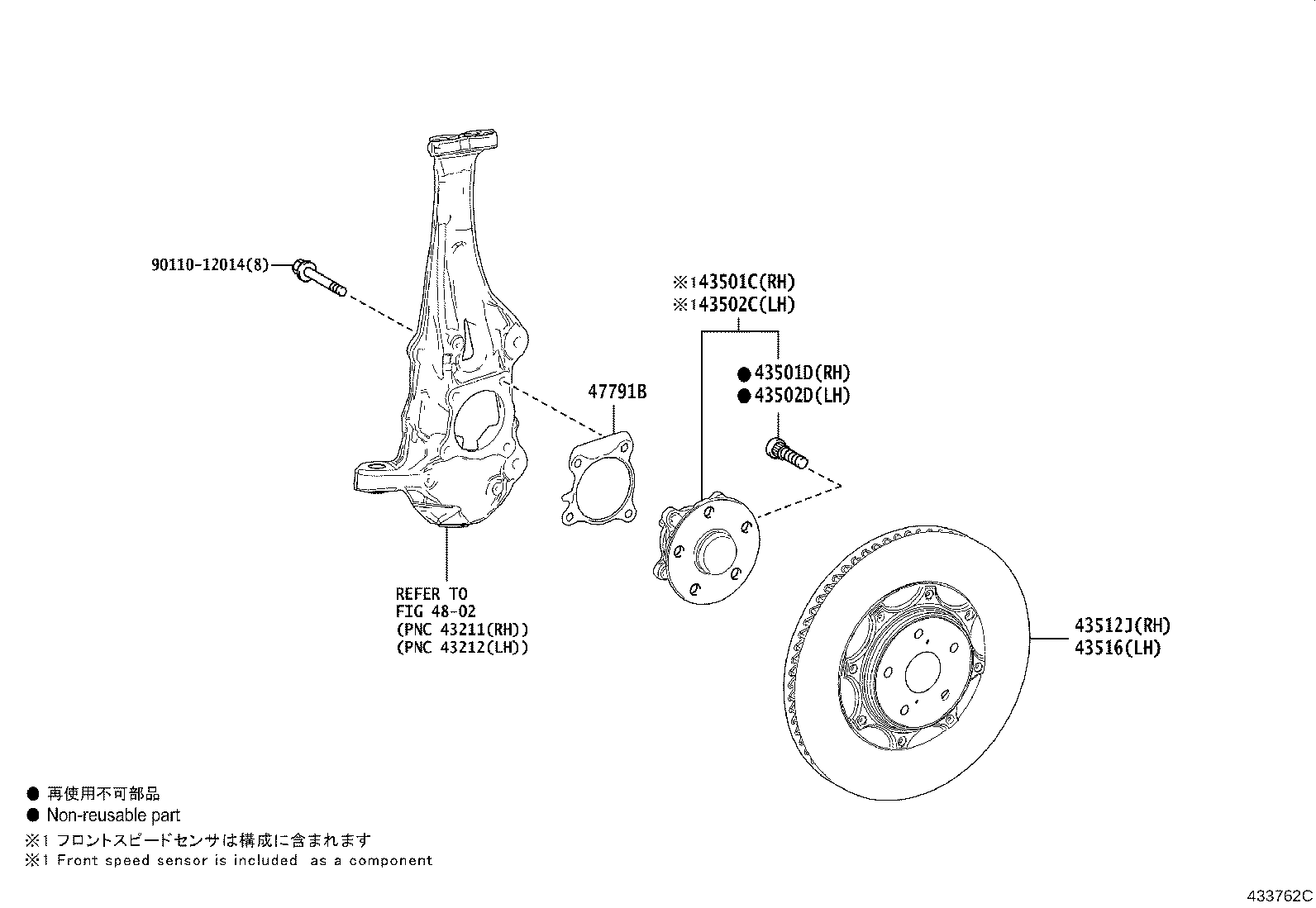

Click highlighted areas on diagram

diagram 43501C 43501D 43502C 43502D 43512J 43516 47791B 4802 9011012014
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43550-11020

GWZ100,URZ100

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02083

GWZ100,URZ100

 5
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43550-11020

GWZ100,URZ100

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02083

GWZ100,URZ100

 5
43512J - DISC, FRONT RH
43512-11010

GWZ100,URZ100

 1
43516 - DISC, FRONT LH
43516-11010

GWZ100,URZ100

 1
47791B - PLATE, DISC BRAKE AIR GUIDE
47791-11010

GWZ100,URZ100

 2
Common parts
90110-12014
Linked diagrams
4802
