GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)

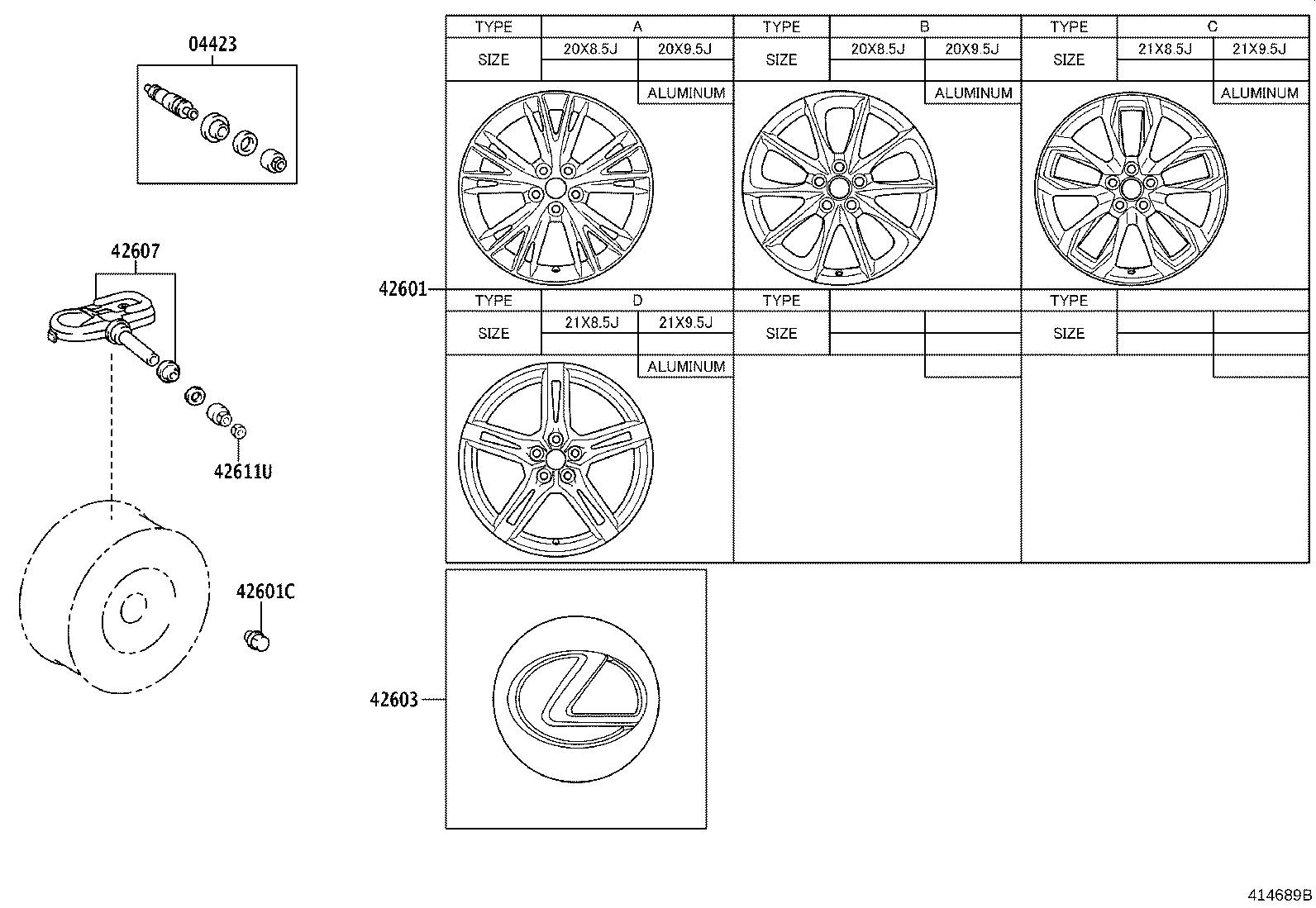

ILLUST NO. 1 OF 2(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE | ||||
| 04423-33060 |
GWZ100,URZ100 |
4 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-11130 |
GWZ100 20X9.5J,#,RR,T/P B:SEE ILLUST |
2 | ||
| 42611-11120 |
GWZ100 20X8.5J,#,FR,T/P B:SEE ILLUST |
2 | ||
| 42611-11110 |
GWZ100,URZ100 21X9.5J,BLACK PAINT,KOREA SPEC&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM,RR,T/P C:SEE ILLUST |
2 | ||
| 42611-11040 |
GWZ100 20X8.5J,#,KOREA SPEC&TIRE & DISK WHEEL-245/45 & 275/40RF20 (MACHINING),FR,T/P A:SEE ILLUST |
2 | ||
| 42611-11110 |
GWZ100,URZ100 21X9.5J,BLACK PAINT,TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM,RR,T/PC:SEE ILLUST |
2 | ||
| 42611-11090 |
GWZ100 21X8.5J,BLACK PAINT,KOREA SPEC&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM,FR,T/P C:SEE ILLUST |
2 | ||
| 42611-11090 |
GWZ100 21X8.5J,BLACK PAINT,TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM,FR,T/PC:SEE ILLUST |
2 | ||
| 42611-11060 |
GWZ100 20X9.5J,#,KOREA SPEC&TIRE & DISK WHEEL-245/45 & 275/40RF20 (MACHINING),RR,T/P A:SEE ILLUST |
2 | ||
| 42611-11160 |
GWZ100 21X9.5J,#,TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM,RR,T/P C:SEE ILLUST |
2 | ||
| 42611-WY340 |
GWZ100,URZ100 21X8.5J, #,KOREA SPEC&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM,FR,T/P D:SEE ILLUST |
2 | ||
| 42611-11160 |
GWZ100 21X9.5J,#,KOREA SPEC&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM,RR,T/P C:SEE ILLUST |
2 | ||
| 42611-WY340 |
GWZ100,URZ100 21X8.5J, #,TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM,FR,T/P D:SEE ILLUST |
2 | ||
| 4261A-11010 |
GWZ100 20X8.5J,#,FR,T/P B:SEE ILLUST |
2 | ||
| 42611-WY350 |
GWZ100,URZ100 21X9.5J, #,TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM,RR,T/P D:SEE ILLUST |
2 | ||
| 42611-11050 |
GWZ100 20X8.5J,#,KOREA SPEC&TIRE & DISK WHEEL-245/45 & 275/40RF20 (MACHINING),FR,T/P A:SEE ILLUST |
2 | ||
| 42611-WY350 |
GWZ100,URZ100 21X9.5J, #,KOREA SPEC&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM,RR,T/P D:SEE ILLUST |
2 | ||
| 4261A-11020 |
GWZ100 20X9.5J,#,RR,T/P B:SEE ILLUST |
2 | ||
| 42611-11070 |
GWZ100 20X9.5J,#,KOREA SPEC&TIRE & DISK WHEEL-245/45 & 275/40RF20 (MACHINING),RR,T/P A:SEE ILLUST |
2 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01118 |
GWZ100 TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM,BLACK CHROME PLATED |
20 | ||
| 90942-01118 |
GWZ100 BLACK CHROME PLATED |
20 | ||
| 90942-01118 |
GWZ100 TIRE & DISK WHEEL-245/45 & 275/40RF20 (MACHINING),BLACK CHROME PLATED |
20 | ||
| 90942-01111 |
GWZ100 CHROME PLATED |
20 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-53110 |
GWZ100,URZ100 *ALU |
4 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-48010 |
GWZ100,URZ100 |
4 | ||
| 42607-48020 |
GWZ100 KOREA SPEC&TIRE & DISK WHEEL-245/45 & 275/40RF20 (MACHINING) |
4 | ||
| 42607-48020 |
GWZ100,URZ100 KOREA SPEC |
4 | ||
| 42607-48020 |
GWZ100,URZ100 KOREA SPEC&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM |
4 | ||
| 42607-48020 |
GWZ100,URZ100 KOREA SPEC&TIRE & DISK WHEEL-245/40R & 275/35RF21 FORGED ALUMINUM |
4 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-05042 |
GWZ100,URZ100 |
4 | ||

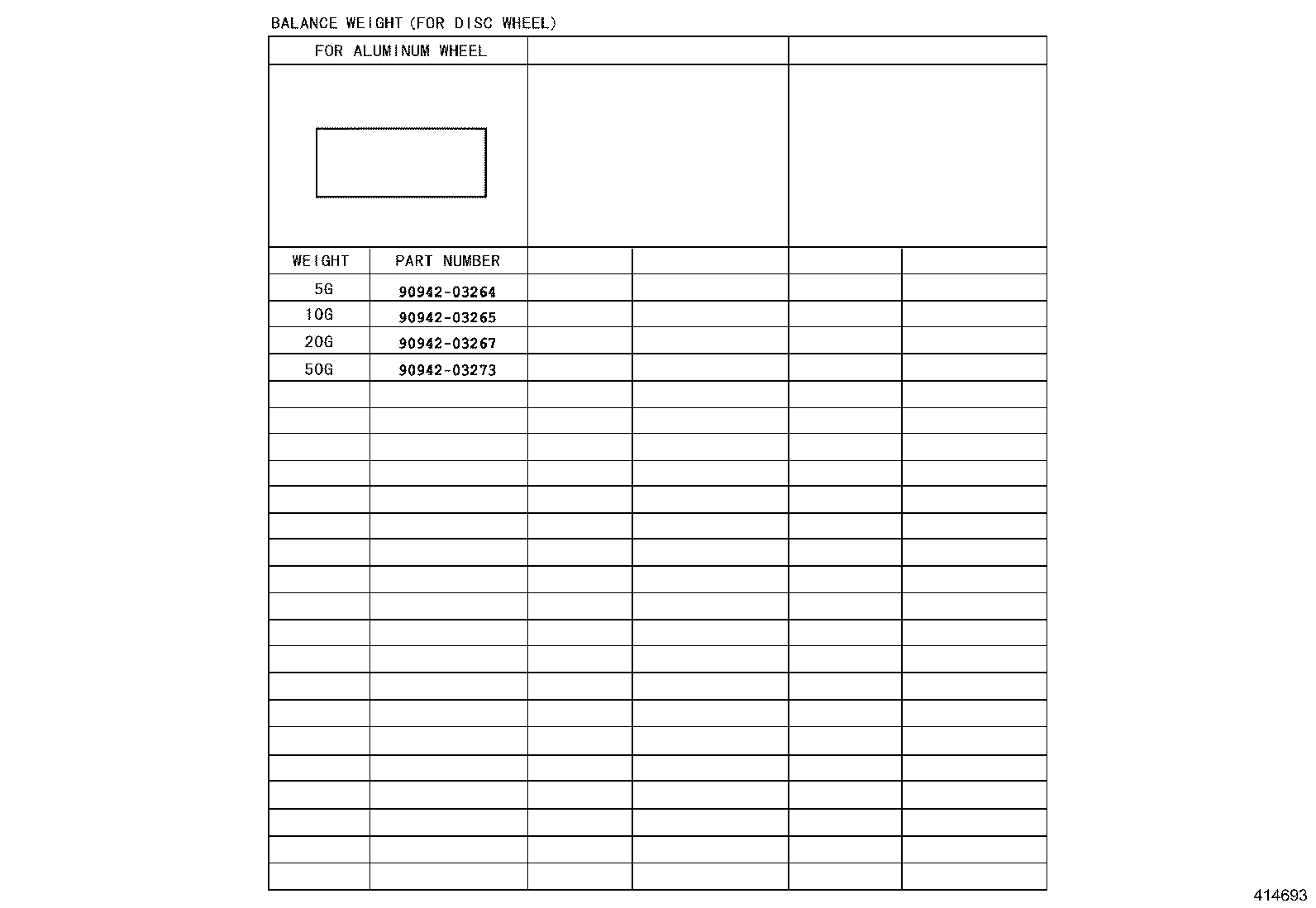

ILLUST NO. 2 OF 2(1701- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03264 | ||||
| 90942-03265 | ||||
| 90942-03267 | ||||
| 90942-03273 | ||||
