GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

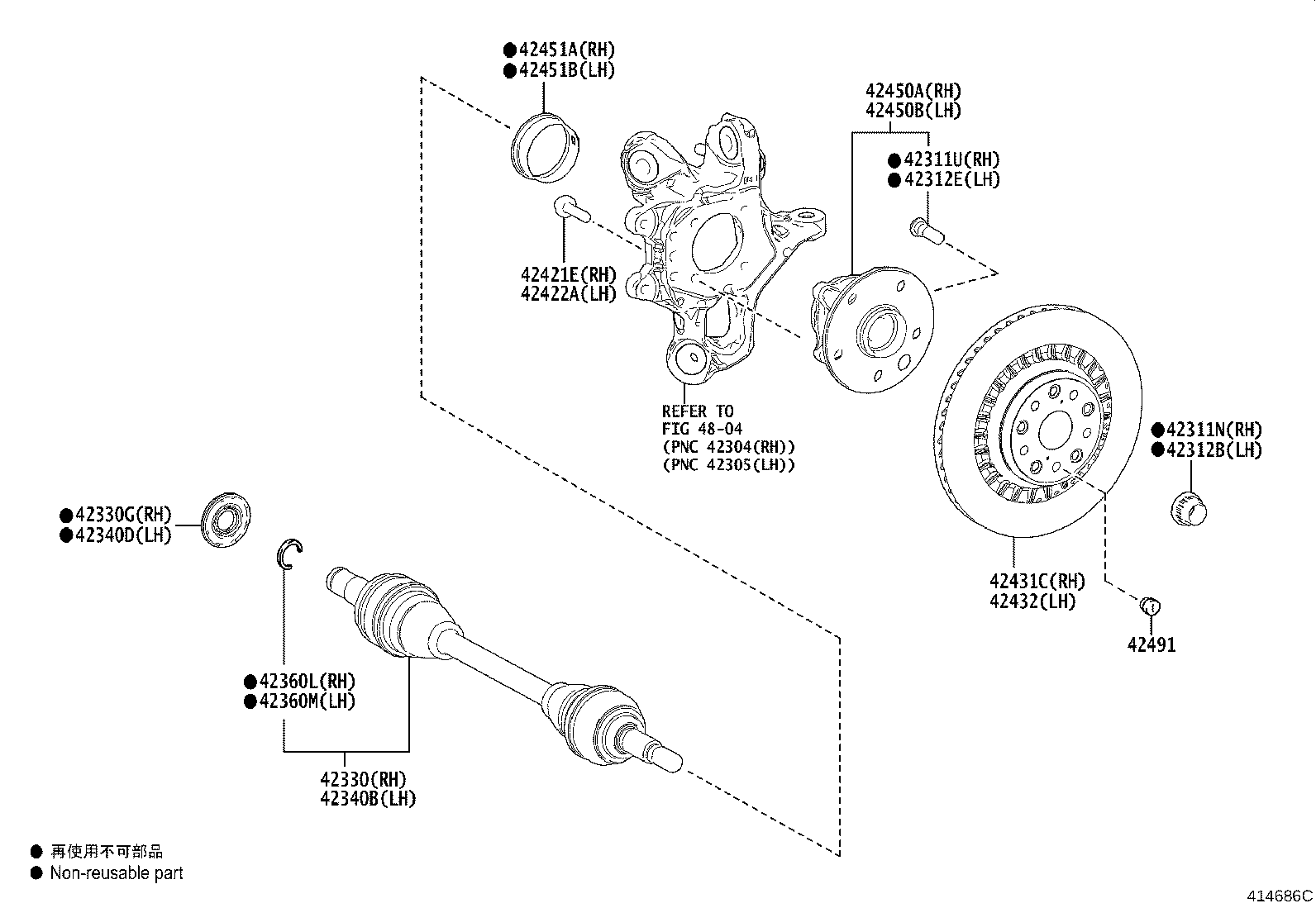

Click highlighted areas on diagram

diagram 42311N 42311U 42312B 42312E 42330 42330G 42340B 42340D 42360L 42360M 42421E 42422A 42431C 42432 42450A 42450B 42451A 42451B 42491 4804
Part # Description Qty Price
42311N - NUT (FOR REAR AXLE SHAFT RH)
90177-26001

GWZ100,URZ100

 1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02083

GWZ100,URZ100

 5
42312B - NUT (FOR REAR AXLE SHAFT LH)
90177-26001

GWZ100,URZ100

 1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02083

GWZ100,URZ100

 5
42330 - SHAFT ASSY, REAR DRIVE, RH
42330-11010

GWZ100,URZ100

 1
42330G - OIL SEAL, REAR DRIVE SHAFT, RH
90311-47031

GWZ100,URZ100

 1
42340B - SHAFT ASSY, REAR DRIVE, LH
42340-11010

GWZ100,URZ100

 1
42340D - OIL SEAL, REAR DRIVE SHAFT, LH
90311-47032

GWZ100,URZ100

 1
42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH
90521-37010

GWZ100,URZ100

 1
42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH
90521-37010

GWZ100,URZ100

 1
42421E - BOLT (FOR REAR AXLE BEARING CASE RH)
90105-12364

GWZ100,URZ100

 4
42422A - BOLT (FOR REAR AXLE BEARING CASE LH)
90105-12364

GWZ100,URZ100

 4
42431C - DISC, REAR RH
42431-11020

GWZ100,URZ100

 1
42432 - DISC, REAR LH
42432-11010

GWZ100,URZ100

 1
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42410-50042

GWZ100,URZ100

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42410-50042

GWZ100,URZ100

 1
42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH
42451-50030

GWZ100,URZ100

 1
42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH
42451-50030

GWZ100,URZ100

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-50010

GWZ100,URZ100

 2
Linked diagrams
4804
