GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
Production
Jan 2017
-
Sep 9999
Engine
8GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

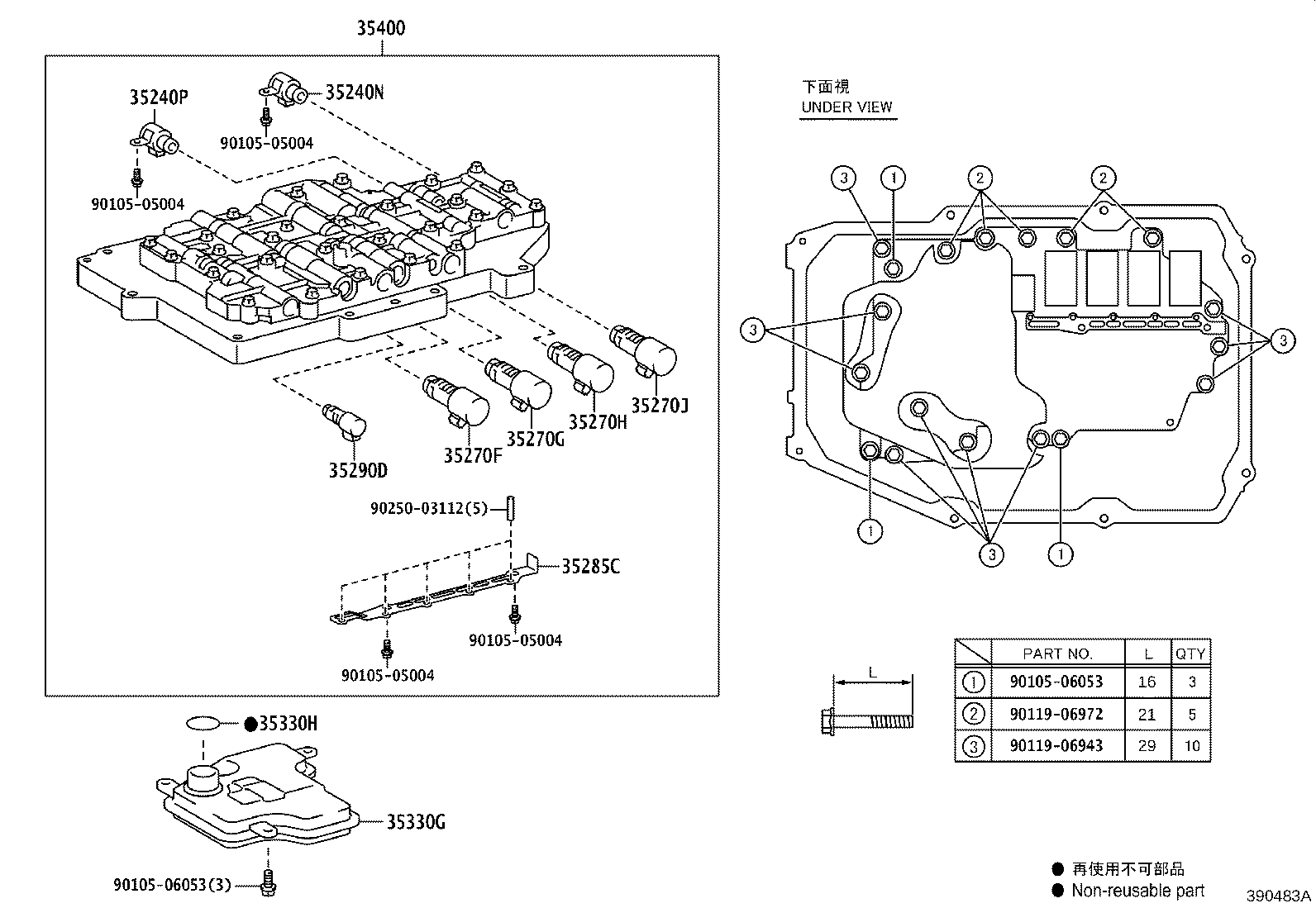

ILLUST NO. 1 OF 2(1701- )GWZ100
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35240N - VALVE, SOLENOID(SC1) | ||||
| 35240-11010 |
GWZ100 |
1 | ||
| 35240P - VALVE, SOLENOID(SC2) | ||||
| 35240-11010 |
GWZ100 |
1 | ||
| 35270F - VALVE, SOLENOID(SL1) | ||||
| 35270-11010 |
GWZ100 |
1 | ||
| 35270G - VALVE, SOLENOID(SL2) | ||||
| 35270-11010 |
GWZ100 |
1 | ||
| 35270H - VALVE, SOLENOID(SL3) | ||||
| 35270-11010 |
GWZ100 |
1 | ||
| 35270J - VALVE, SOLENOID(SL4) | ||||
| 35270-11010 |
GWZ100 |
1 | ||
| 35285C - CLAMP, SOLENOID | ||||
| 35285-11010 |
GWZ100 |
1 | ||
| 35290D - VALVE, SOLENOID(SLT) | ||||
| 35290-71020 |
GWZ100 |
1 | ||
| 35330G - STRAINER ASSY, OIL | ||||
| 35330-11010 |
GWZ100 |
1 | ||
| 35330H - RING, O (FOR OIL STRAINER) | ||||
| 90301-27010 |
GWZ100 |
1 | ||
| 35400 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35400-11010 |
GWZ100 |
1 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 90105-06053 | ||||
| 90119-06943 | ||||
| 90119-06972 | ||||
| 90250-03112 | ||||

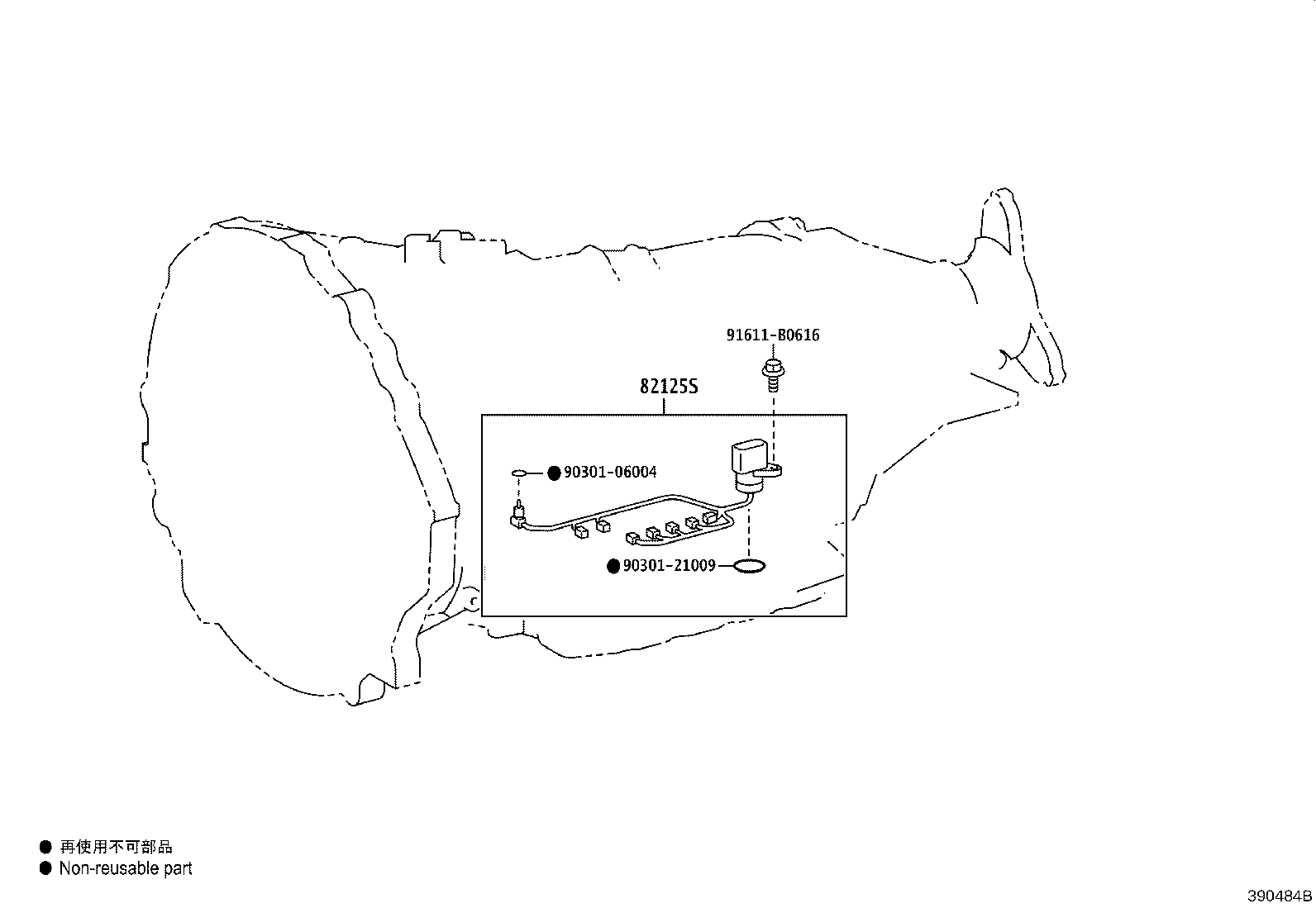

ILLUST NO. 2 OF 2(1701- )GWZ100
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125S - WIRE, TRANSMISSION | ||||
| 82125-11031 |
GWZ100 |
1 | ||
| 82125-11030 |
GWZ100 |
1 | ||
| Common parts | ||||
| 90301-06004 | ||||
| 90301-21009 | ||||
| 91611-B0616 | ||||
