GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )

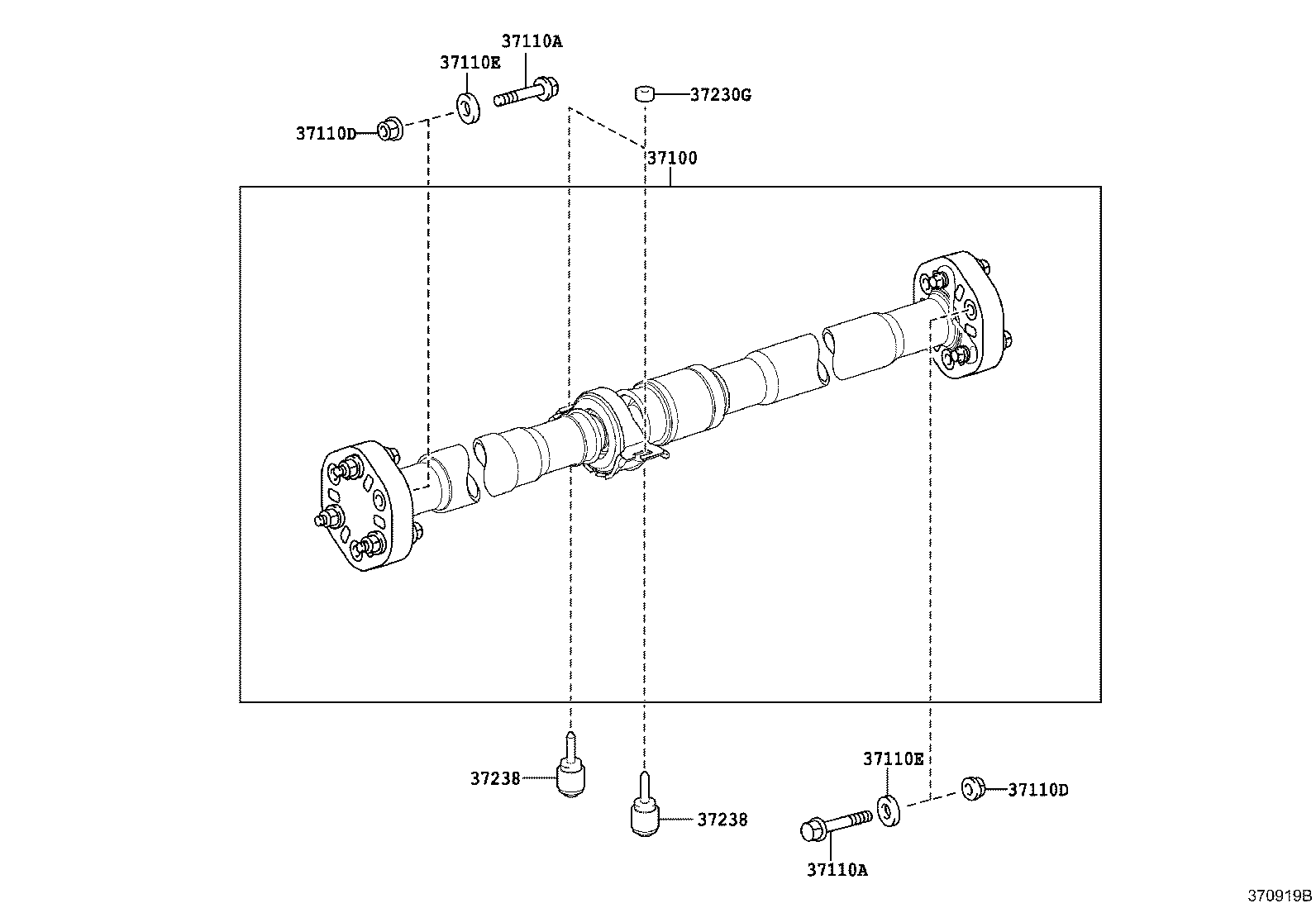

Click highlighted areas on diagram

diagram 37100 37110A 37110A 37110D 37110D 37110E 37110E 37230G 37238 37238
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-11030

GWZ100

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90105-12265

GWZ100,URZ100

*12X1.25PX59.5-20

 3
37110A - BOLT (FOR PROPELLER SHAFT)
90105-12265

GWZ100,URZ100

*12X1.25PX59.5-20

 3
37110D - NUT (FOR PROPELLER SHAFT)
90179-12128

GWZ100,URZ100

 3
37110D - NUT (FOR PROPELLER SHAFT)
90179-12128

GWZ100,URZ100

 3
37110E - WASHER (FOR PROPELLER SHAFT)
90560-12059

GWZ100,URZ100

 3
37110E - WASHER (FOR PROPELLER SHAFT)
90560-12059

GWZ100,URZ100

 3
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10017

GWZ100,URZ100

T=9.0

 2
90201-10034

GWZ100,URZ100

T=11.0

 2
37238 - DAMPER, CENTER SUPPORT BEARING
37209-30020

GWZ100,URZ100

 2
37238 - DAMPER, CENTER SUPPORT BEARING
37209-30020

GWZ100,URZ100

 2
