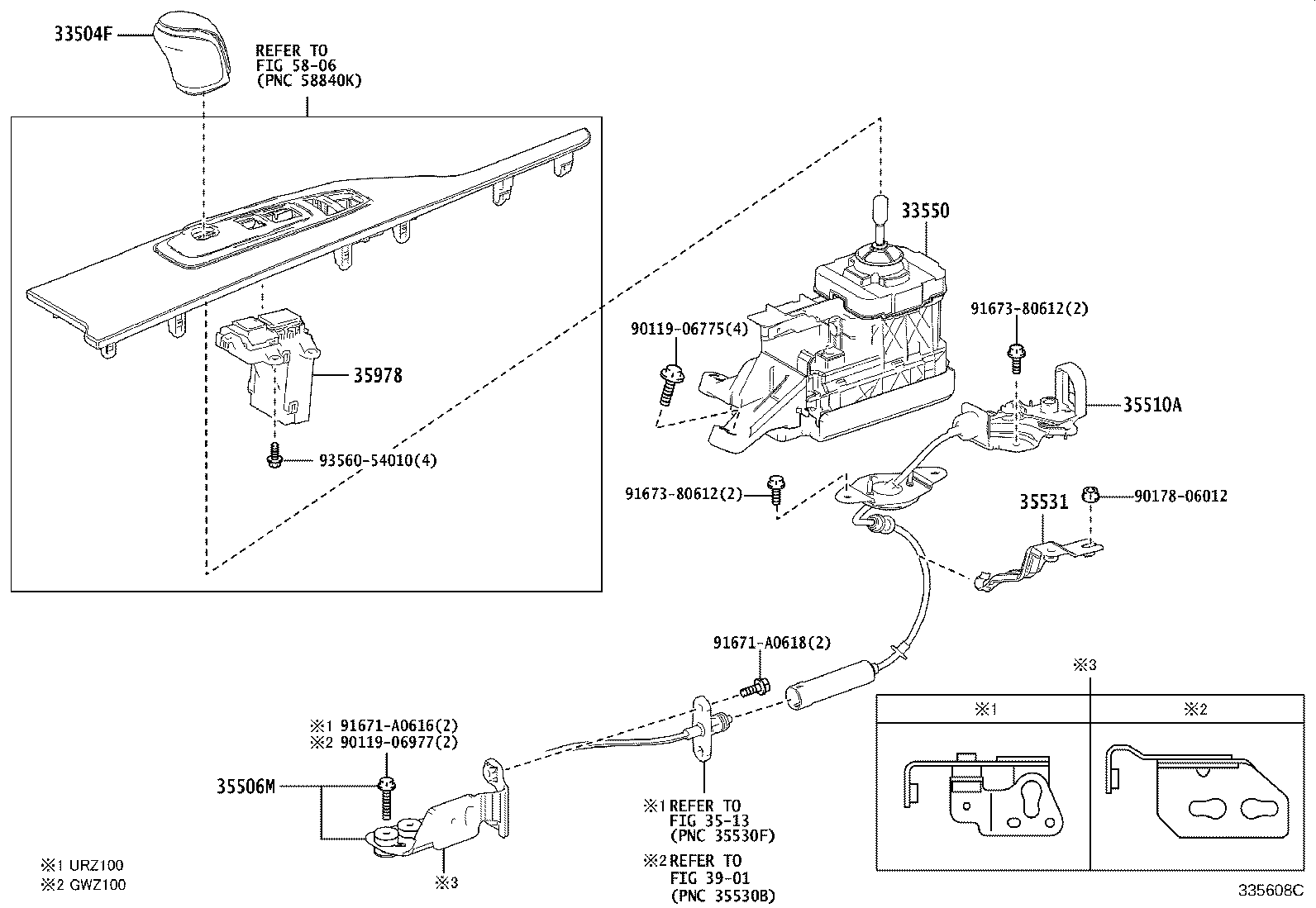

Toyota Lexus lc500/500h(cp) GWZ100 SHIFT LEVER & RETAINER

Part #	Description	Period	Qty
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-11010C1	GWZ100,URZ100 BLACK,TRIM2#,3#	01/2017 - 12/2999	1
33504-11010E3	GWZ100,URZ100 ORANGE,TRIM42	04/2020 - 12/2999	1
33504-11010E0	GWZ100,URZ100 OCHRE,TRIM4#	01/2017 - 04/2020	1
33504-11010J0	GWZ100,URZ100 BLUE,TRIM8#	01/2017 - 04/2020	1
33504-11010E0	GWZ100,URZ100 OCHRE,TRIM40	04/2020 - 12/2999	1
33504-11050C0	GWZ100,URZ100 "AVIATION"*(D),BLACK,TRIM2#	01/2021 - 10/2021	1
33504-11030E0	GWZ100,URZ100 STRUCTURAL BLUE*(A),KUROKOHAKU,TRIM4#	09/2019 - 04/2020	1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-11010	GWZ100,URZ100	01/2017 - 12/2999	1
35506M - BRACKET SUB-ASSY, PARKING RELEASE CABLE, NO.2
35506-11010	GWZ100	01/2017 - 02/2017	1
35506-50040	GWZ100,URZ100	03/2017 - 12/2999	1
35510A - LEVER ASSY, PARKING LOCK RELEASE
35510-11020	GWZ100	01/2017 - 02/2017	1
35510-11080	GWZ100,URZ100	09/2018 - 12/2999	1
35510-11060	GWZ100,URZ100	03/2017 - 08/2018	1
35531 - BRACKET, PARKING LOCK RELEASE CABLE CLAMP, NO.1
35531-11030	GWZ100,URZ100	03/2017 - 12/2999	1
35531-11010	GWZ100	01/2017 - 02/2017	1
35978 - INDICATOR, SHIFT POSITION
35978-11010	GWZ100,URZ100	01/2017 - 12/2999	1
Common parts
90119-06775
90119-06977
90178-06012
91671-A0616
91671-A0618
91673-80612
93560-54010
Linked diagrams
3513
3901
5806

GWZ100L-ACVBBA (2017)
