GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )8GRFXS

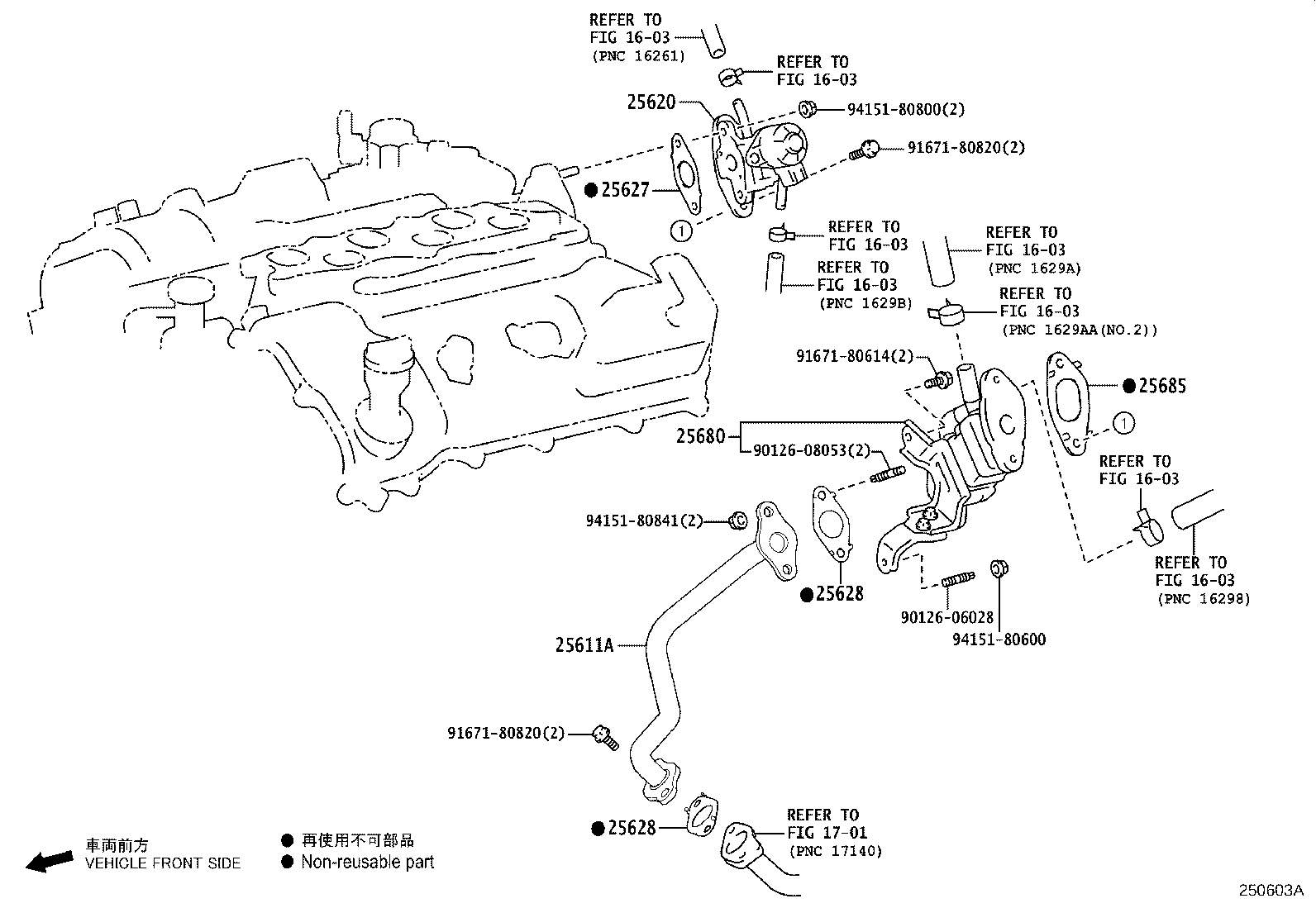

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1603 1603 1701 25611A 25620 25627 25628 25628 25680 25685 9012606028 9012608053 9167180614 9167180820 9167180820 9415180600 9415180800 9415180841
Part # Description Qty Price
25611A - PIPE, EGR, NO.1
25611-31080

8GRFXS..GWZ100

 1
25620 - VALVE ASSY, EGR
25620-31100

8GRFXS..GWZ100

 1
25627 - GASKET, EGR VALVE
25627-31050

8GRFXS..GWZ100

 1
25628 - GASKET, EGR INLET
25628-31040

8GRFXS..GWZ100

 2
25628 - GASKET, EGR INLET
25628-31040

8GRFXS..GWZ100

 2
25680 - COOLER ASSY, EGR
25680-31070

8GRFXS..GWZ100

 1
25685 - GASKET, EGR COOLER, NO.1
25685-31010

8GRFXS..GWZ100

 1
Common parts
90126-06028
90126-08053
91671-80614
91671-80820
94151-80600
94151-80800
94151-80841
