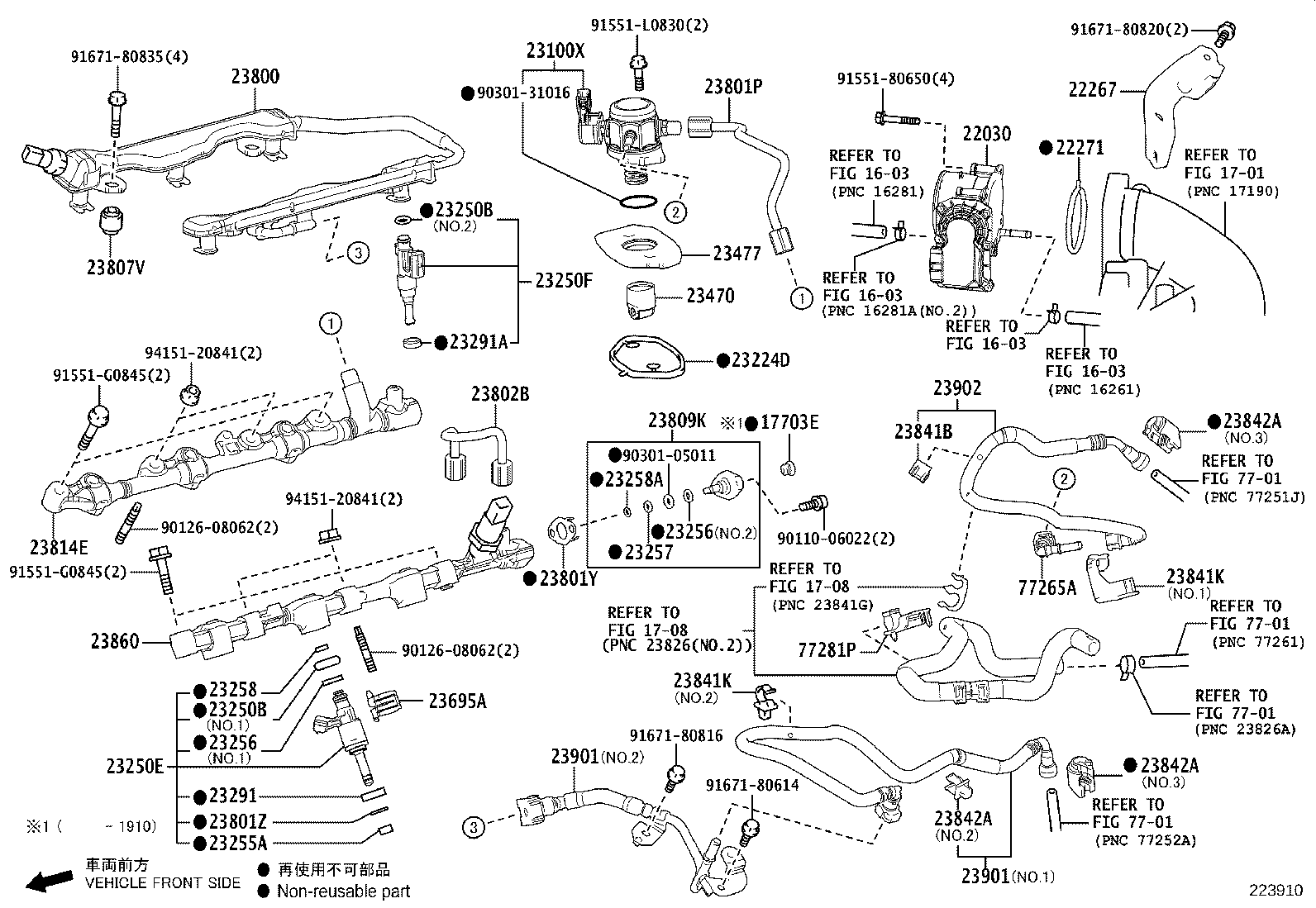

GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
(1701- )8GRFXS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17703E - CAP SUB-ASSY, DUST | ||||
| 17703-47010 |
8GRFXS..GWZ100 |
1 | ||
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-31100 |
8GRFXS..GWZ100 |
1 | ||
| 22267 - BRACKET, THROTTLE BODY | ||||
| 22267-31090 |
8GRFXS..GWZ100 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-31040 |
8GRFXS..GWZ100 |
1 | ||
| 23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE) | ||||
| 23101-31110 |
8GRFXS..GWZ100 |
1 | ||
| 23224D - GASKET, FUEL PUMP SPACER | ||||
| 23224-31020 |
8GRFXS..GWZ100 |
1 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-05013 |
8GRFXS..GWZ100 NO.1 |
6 | ||
| 90301-05011 |
8GRFXS..GWZ100 NO.1 |
6 | ||
| 90301-07037 |
8GRFXS..GWZ100 NO.2 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-05013 |
8GRFXS..GWZ100 NO.1 |
6 | ||
| 90301-05011 |
8GRFXS..GWZ100 NO.1 |
6 | ||
| 90301-07037 |
8GRFXS..GWZ100 NO.2 |
6 | ||
| 23250E - INJECTOR ASSY, FUEL(FOR DIRECT) | ||||
| 23209-3117006 |
8GRFXS..GWZ100 MARK 6,REFER REPAIR MANUAL |
6 | ||
| 23209-3117007 |
8GRFXS..GWZ100 MARK 7,REFER REPAIR MANUAL |
6 | ||
| 23209-3117008 |
8GRFXS..GWZ100 MARK 8,REFER REPAIR MANUAL |
6 | ||
| 23250F - INJECTOR ASSY, FUEL(FOR PORT) | ||||
| 23209-39325 |
8GRFXS..GWZ100 |
6 | ||
| 23255A - SEAL, FUEL INJECTOR | ||||
| 23255-31020 |
8GRFXS..GWZ100 |
6 | ||
| 23255-31030 |
8GRFXS..GWZ100 |
6 | ||
| 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 | ||||
| 23256-31010 |
8GRFXS..GWZ100 NO.1 |
6 | ||
| 23256-25010 |
8GRFXS..GWZ100 NO.1 |
6 | ||
| 23256-31010 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 | ||||
| 23256-31010 |
8GRFXS..GWZ100 NO.1 |
6 | ||
| 23256-25010 |
8GRFXS..GWZ100 NO.1 |
6 | ||
| 23256-31010 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 23257 - RING, FUEL INJECTOR BACK-UP, NO.2 | ||||
| 23257-47010 |
8GRFXS..GWZ100 |
1 | ||
| 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 | ||||
| 23258-31020 |
8GRFXS..GWZ100 |
6 | ||
| 23258A - RING, FUEL PIPE, NO.3 | ||||
| 23258-31010 |
8GRFXS..GWZ100 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-31030 |
8GRFXS..GWZ100 |
6 | ||
| 23291A - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-28020 |
8GRFXS..GWZ100 |
6 | ||
| 23291-23010 |
8GRFXS..GWZ100 |
6 | ||
| 23470 - LIFTER ASSY, FUEL PUMP | ||||
| 23470-31010 |
8GRFXS..GWZ100 |
1 | ||
| 23470-25010 |
8GRFXS..GWZ100 |
1 | ||
| 23477 - GUIDE, FUEL PUMP LIFTER | ||||
| 23477-31020 |
8GRFXS..GWZ100 |
1 | ||
| 23695A - CLAMP, NOZZLE HOLDER | ||||
| 23695-31020 |
8GRFXS..GWZ100 |
6 | ||
| 23800 - PIPE ASSY, FUEL DELIVERY W/SENSOR | ||||
| 23800-31030 |
8GRFXS..GWZ100 |
1 | ||
| 23800-31060 |
8GRFXS..GWZ100 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-31210 |
8GRFXS..GWZ100 |
1 | ||
| 23801Y - GASKET | ||||
| 23893-47010 |
8GRFXS..GWZ100 |
1 | ||
| 23801Z - RING, SNAP(FOR FUEL PIPE) | ||||
| 90520-14004 |
8GRFXS..GWZ100 |
6 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-31160 |
8GRFXS..GWZ100 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08023 |
8GRFXS..GWZ100 |
4 | ||
| 23809K - PLUG SUB-ASSY, FUEL PIPE | ||||
| 23809-47010 |
8GRFXS..GWZ100 |
1 | ||
| 23814E - PIPE, FUEL DELIVERY, RH | ||||
| 23807-31110 |
8GRFXS..GWZ100 |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-31220 |
8GRFXS..GWZ100 |
1 | ||
| 23841-31170 |
8GRFXS..GWZ100 |
1 | ||
| 23841-31170 |
8GRFXS..GWZ100 |
1 | ||
| 23841K - CLAMP, FUEL PIPE | ||||
| 23841-31210 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 23841-31130 |
8GRFXS..GWZ100 NO.1 |
1 | ||
| 23841K - CLAMP, FUEL PIPE | ||||
| 23841-31210 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 23841-31130 |
8GRFXS..GWZ100 NO.1 |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-28010 |
8GRFXS..GWZ100 NO.3 |
2 | ||
| 23841-31170 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 23841-31220 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-28010 |
8GRFXS..GWZ100 NO.3 |
2 | ||
| 23841-31170 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 23841-31220 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-28010 |
8GRFXS..GWZ100 NO.3 |
2 | ||
| 23841-31170 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 23841-31220 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 23860 - PIPE ASSY, FUEL DELIVERY W/SENSOR, LH | ||||
| 23860-31030 |
8GRFXS..GWZ100 |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-31350 |
8GRFXS..GWZ100 NO.1 |
1 | ||
| 23901-31330 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-31350 |
8GRFXS..GWZ100 NO.1 |
1 | ||
| 23901-31330 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 23902 - TUBE SUB-ASSY, FUEL | ||||
| 23902-31110 |
8GRFXS..GWZ100 |
1 | ||
| 77265A - CONNECTOR, FUEL MAIN TUBE | ||||
| 77265-30030 |
GWZ100 |
1 | ||
| 77281P - CLAMP, FUEL HOSE | ||||
| 77281-11010 |
GWZ100 |
1 | ||
| Common parts | ||||
| 90110-06022 | ||||
| 90126-08062 | ||||
| 90301-05011 | ||||
| 90301-31016 | ||||
| 91551-80650 | ||||
| 91551-G0845 | ||||
| 91551-L0830 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91671-80835 | ||||
| 94151-20841 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
| 1708 | ||||
| 7701 | ||||
