GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )8GRFXS

Click highlighted areas on diagram

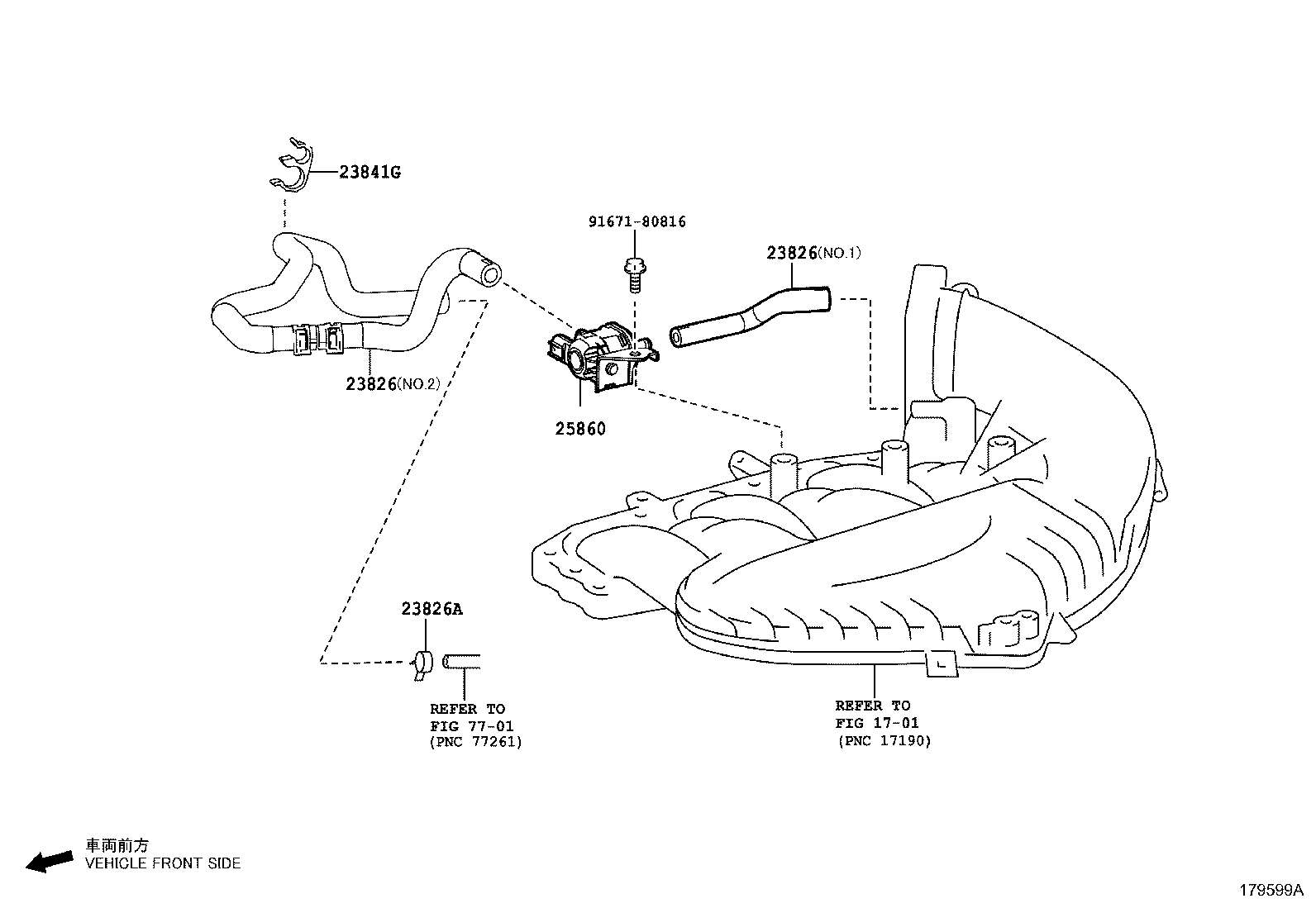

diagram 1701 23826 23826 23826A 23841G 25860 7701 9167180816
Part # Description Qty Price
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-31330

8GRFXS..GWZ100

NO.1

 1
23826-31360

8GRFXS..GWZ100

NO.2

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-31360

8GRFXS..GWZ100

NO.2

 1
23826-31330

8GRFXS..GWZ100

NO.1

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96136-41901

8GRFXS..GWZ100

 1
23841G - CLAMP, FUEL HOSE
23841-31180

8GRFXS..GWZ100

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31090

8GRFXS..GWZ100

 1
Common parts
91671-80816
Linked diagrams
1701
7701
