GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
Production
Jan 2017
-
Sep 9999
Engine
8GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )8GRFXS

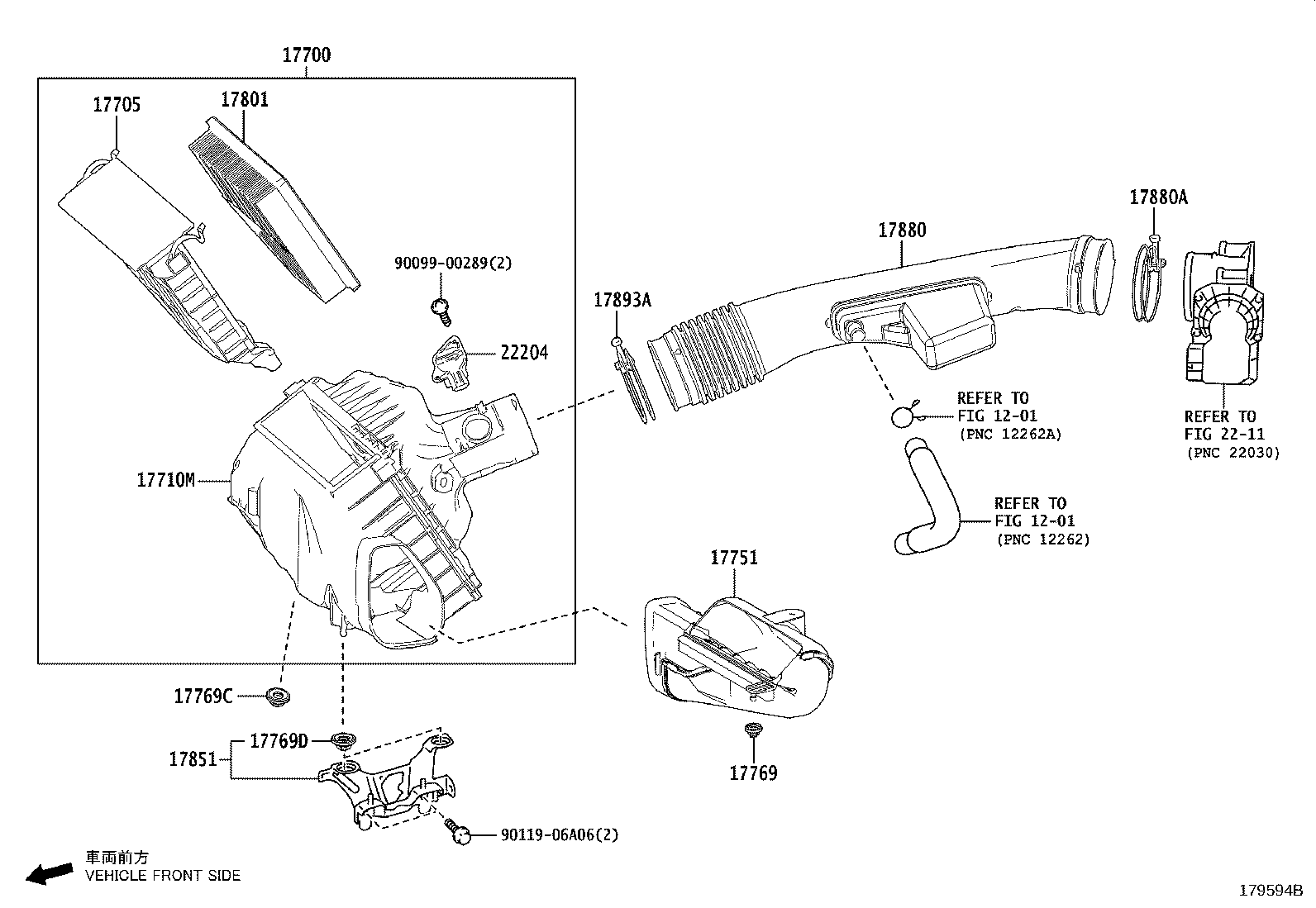

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-31B60 |
8GRFXS..GWZ100 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-31510 |
8GRFXS..GWZ100 |
1 | ||
| 17705-25140 |
8GRFXS..GWZ100 |
1 | ||
| 17710M - CLEANER ASSY, AIR (WITHOUT ELEMENT) | ||||
| 17710-31590 |
8GRFXS..GWZ100 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-31420 |
8GRFXS..GWZ100 |
1 | ||
| 17769 - SUPPORT, AIR CLEANER | ||||
| 17769-38030 |
8GRFXS..GWZ100 |
1 | ||
| 17769-25040 |
8GRFXS..GWZ100 |
1 | ||
| 17769C - SUPPORT, AIR CLEANER, NO.1 | ||||
| 17769-25010 |
8GRFXS..GWZ100 |
1 | ||
| 17769-38040 |
8GRFXS..GWZ100 |
1 | ||
| 17769D - SUPPORT, AIR CLEANER, NO.2 | ||||
| 17769-25010 |
8GRFXS..GWZ100 |
2 | ||
| 17769-38020 |
8GRFXS..GWZ100 |
2 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-31150 |
8GRFXS..GWZ100 |
1 | ||
| 17851 - BRACKET, AIR CLEANER SUPPORT | ||||
| 17850-38010 |
8GRFXS..GWZ100 |
1 | ||
| 17880 - HOSE ASSY, AIR CLEANER | ||||
| 17880-31430 |
8GRFXS..GWZ100 |
1 | ||
| 17880A - CLAMP, HOSE | ||||
| 90460-90005 |
8GRFXS..GWZ100 |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 90460-85010 |
8GRFXS..GWZ100 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-75040 |
8GRFXS..GWZ100 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06A06 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2211 | ||||
