GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )8GRFXS

Click highlighted areas on diagram

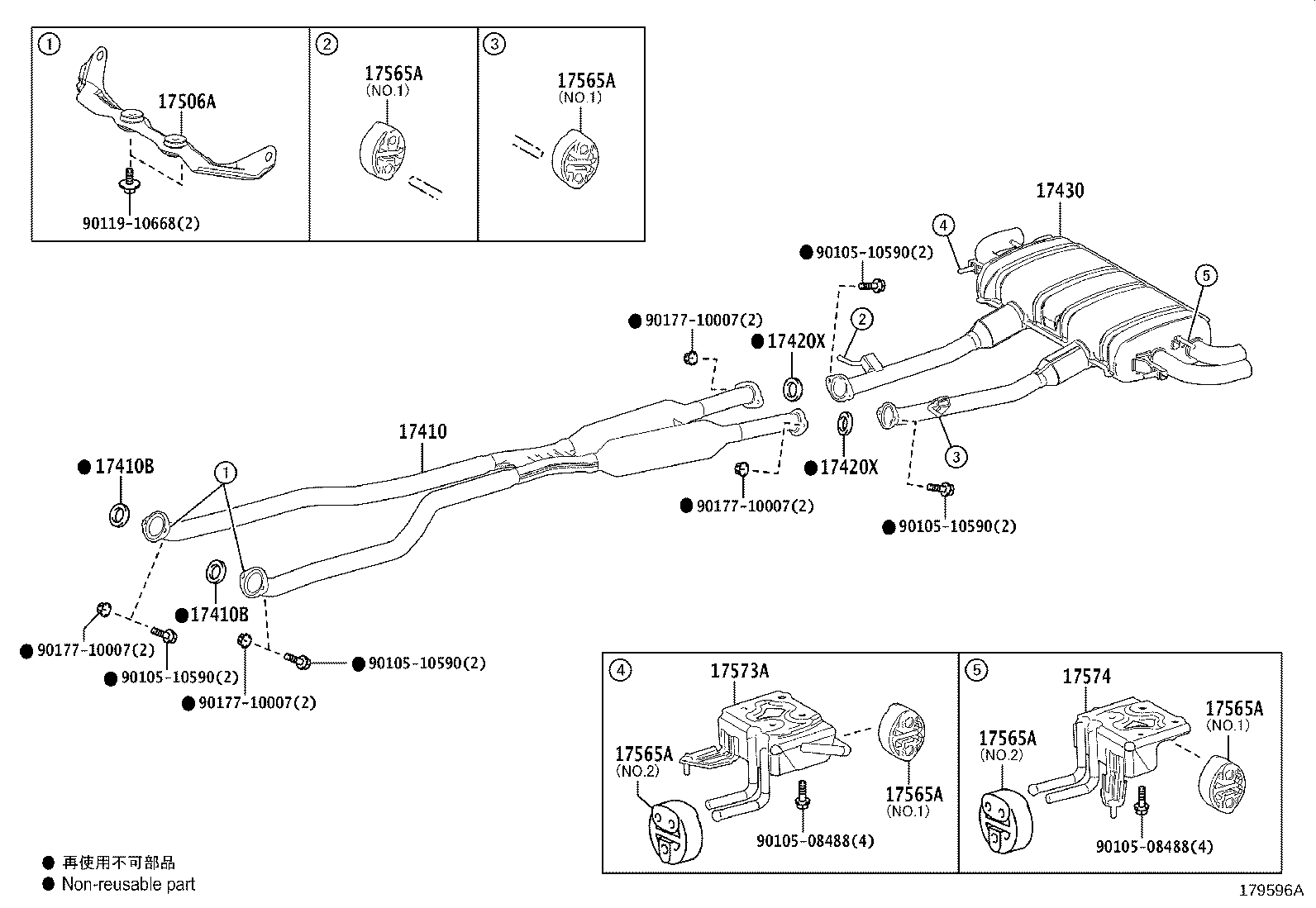

diagram 17410 17410B 17410B 17420X 17420X 17430 17506A 17565A 17565A 17565A 17565A 17565A 17565A 17573A 17574 9010508488 9010508488 9010510590 9010510590 9010510590 9010510590 9011910668 9017710007 9017710007 9017710007 9017710007
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31F20

8GRFXS..GWZ100

 1
17410B - GASKET, EXHAUST PIPE
90917-06078

8GRFXS..GWZ100

 2
17410B - GASKET, EXHAUST PIPE
90917-06078

8GRFXS..GWZ100

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06083

8GRFXS..GWZ100

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06083

8GRFXS..GWZ100

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31E51

8GRFXS..GWZ100

 1
17430-31E50

8GRFXS..GWZ100

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-31140

8GRFXS..GWZ100

 1
17506-31141

8GRFXS..GWZ100

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-31050

8GRFXS,2URGSE..GWZ100,URZ100

NO.2

 2
17565-28010

8GRFXS,2URGSE..GWZ100,URZ100

NO.1

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-31050

8GRFXS,2URGSE..GWZ100,URZ100

NO.2

 2
17565-28010

8GRFXS,2URGSE..GWZ100,URZ100

NO.1

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-31050

8GRFXS,2URGSE..GWZ100,URZ100

NO.2

 2
17565-28010

8GRFXS,2URGSE..GWZ100,URZ100

NO.1

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-31050

8GRFXS,2URGSE..GWZ100,URZ100

NO.2

 2
17565-28010

8GRFXS,2URGSE..GWZ100,URZ100

NO.1

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-31050

8GRFXS,2URGSE..GWZ100,URZ100

NO.2

 2
17565-28010

8GRFXS,2URGSE..GWZ100,URZ100

NO.1

 4
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-31050

8GRFXS,2URGSE..GWZ100,URZ100

NO.2

 2
17565-28010

8GRFXS,2URGSE..GWZ100,URZ100

NO.1

 4
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-38071

8GRFXS..GWZ100

 1
17573-38072

8GRFXS,2URGSE..GWZ100,URZ100

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-38092

8GRFXS,2URGSE..GWZ100,URZ100

 1
17574-38091

8GRFXS..GWZ100

 1
Common parts
90105-08488
90105-10590
90119-10668
90177-10007
