GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)

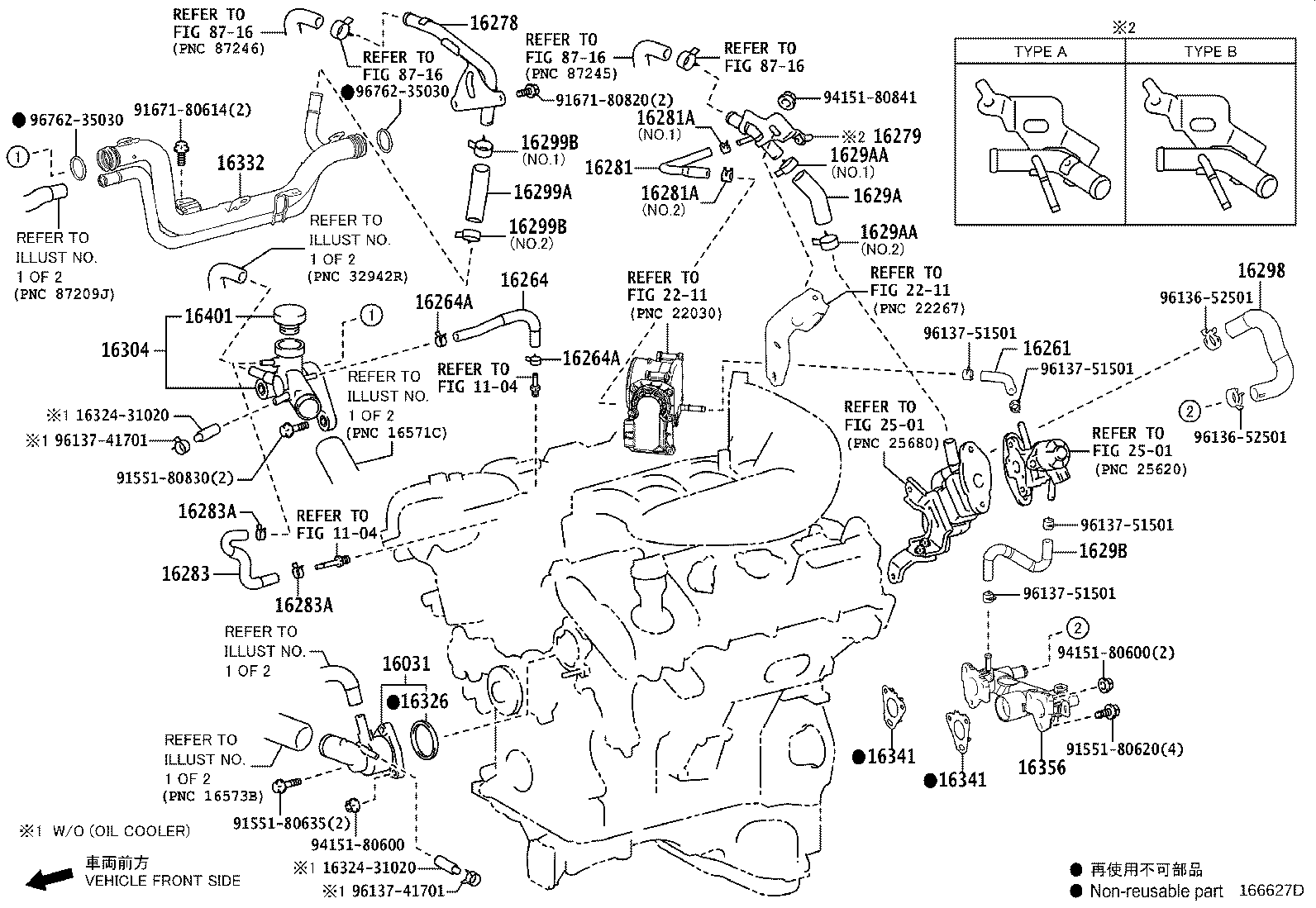

ILLUST NO. 2 OF 2(1701- )8GRFXS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-31080 |
8GRFXS..GWZ100 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-31150 |
8GRFXS..GWZ100 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31181 |
8GRFXS..GWZ100 |
1 | ||
| 16264-31180 |
8GRFXS..GWZ100 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41301 |
8GRFXS..GWZ100 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41301 |
8GRFXS..GWZ100 |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-31040 |
8GRFXS..GWZ100 |
1 | ||
| 16278-31041 |
8GRFXS..GWZ100 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-31031 |
8GRFXS..GWZ100 TYPE B:REFER ILLUST. |
1 | ||
| 16279-31030 |
8GRFXS..GWZ100 TYPE A:REFER ILLUST. |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-31131 |
8GRFXS..GWZ100 PNC 16279=TYPE B |
1 | ||
| 16281-31130 |
8GRFXS..GWZ100 PNC 16279=TYPE A |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96137-51501 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 96137-41301 |
8GRFXS..GWZ100 NO.1 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96137-51501 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 96137-41301 |
8GRFXS..GWZ100 NO.1 |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-31081 |
8GRFXS..GWZ100 |
1 | ||
| 16283-31080 |
8GRFXS..GWZ100 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96137-41301 |
8GRFXS..GWZ100 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96137-41301 |
8GRFXS..GWZ100 |
2 | ||
| 16298 - HOSE, WATER BY-PASS, NO.12 | ||||
| 16298-31020 |
8GRFXS..GWZ100 |
1 | ||
| 16299A - HOSE, WATER BY-PASS, NO.13 | ||||
| 16299-31020 |
8GRFXS..GWZ100 |
1 | ||
| 16299B - CLIP(FOR WATER BY-PASS HOSE NO.13) | ||||
| 96136-52501 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 96138-52501 |
8GRFXS..GWZ100 NO.1 |
1 | ||
| 16299B - CLIP(FOR WATER BY-PASS HOSE NO.13) | ||||
| 96136-52501 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 96138-52501 |
8GRFXS..GWZ100 NO.1 |
1 | ||
| 1629A - HOSE, WATER BY-PASS, NO.14 | ||||
| 1629A-31010 |
8GRFXS..GWZ100 |
1 | ||
| 1629AA - CLIP(FOR WATER BY-PASS HOSE NO.14) | ||||
| 96136-52501 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 96138-52501 |
8GRFXS..GWZ100 NO.1 |
1 | ||
| 1629AA - CLIP(FOR WATER BY-PASS HOSE NO.14) | ||||
| 96136-52501 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 96138-52501 |
8GRFXS..GWZ100 NO.1 |
1 | ||
| 1629B - HOSE, WATER BY-PASS, NO.15 | ||||
| 1629B-31010 |
8GRFXS..GWZ100 |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-31140 |
8GRFXS..GWZ100 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-31050 |
8GRFXS..GWZ100 |
1 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16332-31050 |
8GRFXS..GWZ100 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31030 |
8GRFXS..GWZ100 |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31030 |
8GRFXS..GWZ100 |
2 | ||
| 16356 - JOINT, WATER BY-PASS, REAR | ||||
| 16356-31080 |
8GRFXS..GWZ100 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16501-36013 |
8GRFXS..GWZ100 |
1 | ||
| Common parts | ||||
| 16324-31020 | ||||
| 91551-80620 | ||||
| 91551-80635 | ||||
| 91551-80830 | ||||
| 91671-80614 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| 94151-80841 | ||||
| 96136-52501 | ||||
| 96137-41701 | ||||
| 96137-51501 | ||||
| 96762-35030 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 2211 | ||||
| 2501 | ||||
| 8716 | ||||

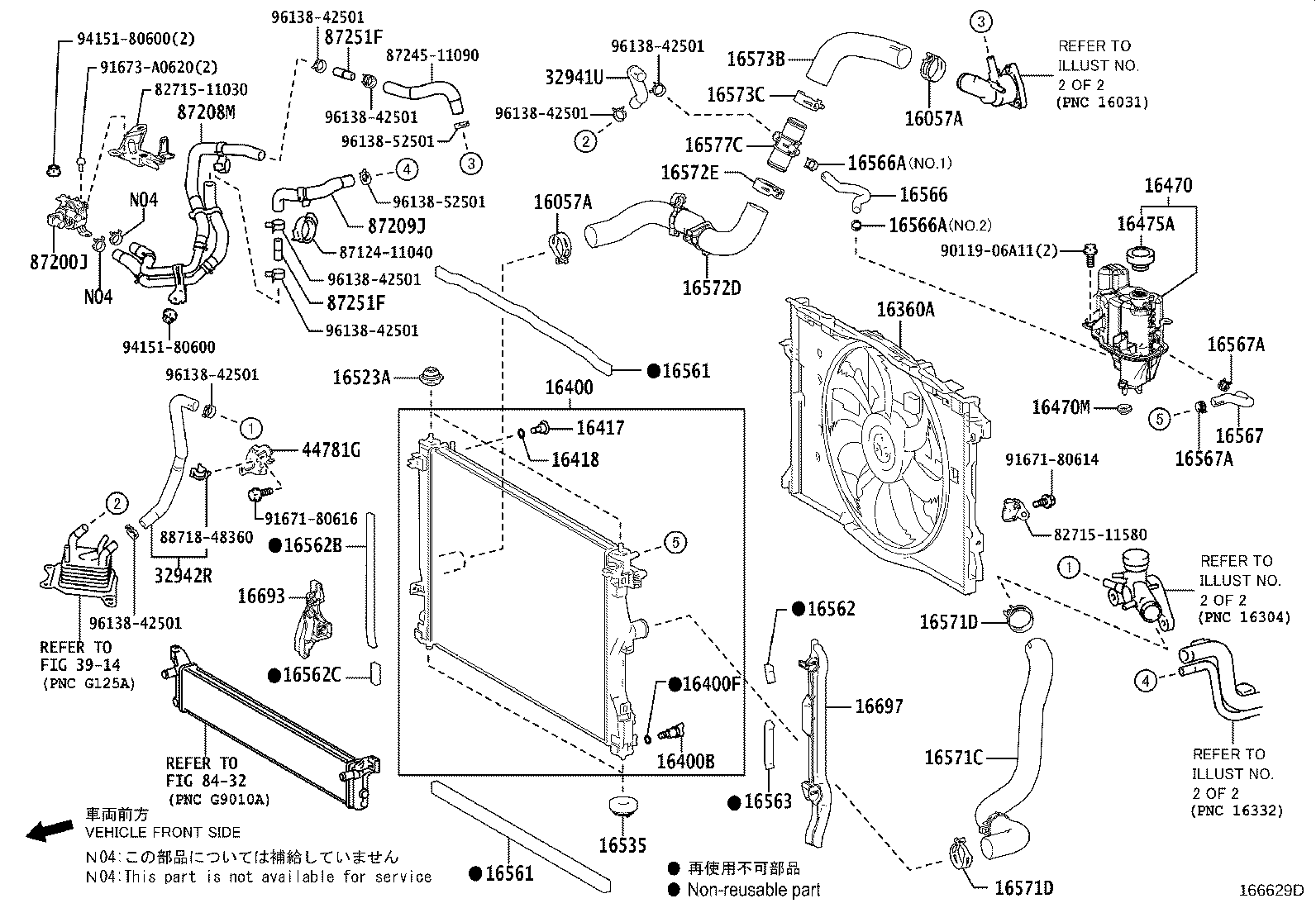

ILLUST NO. 1 OF 2(1701- )8GRFXS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16057A - CLIP, HOSE(FOR RADIATOR HOSE SUB-ASSY) | ||||
| 90466-39002 |
8GRFXS..GWZ100 |
2 | ||
| 16057A - CLIP, HOSE(FOR RADIATOR HOSE SUB-ASSY) | ||||
| 90466-39002 |
8GRFXS..GWZ100 |
2 | ||
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-31530 |
8GRFXS..GWZ100 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-31700 |
8GRFXS..GWZ100 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
8GRFXS..GWZ100 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
8GRFXS..GWZ100 |
1 | ||
| 16417 - COCK | ||||
| 16417-28530 |
8GRFXS..GWZ100 |
1 | ||
| 16418 - PACKING | ||||
| 16418-20291 |
8GRFXS..GWZ100 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-31200 |
8GRFXS..GWZ100 |
1 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
8GRFXS..GWZ100 |
1 | ||
| 16475A - CAP, RESERVE TANK | ||||
| 16475-28140 |
8GRFXS..GWZ100 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-38010 |
8GRFXS..GWZ100 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40022 |
8GRFXS..GWZ100 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-31170 |
8GRFXS..GWZ100 |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-31170 |
8GRFXS..GWZ100 |
2 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16561-31180 |
8GRFXS..GWZ100 |
1 | ||
| 16562B - SEAL, RADIATOR TO SUPPORT, NO.4 | ||||
| 16561-31200 |
8GRFXS..GWZ100 |
1 | ||
| 16562C - SEAL, RADIATOR TO SUPPORT, NO.5 | ||||
| 16561-31210 |
8GRFXS..GWZ100 |
1 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16561-31190 |
8GRFXS..GWZ100 |
1 | ||
| 16566 - HOSE, RESERVE TANK OUTLET | ||||
| 16566-31040 |
8GRFXS..GWZ100 |
1 | ||
| 16566A - CLIP(FOR RESERVE TANK OUTLET) | ||||
| 96136-41901 |
8GRFXS..GWZ100 NO.1 |
1 | ||
| 96137-41701 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 16566A - CLIP(FOR RESERVE TANK OUTLET) | ||||
| 96136-41901 |
8GRFXS..GWZ100 NO.1 |
1 | ||
| 96137-41701 |
8GRFXS..GWZ100 NO.2 |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-31050 |
8GRFXS..GWZ100 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 96136-41901 |
8GRFXS..GWZ100 |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 96136-41901 |
8GRFXS..GWZ100 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-31400 |
8GRFXS..GWZ100 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-39002 |
8GRFXS..GWZ100 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-39002 |
8GRFXS..GWZ100 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-31470 |
8GRFXS..GWZ100 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-39002 |
8GRFXS..GWZ100 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-31090 |
8GRFXS..GWZ100 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-39002 |
8GRFXS..GWZ100 |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-31050 |
8GRFXS..GWZ100 |
1 | ||
| 16693 - PLATE, RADIATOR SIDE AIR GUIDE, RR RH | ||||
| 16693-31030 |
8GRFXS..GWZ100 |
1 | ||
| 16697 - PLATE, RADIATOR SIDE AIR GUIDE, RR LH | ||||
| 16697-31030 |
8GRFXS..GWZ100 |
1 | ||
| 32941U - HOSE, OIL COOLER INLET | ||||
| 32941-11030 |
GWZ100 |
1 | ||
| 32942R - HOSE, OIL COOLER OUTLET | ||||
| 32942-11030 |
GWZ100 |
1 | ||
| 44781G - BRACKET, HOSE | ||||
| 44781-11010 |
GWZ100 |
1 | ||
| 87200J - ACCESSORY ASSY, HEATER | ||||
| 87200-11010 |
GWZ100 |
1 | ||
| 87208M - PIPE SUB-ASSY, WATER | ||||
| 87208-11010 |
GWZ100 |
1 | ||
| 87208-11011 |
GWZ100 |
1 | ||
| 87209J - HOSE SUB-ASSY, WATER | ||||
| 87209-11050 |
GWZ100 |
1 | ||
| 87251F - JOINT, WATER | ||||
| 87251-35020 |
GWZ100 |
2 | ||
| 87251F - JOINT, WATER | ||||
| 87251-35020 |
GWZ100 |
2 | ||
| Common parts | ||||
| 82715-11030 | ||||
| 82715-11580 | ||||
| 87124-11040 | ||||
| 87245-11090 | ||||
| 88718-48360 | ||||
| 90119-06A11 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91673-A0620 | ||||
| 94151-80600 | ||||
| 96138-42501 | ||||
| 96138-52501 | ||||
| Linked diagrams | ||||
| 3914 | ||||
| 8432 | ||||
