GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )8GRFXS

Click highlighted areas on diagram

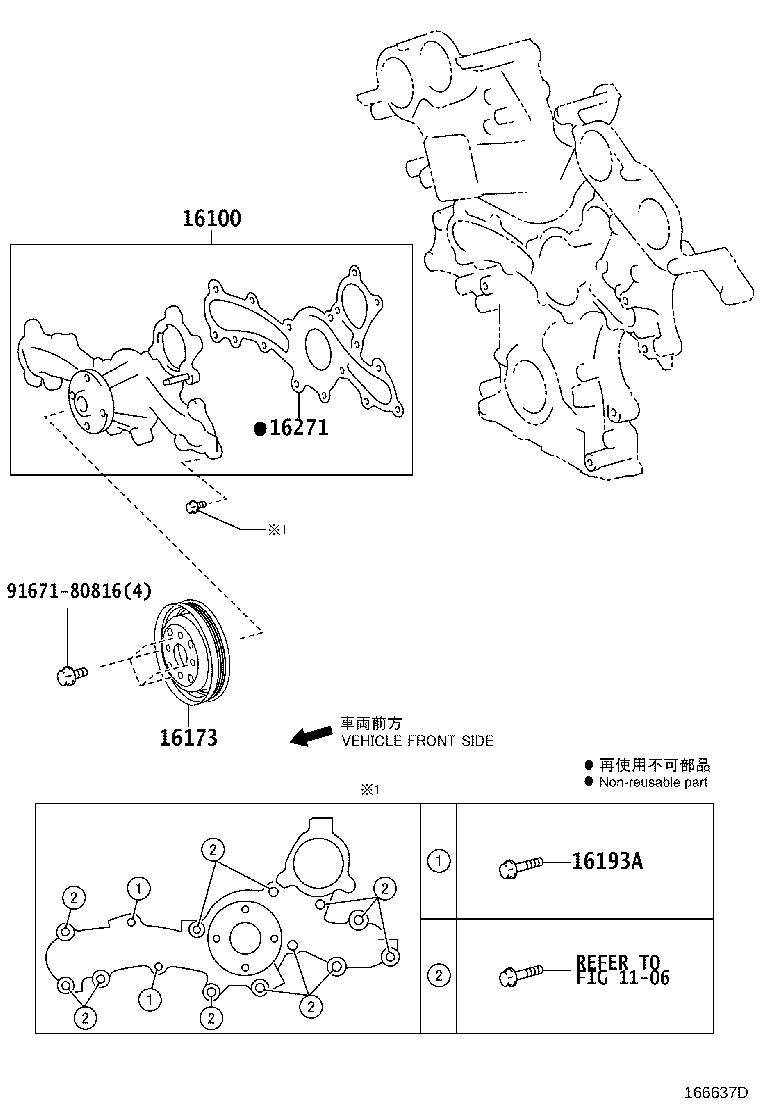

diagram 1106 16100 16173 16193A 16271 9167180816
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39615

8GRFXS..GWZ100

 1
16100-39616

8GRFXS..GWZ100

 1
16173 - PULLEY, WATER PUMP
16173-31042

8GRFXS..GWZ100

 1
16173-31040

8GRFXS..GWZ100

 1
16173-31041

8GRFXS..GWZ100

 1
16193A - BOLT(FOR WATER PUMP COVER)
16193-31080

8GRFXS..GWZ100

 2
16271 - GASKET, WATER PUMP
16271-31050

8GRFXS..GWZ100

 1
Common parts
91671-80816
Linked diagrams
1106
