GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
Production
Jan 2017
-
Sep 9999
Engine
8GRFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1701- )8GRFXS

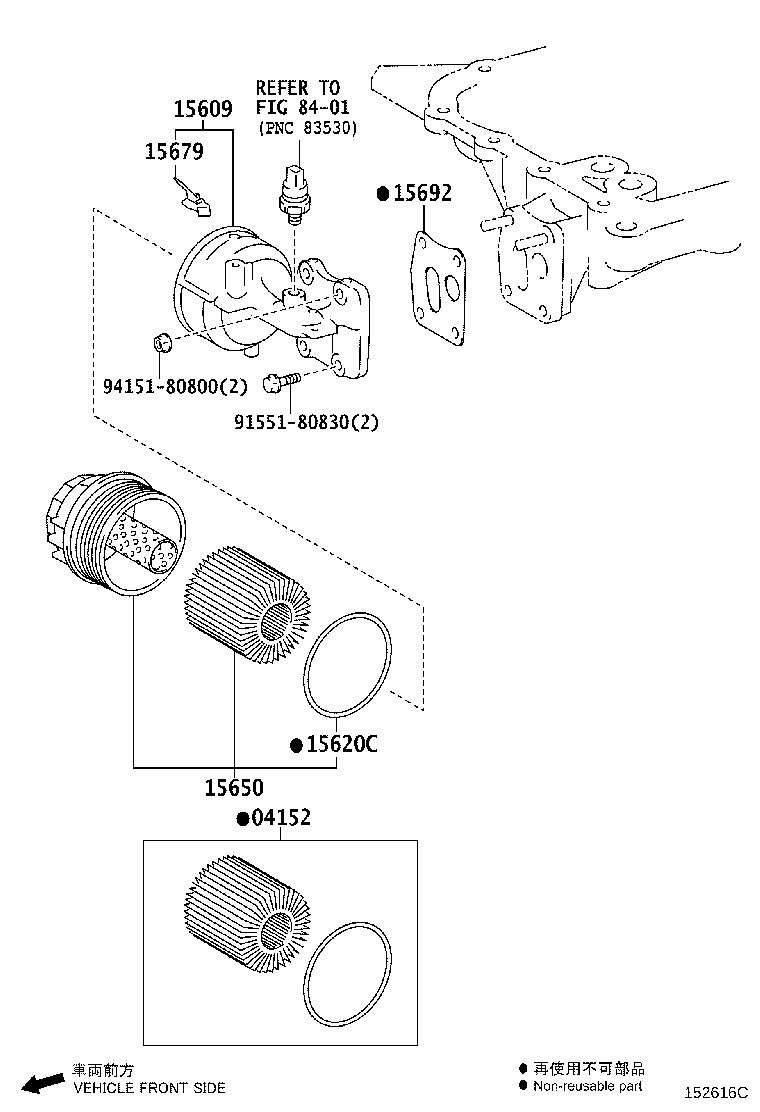

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04152 - ELEMENT KIT, OIL FILTER | ||||
| 04152-31110 |
8GRFXS..GWZ100 |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-31051 |
8GRFXS..GWZ100 |
1 | ||
| 15620C - GASKET(FOR OIL FILTER CAP) | ||||
| 90301-79006 |
8GRFXS..GWZ100 |
1 | ||
| 15650 - CAP ASSY, OIL FILTER W/ELEMEMT | ||||
| 15650-31060 |
8GRFXS..GWZ100 |
1 | ||
| 15679 - CLIP, OIL FILTER BRACKET | ||||
| 15679-37011 |
8GRFXS..GWZ100 |
1 | ||
| 15692 - GASKET, OIL FILTER BRACKET | ||||
| 15692-31080 |
8GRFXS..GWZ100 |
1 | ||
| Common parts | ||||
| 91551-80830 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
