GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )8GRFXS

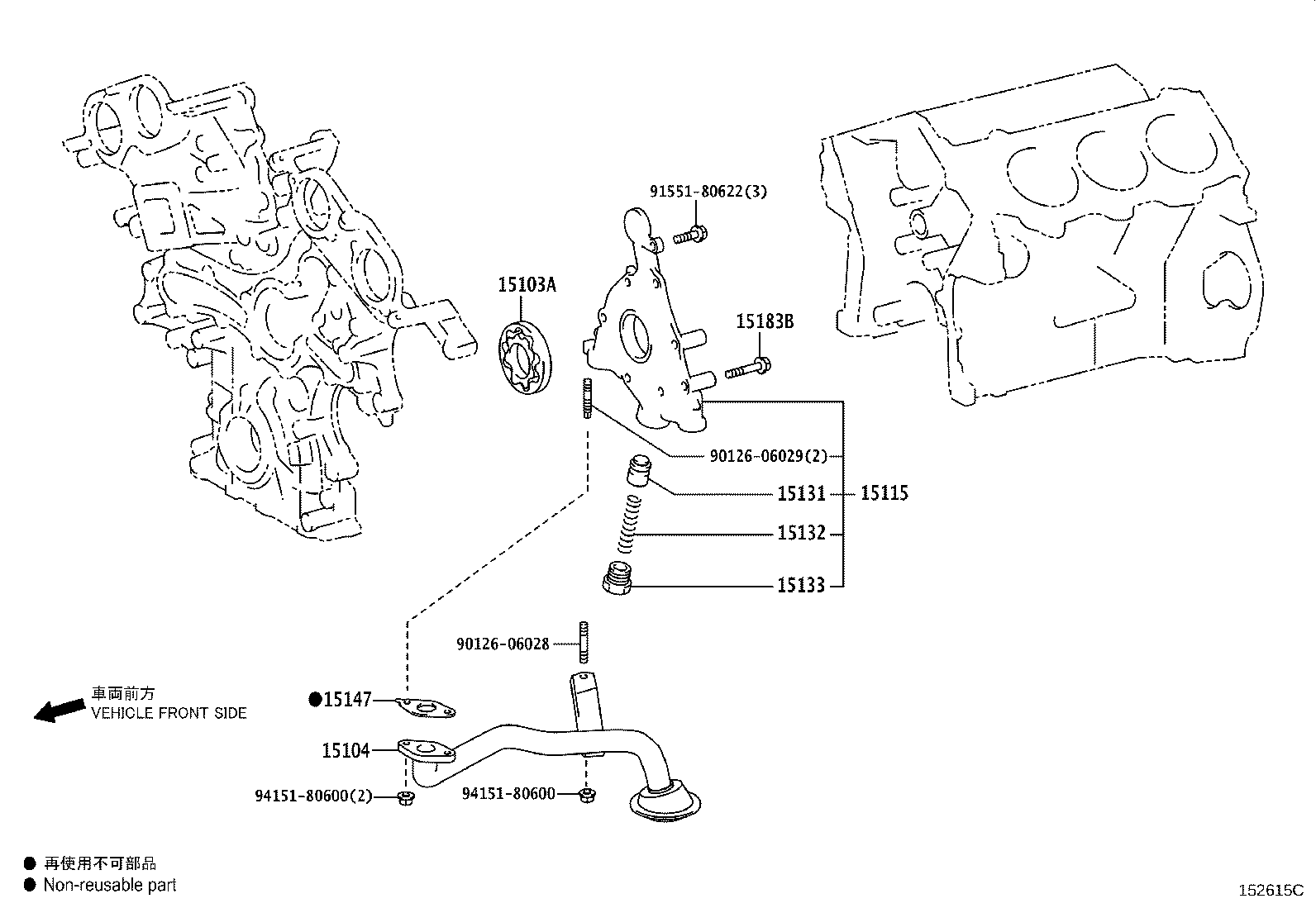

Click highlighted areas on diagram

diagram 15103A 15104 15115 15131 15132 15133 15147 15183B 9012606028 9012606029 9155180622 9415180600 9415180600
Part # Description Qty Price
15103A - ROTOR SUB-ASSY, OIL PUMP
15103-31100

8GRFXS..GWZ100

 1
15104 - STRAINER SUB-ASSY, OIL
15104-31080

8GRFXS..GWZ100

 1
15115 - COVER, OIL PUMP
15115-31130

8GRFXS..GWZ100

 1
15131 - VALVE, OIL PUMP RELIEF
15131-31100

8GRFXS..GWZ100

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-31100

8GRFXS..GWZ100

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-31100

8GRFXS..GWZ100

 1
15147 - GASKET, OIL STRAINER
15147-31060

8GRFXS..GWZ100

 1
15183B - BOLT, OIL PUMP COVER
15183-10140

8GRFXS..GWZ100

 5
Common parts
90126-06028
90126-06029
91551-80622
94151-80600
