GWZ100L-ACVBBA (2017)
Toyota Lexus Lc500/500h(Cp)
(1701- )8GRFXS

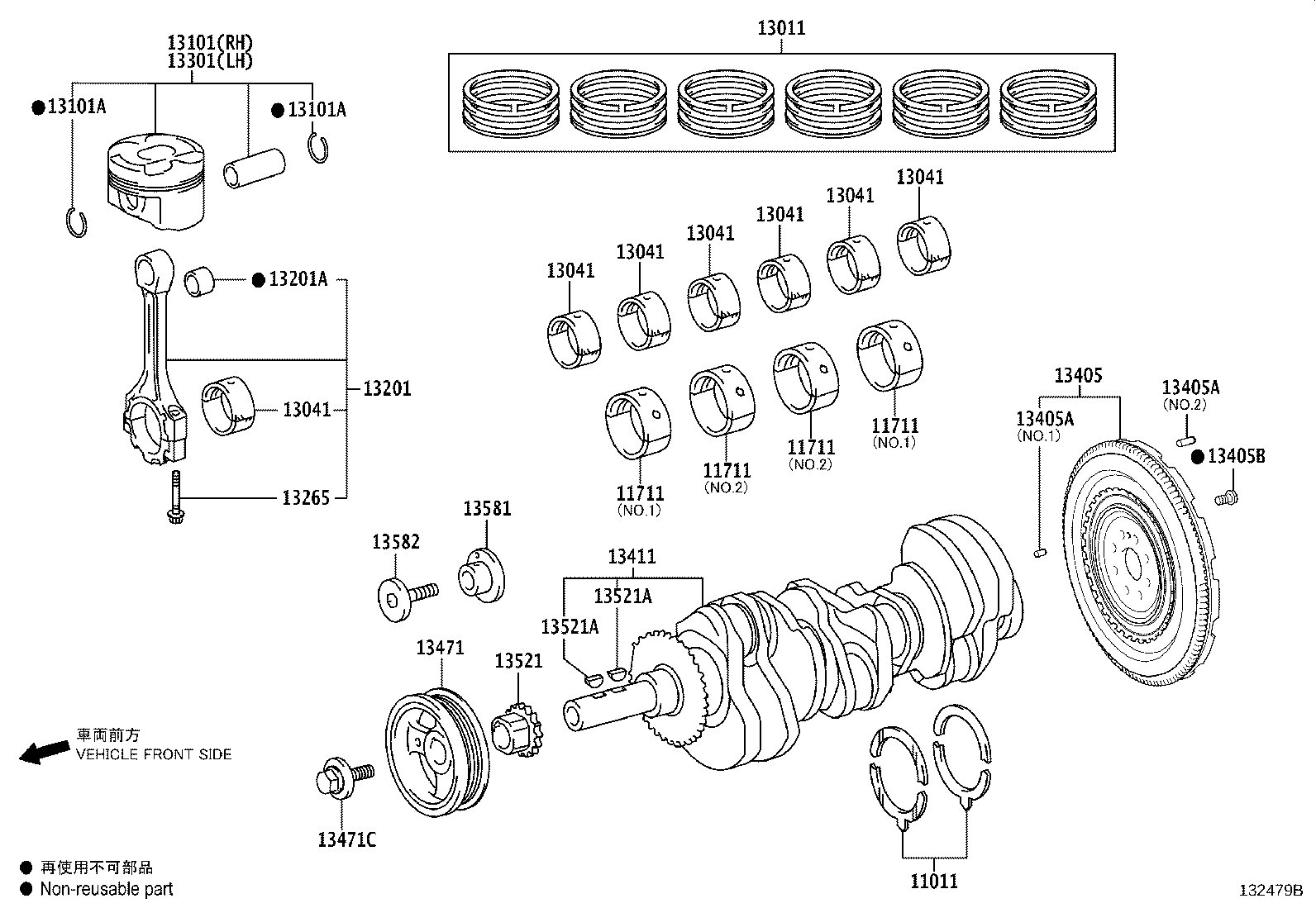

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-31080 |
8GRFXS..GWZ100 STD |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-31060C3 |
8GRFXS..GWZ100 MARK UPPER 3 LOWER 3,NO.2,REFER R/M |
2 | ||
| 11071-31060A2 |
8GRFXS..GWZ100 MARK UPPER 1 LOWER 2,NO.2,REFER R/M |
2 | ||
| 11071-31060C4 |
8GRFXS..GWZ100 MARK UPPER 3 LOWER 4,NO.2,REFER R/M |
2 | ||
| 11071-31060E5 |
8GRFXS..GWZ100 MARK UPPER 5 LOWER 5,NO.2,REFER R/M |
2 | ||
| 11071-31060D4 |
8GRFXS..GWZ100 MARK UPPER 4 LOWER 4,NO.2,REFER R/M |
2 | ||
| 11701-31100A2 |
8GRFXS..GWZ100 MARK UPPER 1 LOWER 2,NO.1,REFER R/M |
2 | ||
| 11071-31060B3 |
8GRFXS..GWZ100 MARK UPPER 2 LOWER 3,NO.2,REFER R/M |
2 | ||
| 11701-31100A1 |
8GRFXS..GWZ100 MARK UPPER 1 LOWER 1,NO.1,REFER R/M |
2 | ||
| 11701-31100D5 |
8GRFXS..GWZ100 MARK UPPER 4 LOWER 5,NO.1,REFER R/M |
2 | ||
| 11071-31060B2 |
8GRFXS..GWZ100 MARK UPPER 2 LOWER 2,NO.2,REFER R/M |
2 | ||
| 11701-31100B3 |
8GRFXS..GWZ100 MARK UPPER 2 LOWER 3,NO.1,REFER R/M |
2 | ||
| 11071-31060A1 |
8GRFXS..GWZ100 MARK UPPER 1 LOWER 1,NO.2,REFER R/M |
2 | ||
| 11701-31100D4 |
8GRFXS..GWZ100 MARK UPPER 4 LOWER 4,NO.1,REFER R/M |
2 | ||
| 11071-31060D5 |
8GRFXS..GWZ100 MARK UPPER 4 LOWER 5,NO.2,REFER R/M |
2 | ||
| 11701-31100B2 |
8GRFXS..GWZ100 MARK UPPER 2 LOWER 2,NO.1,REFER R/M |
2 | ||
| 11701-31100C4 |
8GRFXS..GWZ100 MARK UPPER 3 LOWER 4,NO.1,REFER R/M |
2 | ||
| 11701-31100C3 |
8GRFXS..GWZ100 MARK UPPER 3 LOWER 3,NO.1,REFER R/M |
2 | ||
| 11701-31100E5 |
8GRFXS..GWZ100 MARK UPPER 5 LOWER 5,NO.1,REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-31060C3 |
8GRFXS..GWZ100 MARK UPPER 3 LOWER 3,NO.2,REFER R/M |
2 | ||
| 11071-31060A2 |
8GRFXS..GWZ100 MARK UPPER 1 LOWER 2,NO.2,REFER R/M |
2 | ||
| 11071-31060C4 |
8GRFXS..GWZ100 MARK UPPER 3 LOWER 4,NO.2,REFER R/M |
2 | ||
| 11071-31060E5 |
8GRFXS..GWZ100 MARK UPPER 5 LOWER 5,NO.2,REFER R/M |
2 | ||
| 11071-31060D4 |
8GRFXS..GWZ100 MARK UPPER 4 LOWER 4,NO.2,REFER R/M |
2 | ||
| 11701-31100A2 |
8GRFXS..GWZ100 MARK UPPER 1 LOWER 2,NO.1,REFER R/M |
2 | ||
| 11071-31060B3 |
8GRFXS..GWZ100 MARK UPPER 2 LOWER 3,NO.2,REFER R/M |
2 | ||
| 11701-31100A1 |
8GRFXS..GWZ100 MARK UPPER 1 LOWER 1,NO.1,REFER R/M |
2 | ||
| 11701-31100D5 |
8GRFXS..GWZ100 MARK UPPER 4 LOWER 5,NO.1,REFER R/M |
2 | ||
| 11071-31060B2 |
8GRFXS..GWZ100 MARK UPPER 2 LOWER 2,NO.2,REFER R/M |
2 | ||
| 11701-31100B3 |
8GRFXS..GWZ100 MARK UPPER 2 LOWER 3,NO.1,REFER R/M |
2 | ||
| 11071-31060A1 |
8GRFXS..GWZ100 MARK UPPER 1 LOWER 1,NO.2,REFER R/M |
2 | ||
| 11701-31100D4 |
8GRFXS..GWZ100 MARK UPPER 4 LOWER 4,NO.1,REFER R/M |
2 | ||
| 11071-31060D5 |
8GRFXS..GWZ100 MARK UPPER 4 LOWER 5,NO.2,REFER R/M |
2 | ||
| 11701-31100B2 |
8GRFXS..GWZ100 MARK UPPER 2 LOWER 2,NO.1,REFER R/M |
2 | ||
| 11701-31100C4 |
8GRFXS..GWZ100 MARK UPPER 3 LOWER 4,NO.1,REFER R/M |
2 | ||
| 11701-31100C3 |
8GRFXS..GWZ100 MARK UPPER 3 LOWER 3,NO.1,REFER R/M |
2 | ||
| 11701-31100E5 |
8GRFXS..GWZ100 MARK UPPER 5 LOWER 5,NO.1,REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-31060C3 |
8GRFXS..GWZ100 MARK UPPER 3 LOWER 3,NO.2,REFER R/M |
2 | ||
| 11071-31060A2 |
8GRFXS..GWZ100 MARK UPPER 1 LOWER 2,NO.2,REFER R/M |
2 | ||
| 11071-31060C4 |
8GRFXS..GWZ100 MARK UPPER 3 LOWER 4,NO.2,REFER R/M |
2 | ||
| 11071-31060E5 |
8GRFXS..GWZ100 MARK UPPER 5 LOWER 5,NO.2,REFER R/M |
2 | ||
| 11071-31060D4 |
8GRFXS..GWZ100 MARK UPPER 4 LOWER 4,NO.2,REFER R/M |
2 | ||
| 11701-31100A2 |
8GRFXS..GWZ100 MARK UPPER 1 LOWER 2,NO.1,REFER R/M |
2 | ||
| 11071-31060B3 |
8GRFXS..GWZ100 MARK UPPER 2 LOWER 3,NO.2,REFER R/M |
2 | ||
| 11701-31100A1 |
8GRFXS..GWZ100 MARK UPPER 1 LOWER 1,NO.1,REFER R/M |
2 | ||
| 11701-31100D5 |
8GRFXS..GWZ100 MARK UPPER 4 LOWER 5,NO.1,REFER R/M |
2 | ||
| 11071-31060B2 |
8GRFXS..GWZ100 MARK UPPER 2 LOWER 2,NO.2,REFER R/M |
2 | ||
| 11701-31100B3 |
8GRFXS..GWZ100 MARK UPPER 2 LOWER 3,NO.1,REFER R/M |
2 | ||
| 11071-31060A1 |
8GRFXS..GWZ100 MARK UPPER 1 LOWER 1,NO.2,REFER R/M |
2 | ||
| 11701-31100D4 |
8GRFXS..GWZ100 MARK UPPER 4 LOWER 4,NO.1,REFER R/M |
2 | ||
| 11071-31060D5 |
8GRFXS..GWZ100 MARK UPPER 4 LOWER 5,NO.2,REFER R/M |
2 | ||
| 11701-31100B2 |
8GRFXS..GWZ100 MARK UPPER 2 LOWER 2,NO.1,REFER R/M |
2 | ||
| 11701-31100C4 |
8GRFXS..GWZ100 MARK UPPER 3 LOWER 4,NO.1,REFER R/M |
2 | ||
| 11701-31100C3 |
8GRFXS..GWZ100 MARK UPPER 3 LOWER 3,NO.1,REFER R/M |
2 | ||
| 11701-31100E5 |
8GRFXS..GWZ100 MARK UPPER 5 LOWER 5,NO.1,REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-31060C3 |
8GRFXS..GWZ100 MARK UPPER 3 LOWER 3,NO.2,REFER R/M |
2 | ||
| 11071-31060A2 |
8GRFXS..GWZ100 MARK UPPER 1 LOWER 2,NO.2,REFER R/M |
2 | ||
| 11071-31060C4 |
8GRFXS..GWZ100 MARK UPPER 3 LOWER 4,NO.2,REFER R/M |
2 | ||
| 11071-31060E5 |
8GRFXS..GWZ100 MARK UPPER 5 LOWER 5,NO.2,REFER R/M |
2 | ||
| 11071-31060D4 |
8GRFXS..GWZ100 MARK UPPER 4 LOWER 4,NO.2,REFER R/M |
2 | ||
| 11701-31100A2 |
8GRFXS..GWZ100 MARK UPPER 1 LOWER 2,NO.1,REFER R/M |
2 | ||
| 11071-31060B3 |
8GRFXS..GWZ100 MARK UPPER 2 LOWER 3,NO.2,REFER R/M |
2 | ||
| 11701-31100A1 |
8GRFXS..GWZ100 MARK UPPER 1 LOWER 1,NO.1,REFER R/M |
2 | ||
| 11701-31100D5 |
8GRFXS..GWZ100 MARK UPPER 4 LOWER 5,NO.1,REFER R/M |
2 | ||
| 11071-31060B2 |
8GRFXS..GWZ100 MARK UPPER 2 LOWER 2,NO.2,REFER R/M |
2 | ||
| 11701-31100B3 |
8GRFXS..GWZ100 MARK UPPER 2 LOWER 3,NO.1,REFER R/M |
2 | ||
| 11071-31060A1 |
8GRFXS..GWZ100 MARK UPPER 1 LOWER 1,NO.2,REFER R/M |
2 | ||
| 11701-31100D4 |
8GRFXS..GWZ100 MARK UPPER 4 LOWER 4,NO.1,REFER R/M |
2 | ||
| 11071-31060D5 |
8GRFXS..GWZ100 MARK UPPER 4 LOWER 5,NO.2,REFER R/M |
2 | ||
| 11701-31100B2 |
8GRFXS..GWZ100 MARK UPPER 2 LOWER 2,NO.1,REFER R/M |
2 | ||
| 11701-31100C4 |
8GRFXS..GWZ100 MARK UPPER 3 LOWER 4,NO.1,REFER R/M |
2 | ||
| 11701-31100C3 |
8GRFXS..GWZ100 MARK UPPER 3 LOWER 3,NO.1,REFER R/M |
2 | ||
| 11701-31100E5 |
8GRFXS..GWZ100 MARK UPPER 5 LOWER 5,NO.1,REFER R/M |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-31290 |
8GRFXS..GWZ100 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3110002 |
8GRFXS..GWZ100 MARK 2 |
6 | ||
| 13041-3110001 |
8GRFXS..GWZ100 MARK 1 |
6 | ||
| 13041-3110004 |
8GRFXS..GWZ100 MARK 4 |
6 | ||
| 13041-3110003 |
8GRFXS..GWZ100 MARK 3 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3110002 |
8GRFXS..GWZ100 MARK 2 |
6 | ||
| 13041-3110001 |
8GRFXS..GWZ100 MARK 1 |
6 | ||
| 13041-3110004 |
8GRFXS..GWZ100 MARK 4 |
6 | ||
| 13041-3110003 |
8GRFXS..GWZ100 MARK 3 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3110002 |
8GRFXS..GWZ100 MARK 2 |
6 | ||
| 13041-3110001 |
8GRFXS..GWZ100 MARK 1 |
6 | ||
| 13041-3110004 |
8GRFXS..GWZ100 MARK 4 |
6 | ||
| 13041-3110003 |
8GRFXS..GWZ100 MARK 3 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3110002 |
8GRFXS..GWZ100 MARK 2 |
6 | ||
| 13041-3110001 |
8GRFXS..GWZ100 MARK 1 |
6 | ||
| 13041-3110004 |
8GRFXS..GWZ100 MARK 4 |
6 | ||
| 13041-3110003 |
8GRFXS..GWZ100 MARK 3 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3110002 |
8GRFXS..GWZ100 MARK 2 |
6 | ||
| 13041-3110001 |
8GRFXS..GWZ100 MARK 1 |
6 | ||
| 13041-3110004 |
8GRFXS..GWZ100 MARK 4 |
6 | ||
| 13041-3110003 |
8GRFXS..GWZ100 MARK 3 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3110002 |
8GRFXS..GWZ100 MARK 2 |
6 | ||
| 13041-3110001 |
8GRFXS..GWZ100 MARK 1 |
6 | ||
| 13041-3110004 |
8GRFXS..GWZ100 MARK 4 |
6 | ||
| 13041-3110003 |
8GRFXS..GWZ100 MARK 3 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3110002 |
8GRFXS..GWZ100 MARK 2 |
6 | ||
| 13041-3110001 |
8GRFXS..GWZ100 MARK 1 |
6 | ||
| 13041-3110004 |
8GRFXS..GWZ100 MARK 4 |
6 | ||
| 13041-3110003 |
8GRFXS..GWZ100 MARK 3 |
6 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-31181A0 |
8GRFXS..GWZ100 STD,MARK A |
3 | ||
| 13101-31181C0 |
8GRFXS..GWZ100 STD,MARK C |
3 | ||
| 13101-31181B0 |
8GRFXS..GWZ100 STD,MARK B |
3 | ||
| 13101-31180A0 |
8GRFXS..GWZ100 STD,MARK A |
3 | ||
| 13101-31180B0 |
8GRFXS..GWZ100 STD,MARK B |
3 | ||
| 13101-31180C0 |
8GRFXS..GWZ100 STD,MARK C |
3 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
8GRFXS..GWZ100 |
12 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
8GRFXS..GWZ100 |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-39285A0 |
8GRFXS..GWZ100 MARK A |
6 | ||
| 13201-39285B0 |
8GRFXS..GWZ100 MARK B |
6 | ||
| 13201-39285C0 |
8GRFXS..GWZ100 MARK C |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73144 |
8GRFXS..GWZ100 |
6 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-28010 |
8GRFXS..GWZ100 |
12 | ||
| 13265-28020 |
8GRFXS..GWZ100 |
12 | ||
| 13301 - PISTON SUB-ASSY, W/PIN, LH | ||||
| 13301-31111A0 |
8GRFXS..GWZ100 STD,MARK A |
3 | ||
| 13301-31110B0 |
8GRFXS..GWZ100 STD,MARK B |
3 | ||
| 13301-31110A0 |
8GRFXS..GWZ100 STD,MARK A |
3 | ||
| 13301-31111B0 |
8GRFXS..GWZ100 STD,MARK B |
3 | ||
| 13301-31110C0 |
8GRFXS..GWZ100 STD,MARK C |
3 | ||
| 13301-31111C0 |
8GRFXS..GWZ100 STD,MARK C |
3 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-31150 |
8GRFXS..GWZ100 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-06027 |
8GRFXS..GWZ100 L=10,OD=6,NO.1 |
1 | ||
| 90250-08054 |
8GRFXS..GWZ100 L=23,OD=8,NO.2 |
3 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-06027 |
8GRFXS..GWZ100 L=10,OD=6,NO.1 |
1 | ||
| 90250-08054 |
8GRFXS..GWZ100 L=23,OD=8,NO.2 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10048 |
8GRFXS..GWZ100 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-31080 |
8GRFXS..GWZ100 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-31080 |
8GRFXS..GWZ100 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-16020 |
8GRFXS..GWZ100 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-31070 |
8GRFXS..GWZ100 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-30516 |
8GRFXS..GWZ100 |
2 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-30516 |
8GRFXS..GWZ100 |
2 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-31030 |
8GRFXS..GWZ100 |
1 | ||
| 13582 - SHAFT, IDLE GEAR, NO.2 | ||||
| 13582-31031 |
8GRFXS..GWZ100 |
1 | ||
