GWZ100L-ACVBBA (2017)

Toyota Lexus Lc500/500h(Cp)

Production Jan 2017 - Sep 9999
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )8GRFXS

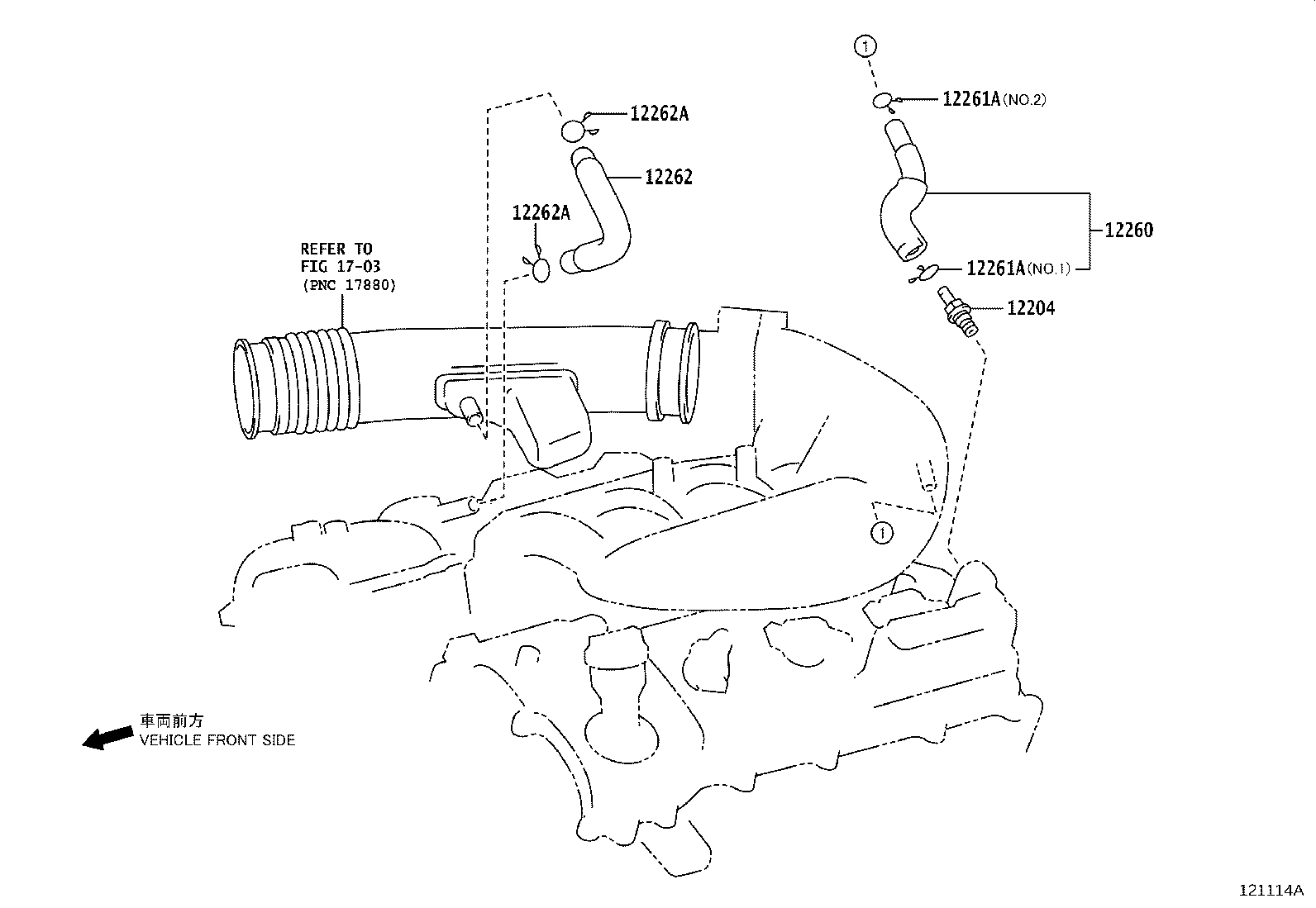

Click highlighted areas on diagram

diagram 12204 12260 12261A 12261A 12262 12262A 12262A 1703
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-31150

8GRFXS..GWZ100

 1
12260 - HOSE ASSY, VENTILATION
12260-31090

8GRFXS..GWZ100

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

8GRFXS..GWZ100

NO.2

 1
90467-14017

8GRFXS..GWZ100

NO.1

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

8GRFXS..GWZ100

NO.2

 1
90467-14017

8GRFXS..GWZ100

NO.1

 1
12262 - HOSE, VENTILATION, NO.2
12262-31200

8GRFXS..GWZ100

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

8GRFXS..GWZ100

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

8GRFXS..GWZ100

 2
Linked diagrams
1703
